Essential Hydraulic Breakers
| Offering a good price-performance ratio, our EC breakers not only offer the reliability that you expect of an Epiroc breaker, but also many of the well-known features and benefits. Our EC hydraulic hammers are your durable and reliable choice for day-to-day construction, gardening, landscaping and renovation, as well as demolition, trenching, earthwork and quarrying jobs. |
Features
- Advanced control technology - the integrated control valve optimzes efficiency, the EnergyRecovery system increases operating efficiency and lower vibrations
- Double tool retainer bars (EC90-EC155) - two oval shaped locking bars for optimum tool guidance and higher durability
- Percussion chamber ventilation (EC 90 - EC 155) - the built-in check valve reduces dust intake into the gool guiding area and the percussion chamber
- Field replaceable busing (EC 40 - EC 80) - full length floating tool bushing for quick exchange with standard hand tools
- Hybrid technology - Integrated nitrogen piston accumulator for constantly high impact energy, safe start-up and smooth operation
- Monoblock design (EC 40 - EC 135) - combined cylinder and toll holder section eliminates the need for tie rods for higher reliability. The replaceable piston liner supports cost-effective repairs
- ContiLube™ II (EC 90 - EC 155) - Optional self-bleeding automatic lubrication device for optimized grease consumption and continuous lubrication
- VibroSilenced Plus - non-metallic suspension arrangements to isolate percussion mechanism from breaker box and sealing of all openings for lower noise and vibration levels
SPECIFICTIONS

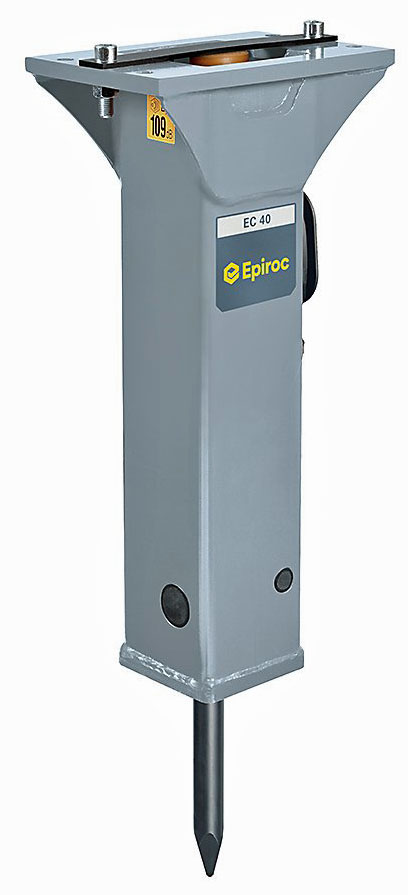

| EC 40Hydraulic Breaker | 8460050102 | QUOTE  |
| Carrier Weight Class¹ | lbs | 2240-6600 |
| Service Weight² | lbs | 209 |
| Working Tool Diameter | in | 1.65 |
| Hydraulic Input Power, Max | Hp | 10.2 |
| Oil Flow | gpm | 3.95-9.25 |
| Operating Pressure | psi | 1595-1885 |
| Impact Rate | bpm | 560-1600 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 109 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Shank Dia. (in) | Weight (lbs) | Price | ||

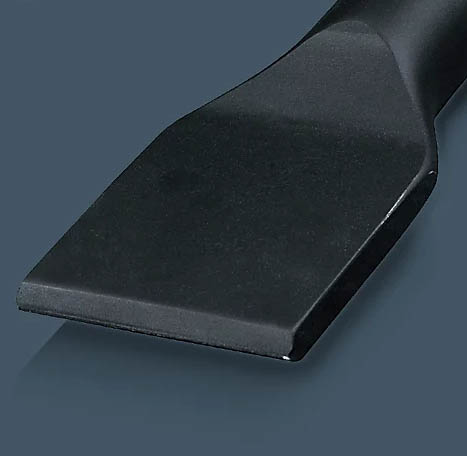

| Cross Asphalt Cutter | 3363110005 | 4.72 | 14.57 | 21.4 | $370.00
|
||

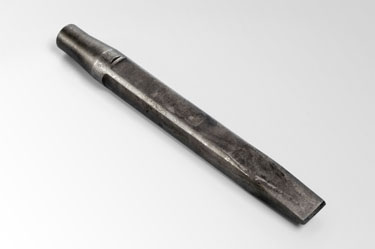

| Narrow Chisel | 3083342420 | 16.34 | 9.48 | $235.00
|
|||

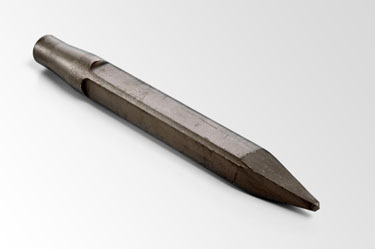

| Moil Point | 3083342421 | 10.46 | 1.73 | 1.65 | 9.9 | $235.00
|
|

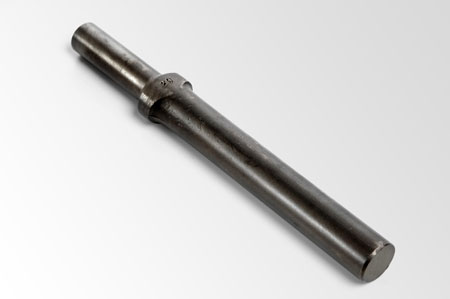

| Blunt Tool | 3083342422 | 12.6 | 19 | $245.00
|
|||

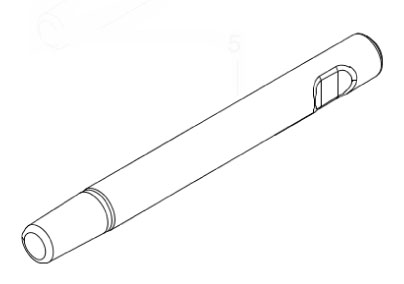

| Shaft - 16.5" | 3083342480 | 16.5 | 9.3 | $303.00
|
|||
| Square Tamping Pad | 3315370600 | 7.87 | 33.1 | $199.33
|
|||
| Round Post Driver Pad | 3315371400 | 3.94 |
7.3 |
$657.50
|
|||
| Round Pile Driver Pad | 3315372100 | 1.97 | 7.3 | QUOTE |
|||
| Pile Driver | 3315372200 | 3.94 | 11.9 | QUOTE |
|||
| Bushing Hammer - 3.15" | 3315372700 | 3.15 | 6.8 | QUOTE |
|||
| Round Bushing Pad | 3315372800 | 3.54 | 9.0 | $734.67
|
|||
| Bushing Hammer | 3315372900 | 3.15 | 11.5 | QUOTE |
|||
| Shaft - 11" | 3363125928 | 11.0 | 6.0 | QUOTE |
| Seal Kit | 3361110011 | $331.72
|
Standard Connection Hoses | |||
| Label Kit | 3382070013 | $117.45
|
Hydraulic Hose - ID 12 (0.47"), both ends M22 x 1.5, conical seal 24°, 1500mm (59.05") | 3363115420 | $120.00
|
|
| Chisel Paste Cartridge for Grease Gun (12 x 400g/0.88lbs) | 3363094913 | $250.00
|
Hydraulic Hose - ID 12 (0.47"), both ends M22 x 1.5, conical seals 24°, 1750mm (69") | 3363491001 | $50.00
|
|
| Lubricating Gun | 0909107100 | $74.72
|
Hydraulic Hose - ID 12 (0.47"), both ends 22 x 1.5, conical seals 24°, 2100mm (82.68") | 3363115421 | QUOTE |
|

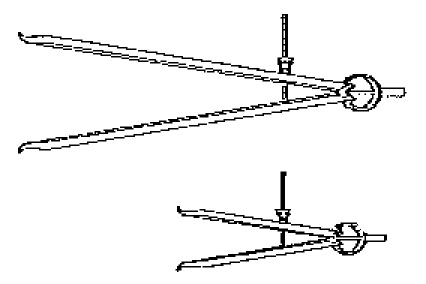

| Test Gauge for Wear Bushing | 3315303700 | $22.85
|
Heavy Duty Connection Hoses with Spring Protection | |||

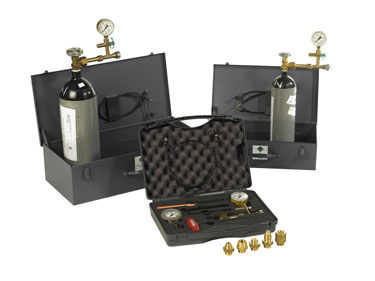

| Maintenance and Charging Box, with Nitrogen cylinder (0.53 US Gal) | 3363089844 | QUOTE |
Hydraulic Hose - ID 12 (0.47"), both ends M22 x 1.5, conical seal 24°, 1500mm (59.05") | 3363115422 | $240.00
|
|
| Maintenance and Charging Box without Nitrogen Cylinder | 3363094940 | QUOTE |
Hydraulic Hose - ID 12 (0.47"), both ends M22 x 1.5, conical seal 24°, 1750mm (69") | 3363353551 | QUOTE |
|

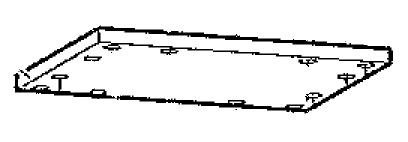

| Base Plate with Through Borings | 3362269303 | $810.78
|
Hydraulic Hose - ID 12 (0.47"), both ends M22 x 1.5, conical seal 24°, 2100mm (83") | 3363085946 | $123.49
|
|

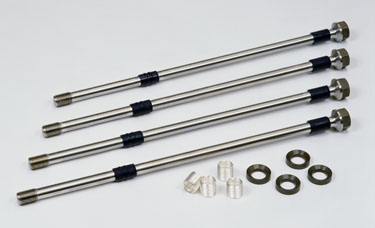

| Bolt Kit | 3363106507 | $70.00
|
Hydraulic Hose - ID 12 (0.47"), both ends M22 x 1.5, conical seal 24°, 1000mm (39.4") | 3363116914 | CALL | |

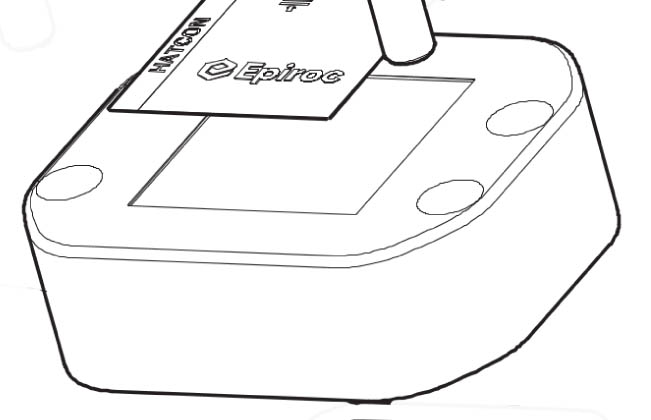

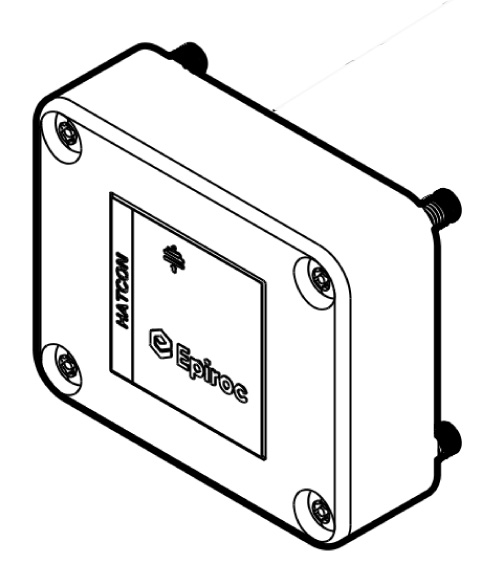

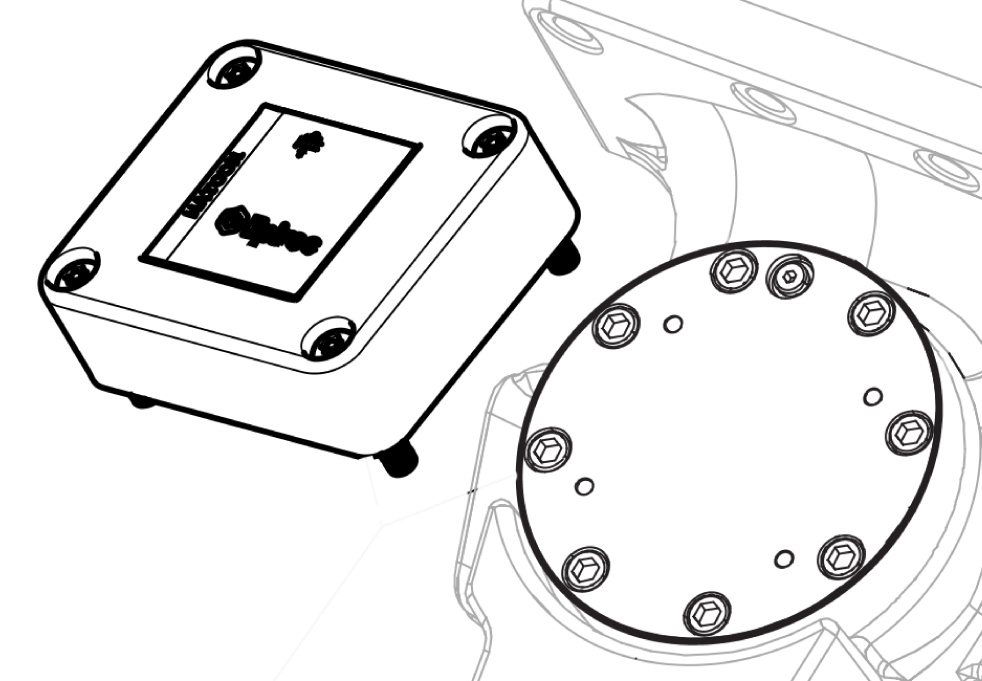

| Hatcon Kit - EC (3G) | 3315442506 | $4,497.89
|
Hatcon Kit - EC (LTE) | 3315442526 | $4,497.89
|
|
| Hatcon Security Bit | 3315439105 | $69.17
|
Hatcon Magnet | 3315439106 | $24.06
|
Spare Parts List
SPECIFICTIONS

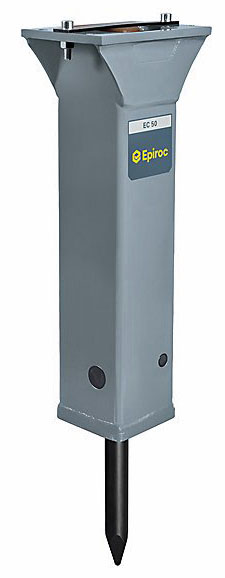

| EC 50 Hydraulic Breaker | 8460050097 | QUOTE |
| Carrier Weight Class¹ | lbs | 4480-10,080 |
| Service Weight² | lbs | 330 |
| Working Tool Diameter | in | 2.05 |
| Hydraulic Input Power, Max | Hp | 15.6 |
| Oil Flow | gpm | 7.95-13.2 |
| Operating Pressure | psi | 1595-2030 |
| Impact Rate - Auto Start Mode | bpm | 670-1500 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 111 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | ||
| Moil Point | 3083342423 | 12.6 | 20.87 | 17.6 | $349.00
|
|
| Cross Chisel | 3083342425 | 12.6 | 20.587 | 19.0 | $349.00
|
|
| Asphalt Cutter - Cross | 3363120005 | 4.72 | 14.57 | 19.7 | 21.4 | $440.00
|
| Blunt Tool | 3063342424 | QUOTE |
||||
| Shaft - 13.4" | 3363125929 | QUOTE |
||||
| Shaft - 19.3" | 3083342481 | QUOTE |
||||
| Square Tamping Pad | 3315370600 | 7.87 | 33.1 | $199.33
|
||
| Round Post Driver Pad | 3315371400 | 3.94 | 7.3 | $657.50
|
||
| Round Pile Driver Pad | 3315372100 | 1.97 |
7.3 |
QUOTE |
||
| Pile Driver | 3315372200 | 3.94 | 11.9 | QUOTE |
||
| Bushing Hammer - 3.5" | 3315372700 | 3.15 | 6.8 | QUOTE |
||
| Round Bushing Pad | 3315372800 | 3.54 | 9.3 | $734.67
|
||
| Bushing Hammer | 3315372900 | 3.15 | 11.5 | QUOTE |
| Seal Kit | 3361120011 | $636.35
|
Standard Connection Hoses | |||
| Lable Kit | 3382070014 | $117.45
|
Hydraulic Hose - 68" | 3363115423 | $80.00
|
|
| Chisel Paste Cartridge for Grease Gun (12 x 400g/0.88lbs) | 3363094913 | $250.00
|
Hydraulic Hose - 59" | 3363491002 | $60.00
|
|
| Lubricating Gun | 0909107100 | $74.72
|
Hydraulic Hose - 78.75" | 3363101424 | QUOTE |
|
| Test Gauge for Wear Bushing | 3315303700 | $22.85
|
Hydraulic Hose - 95" | 3363115425 | $100.00
|
|
| Maintenance and Charging Box with Nitrogen Cylinder (0.53 US Gal) | 3363089844 | QUOTE |
Heavy Duty Connection Hoses with Spring Protection | |||
| Maintenance and Charging Box without Nitrogen Cylinder | 3363094940 | QUOTE |
Hydraulic Hose - 59" | 3360995717 | $230.89
|
|
| Base Plate with Through Borings | 3362269303 | $810.78
|
Hydraulic Hose - 68" | 3363115426 | $140.00
|
|
| Bolt Kit | 3363106507 | $70.00
|
Hydraulic Hose - 79" | 3362235159 | QUOTE |
|
| Hatcon Kit - EC (3G) | 3315442509 | QUOTE |
Hydraulic Hose - 95" | 3363083313 | $204.04
|
|
| Hatcon Kit - EC (LTE) | 3315442526 | $4,497.89
|
Hatcon Security Bit | 3315439105 | $69.17
|
|
| Hatcon Magnet | 3315439106 | $24.06
|
SPECIFICTIONS
| EC 60 Hydraulic Breaker | 8460050056 | QUOTE |
| Carrier Weight Class¹ | lbs | 6720-13,440 |
| Service Weight² | lbs | 474 |
| Working Tool Diameter | in | 2.44 |
| Hydraulic Input Power, Max | Hp | 18.8 |
| Oil Flow | gpm | 9.25-15.85 |
| Operating Pressure | psi | 1595-2030 |
| Impact Rate - Auto Start Mode | bpm | 520-1300 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 113 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | ||
| Asphalt Cutter (cross) | 3363110005 | 4.72 | 14.57 | 21.4 | $370.00
|
|
| Narrow Chisel | 3083342420 | 16.34 | 9.48 | $235.00
|
||
| Moil Point | 3083342421 | 10.43 | 10.73 | 9.9 | $235.00
|
|
| Blunt Tool | 3083342422 | 12.6 | 19 | $245.00
|
||
| Shaft - 16.5" | 3083342480 | 16.5 | 9.3 | $303.00
|
||
| Square Tamping Pad | 3315370600 | 7.87 | 33.1 | $199.33
|
||
| Round Post Driver Pad | 3315371400 | 3.94 | 7.3 | $657.50
|
||
| Round Pile Driver Pad | 3315372100 | 1.97 | 7.3 | QUOTE |
||
| Pile Driver | 3315372200 | 3.94 | 11.9 | QUOTE |
||
| Bushing Hammer 3.15" | 3315372700 | 3.15 | 6.8 | QUOTE |
||
| Round Bushing Pad | 3315372800 | 3.54 | 9.0 | $734.67
|
||
| Bushing Hammer | 3315372900 | 3.15 | 11.5 | QUOTE |
||
| Shaft - 11.0" | 3363125928 | 11.0 | 6.0 | QUOTE |
| Seal Kit | 3361130011 | $607.71
|
Standard Connection Hoses | |||
| Label Kit | 3382070015 | $117.45
|
Hydraulic Hoses - 68" | 3363115423 | $80.00
|
|
| Chisel Paste Cartridge for Grease Gun (12 x 400g/0.88lbs) | 3363094913 | $250.00
|
Hydraulic Hoses - 59" | 3363491002 | $60.00
|
|
| Lubricating Gun | 0909107100 | $74.72
|
Hydraulic Hoses - 78.75" | 3363101424 | QUOTE |
|
| Test Gauge for Wear Bushing | 3315303700 | $22.85
|
Hydraulic Hoses - 95" | 3363115425 | $100.00
|
|
| Maintenance and Charging Box with Nitrogen Cylinder (0.53 US Gal) | 3363089844 | QUOTE |
Heavy Duty Connection Hoses with Spring Protection | |||
| Maintenance and Charging box without Nitrogen Cylinder | 3363094940 | QUOTE |
Hydraulic Hoses - 59" | 3360995717 | $230.89
|
|
| Base Plate with Through Borings | 3363099701 | $90.00
|
Hydraulic Hoses - 68" | 3363115426 | $140.00
|
|
| Bolt Kit | 3363106508 | $80.00
|
Hydraulic Hoses - 79" | 3362235159 | QUOTE |
|
| Hydraulic Hoses - 95" | 3363083313 | $204.04
|
SPECIFICTIONS
| EC 70 Hydraulic Breaker | 8460050128 | QUOTE |
| Carrier Weight Class¹ | lbs | 8960-20,160 |
| Service Weight² | lbs | 606 |
| Working Tool Diameter | in | 2.76 |
| Hydraulic Input Power, Max | Hp | 23.5 |
| Oil Flow | gpm | 11.9-19.8 |
| Operating Pressure | psi | 1450-2030 |
| Impact Rate - Auto Start Mode | bpm | 530-1200 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 114 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | ||
| Moil Point | 3083342429 | 14.96 | 26.18 | 39.7 | $556.00
|
|
| Cross Chisel | 3083342430 | 1.65 | 10.43 | 16.73 | 9.3 | $556.00
|
| Asphalt Cutter (cross) | 3363140005 | 7.87 | 17.13 | 28.35 | 50 | $970.00
|
| Blunt Tool | 3083342431 | 14.96 | 26.18 | 38.8 | $606.05
|
| Seal Kit | 3361140011 | $724.36
|
Standard Connection Hoses | |||
| Hydraulic Hoses - 68" | 3363115423 | $80.00
|
||||
| Chisel Paste Cartridge for Grease Gun (12 x 400g/0.88lbs) | 3363094913 | $250.00
|
Hydraulic Hoses - 59" | 3363491002 | $60.00
|
|
| Lubricating Gun | 0909107100 | $74.72
|
Hydraulic Hoses - 78.75" | 3363101424 | QUOTE |
|
| Test Gauge for Wear Bushing | 3315303700 | $22.85
|
Hydraulic Hoses - 95" | 3363115425 | $100.00
|
|
| Maintenance and Charging Box with Nitrogen Cylinder (0.53 US Gal) | 3363491004 | QUOTE |
Heavy Duty Connection Hoses with Spring Protection | |||
| Maintenance and Charging box without Nitrogen Cylinder | 3363117786 | $980.00
|
Hydraulic Hoses - 59" | 3360995717 | $230.89
|
|
| Base Plate with Through Borings | 3363099701 | $90.00
|
Hydraulic Hoses - 68" | 3363115426 | $140.00
|
|
| Bolt Kit | 3363106508 | $80.00
|
Hydraulic Hoses - 79" | 3362235159 | QUOTE |
|
| Hydraulic Hoses - 95" | 3363083313 | $204.04
|
SPECIFICTIONS
| EC 80 Hydraulic Breaker | 8460050129 | QUOTE |
| Carrier Weight Class¹ | lbs | 11,200 - 26,880 |
| Service Weight² | lbs | 816 |
| Working Tool Diameter | in | 3.15 |
| Hydraulic Input Power, Max | Hp | 30.2 |
| Oil Flow | gpm | 15.85 - 23.8 |
| Operating Pressure | psi | 1450 - 2175 |
| Impact Rate - Auto Start Mode | bpm | 530 - 1000 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 115 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | ||
| Moil Point | 3083342432 | 16.34 | 29.92 | 58 | $762.00
|
|
| Cross Chisel | 3083342433 | 3.15 | 16.34 | 29.92 | 60.2 | $762.00
|
| Asphalt Cutter (cross) | 3363150005 | 7.87 | 18.11 | 29.33 | 70.3 | $1,323.02
|
| Blunt Tool | 3083342434 | 16.34 | 29.92 | 63.7 | $762.00
|
| Seal Kit | 3382070011 | $440.00
|
Standard Connection Hoses | |||
| Label Kit | 3382070012 | $205.55
|
Hydraulic Hoses - 68" | 3363115423 | $80.00
|
|
| Chisel Paste Cartridge for Grease Gun (12 x 400g/0.88lbs) | 3363094913 | $250.00
|
Hydraulic Hoses - 59" | 3363491002 | $60.00
|
|
| Lubricating Gun | 0909107100 | $74.72
|
Hydraulic Hoses - 78.75" | 3363101424 | QUOTE |
|
| Test Gauge for Wear Bushing | 3315303700 | $22.85
|
Hydraulic Hoses - 95" | 3363115425 | $100.00
|
|
| Maintenance and Charging Box with Nitrogen Cylinder (0.53 US Gal) | 3363491004 | QUOTE |
Heavy Duty Connection Hoses with Spring Protection | |||
| Maintenance and Charging box without Nitrogen Cylinder | 3363117786 | $980.00
|
Hydraulic Hoses - 59" | 3360995717 | $230.89
|
|
| Base Plate with Through Borings | 3363099701 | $90.00
|
Hydraulic Hoses - 68" | 3363115426 | $140.00
|
|
| Bolt Kit | 3363106508 | $80.00
|
Hydraulic Hoses - 79" | 3362235159 | QUOTE |
|
| Hydraulic Hoses - 95" | 3363083313 | $204.04
|
SPECIFICTIONS
| EC 90 Hydraulic Breaker | 3363122544 | QUOTE |
| Carrier Weight Class¹ | lbs | 19,800-33,100 |
| Service Weight² | lbs | 1,380 |
| Working Tool Diameter | in | 3.54 |
| Hydraulic Input Power, Max | Hp | 37 |
| Oil Flow | gpm | 21.1 - 29.1 |
| Operating Pressure | psi | 1885 - 2175 |
| Impact Rate - Auto Start Mode | bpm | 600 - 950 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 116 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | ||
| Moil Point | 3363119017 | 3.54 | 18 | 32.87 | 81.8 | $1,003.12
|
| Cross Chisel | 3363119018 | 3.54 | 18 | 32.87 | 85.6 | $890.00
|
| Blunt Tool | 3363119015 | 18 | 32.87 | 89.1 | $1,003.12
|
| Seal Kit | 3363117300 | $713.67
|
Hydraulic Hose - 90.5" | 3360332294 | $434.93
|
|
| Label Kit | 3363121466 | $210.00
|
Hydraulic Hose - 110.2" | 3363085947 | $574.53
|
|
| Bio Chisel Paste Cartridge (12 x 550g/1.2lbs) | 3363122356 | $340.00
|
Chisel Paste Cartridge (12 x 500g/1.1lbs) | 3363091200 | $310.00
|
|
| Grease Pump | 3363034567 | $233.52
|
Charging Box with Nitrogen Cylinder (0.53 US Gal) | 3363491004 | QUOTE |
|
| Charging Box without Nitrogen Cylinder | 3363117786 | $980.00
|
Test Gauge Lower Wear Bushing | 3363033491 | $14.77
|
|
| Base Plate with Threaded Inserts | 3363099797 | $1,090.00
|
Bolt Kit | 3363094537 | $90.00
|
|
| Base Plate with Through Borings | 3363100695 | $1,050.00
|
Bolt Kit | 3363094574 | QUOTE |
|
| Allen Key - 19mm | 3360209253 | $31.22
|
Automatic Lubricating System Kit | 3363117805 | $3,430.00
|
|
| Hatcon Kit 1 (3G) | 3315442500 | $4,215.31
|
Hatcon Kit 1 (LTE) | 3315442520 | $4,192.77
|
|
| Hatcon Security Bit | 3315439105 | $69.17
|
Hatcon Magnet | 3315439106 | $24.06
|
SPECIFICTIONS
| EC 100 Hydraulic Breaker | 3365122546 | QUOTE |
| Carrier Weight Class¹ | lbs | 26,500 - 41,900 |
| Service Weight² | lbs | 1,760 |
| Working Tool Diameter | in | 3.94 |
| Hydraulic Input Power, Max | Hp | 46 |
| Oil Flow | gpm | 26.4 - 31.7 |
| Operating Pressure | psi | 2175 - 2465 |
| Impact Rate - Auto Start Mode | bpm | 650 - 850 |
| Sound Power Level Guaranteed (ISO 3744 2000/14/EC) | dB(A) | 118 |
¹ Weights apply to standard carriers only. Any variances must be agreed upon by Epiroc and/or the carrier manufacturer prior to attachment.
² Attachment with standard working tool and average-sized adaptor plate.
CONSUMABLE TOOLS
| Tool Width (in) | Working Length (in) | Total Length (in) | Weight (lbs) | Price | ||
| Moil Point | 3363120144 | 21 | 36.22 | 110.7 | $980.00
|
|
| Cross Chisel | 3363120142 | 3.94 | 21 | 36.22 | 116.0 | $980.00
|
| Blunt Tool | 3363120143 | 21 | 36.22 | 121.3 | $1,048.38
|
| Seal Kit | 3363122460 | $930.00
|
Hydraulic Hose - 90.5" | 3360332294 | $434.93
|
|
| Label Kit | 3363121467 | $210.00
|
Hydraulic Hose - 110.2" | 3363085947 | $574.53
|
|
| Bio Chisel Paste Cartridge (12 x 550g/1.2lbs) | 3363122356 | $340.00
|
Chisel Paste Cartridge (12 x 500g/1.1lbs) | 3363091200 | $310.00
|
|
| Grease Pump | 3363034567 | $233.52
|
Charging Box with Nitrogen Cylinder (0.53 US Gal) | 3363491004 | QUOTE |
|
| Charging Box without Nitrogen Cylinder | 3363117786 | $980.00
|
Test Gauge Lower Wear Bushing | 3363033491 | $14.77
|
|
| Base Plate with Threaded Inserts | 3363099797 | $1,090.00
|
Bolt Kit | 3363094537 | $90.00
|
|
| Inside Callipers Upper Wear bushing | 3363094952 | $160.00
|
||||
| Base Plate with Through Borings | 3363100695 | $1,050.00
|
Bolt Kit | 3363094574 | QUOTE |
|
| Allen Key - 19mm | 3360209253 | $31.22
|
Automatic Lubricating System Kit | 3363117805 | $3,430.00
|
|
| Hatcon Kit 1 (3G) | 3315442500 | $4,215.31
|
Hatcon Kit 1 (LTE) | 3315442520 | $4,192.77
|
|
| Hatcon Security Bit | 3315439105 | $69.17
|
Hatcon Magnet | 3315439106 | $24.06
|
