Tehma Concrete/Rock Splitters



CONCRETE / ROCK SPLITTER

MADE IN SWITZERLAND

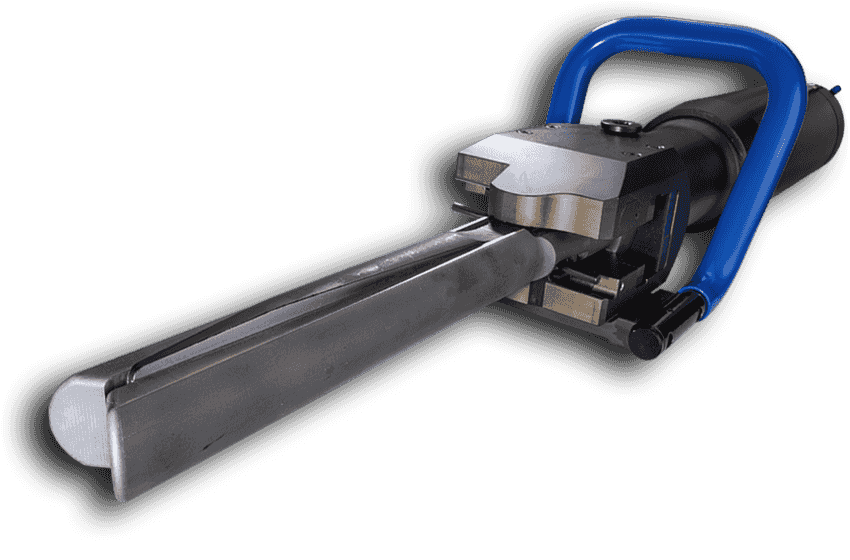

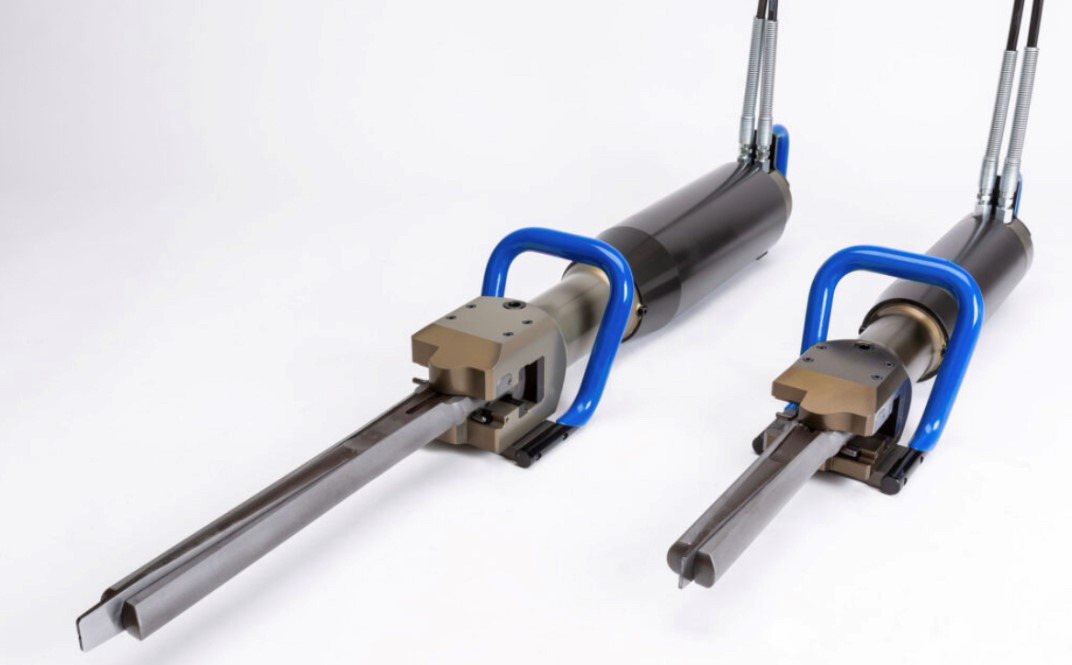

SP400 and SP600 TEHMA is a handheld hydraulic concrete / rock splitter is a manual buster ideal both for crushing large stones and for demolishing large-thickness structures quickly and safely, without generating vibrations, noise and dust.

The SP400 and SP600 TEHMA Handheld hydraulic concrete / rock splitter is a portable tool developed for cutting rocks and controlled demolitions inside buildings. Its low weight, combined with its extreme power and friendly use, make this manual hydraulic wedge ideal for two uses:

  1. As rock splitter, for crushing large stones encountered along an excavation or during tunneling.
  2. As concrete buster, for demolish large-thickness structures, as pillars or foundations, quickly and accurately, without generating vibrations and by limiting noise and dust.

The absence of these factors allows to work where they are not allowed, such as condominiums, offices, schools, hospitals, interior demolitions in general; and at the same time to preserve the physical integrity of the operator who uses the equipment, ensuring maximum safety to all those involved in the demolition.
The result is an extremely versatile and functional Handheld hydraulic concrete rock splitter.  Its versatility and effectiveness also makes it an indispensable ally in the rescue, where it is necessary to remove large stones or rubble caused by earthquakes and other catastrophic events (U.S.A.R. applications).

  • Splits in seconds
  • Splitting force over 375 tons
  • Shock and vibrations free
  • Controlled Splitting Direction



Splitter and Power Pack Kits

Each kit includes a SP600 Splitter, Power Pack of your Choice, High Pressure Hose, Grease, 1 Centeral Wedge (Plug) and 2 Counter Wedges (Feathers)

SP600 Splitter with Electric Motor Power Pack SP600-PP600-E120V $20,310.00
SP600 Splitter with Pneumatic Motor Power Pack SP600-PP600-A $21,090.00
SP600 Splitter with Hydraulic Motor Power Pack SP600-PP600-H $20,000.00

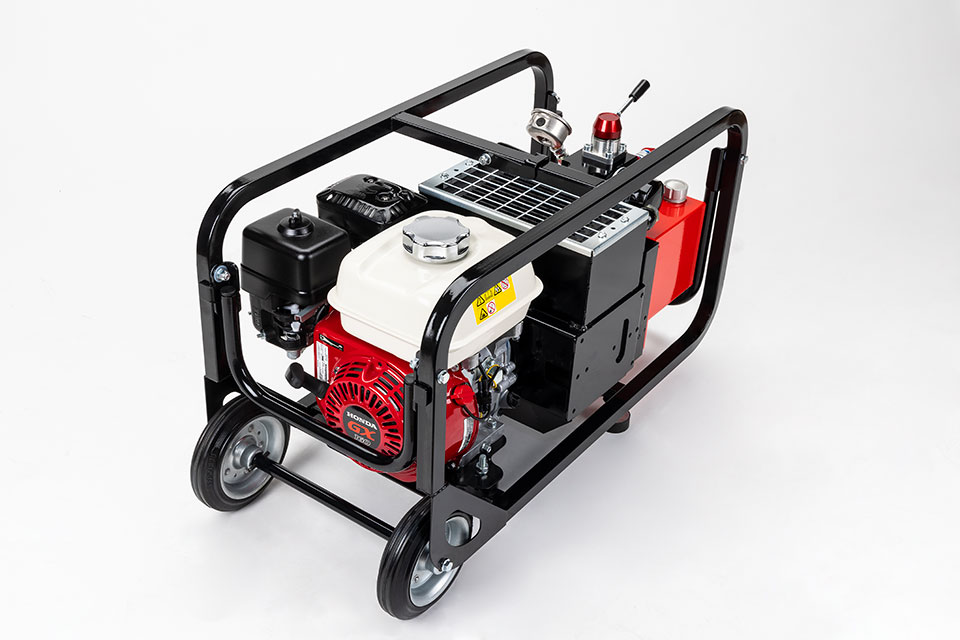

SP600 Splitter with Gas Motor Power Pack SP600-PP700-S $21,830.00

$150 Flat Rate LTL/Truck Shipping to Commercial destinations*
$250 flat rate for Residential destinations in Continental US. Rates will be quoted for Alaska, Hawaii and all international destinations.

Splitter Only

Shipped with 1 Central Wedge (Plug) and 2 Counter Wedges (Feathers)

    SP400 Concrete Splitter SP400 Concrete Splitter for Small Wedges SP600 Concrete Splitter
Number   SP400 SP400-SW SP600
Price   $9,140.00 $9,270.00 $12,050.00
Splitting Distance in .67 .39 .59
Required Drill Hole Diameter in .07-.08 .05-.06 .07-.08
Minimal Drill Hole Depth in .68 .68

1.0

Weight lb 51.8 50.7 79.4
Pressure psi 8702.3 8702.3 8702.3
Dimension in 40.63 x 7.52 x  7.68   40.63 x 7.52 x  7.68  52.28 x 7.52 x  7.68

DOCUMENTS

Owners Manuals
Spare Parts/Breakdowns - SP400

Spare Parts/Breakdowns - SP600

Splitting Cylinder SP400-SP600 - Safety Manual, Use and Maintenance

Guide to Correct Use of Concrete and Rock Hydraulic Splitters

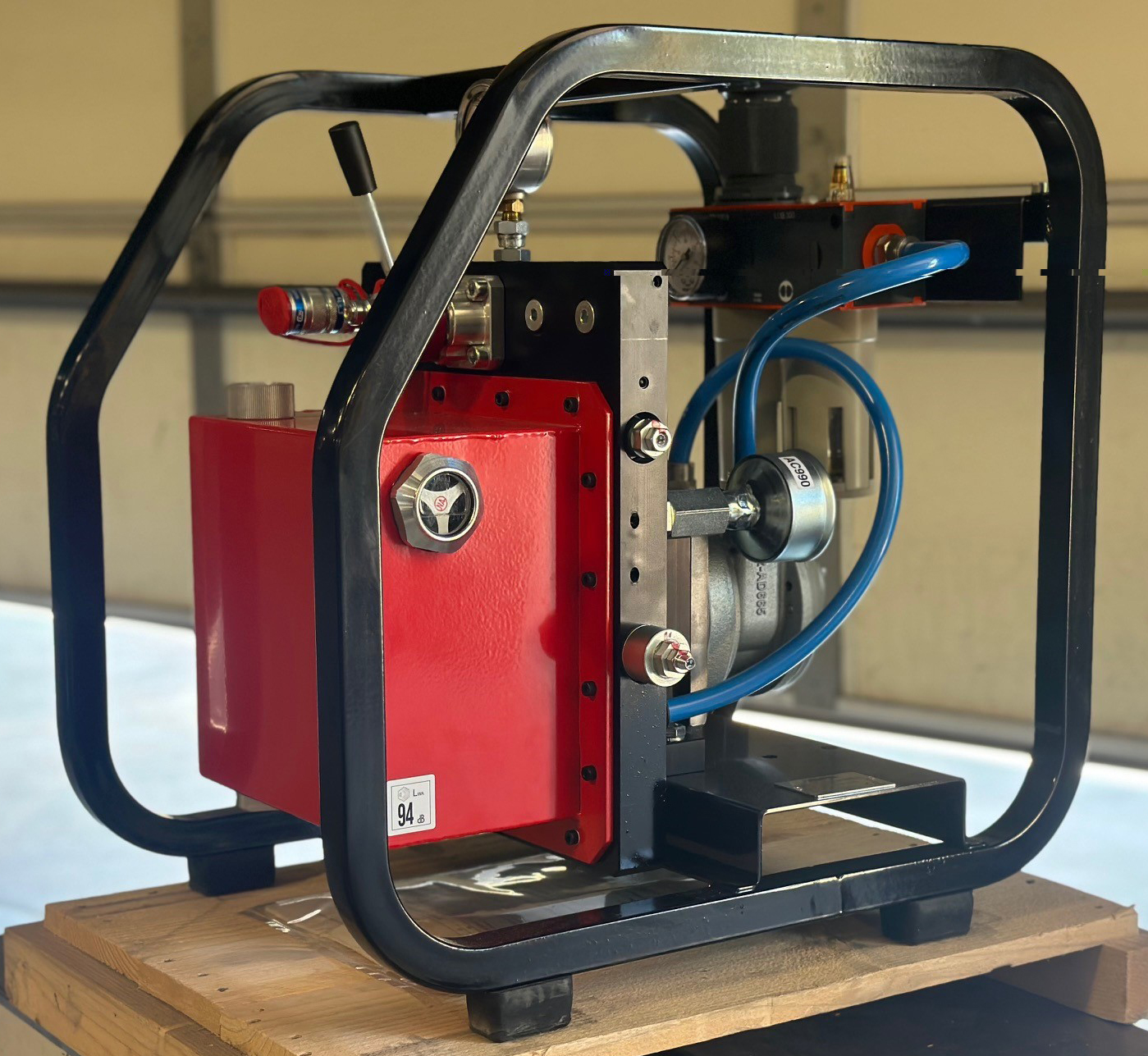

Power Packs




    Power Pack with Electric Motor Power Pack with Electric Motor and Cooling Systems Power Pack with Hydraulic Motor Power Pack with Pneumatic Motor Power Pack with Gas Motor
Part No.   PP600-E120V PP600-EC120V PP600-H PP600-A PP700-S
Price   $7,080.00 $7,860.00 $6,770.00 $8,310.00 $8,600.00
Flow at 1' Stage gal 1.4 1.4 1.4 1.4 1.4
Flow at 2' Stage gal 0.3 0.3 0.3 0.3 0.3
Power kw 2.2 2.2 7.7 3.6 3.6
Motor   Electric Single-Phase 230V/50Hz (available at 110V/50Hz0-120V/60Hz or three-phase) Electric Single-Phase 230V/50Hz (available at 110V/50Hz0-120V/60Hz or three-phase) Hydraulic Mtor - required flow rate of 30-45 l/min / 150-200 bar Pneumatic - Max air consumption 215m/3/hr at 7 bar Gas - Honda GX160 5Hp
Weight (without oil) lb 206.5 226 148.1 184.5 97.0
Pressure psi Adjustable up to 10152.6 Adjustable up to 10152.6 Adjustable up to 10152.6 Adjustable up to 10152.6 Adjustable to 700 bar
Dimensions (L x W x H) in

20.5 x 14.2 x 20.2

21 X 14.2 X 20.2

20.5 X 14.2 X 20.3

20.5 X 15.6 X 20.3

20.5  x 15.5 x 20.3


Documents

PP600 Owners Manual
PP600A Spare Parts/Breakdown
PP600E Spare Parts/Breakdown

Accessories

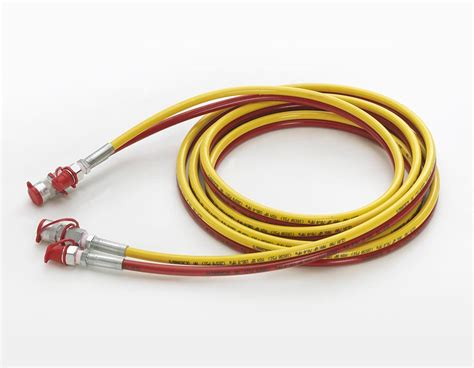

High Pressure Hose - 5m HH50 $770.00
High Pressure Hose - 10m HH100 $1,100.00

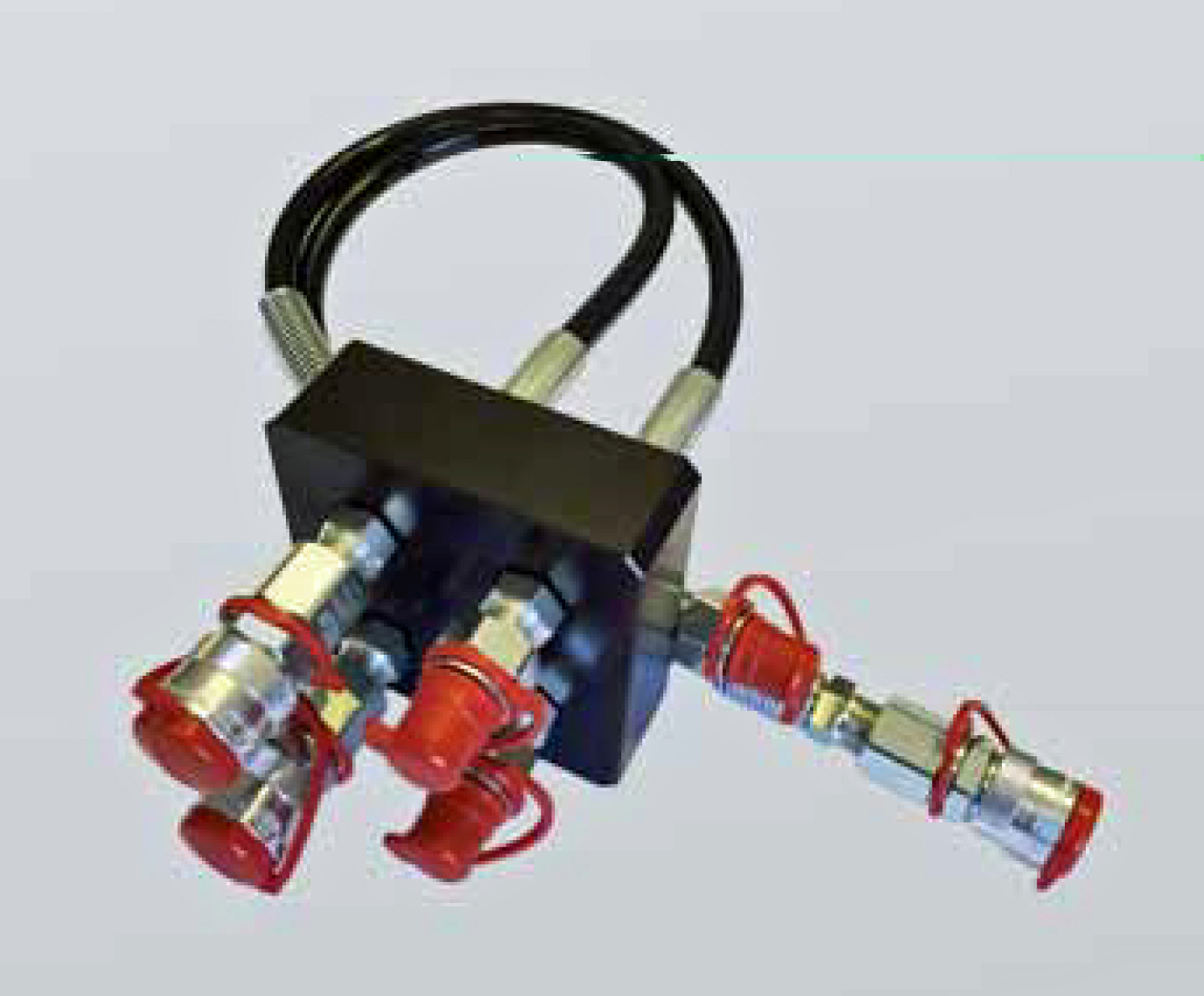

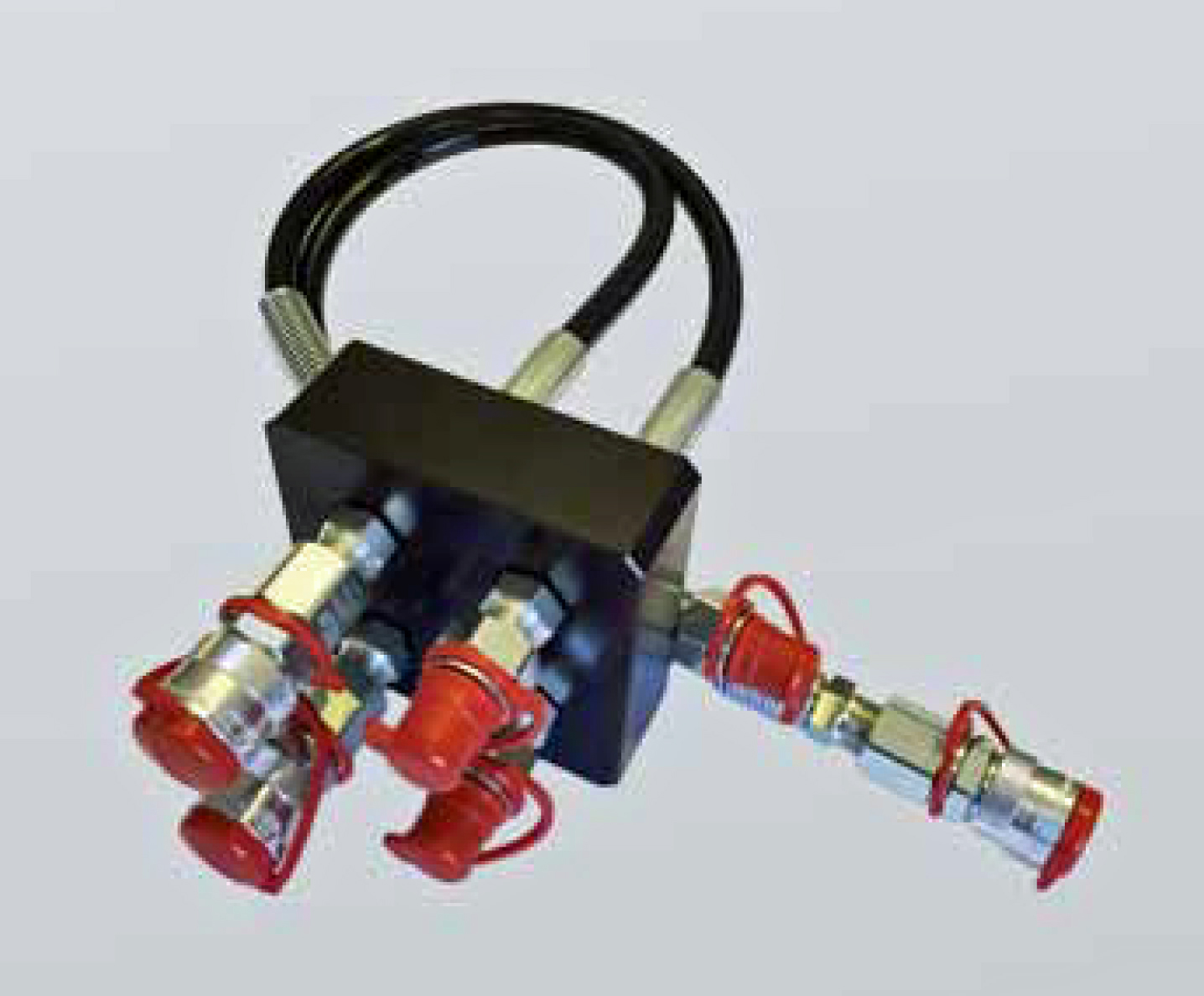

3 Channel Multiplier Module MM30 $1,200.00
2 Channel Multiplier Module MM20 $940.00

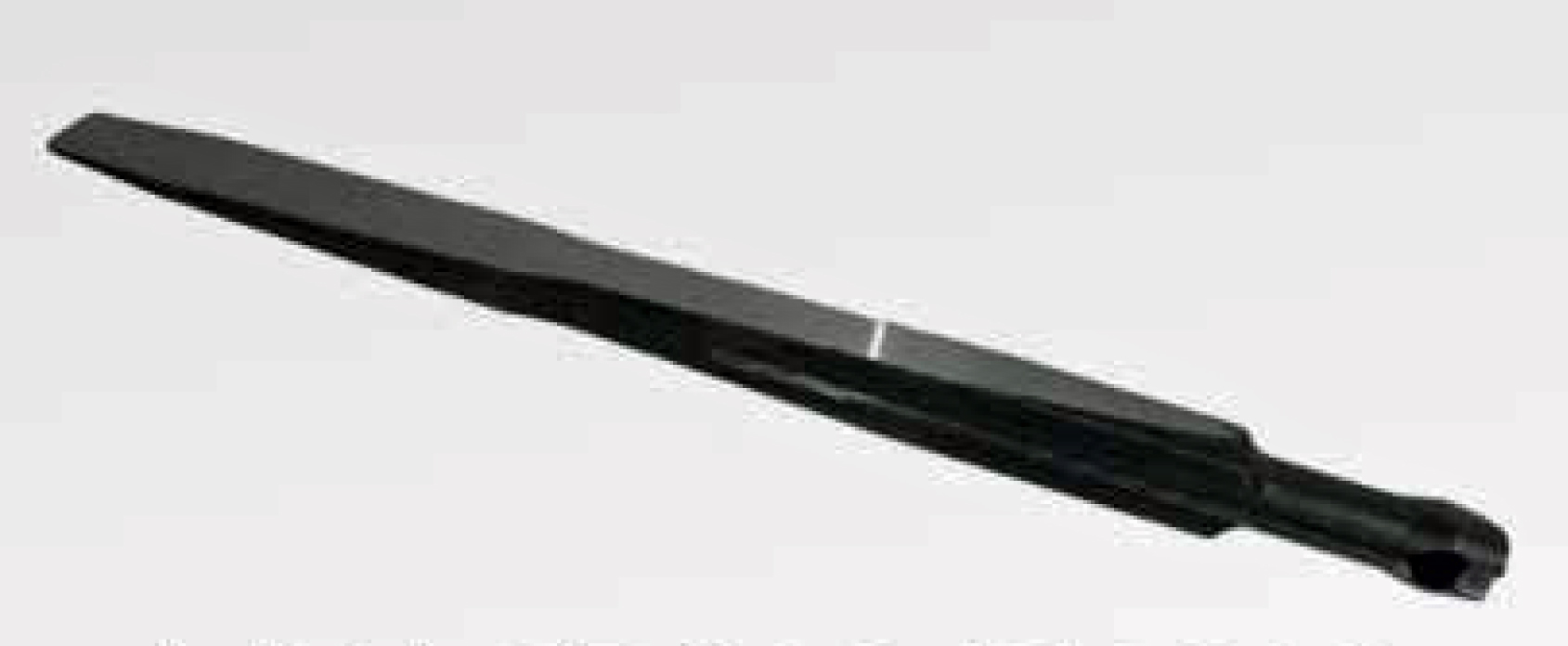

SP400 Central Wedge (Plug) MW-SP400 $520.00

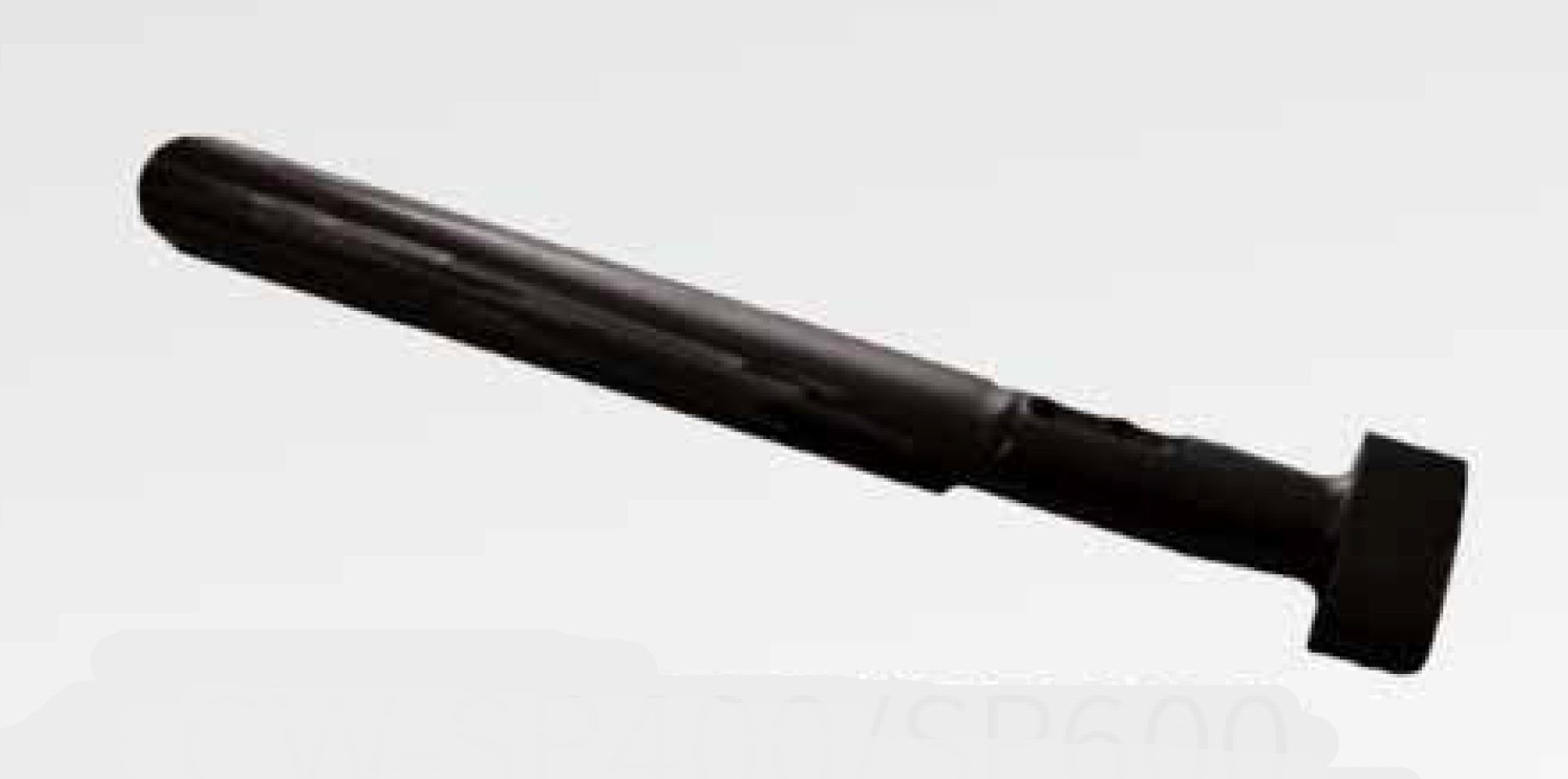

SP400 Counter Wedge (Feather) - Sold in pairs CW-SP400 $1,350.00
SP400 Small Central Wedge (Plug) MWS-SP400 $1,490.00
SP400 Small Counter Wedge (Feather) - Sold in pairs CWS-SP400 $1,490.00
SP600 Center Wedge (Plug) MW-SP600 $640.00
SP600 Counter Wedge (Feather) - Sold in pairs CW-SP600 $1,570.00

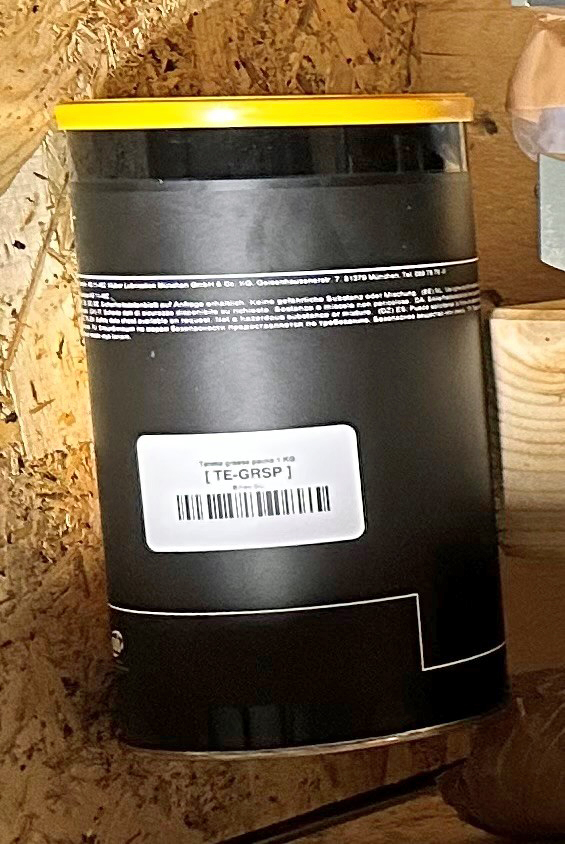

Grease for SP400/SP600 - 1kg GR-SP $80.00
