Bolt Drivers - Resin

Socket Spinner, Nut Spinner, Female Dolly, Resin Cartridges

DYWIDAG OVAL SOCKET SPINNER
	7/8 X 3 1/4	1 x 3 1/4	R25	R32	R38	T38	T45
#6	DDY77-6-10	DDY87-6-10	DDYR25-6	DDYR25-6	DDYR38-6	DDYT38-6	DDYT45-6
#7	DDY77-7-10	DDY87-7-10	DDYR25-7	DDYR32-7	DDYR38-7	DDYT38-7	DDYT45-7
#8	DDY77-8-10	DDY87-8-10	DDYR25-8	DDYR32-8	DDYR38-8	DDYT38-8	DDYT45-8
#8 G150	DDY77-8HS-10	DDY87-8HS-10	DDYR25-8HS	DDYR32-8HS	DDYR38-8HS	DDYT38-8HS	DDYT45-8HS
#9	DDY77-9-10	DDY87-9-10	DDYR25-9	DDYR32-9	DDYR38-9	DDYT38-9	DDYT45-9
#10	DDY77-10-10	DDY87-10-10	DDYR25-10	DDYR32-10	DDYR38-10	DDYT38-10	DDYT45-10
#11	DDY77-11-10	DDY87-11-10	DDYR25-11	DDYR32-11	DDYR38-11	DDYT38-11	DDYT45-11
1 1/4" G150	DDY77-11HS-10	DDY87-11HS-10	DDYR25-11HS	DDYR32-11HS	DDYR38-11HS	DDYT38-11HS	DDYT45-11HS

Also available in 4-1/4" shank length
For threaded rather than oval socket add "T" to end of part #
For 7/8 x 4-1/4 shank use part# prefix DDY78
For 1 x 4-1/4 shank use part# prefix DDY88

Bolt spinners also available for Williams or Titan Rod

WE BUILD DRIVERS TO YOUR SPECIFICATIONS

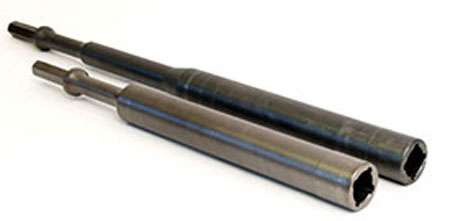

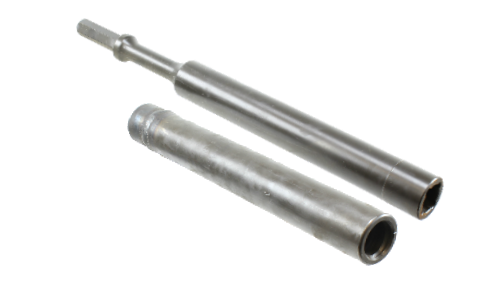

NUT SPINNER
Nut spinners are normally made to order. We need to know: What is the drive end? Shank, Threaded, Square Impact Drive What Size Nut you are Tightening? How far down the bolt do you want to spin the nut, Or the overall driver length?
Here are some samples of some common nut spinner we build:
TT77-7-22	7/8 x 3-1/4" x 22" OAL, 1-1/8" SQ
TT77-7-30	7/8 x 3-1/4" x 30" OAL, 1-1/8" SQ
TT77-7-36	7/8 x 3-1/4" x 36" OAL, 1-1/8" SQ
TT77-7-48	7/8 x 3-1/4" x 48" OAL, 1-1/8" SQ
TT77-1625-22	7/8 x 3-1/4" x 22" OAL, 1-5/8" HEX
TT89-7-25	1 X 6-1/4" X 25"OAL, 1-1/8" SQ
TTR32F-7-16	DRIVER R32F X 16"OAL, 1-1/8" SQ
TTR32F-8-21	DRIVER R32M X 21"OAL, 1-5/8" HEX
TTR38F-8-13	DRIVER R38F x 13" OAL, 1-5/8" HEX

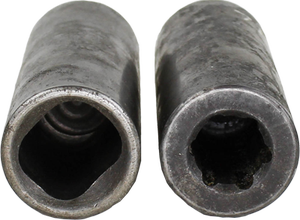

7/8" FEMALE DOLLY
7/8 Hex Socket to Press on Tapered Steel
DDY78HF-7	7/8 HEX FEMALE X #7 OVAL SOCKET
DDY78HF-8	7/8 HEX FEMALE X #8 OVAL SOCKET

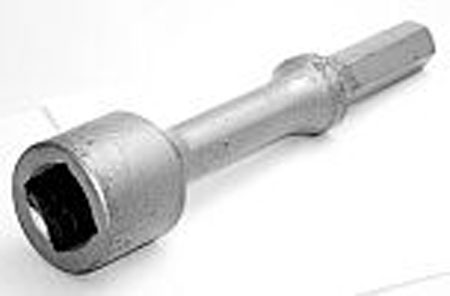

ROOF BOLT DRIVER 1 1/8" SQUARE SOCKET
RBD77-10	ROOF BOLT DR 7/8 X 3 1/4 X 10" OAL
RBD77-27	ROOF BOLT DR 7/8 X 3 1/4 X 27" OAL
RBD77-48	ROOF BOLT DR 7/8 X 3 1/4 X 48" OAL
RBD78HF	7/8HEX FEMALE X 1 1/8" SOCKET

RESIN COVERAGE TABLE
	HOLE DIAMETER
INCH	1	1-1/8	1-1/4	1-3/8	1-1/2	1-5/8	1-1/2	1-5/8	1-3/4	1-7/8	2	2-1/4	2	2-1/4
MM	26	29	2	36	38	42	38	42	45	48	51	58	51	58
	CARTRIDGE DIAMETER
INCH	7/8	1	1-1/8	1-1/4	1-1/4	1-1/4	1-3/8	1-3/8	1-9/16	1-9/16	1-9/16	1-9/16	1-3/4	1-3/4
MM	23	26	28	32	32	36	36	36	40	40	40	40	45	45

Bolt Size	COVERAGE MULTIPLIER
3/4"	1.75	1.43
7/8"		2.01	1.59	1.39			1.27
1"			2.25	1.75	1.25		1.52	1.16	1.19
1-1/8"					1.60	1.14	1.94	1.38	1.37
1-1/4"						1.53		.85	1.69	1.3			1.28
1-3/8"									2.27	.61	1.21		1.52	1
