Rhino PD Pneumatic Series Accessories
A Rhino PD air post driver changes jobs by changing what sits on the anvil, not by changing the tool. The parts here split into two halves: Rhino PD chucks and adapters, which set the post profile, and PD drive caps, hoses and air prep, which feed and finish the setup. The PD-55 master chuck runs a 3-7/8 in. bore and takes round inserts from 1 in. to 3-1/2 in.; PD-200 adapters for the 7 in. chuck step that bore down to drive 2 in. through 5 in. pipe. Keep the air clean on a PD-140 heavy-duty driver with a filter-regulator-lubricator. For the drivers themselves, see Rhino pneumatic post drivers or the Rhino post drivers buyer’s guide.
Master Chuck First, Then the Adapter

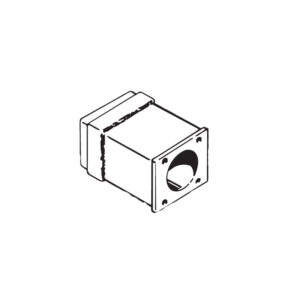

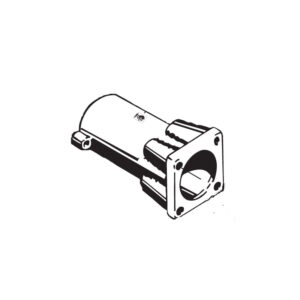

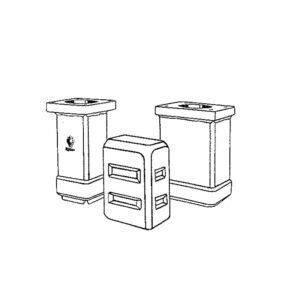

Every Rhino PD setup starts with a master chuck sized to that driver. It seats over the post head and sends the blow straight down the centerline; adapters then drop or bolt into the bore to match the exact profile. The PD-110 master chuck and the PD-140 assembly both run 4-1/4 in., while the PD-200 master chuck comes in 5-1/2 in. and 7 in. bores plus 4 in. round and 4 in. square profiles. Buy the chuck once and reorder adapters as the post mix changes.
Chuck Adapter Sizes by Driver
Adapters are driver-specific. Match the row to the tool you own before ordering, because a PD-200 insert will not seat in a PD-55 bore.
| Driver | Master chuck | Round adapter sizes | Also covered |
|---|---|---|---|

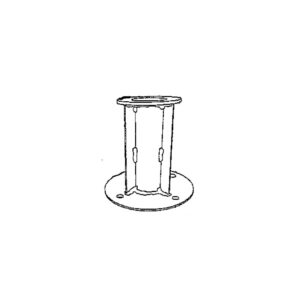

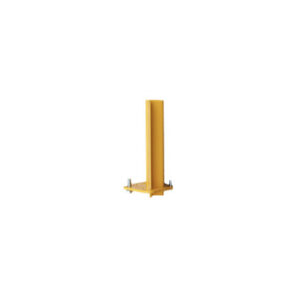

| PD-55 | 3-7/8 in. ID | 1, 1-1/2, 2, 2 in. HD, 2-1/2, 3, 3-1/2 in. | U-channel 1–1.5, 2–2.75 & 3–4 lb; Post Master; Telespar |
| PD-110 | 4-1/4 in. | 2, 2-1/2, 3, 3-5/8 in. | U-channel 1–4 lb; 3 in. and 3-1/2 in. Schedule 40 drive caps |
| PD-140 | 4-1/4 in. | 2, 2-1/2, 3, 3-5/8 in. | U-channel 1–4 lb; 12 in. slotted sheet pile; guardrail; square wood and metal |

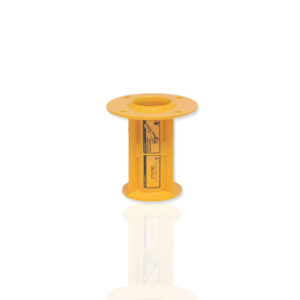

| PD-200, 5-1/2 in. chuck | 5-1/2 in. | 2-1/2 to 4-3/4 in. ID | 2–4 in. pipe, Telespar, C post, sand points; 2-1/2 and 3 in. breakaway anchor |
| PD-200, 7 in. chuck | 7 in. | 2-1/2 to 5-3/4 in. ID | 2–5 in. pipe, Telespar, C post, sand points |
Individual sizes are listed on each adapter page in the grid above.
Drive Caps for Pipe, Channel, and Telespar

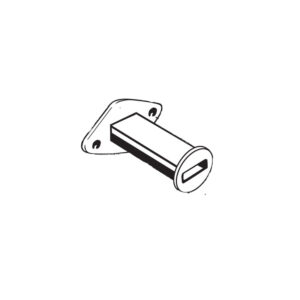

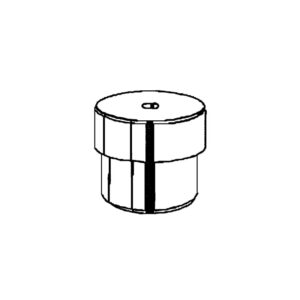

A drive cap goes between the chuck and an open-ended post. Schedule 40 pipe caps fit 2 in. through 6 in. pipe and spread the blow across the pipe end so it does not mushroom or split. The low drive channel cap sets 1.2–1.5 lb/ft channel below the point a standard cap runs out of reach, and the Telespar low drive extension does the same for square breakaway sign posts. Add a T-bar for leverage when seating and pulling caps.
Air Prep, Hose, and Transport

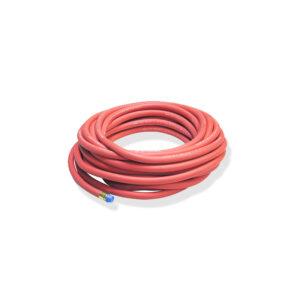

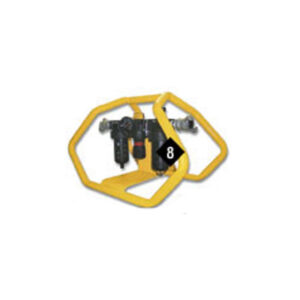

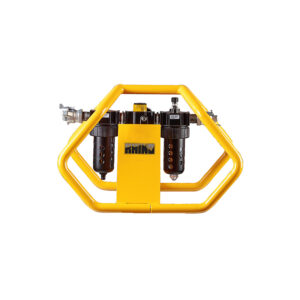

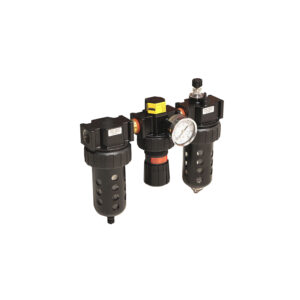

A pneumatic post driver is only as steady as its air supply. The Rhino FRL filters water and grit, holds a set pressure, and mists oil into the line for the PD-55, PD-110, PD-140, and PD-200, and a steel carrier keeps it portable. The 15 ft 2 in. hose whip buys working room off the supply line, the throttle valve kit puts control at the operator, and the PD transport cart moves a PD-55, PD-110, or PD-140 and its tooling over gravel. Size the air compressor to sustain the driver’s demand.
Common Questions
Where do I find Rhino post driver parts? Wear items and setup parts are split by function — chucks and inserts in the adapter section, caps, hose and air prep in the accessories section. For exploded views and part numbers on a specific driver, use the parts and diagrams hub.
What is a post driver cap for? It protects the top of an open post. Driving 3 in. Schedule 40 pipe bare will roll the end over; a cap takes the impact instead and keeps the post plumb. Pipe, channel, and Telespar each take a different cap.
Do I need a special adapter for T-posts? Yes on the PD-55 — its 2 in. heavy-duty T-post adapter is built with thicker walls than the standard 2 in. round insert so it survives repeated studded-post driving.
Which cap drives U-channel sign post? Use the U-channel inserts, sized by channel weight in the 1–1.5, 2–2.75, and 3–4 lb classes, or the low drive channel cap for deep sets. Gas-driver crews should look at the Rhino GPD gas series accessories instead.
How quickly do these ship? Orders for in-stock rhino pd pneumatic series accessories placed by 4 PM Eastern ship the same day from our Denver warehouse. Stock varies by size, so confirm with us before ordering if you’re working to a deadline.
