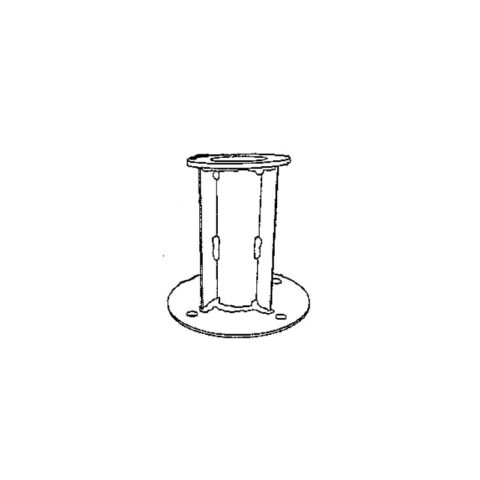

Rhino PD-110 Chuck Adapters

The Rhino PD-110 chuck adapters are precision-fit inserts that drop into the PD-110 master chuck to match the driver to the exact post profile being driven. Available in round pipe sizes from 2 in. through 3-5/8 in., U-channel weights from 1 lb to 4 lb, plus dedicated drive caps for 3 in. and 3-1/2 in. Schedule 40 pipe applications. Each adapter transfers the full impact force directly down the post’s centerline for clean, straight drives.

• Round pipe adapters in four sizes 2 in., 2-1/2 in., 3 in., and 3-5/8 in. covering the most common fence, sign, and utility post diameters used in the field.
• U-channel post adapters cover the 1 to 1.5 lb, 2 to 2.75 lb, and 3 to 4 lb classes, matching the standard weights of roadside sign and marker channel.
• 3 in. Drive Cap, T-bar and Clip required for driving 3 in. Schedule 40 pipe, keeping the post centered and preventing deformation at the post head during high-cycle driving.
• 3-1/2 in. Drive Cap, T-bar and Clip required for driving 3-1/2 in. Schedule 40 pipe in applications where a standard round adapter would not seat correctly on the pipe wall.
• 4-3/4 in. Master Chuck available for oversized post applications requiring a larger drive diameter than the standard 4-1/4 in. chuck.
• All adapters bolt directly onto the PD-110 master chuck and include all required hardware swap between post profiles quickly without special tools.
