Buyer’s Guide – Tampers & Rammers

Pick the Right Pneumatic Tamper or Sand Rammer, Matched to the Job

The only hand percussion tools that compact instead of break. This guide splits the two sub-families, matches the butt to the job, sizes your compressor, compares every model Crowder Supply stocks with verified specs and live prices, and builds the complete order – tool, spare faces, hose, and oiler – in one place.

Start with the job Talk to a tamper expert

Category Data Plate – Tampers & Rammers

3.75-42 lbTool weight
2-6 inStroke
670-2,500Blows per minute
12-42 CFMAir draw @ 90 psi

Verified across all 13 models stocked – 2 sub-families, 4 brand lines

Free shippingOn every tamper and rammer in stock
4 brand linesAPT, Chicago Pneumatic, Texas Pneumatic, Tamco/Toku
Parts on the shelfReplacement butts, pads, oilers, and hose
1-888-883-5144Real answers from people who run these tools
Start Here

Start With the Job, Not the Catalog

A pneumatic tamper is a handheld air-powered percussion tool that drives a flat butt or pad against loose material to compact it – soil going back into a trench, or molding sand packed around a foundry pattern – instead of breaking it.

One question splits the whole category: are you compacting soil or packing sand? Then the space you are working in picks the face. Find your job below – each card jumps to the models that fit.

Trench backfill in lifts

Compacting soil and gravel back into utility trenches, a few inches at a time.

Straight answer: backfill tamper with the 6 in butt – the broad face covers the lift fastest.

Beside utilities & footings

Compaction in narrow cuts, next to pipe, forms, and footings where a wide face will not fit.

Straight answer: backfill tamper with a 3 in solid butt – concentrates the blow in a small footprint.

Poles, posts & hydrants

Packing fill tight against round objects so they set plumb and stay put.

Straight answer: pole (half-moon) butt – the APT 131 ships in a pole-butt configuration.

Bench molds & cores

Packing molding sand around patterns and cores at the foundry bench without marring them.

Straight answer: short-stroke sand rammer, 2-2.5 in stroke – fast, light blows flow the sand.

Deep flasks & floor molds

Reaching packing density at depth in floor molds, deep flasks, and refractory work.

Straight answer: 4 in stroke floor rammer – add a long-reach handle instead of stooping.
The Buying Logic

The 5 Decisions, In Order

Pick the sub-family for the material, the butt for the space, confirm the compressor, size the blow, then let the options break the tie.

Soil or sand?

This one question splits the category.

Trenches, poles, asphalt: backfill tamper, 30-42 lb
Molds, cores, refractory: sand rammer, 3.75-10 lb

Butt for the space

The tool supplies the blows; the face decides what they do.

Open trench: 6 in iron butt
Tight cuts: 3 in solid butt
Poles: pole (half-moon) butt
Patterns: rubber or alum head

Compressor check

All rated 90 psi at the tool inlet. Confirm CFM with headroom.

Rammers: 12-15 CFM, runs on shop air
CP 0003: 18 CFM, the light drinker
Other backfill: 28-42 CFM, 1/2 in hose

Stroke & blow weight

Longer stroke lands a heavier, slower blow. Soil wants heavy; sand wants fast.

Heavy soils: CP 0004 RV, 2-1/4 in bore
General backfill: 5-1/2 to 6 in stroke
Delicate patterns: 2 in stroke, up to 2,500 BPM

Options & parts

Break ties on the ecosystem, then add oil and spare faces to the order.

Deep molds: long-reach TX8 / TX70B
Shaped heads: non-revolving piston
Every order: spare butt + lock screw
Crowder Supply – Product Knowledge

How a Pneumatic Tamper Works

A pneumatic tamper is the simplest impact tool on the jobsite, and that is the whole point. Compressed air drives a free piston up and down inside a barrel, and the piston pounds a butt plate into the soil. The tool bounces on its own recoil; the operator only steers it.

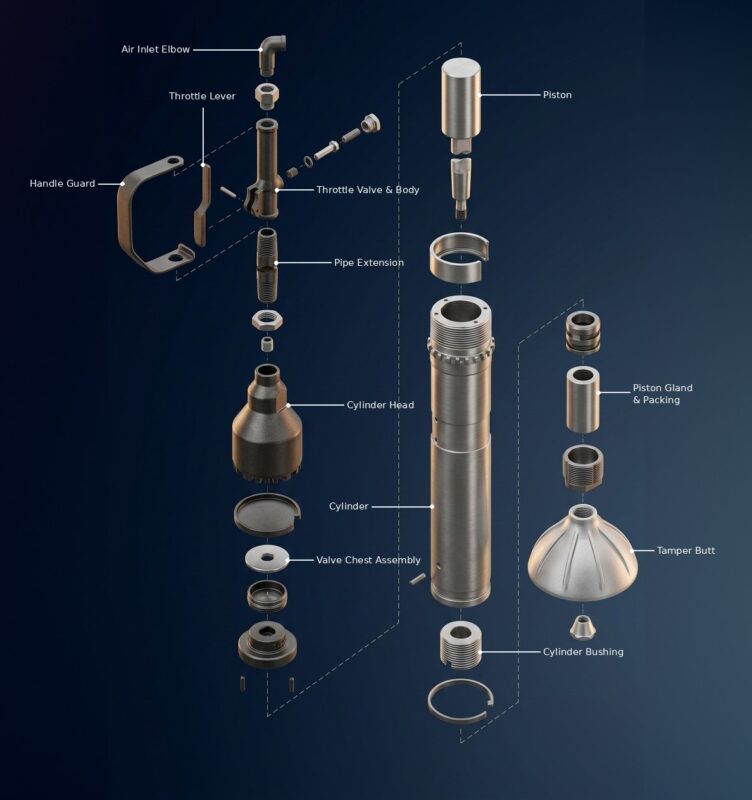

Exploded view of a pneumatic backfill tamper with twelve major components labeled: air inlet elbow, throttle lever, throttle valve and body, handle guard, pipe extension, cylinder head, valve chest assembly, piston, cylinder, cylinder bushing, piston gland and packing, and tamper butt.

Exploded view of a CP 0004 class tamper. Small hardware – o-rings, pins, jam nuts, lock clips, and plugs – is shown but left unlabeled.

The operating cycle

  1. Air enters and the throttle opensSqueezing the lever lifts the throttle valve off its seat. Line air, typically 90 psi, passes the inlet elbow and runs down the pipe extension toward the cylinder head.
  2. The cylinder head feeds the barrelAir is routed into the top of the cylinder above the piston. There is no separate valve chest here. The piston’s own position covers and uncovers the ports, so the piston is its own valve.
  3. The free piston drives downPressure above the piston accelerates it down the bore. It is not attached to anything. It flies freely, which is why the tool delivers a true impact blow rather than a push.
  4. The blow lands on the buttThe piston strikes the anvil face and the energy passes straight through the piston gland into the tamper butt, compacting the soil beneath it.
  5. Exhaust, recoil, and repeatThe piston uncovers the exhaust port, spent air dumps to atmosphere, and the rebound plus the returning air charge carries the piston back up to start the cycle again, several hundred times a minute.
Why it matters: the tool does the lifting. A tamper is meant to bounce, so the operator guides it and lets it fall. Leaning on a tamper to force it down kills the piston’s return stroke, drops the blow rate, and wears the packing and bushing far faster than the soil ever would.

What you are looking at

Air inlet elbow & throttle — where line air enters; the lever lifts a spring-loaded valve off its seat, release it and the tool stops instantly
Handle guard — the steel loop that protects the throttle lever and gives the operator something to steer with
Pipe extension — the threaded standoff that sets working height and carries air down to the cylinder head
Cylinder head & valve chest — caps the barrel and routes air above the piston
Free piston — the striker; unattached, it flies down the bore, delivers the blow, then rebounds
Cylinder & bushing — the bore the piston runs in; the replaceable bushing takes the rubbing wear
Piston gland & packing — seals the lower end and transmits the blow to the butt while keeping grit out
Tamper butt — the cast face that meets the soil; a wear item by design – it takes the abuse so the cylinder does not
Consumable — tamper buttFrequent wear — packing, bushing, butt lock nutPeriodic — piston, gland, throttle valveLong life — cylinder, head, extension pipe
The Shortlist

Backfill Tampers: The Three Ways to Buy

All six backfill tampers stocked appear in the full matrix below. These three cover the span of the class.

Three butts, one tool
from $1,265
APT 131 Backfill Tamper

APT 131 Backfill Tamper

670 BPMBlow rate
38-42 CFMAir draw
37 lbWeight
5-1/2 inStroke

Best for: utility and construction crews – order it configured with the 6 in iron, 3 in solid, or pole butt at the same price. Built-in automatic oiler; dirt-tolerant flapper valve.

See full details
The heavy hitter
from $1,470
CP 0004 RV Backfill Tamper

CP 0004 RV Backfill Tamper

780 BPMBlow rate
28 CFMAir draw
42 lbWeight
2-1/4 inBore

Best for: deep lifts and heavy soils – the biggest bore in the class turns a 6 in stroke into the heaviest per-blow compaction carried, on just 28 CFM.

See full details
Runs on small air
from $1,231
CP 0003 Backfill Tamper

CP 0003 Backfill Tamper

800 BPMBlow rate
18 CFMAir draw
30 lbWeight
6 inStroke

Best for: crews without a tow-behind – at 18 CFM it is the lightest-drinking backfill tamper stocked, and the lightest to carry at 30 lb.

See full details

Sand & Bench Rammers: The Three Ways to Buy

Pick your stroke
from $1,050
Texas Pneumatic TX8 Bench Rammer

Texas Pneumatic TX8 Bench Rammer

2-1/2 / 4 inStrokes
1,240-1,725Blow rate
15 CFMAir draw
7-10 lbWeight

Best for: shops that want one platform – 2-1/2 in for bench speed or 4 in for floor depth, with long-reach and non-revolving-piston versions of both.

See full details
The speed king
from $855
Texas Pneumatic TX70B Sand Rammer

Texas Pneumatic TX70B Sand Rammer

2,500 BPMBlow rate
15 CFMAir draw
6 lbWeight
2 inStroke

Best for: delicate patterns – the fastest blow rate carried peppers sand into place without cratering it. NR and long-reach variants available.

See full details
The 3.75 lb mini
from $657
Tamco/Toku 00BA Rammer

Tamco/Toku 00BA Rammer

1,600 BPMBlow rate
3.75 lbWeight
11-3/4 inLength
2 inStroke

Best for: small cores and all-day handwork – the lightest tool in the category at an entry price, from the value line covering both sub-families.

See full details
Prove It

Every Tamper & Rammer We Stock, One Table

Model / configurationTypeButt / taperStrokeBPMCFM @ 90 psiWeightLengthAir inletPrice
Backfill tampers – compacting soil
APT 131 (6 in / 3 in / pole butt)Backfill6, 3, or pole5-1/2 in67038-4237 lb51-7/8 in1/2 F NPTfrom $1,265
CP 0003Backfill5 in6 in8001830 lb52 in1/2 NPT$1,231
CP 0035Backfill6 in5-1/2 in80038.536 lb48-1/4 in1/2 NPT$1,212
CP 0004 RVBackfill6-1/4 in6 in7802842 lb50 in1/2 NPT$1,470
Tamco/Toku Jet-06Backfill6 in5-1/2 in75035.239.6 lb49 in1/2 NPT$1,216
Texas Pneumatic TX6TNBackfill6 in–––40 lb–1/2 NPT$1,765
Bench & sand rammers – packing molding sand
Tamco/Toku 00BABench1-3/4 in head, S taper2 in1,600–3.75 lb11-3/4 in3/8 NPT$657
TX70B (revolving)Bench.802 taper2 in2,500156 lb16 in3/8 NPT$855
TX8 2-1/2 inBench.802 taper2-1/2 in1,725157 lb16-1/4 in1/2 NPT$1,050
The Complete Order

One PO: The Trench-Ready Tamper Kit

Everything below is mechanically matched as a system around the APT 131: 1/2 in NPT air throughout, APT butt program faces, and lubrication handled at the hose. Add the defaults with one click or open any item to configure it without leaving the page.

1

The tamper

APT 131 backfill tamper

APT 131 – three butt options, built-in automatic oiler, dirt-tolerant flapper valve.

APT 131 w/ 6 in iron butt, 1/2 in female NPT inlet – the open-trench default

$1,265

2

The confined-space face

One face never fits every cut. The 3 in solid concentrates the blow beside pipe, forms, and footings.

APT 3 in round solid steel butt – fits the APT 131 lock-screw mount

$189.61

3

Hose whip + oiler

Hose whip with line oiler and bent swivel

A 6 ft whip with a built-in 4 oz line oiler feeds the tool oil all shift – the number one life factor.

6 ft x 1/2 in whip, 4 oz line oiler, 1/2 in MPT bent swivel – matches the 131 inlet

$142

4

The safety cable

Whip check safety cable

A whip check restrains the hose if a coupling lets go – cheap insurance on every air connection.

Whip check safety cable, small

$11

5

The spare face

Butts are the category’s consumable. A spare 6 in iron on the truck turns a wear-out into a 5-minute swap.

APT 6 in round iron replacement butt

$189.61

Full kit: $1,797.22
View cartCheckout
Why Crowder Supply

Built to Keep Your Tamper Working, Not Just Sell It

13Tamper & rammer models in stock today
$0Shipping on every tamper and rammer
4Brand lines with replacement butts & pads stocked
1 call1-888-883-5144 – straight to a tool expert
American Pneumatic ToolsThe documented American workhorse – the 131 ships in three butt configurations with a built-in automatic oiler.Shop APT tampers Chicago PneumaticThe three-model ladder: light-drinking 0003, muffled 0035, heavy-hitting 0004 RV – with the deepest butt program.Shop CP tampers Texas PneumaticMade in the USA with the most rammer options – long-reach and non-revolving-piston variants across the line.Shop Texas Pneumatic Tamco / TokuThe value entry into both sub-families – Jet-06 backfill tamper and the SF rammer quartet.Shop Tamco/Toku

Tamper & Rammer Questions, Answered Straight

What size air compressor do I need to run a pneumatic tamper?
For the backfill tampers Crowder Supply carries, 18-42 CFM at 90 psi measured at the tool: the CP 0003 is the lightest drinker at 18 CFM, the APT 131 draws 38-42 CFM. Bench and sand rammers draw just 12-15 CFM, so they run on a good single-stage shop compressor. Feed backfill tampers through 1/2 in hose, keep runs short, and regulate to hold a steady 90 psi at the inlet – a starved tamper compacts poorly long before it looks broken.
What is the difference between a backfill tamper and a sand rammer?
Scale and job. Backfill tampers are 30-42 lb construction tools with a 5-1/2 to 6 in stroke and slow, heavy blows for compacting soil in trenches and around poles and foundations. Sand rammers (bench and floor rammers) are their 3.75-10 lb foundry cousins: 2-4 in strokes at 1,240-2,500 blows per minute for packing molding sand, cores, and refractory. Same operating principle, very different scale.
When should I use a pneumatic tamper instead of a plate compactor or gas rammer?
Use a pneumatic tamper when the work is too tight, too close to utilities, or too small in scope for a plate compactor or a 130-190 lb gas-powered jumping jack. A hand tamper compacts right against pipe, poles, forms, and footings, and its captive butt means there is no tool steel to eject. For open areas and deep production lifts, the bigger machines still win.
What oil does a pneumatic tamper take?
We recommend running our Pneumatic Tool and Rock Drill Oil through an in-line oiler on the supply hose – it meters a continuous oil mist and keeps the tool lubricated all shift. Fill the reservoir in the cylinder head before the shift and top it up roughly every two hours of run time. Lack of lubrication is the most significant cause of premature failure in pneumatic tools, and a dry tool will normally void a warranty claim.
Why does my tamper feel weak?
Check four things in order before assuming it is worn out: air (verify 90 psi at the tool inlet through 1/2 in hose – long runs and undersized fittings bleed pressure), oil (flush and refill with tool oil), the packing nut (worn or loose rod packing leaks air down the extension pipe – snug it a half-turn until the piston has proper drag), and the fasteners (butt lock screw, extension pipe, cylinder head). Most weak tampers are dry, dirty, or starved for air, not broken.
Can I run a tamper sideways or overhead?
No. Tampers are built to work vertically downward – manufacturer guidance says to avoid horizontal positioning and never work overhead with one. Keep the butt against the work at all times: running a tamper lifted off the fill sends every blow into the tool’s own rod, packing, and butt lock screw instead of the soil.
Which butt do I need for setting poles and hydrants?
A pole (half-moon) butt – the crescent face wraps the pole so compaction lands tight against it. The APT 131 ships ready to order in a pole-butt configuration, and replacement pole butts are stocked. For open trench work use the 6 in butt; for narrow cuts beside utilities, forms, and footings use a 3 in solid butt.

Compact It Right the First Time

Thin lifts, the right face, 90 psi at the tool, and oil every two hours – the rest is picking the model. Shop the category with free shipping, or call and we will spec the tool, the butt, and the compressor together.
