Rotojec/Grout Swivels
A grout swivel is the rotating union that lets grout or flush water enter a turning drill string without wrapping the hose. Crowder stocks the RotoJec system end to end: a complete R32 male-male grout swivel for straightforward injection work, standard duty, heavy duty and super duty shanks at 3, 4 and 5 in. shank OD, the H90/T103 super heavy duty shank in right-hand single lead, and the 3 in. ID grout body the shank turns inside. Wear parts — seal sets, flushing collars and junction bars — are stocked on their own, so a rebuild does not mean a new swivel. Drill and set the anchor with R32 rods and bits from the same soil stabilization line.
Showing all 13 resultsSorted by popularity
Price range: $76.00 through $100.00 Select options This product has multiple variants. The options may be chosen on the product page
Price range: $762.00 through $2,059.00 Select options This product has multiple variants. The options may be chosen on the product page
$599.00 Select options This product has multiple variants. The options may be chosen on the product page
$698.00 Select options This product has multiple variants. The options may be chosen on the product page
$15.00 Select options This product has multiple variants. The options may be chosen on the product page
Price range: $443.00 through $490.00 Select options This product has multiple variants. The options may be chosen on the product page
Price range: $169.00 through $210.00 Select options This product has multiple variants. The options may be chosen on the product page
$1,150.00 Select options This product has multiple variants. The options may be chosen on the product page
$15.00 Select options This product has multiple variants. The options may be chosen on the product page
$178.00 Select options This product has multiple variants. The options may be chosen on the product page
Price range: $211.00 through $227.00 Select options This product has multiple variants. The options may be chosen on the product page
$278.00 Select options This product has multiple variants. The options may be chosen on the product page
Showing all 13 resultsSorted by popularity
What the Swivel Actually Does
Grout enters a stationary inlet, crosses a sealed interface, then continues into the rotating shank and down the string. That keeps torque and kinks off the hose and puts pressure at the bit. The grout body holds high pressure and resists corrosion in wet ground.
Duty Ratings and Shank Sizes
Duty is set by shank and body outside diameter — step up as string weight and pressure climb.
| Model | Shank OD | Body OD | Thread or connection |
|---|---|---|---|

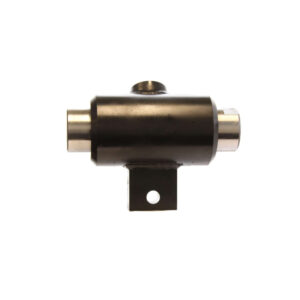

| Standard duty shank | 3 in. | 4-3/4 in. | R32 / X32 |
| Heavy duty shank | 4 in. | 5-3/4 in. | H64 / TTN40 |
| Super duty shank | 5 in. | 6-3/4 in. | H64 x X76 |
| Super heavy duty shank | — | — | H90/T103, right hand, single lead |

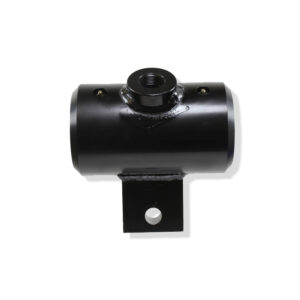

| RotoJec body | 3 in. ID | 4-3/4 in. | Matches the standard duty shank |
| Complete grout swivel | — | — | R32 male to male |

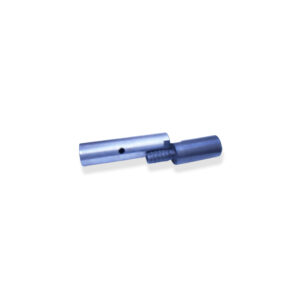

| Swivel saver adapter | — | — | R38 male to R32 female |
Dimensions come straight off the product pages.
Collars, Seals and Junction Bars

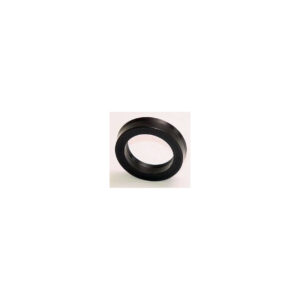

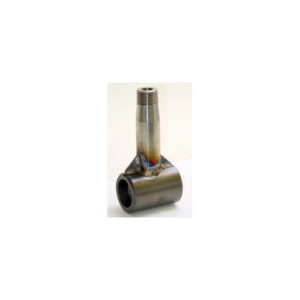

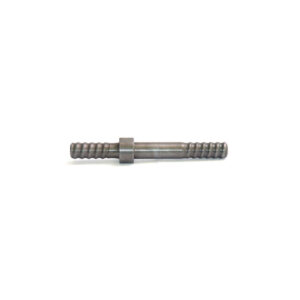

The flushing collar and grout body take a 1 in. NPT male pipe thread grout connection. On an external flush striking bar, the 1 in. flushing device for 7/8 in. bar routes fluid outside the steel, with 1 in. collar seals and 1-1/4 in. flush device seals as spares. Junction bars are 1-1/4 in. rope thread.
Common Questions
Where can I buy a grout swivel near me? Crowder Supply stocks grout swivels and RotoJec shanks in Denver and ships nationwide. In-stock items ordered by 4 PM ET ship the same day. See the ground stabilization line.
Which duty rating do I need? Match the string and the drill: 3 in. shank OD for light rotary anchor work, 4 in. for larger strings, 5 in. for heavy foundation and piling work.

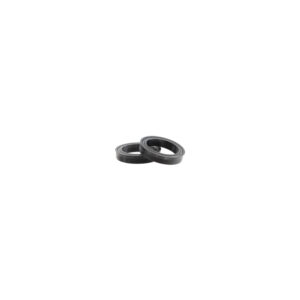

What wears out first? The seals. They take injection pressure, abrasive slurry and continuous rotation, so they go before the body or bearings. Heavy duty RotoJec seals ship four to a set.
Can it run water instead of grout? The flushing collar directs water, air or drilling mud as well as cement grout to the bit. A swivel saver, R38 male to R32 female, keeps wear off the swivel thread.
