Striking Bars

Striking Bars, Shank Seals, Flushing Collars

STRIKING BAR

EXTERNAL FLUSHING

SHANK

3/4 X 4¼

7/8 X 3¼

7/8 X 4¼

1 X 4¼

1 X 6¼

7/8 X 4¼

1 X 4¼

7/8" ROPE

SB68R22

$80.73

SB77R22

$83.10

SB78R22

$83.10

SB88R22

$83.10

SB78R22EXT

$83.10

1" ROPE

SB68R25

80.73

SB77R25

80.73

SB78R25

83.10

SB88R25

85.80

SB89R25

$95.00

SB78R25EXT

157.15

SB88R25EXT

$157.15

1¼"ROPE

SB68R32

80.73

SB77R32

95.00

SB78R32

95.00

SB88R32

95.00

SB89R32

110.00

1½ROPE

SB77R38

102.26

SB78R38

102.26

SB88R38

102.26

T38

SB77T38

95.00

SB78T38

115.00

SB88T38

102.26

Problem Solved

We specialize in the hard to find
Don't have it, we will find it
Can't find it, we will Build It

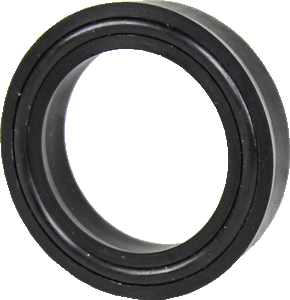

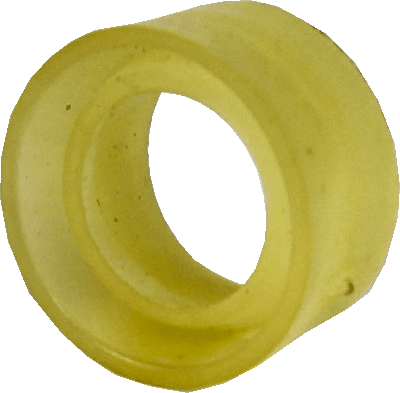

SHANK SEALS
5/16	7/16	1/2	9/16	5/8	3/4
CS8MM	CS-4375	CS13MM	CS-888	CS16MM	CS-750
$QUOTE	$4.75	$QUOTE	$4.75	$QUOTE	$4.75

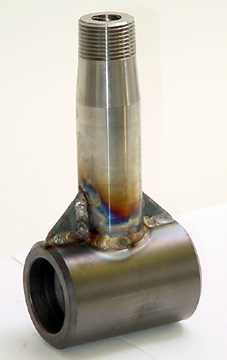

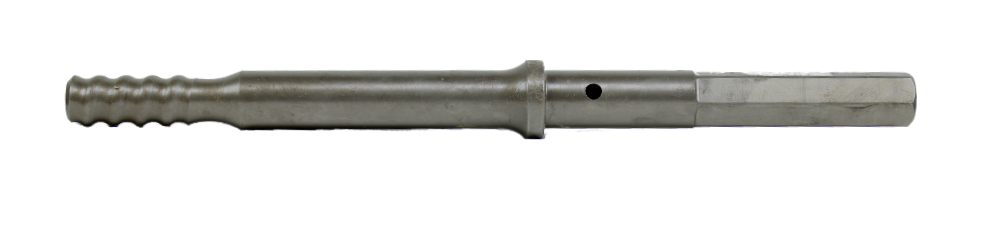

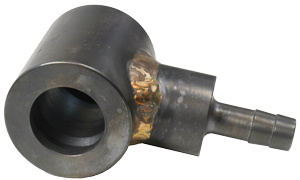

FLUSHING COLLARS External Flush Striking Bars
SB-FC25	1" FLUSHING COLLAR, 7/8" BAR	$165.00
SB-FC28	1 1/8" FLUSHING COLLAR, 1" BAR	125.00

FLUSHING COLLAR SEALS
SB-FC25-1	1" SEALS	$QUOTE
SB-FC28-1	1 1/8" SEALS	QUOTE

SHANK ADAPTERS
Shank Drawing	Drill	Thread	Part Number	Length (in.)	Length (mm)	Weight (lbs.)	Price

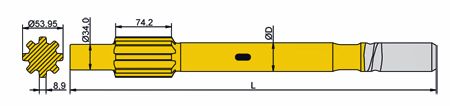

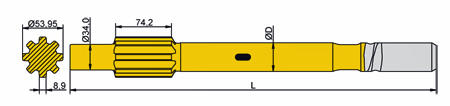

	Atlas Copco 1036HB, 1038HB, 1238HB	150R (R38)	SBCOP1036HB-R38	19.68	500.00	11.0	$336.70
		T38	SBCOP1036HB-T38	19.68	500.00	11.0	336.70
		T45	SBCOP1036HB-T45	19.68	500.00	12.0	336.70
	Atlas Copco 1038HD, 1238HD	125R (R32)	SBCOP1038HD-R32	19.68	500.00	11.0	$325.90
		150R (R38)	SBCOP1038HD-R38	19.09	485.00	11.0	325.90
		T38	SBCOP1038HD-T38	19.09	485.00	11.0	325.90
	Atlas Copco 1038HL, 1238HL	150R (R38)	SBCOP1038HL-R38	23.23	590.00	11.0	$QUOTE
	Atlas Copco 1038HL, 1238HL	T38	SBCOP1038HL-T38	23.23	590.00	11.0	QUOTE

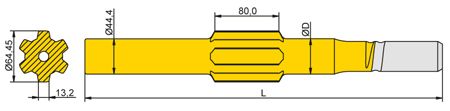

	Atlas Copco BBE56US, BBE57	T38	SBCOPBBE56US-T38	21.10	536.00	12.00	$405.50
	Atlas Copco BBE56US, BBE57	T45	SBCOPBBE56US-T45	21.10	536.00	12.00	405.50

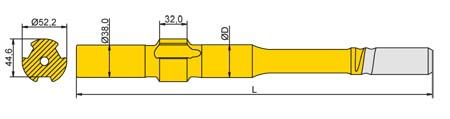

	Atlas Copco COP 125, 130, 131	150R (R38)	SBCOP125-R38	15.00	381.00	6.00	$273.40
	Atlas Copco COP 125, 130, 131	T38	SBCOP125-T38	15.00	381.00	6.00	273.40

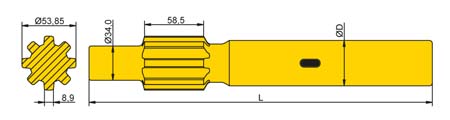

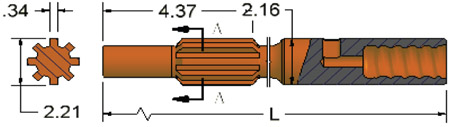

	Atlas Copco 1032HD Female	125R (R32)	SBCOP1032HD-R32F	13.81	351.00	8.00	$QUOTE
	Atlas Copco 1032HD Female	150R (R38)	SBCOP1032HD-R38F	13.81	351.00	8.00	QUOTE

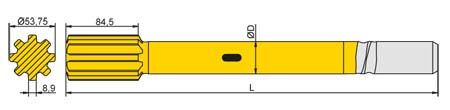

	Atlas Copco COP1440	150R (R38)	SBCOP1440-R38	18.00	435.00	9.00	$QUOTE
		T38	SBCOP1440-T38	18.00	435.00	9.00	QUOTE
		125R (R32)	SBCOP1440-R32	21.00	523.00	10.00	QUOTE
		150R (R38)	SBCOP1440-R38-523	21.00	523.00	10.00	QUOTE
	Atlas Copco HM750, HM751-RD500	125R (R32)	SBCOPHM750-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBCOPHM750-R38	14.00	356.00	8.00	163.30
		T38	SBCOPHM750-T38	15.00	381.00	8.00	163.30
		T45	SBCOPHM750-T45	15.00	381.00	9.00	163.30

	Chicago Pneumatic 450N, 450DR	125R (R32)	SBCP450N-R32	13.12	333.00	6.00	$QUOTE
		150R (R38)	SBCP450N-R38	13.12	333.00	6.00	QUOTE
		T38	SBCP450N-T38	13.12	333.00	6.00	QUOTE
	Chicago Pneumatic CP451	125R (R32)	SBCP451-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBCP451-R38	14.00	356.00	8.00	163.30
		T38	SBCP451-T38	15.00	381.00	8.00	163.30
		T45	SBCP451-T45	15.00	381.00	9.00	163.30

	Furukawa HD120, M120, PD120	125R (R32)	SBFURKHD120-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBFURKHD120-R38	14.00	356.00	8.00	163.30
		T38	SBFURKHD120-T38	15.00	381.00	8.00	163.30
		T45	SBFURKHD120-T45	15.00	381.00	9.00	163.30
	Furukawa HD200, HD300	T38	SBFURKHD200-T38	25.50	684.00	15.00	$QUOTE
	Furukawa HD200, HD300	T45	SBFURKHD200-T45	25.50	684.00	15.00	276.20
	Furukawa HD609	T38	SBFURKHD609-T38	24.40	620.00	14.00	$350.90
	Furukawa HD612	T45	SBFURKHD612-T45	28.00	712.00	20.00	$QUOTE

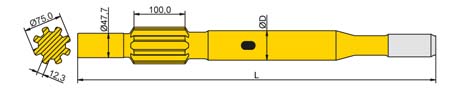

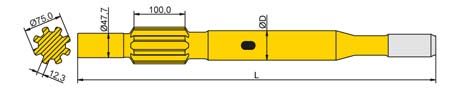

	Furukawa HD615	T51	SBFURKHD615-T51	27.50	700.00	32.00	$QUOTE

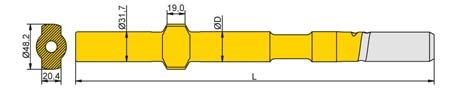

	Gardner Denver 99, 123	125R (R32)	SBGD99-R32	13.12	333.00	6.00	$QUOTE
		150R (R38)	SBGD99-R38	13.12	333.00	6.00	QUOTE
		T38	SBGD99-T38	13.12	333.00	6.00	QUOTE

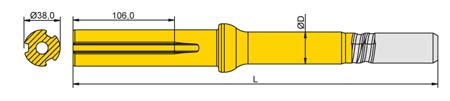

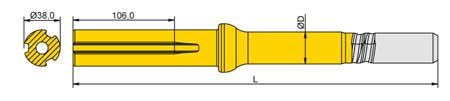

	Gardner Denver PR55, PR123	125R (R32)	SBGDPR55-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBGDPR55-R38	14.00	356.00	8.00	163.30
		T38	SBGDPR55-T38	15.00	381.00	8.00	163.30
		T45	SBGDPR55-T45	15.00	381.00	9.00	163.30

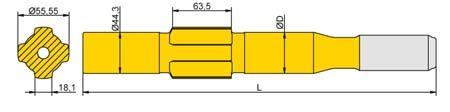

	Gardner Denver PR133	150R (R38)	SBGDPR133-R38	14.00	356.00	8.00	$QUOTE
	Gardner Denver PR133	T38	SBGDPR133-T38	14.00	356.00	8.00	QUOTE
	Gardner Denver PR66	T38	SBGDPR66-T38	28.00	711.00	13.00	$315.30
	Gardner Denver PR66	T45	SBGDPR66-T45	28.00	711.00	14.00	315.30
	Gardner Denver HPR1	150R (R38)	SBGDHPR1-R38	23.30	592.00	11.00	$348.60
		T38	SBGDHPR1-T38	23.30	592.00	11.00	348.60
		T45	SBGDHPR1-T45	23.30	592.00	11.00	348.60
	Gardner Denver HPR1H	T38	SBGDHPR1H-T38	29.00	737.00	18.00	$288.30
	Gardner Denver HPR1H	T45	SBGDHPR1H-T45	29.00	737.00	18.00	288.30
	Gardner Denver HPR2	T45	SBGDHPR2-T45	36.00	914.4	29.00	$442.60
	Gardner Denver HPR2	T51	SBGDHPR2-T51	36.00	914.40	29.00	442.60

	Ingersoll Rand 45, 475	125R (R32)	SBIR45-R32	13.12	333.00	6.00	$QUOTE
		150R (R38)	SBIR45-R38	13.12	333.00	6.00	QUOTE
		T38	SBIR45-T38	13.12	333.00	6.00	QUOTE

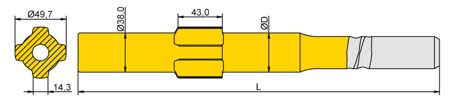

	Ingersoll Rand YD90 M	125R (R32)	SBIRYD90M-R32	13.00	333.00	6.00	$QUOTE

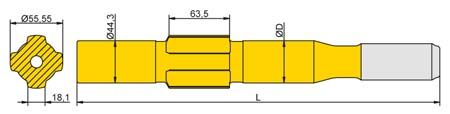

	Ingersoll Rand VL120, VL140, EVL 130, F16, URD550A	125R (R32)	SBIRV120-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBIRV120-R38	14.00	356.00	8.00	163.30
		T38	SBIRV120-T38	15.00	381.00	8.00	163.30
		T45	SBIRV120-T45	15.00	381.00	9.00	163.30

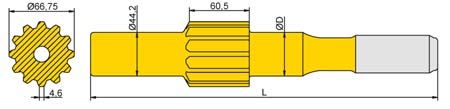

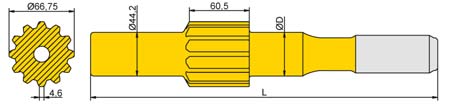

	Ingersoll Rand VL130/140	T38	SBIRVL130-T38	13.75	349.00	7.00	$261.50
	Ingersoll Rand YH60	T38	SBIRYH60-T38	21.10	537.00	12.00	$405.50
	Ingersoll Rand YH60	T45	SBIRYH60-T45	21.10	537.00	12.00	405.50

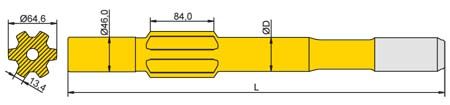

	Ingersoll Rand YH65	T38	SBIRYH65-T38	19.25	189.00	11.00	$238.70
	Ingersoll Rand YH65	T45	SBIRYH65-T45	19.25	489.00	11.00	238.70
	Ingersoll Rand YH65RP	T45	SBIRYH65RP-T45	27.50	699.00	16.00	$QUOTE

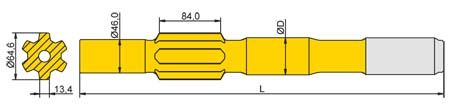

	Ingersoll Rand YH80A	T45	SBIRYH80A-T45	19.50	495.00	13.00	$QUOTE

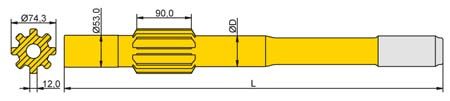

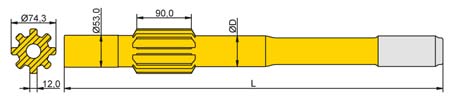

	Ingersoll Rand YH95	T45	SBIRYH95-T45	24.75	625.60	17.00	$QUOTE
	Ingersoll Rand YH95	T51	SBIRYH95-T51	24.75	625.60	17.00	QUOTE
	Ingersoll Rand YH110VRP, YH135RP	T45	SBIRYH110VRP-T45	35.40	900.00	32.00	$QUOTE
	Ingersoll Rand YH110VRP, YH135RP	T51	SBIRYH110VRP-T51	35.40	900.00	32.00	QUOTE
	Ingersoll Rand VL671 - 4 Flute	T51	SBIRVL671-T51	19.52	496.00	15.00	$QUOTE
	Ingersoll Rand VL671 - 5 Flute	T45	SBIRVL671-T45	21.00	533.00	13.00	$288.30
	Ingersoll Rand VL672	T51	SBIRVL672-T51	26.40	670.00	18.00	$QUOTE
	Ingersoll Rand F17V	T38	SBIRF17V-T38	19.94	506.00	13.00	$QUOTE

	Joy/Cannon/Sullivan VCR150	125R (R32)	SBJCSVCR150-R32	15.23	387.00	6.00	$QUOTE
		150R (R38)	SBJCSVCR150-R38	15.23	387.00	6.00	QUOTE
		T38	SBJCSVCR150-T38	15.23	387.00	6.00	QUOTE

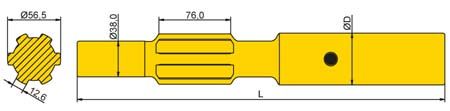

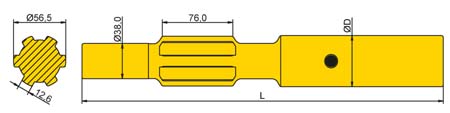

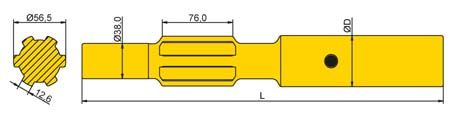

	Joy/Cannon/Sullivan JH2, CH38	125R (R32)	SBJCSJH2-R32	17.50	445.00	8.00	$214.60
		150R (R38)	SBJCSJH2-R38	17.50	445.00	8.00	214.60
		T38	SBJCSJH2-T38	17.50	445.00	8.00	214.60

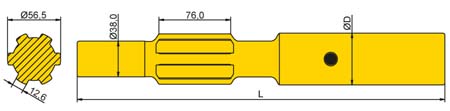

	Joy/Cannon/Sullivan JH2, CH38 - FEMALE	T38	SBJCSJH2-T38F	15.38	388.00	18.00	$285.00

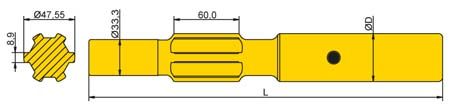

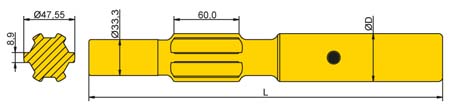

	Joy/Cannon/Sullivan CH32 - FEMALE	125R (R32)	SBJCSCH32-R32F	13.00	330.00	7.00	$QUOTE

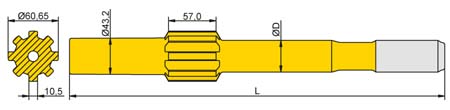

	Joy/Cannon/Sullivan VCR 260/360/460, CVR460	150R (R38)	SBJCSVCR260-R38	17.75	451.00	8.00	$150.10
		T38	SBJCSVCR260-T38	17.75	451.00	8.00	150.10
		T45	SBJCSVCR260-T45	15.25	387.00	10.00	150.10

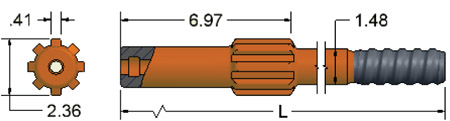

	Joy/Cannon/Sullivan VCR261	150R (R38)	SBJCSVCR261-R38	15.25	387.00	8.00	$QUOTE
		T38	SBJCSVCR261-T38	15.25	387.00	8.00	QUOTE
		T45	SBJCSVCR261-T45	15.25	387.00	8.00	QUOTE
	Joy/Cannon/Sullivan VCR361	T38	SBJCSVCR361-T38	17.00	432.00	11.00	$301.80
	Joy/Cannon/Sullivan VCR361	T45	SBJCSVCR361-T45	17.00	432.00	11.00	301.80
	Joy/Cannon/Sullivan VCR280	T51	SBJCSVCR280-T51	19.25	489.00	20.00	$362.00
	Joy/Cannon/Sullivan VCR280	C17	SBJCSVCR280-C17	19.25	489.00	20.00	362.00
	Joy/Cannon/Sullivan JH4, CH25 - FEMALE	100R (R25)	SBJCSJH4-R25F	11.30	287.00	6.00	$QUOTE
	Joy/Cannon/Sullivan JH4, CH25 - FEMALE	125R (R32)	SBJCSJH4-R32F	11.30	287.00	6.00	QUOTE

	Krupp/John Henry HB101, John Henry JHRD1	T38	SBKRPHB101-T38	27.18	690.00	26.00	$QUOTE
		T45	SBKRPHB101-T45	27.18	690.00	26.00	429.10
		T51	SBKRPHB101-T51	27.18	690.00	26.00	476.10
	Krupp/John Henry HB101, John Henry JHRD1 - FEMALE	T38	SBKRPHB101-T38F	23.25	590.00	23.00	$QUOTE
	Krupp/John Henry HB101, John Henry JHRD1 - FEMALE	T45	SBKRPHB101-T45F	23.25	590.00	22.00	QUOTE

	Mitsubishi TR300, TR400	125R (R32)	SBMITTR300-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBMITTR300-R38	14.00	356.00	8.00	163.30
		T38	SBMITTR300-T38	15.00	381.00	8.00	163.30
		T45	SBMITTR300-T45	15.00	381.00	9.00	163.30

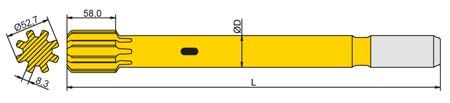

	Montabert HC140	T38	SBMONTHC140-T38	17.25	438.00	8.00	$QUOTE
	Montabert H100	T38	SBMONTH100-T38	21.10	536.00	11.40	$405.50
	Montabert H100	T45	SBMONTH100-T45	21.10	536.00	11.40	405.50
	Montabert HC120R	T51	SBMONTHC120R-T51	26.40	670.00	12.00	$QUOTE

	Tamrock L400,500,550, HL432	125R (R32)	SBTAML400-R32	15.00	381.00	5.00	$QUOTE
	Tamrock HL438TS, HL538TS	125R (R32)	SBTAMHL438TS-R32	17.70	450.00	7.00	$316.90
		150R (R38)	SBTAMHL438TS-R38	17.70	450.00	7.00	316.90
		T38	SBTAMHL438TS-T38	17.70	450.00	7.00	316.90

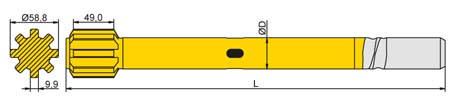

	Tamrock HL500	150R (R38)	SBTAMHL500-R38	17.75	451.00	10.00	$297.50
	Tamrock HL500	T38	SBTAMHL500-T38	17.75	451.00	10.00	297.50
	Tamrock HL600	T45	SBTAMHL600-T45	23.62	600.00	15.00	$QUOTE
	Tamrock HL645	150R (R38)	SBTAMHL645-R38	23.65	600.00	14.00	$QUOTE
		T38	SBTAMHL645-T38	23.65	600.00	14.00	QUOTE
		T45	SBTAMHL645-T45	23.65	600.00	15.00	QUOTE

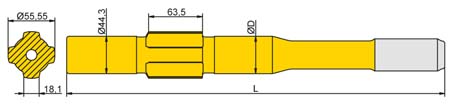

	Tamrock L750, L600	125R (R32)	SBTAML750-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBTAML750-R38	14.00	356.00	8.00	163.30
		T38	SBTAML750-T38	15.00	381.00	8.00	163.30
		T45	SBTAML750-T45	15.00	381.00	9.00	163.30
	Tamrock HL700/750	T45	SBTAMHL700750-T45	23.65	600.00	19.00	$QUOTE
	Tamrock HL700	150R (R38)	SBTAMHL700-R38	17.75	451.00	8.00	$150.10
		T38	SBTAMHL700-T38	17.75	451.00	8.00	150.10
		T45	SBTAMHL700-T45	15.25	387.00	10.00	150.10
	Tamrock HL850	T45	SBTAMHL850-T45	19.75	502.00	14.00	$QUOTE
	Tamrock HL850	T51	SBTAMHL850-T51	19.75	502.00	14.00	QUOTE
	Tamrock HL850S	T45	SBTAMHL850S-T45	26.40	671.00	19.00	$QUOTE
	Tamrock HL850S	T51	SBTAMHL850S-T51	26.40	671.00	20.00	275.00

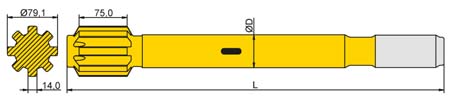

	Tamrock HL1000	T45	SBTAMHL1000-T45	26.30	668.00	24.00	$575.50
	Tamrock HL1000	T51	SBTAMHL1000-T51	26.30	668.00	24.00	575.50

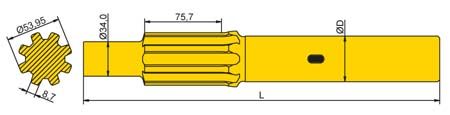

	Tamrock-Secoma Hydrastar 200/300	125R (R32)	SBTS200300-R32	19.68	500.00	11.00	$325.90
		150R (R38)	SBTS200300-R38	19.09	485.00	11.00	325.90
		T38	SBTS200300-T38	19.09	485.00	11.00	325.90
	Tamrock-Secoma Hydrastar 200 - FEMALE	125R (R32)	SBTSH200-R32F	13.81	341.00	8.00	$QUOTE

	Toyo TYPR 120, 220	125R (R32)	SBTOTYPR120-R32	14.00	356.00	8.00	$163.30
		150R (R38)	SBTOTYPR120-R38	14.00	356.00	8.00	163.30
		T38	SBTOTYPR120-T38	15.00	381.00	8.00	163.30
		T45	SBTOTYPR120-T45	15.00	381.00	9.00	163.30
