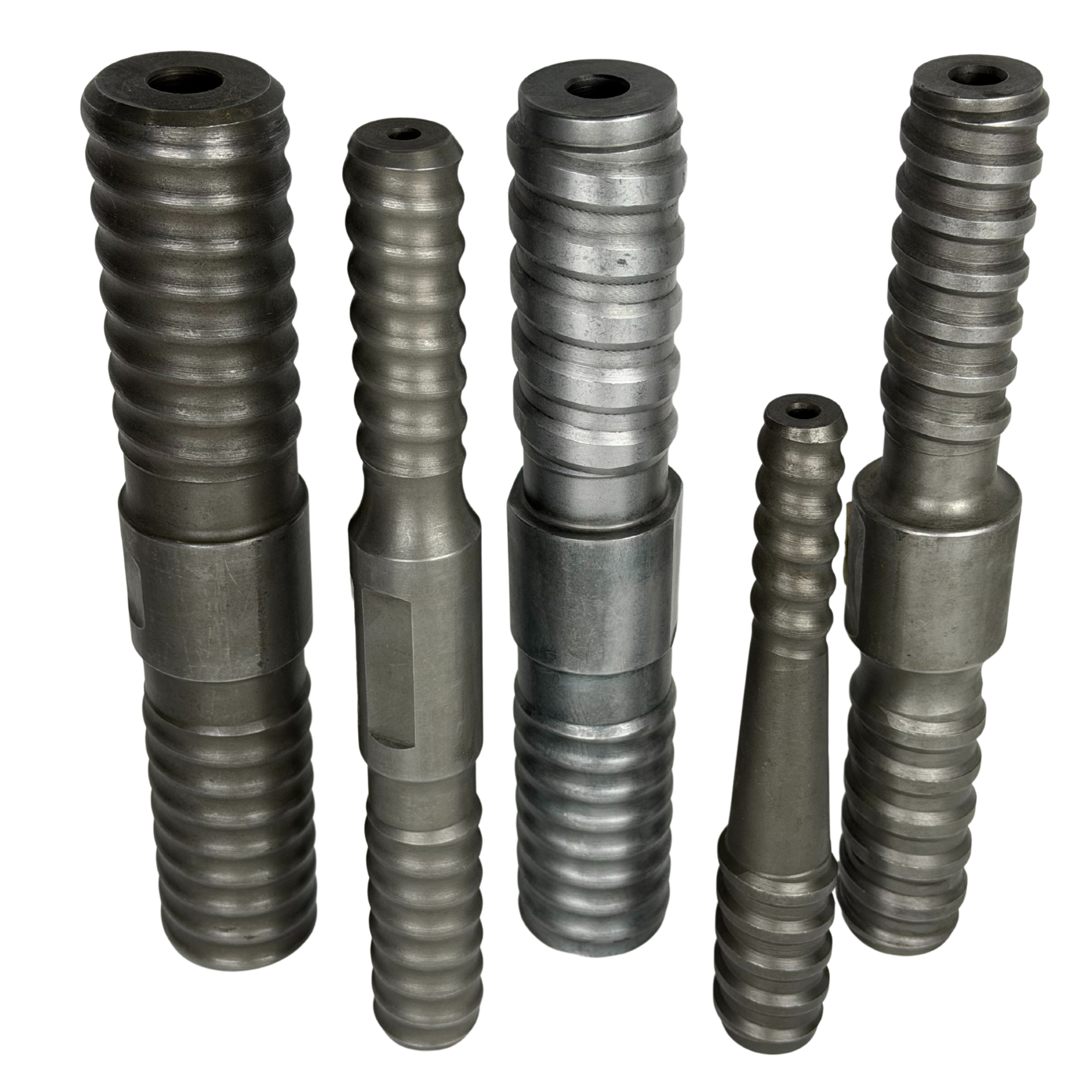

Stud rod adapters from Crowder Supply carry a male thread on both ends, joining two female-threaded drill string components and letting one string mix thread systems where it has to. Left-side threads run R32, R38, R51, T38, T45, T51 and H55 with right-side threads from R25 through H55. Each adapter is machined in Denver, Colorado and heat treated to OEM thread specifications a compact problem-solver from our drill steel adaptors line.
The stud rod is the mirror image of a threaded coupling: a coupling joins two male ends, a stud rod joins two female ends, and cross-thread combinations such as H55 to T45 splice mismatched components together. Elsewhere in the string, male/female extension drill rods stack directly while stud rods and couplings handle the joints that do not; the drill steel adapters buyers guide maps every connector between shank and bit. Crowder Supply stocks the popular combinations.
- Left-side threads: R32, R38, R51, T38, T45, T51 and H55
- Right-side threads: R25, R32, R38, R51, T38, T45, T51 and H55
- Cross-thread combinations such as H55 to T45 join mismatched drill string components
- Joins two female-threaded components including couplings and threaded bits
- Heat treated to OEM thread specifications for impact drilling service
- Made in the USA and stocked by Crowder Supply in Denver in the popular combinations
Stud Rod Adapter FAQ
When do I need a stud rod instead of a coupling?
When both components end in female threads. A coupling joins two male ends; a stud rod carries a male thread on each end and joins two female-threaded components such as couplings and threaded bits.
Can a stud rod join two different thread types?
Yes cross-thread combinations such as H55 to T45 splice mismatched drill string components. Left-side threads run R32 through H55 and right-side threads R25 through H55.
Where are these adapters made?
Each one is machined in the USA in Denver, Colorado and heat treated to OEM thread specifications for impact drilling service.
