Air N Arc® ALL-IN-ONE Power Systems®
One machine can do it all. The Air N Arc® ALL-IN-ONE Power Systems® provides up to six forms of power in one compact machine. Featuring configurations consisting of a welder, generator, air compressor, battery booster, battery charger and hydraulic output, the Air N Arc line provides you with a complete mobile workstation on the back of your truck.
FOUR FORMS OF POWER FOR LIGHT TO MEDIUM INDUSTRIAL REPAIR

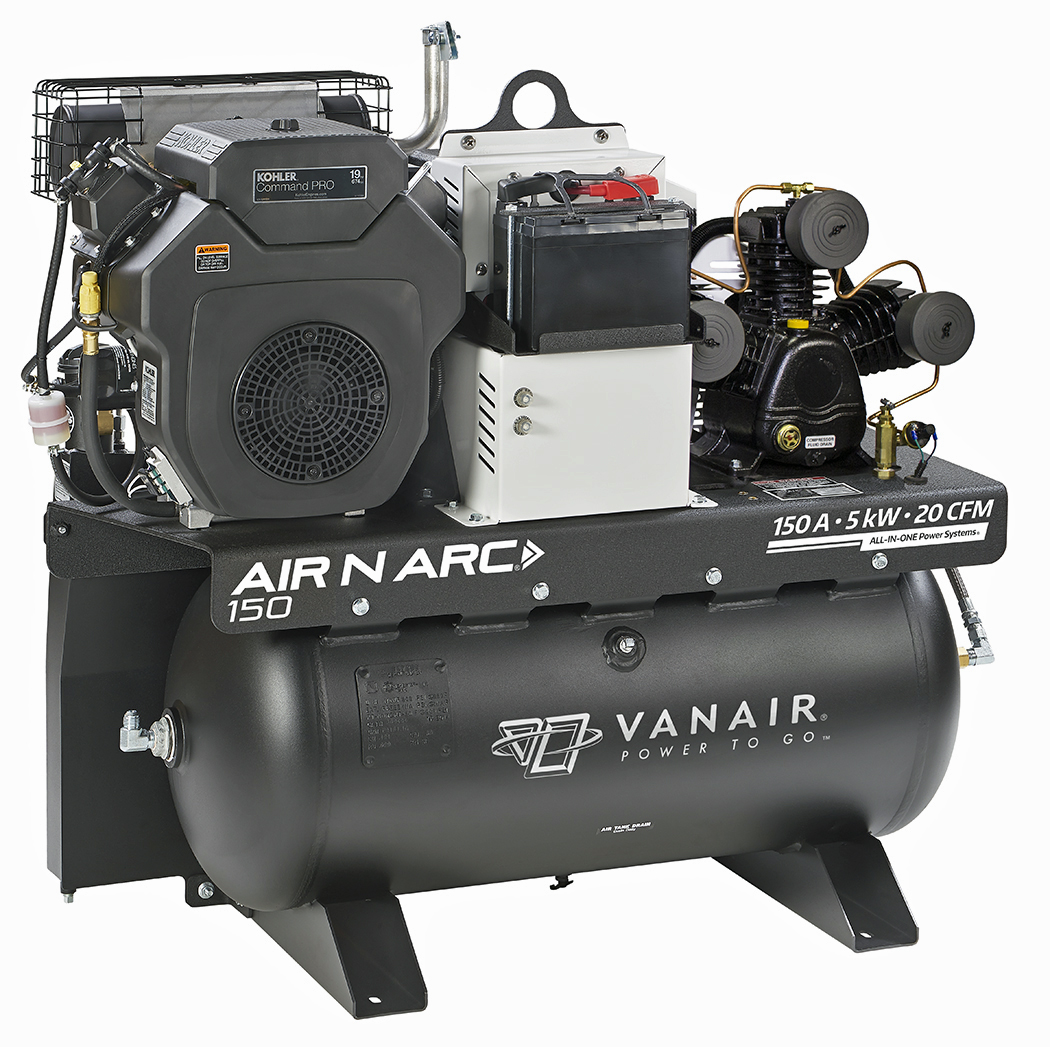

The Air N Arc® 150 provides you with four forms of power in one compact and economic unit, allowing you to save space and weight on your vehicle. Providing up to 190 AMPs of welding power, the Air N Arc® 150 is available in three configurations to meet your mouting needs
| Air N Arc 150 Gas All-in-One Power System | ||
|---|---|---|
| Part No. | Model | Price |
| 050707 | Air N Arc 150-14 HP, 1.9 Gal Fuel Tank, 20' Weld Cables, AMP Control Dial - No Air Storage | $6,380.00
|
| 050809 | Air N Arc 150-14 HP, 1.9 Gal Fuel Tank, 20' Weld Cables, AMP Control Dial - 10 Gal Air Storage | $6,970.00
|
| 050706 | Air N Arc 150-14 HP, 1.9 Gal Fuel Tank, 20' Weld Cables, AMP Control Dial - 30 Gal Air Storage | $7,105.00
|
| 050681 | Air N Arc 150-19 HP, Remote Control Panel, 12/24V Battery Boost/Charge - No Air Storage, No Fuel | $8,520.00
|
| 050680 | Air N Arc 150-19 HP, Remote Control Panel, 12/24V Battery Boost/Charge - 30 Gal Air Storage, 11.5 Gal Fuel Storage | $10,270.00
|
Special Features
- Fuel system can be integrated with the chassis
- Powder coated sheet metal for protection
- 100% duty high frequency welder offering excellent weld characteristics
- Galvannealed steel metal
- Heavy duty belt driven system for anti-vibration and long service intervals
Air Compressor
- Reciprocating compressor
- Cast iron air pump with three cylinder head design for better cooling
Welder
- Patented amperage and power controls built into welding lead fo rease of use for 14HP units and 19HP stand-alone machines
- 100% variable completely controllable. No preset settings
- Independent welding generator
- CV on remote panel machines
- Safe multi-function
- Auto throttle control
Generator
- True two generator system for safe multi-functioning of welder and electric tools
- Independent AC power for safe multi-functioning
- Brushless design
- Smooth wave for minimal distortion
- Two (2) 120V outlets and one (1) 240V outlet provided
Engine
- 14 HP Kohler or 19 HP Kohler
- Electric Start
Available Fuel Capacity
- 1.9 Gallons (14 HP)
- 4.5 Gallons on models with 8 gallon air storage (19 HP)
- 11.5 gallons on models with 30 gallon air storage (19 HP)
- Plumb to chassis
Battery Boost/Charge (Optional)
- 150 AMP 12V/24V Boost (Standard on remote panel)
- 50 AMP 12V Charge (Standard on remote panel)
Remote Control Panel (Optional on 19 HP systems - Harness not included)
- Provides ultimate user convenience and safety
- All functions accessible at panel. No need to jump in and out of vehicle
- Filter/Lubricator/Regulator (FLR)
- Hose reels and fittings
- OSHA safety valve (Velocity fuse)
- Post drivers
- Service/Control line moisture separator
- Tool Oiler/Lubricator
Available Air Reservoirs
- 8 gallon (19 HP), 10 Gallon (14 HP), 30 Gallon and Skid Mount
|
Air N Arc 150 14HP, 1.5 Gallon Fuel Tank with 20' Weld Cables and AMP Control Dial |
Air N Arc 150 19 HP, Remote Control Panel, 12/24V Battery Boost Charge |
||||
| No Air Storage (05070) | 10 Gal Air Storage (050809) | 30 Gal Air Storage (050706) | No Air Storage, No Fuel Storage (050681) | 30 Gal Air Storage, 11.5 Gal Fuel Storage (050680) | |
| Welder - 40-190 AMPs operating range. Patented amperage and power controls built into welding leads for stand-alone unit. | x | x | x | ||
| Welder - 40-150 AMP DC/CC, 15-30V DC/CV. Patented amperage and power control built into welding leads for stand-alone unit | x | x | |||
| Generator - Totally brushless with capacitor, copper windings, bi-directional rotation, <4% distortion. Capacity: 5 kW peak, 4.2 kW continuous, AC power, 60 Hz, single phase, 120V and 240V outlets | x | x | x | x | x |
| Compressor - Reciprocating type. 3 cylinder, single stage, splash lubricated, with built-in head unloaders, steel braided discharge line and automatic throttle control. Capacity: 20 CFM and up to 150PSIG | x | x | x | x | x |
| Battery - 12V AGM sealed lead acid - Per DOT specification 49 CFR 173.159 | x | x | x | x | x |
| Booster/Charger - 150 AMP 12V/24V boost | x | x | x | ||
| Booster/Charger - 150 AMP 12V/24V boost, 50 AMP 12V Charge (optional for engine only | x | x | |||
| Engine - Single cylinder, electric start gasoline engine, Kohler® model Command PRO CH440, air cooled, 14 HP per SAE J1940 specification and automatic electronic throttle control | x | x | x | ||
| Engine - V-twin, electric start gasoline engine, Kohler® model Command PRO CH620, air cooled, 19 HP SAE J1940 specification, automatic electronic throttle control, electornic choke control | x | x | |||
| Fuel Capacity | Plumb to Chassis | 1.9 gal | 1.9 gal | Plumb to chassis | 11.5 gal |
| Air Storage Tank - Options for 10 gallon, 30 gallon or remote air tank. ASMI/CRN certification on appropriately sized tanks. Unit to include pressure gauge, ball valve, pressure relife valve and condensation drain. | None | 10 gal | 30 gal | None | 30 Gal |
| Weight - Dry lbs. depending on platform | 345-565 | 345-565 | 345-565 | 345-565 | 345-565 |
| Dimension (in) | 50.3W x 18.2L x 24.2H | 51.5W x 21.0L x 31.2H | 50.7W x 19.2L x 40.8H | 48.1L x 22.4W x 24.2H | 48.2L x 22x2W x 40.8H |
| Instrument Panel - Panel to include 120V and 240V receptacles, volt meter, thermal breakers, generator on/off switch, welder connection and selector switch, battery booster cable connection (if equipped) | x | x | x | ||
| Instrument Panel - Panel to include 120V and 240V receptacles, volt meter, thermal breakers, generator on/off switch, welder connection and selector switch, battery booster cable connection and low fuel indicator lamp | x | x | |||
| Drive System - Heavy duty belt drive system with self-cooling, self-cleaning link belts to drive compressor. Belt is made of a custom-designed, high-tech polyurethane/polyester composite with an operating temperature range of -40°F to +240ºF. Belt to drive the generators to be poly-V serpentine belt with quiet channel technology | x | x | x | x | x |
| Metal and Tanks - Fully powder-coated with galvanneal sheet metal, ¼" plate steel main frame, integrated lift hook and full service access. | x | x | x | x | x |
| Parts & Accessories | ||||||
|---|---|---|---|---|---|---|
| Remote Mount Control Panel Connection Harness - 6' | TPLI-6 | $372.00
|
Air Reservoir Tank - 28 Gal - Twin 18-Gal Underdeck | 032707 | $2,278.00
|
|
| Remote Mount Control Panel Connection Harness - 10' | TPLI-10 | $480.00
|
Air Reservoir Tank - 14 Gal - Underdeck | 032708 | $1,196.00
|
|
| Remote Mount Control Panel Connection Harness - 14' | TPLI-14 | $633.00
|
Air Reservoir Tank - 30 Gal | OA49645 | $930.00
|
|
| Remote Mount Control Panel Connection Harness - 18' | TPLI-18 | $855.00
|
Battery Cable Ext, Two Gauge Positive & Negative - 8' | MA269945-08 | $263.00
|
|
| California CARB Compliance Kit - 20HP only | 032851 | $110.00
|
Battery Cable Ext, Two Gauge Positive & Negative - 12' | MA269945-12 | $300.00
|
|
| Optional Weld Cable Set 25' - 20HP only | 033020-25 | $454.00
|
Battery Cable Ext, Two Gauge Positive & Negative - 16' | MA269945-16 | $354.00
|
|
| Optional Weld Cable Set 50' - 20HP only | 033020-50 | $785.00
|
Battery Cable Ext, Two Gauge Positive & Negative - 20' | MA269945-20 | $407.00
|
|
| Weld Cable Reel, Manual Rewind w/ 50' Leads, 400A | 033136 | $3,705.00
|
Battery Cable Ext, Two Gauge Positive & Negative - 24' | MA269945-24 | $450.00
|
|
| Weld Cable Reel, Spring Forward w/ 50' Leads, 400A | 033137 | $3,996.00
|
Cable, Power Segment - for connecting a suitcase type welder | MA270699 | $189.00
|
|
| Optional Batter Boost Cables - 25" (2GA w/ Quick Connect ends - 20HP only) | MA36223 | $205.00
|
Tanner De-Icer | 032515 | $830.00
|
|
| Cold Weather Kit 12V DC (installed at machine build) | 032793 | $353.00
|
Module to Make Standard Outlets GFCI 20HP models only | OA032929 | $400.00
|
|
| Cold Weather Kit 120V AC (installed at machine build) | 032927 | $357.00
|
Filter Lubricator Regulator - 1/2" | 264493 | $388.00
|
|
| Compressor Service Kit | KIT1156 | $76.00
|
Fuel Tank Assy - Slimline 11-Gal, Fuel Light Sender | OA050535 | $961.00
|
|

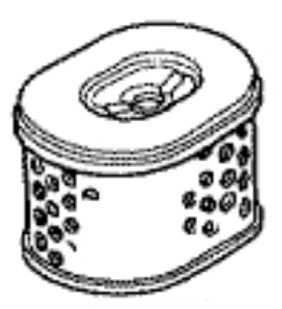

| Engine Service Kit - Kohler 14HP | KIT1158 | $64.00
|
Engine Block Heater - Kubota Diesel 400W, 120V AC | MA032938 | $264.00
|
|
| Engine Service Kit - VNR680 20HP | KIT1504 | $68.00
|
Air Hose 1/2" x 50' NPT, 300 WP | 264514 | $247.00
|
|
| Vanguard Reciprocating Compressor Oil - 1 Qt. | 271856-1QT | $34.00
|
Hose Stop - 1/2" | 276175 | $26.00
|
|
| Vanguard Reciprocating Compressor Oil - 1 Gal | 271856-1GAL | $135.00
|
Hose Reel for 1/2" x 50' Hose (hose not included) | 269602 | $885.00
|
|
| Hose Reel for 3/4" x 50' Hose (with high temp hose and ball stop) | 263914 | $1,255.00
|
||||
| OSHA Valve up to 70 CFM 1/2" | MA272578 | $63.00
|
Hydraulic Tank Heater - 350W 12V DC | MA273856 | $200.00
|
|
| Trunk Line with Receptacle Box (2 Duplex 120V GFCI Outlets) 10' | EP273416-10 | $220.00
|
Stellar Crane Interface Harness | 032950 | $255.00
|
|
| Trunk Line with Receptacle Box (2 Duplex 120V GFCI Outlets) 25' | EP273416-25 | $240.00
|
IMT Crane Interface Harness | 032951 | $255.00
|
|
| Vibration Isolator Kits 1/2" | KIT1202-001 | $115.00
|
Auto Crane Interace Harness | 032959 | $211.00
|
|
| Remote Panel Metal Cover | 033189 | $256.00
|
Moisture Separate - Service Line | 265243 | $329.00
|
|
Air N Arc 250 All-in-One Power Systems
FIVE FORMS OF POWER FOR LIGHT TO MEDIUM INDUSTRIAL REPAIR

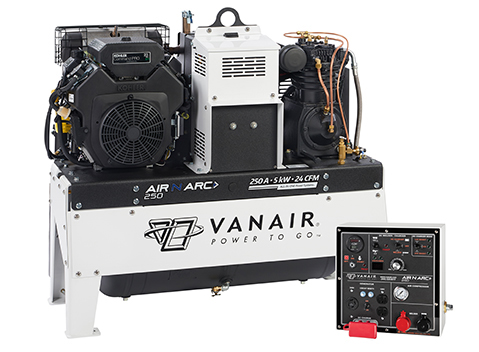

The Air N Arc® 250 provides you with five forms of power in one machine. Offering 250 AMPs of welding capabilities and a 2-stage reciprocating air compressor for the pressure you need to get the job done, the Air N Arc® 250 performance can't be beat. It also features an EFI engine to save on fuel and to provide the horsepower you need for effective multi-functioning of tools.
NOW AVAILABLE IN A 30% LIGHTER ALUMINUM DESIGN

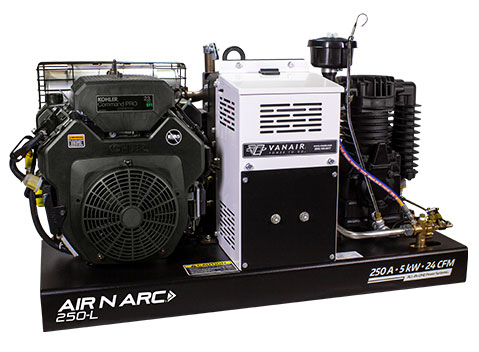

The Air N Arc® 250-L features an aluminum reciprocating air end, base, and sheet metal to reduce the weight of a standard steel skid mount system by 30%. The Air N Arc 250-L still offers all the advantages you expect from an All-in-One Power System® including five forms of power in a single machine, increased availablity of valuable bed space, reduced spending costs on purchasing multiple machines, and reduced truck idle time by turning off the truck. Be ready any time, by having all your necessary power sources on board, all of the time!
| 051876 | Air N Arc 250 - 25 HP, 30 Gal Air Storage, 11.5 Gal Fuel Tank | $14,497.00
|
| 051833 | Air N Arc 250-L - 23 HP, Remote Control Panel, No Air Storage, No Fuel Tank | $12,494.00
|
SPECIAL FEATURES
AIR COMPRESSOR - 250
AIR COMPRESSOR - 250-L
WELDER
|
WELDER - 250 ONLY
GENERATOR
BATTERY BOOST/CHARGE
REMOTE CONTROL PANEL
ENGINE
AIR TANK
|
| SPECIFICATONS | ||||
|---|---|---|---|---|
|
Air N Arc 250 25 HP, No Air, No Fuel |
Air N Arc 250 25 HP, 30 Gal Air, 11.5 Gal Fuel |
Air N Arc 250L 23 HP, No Air, No Fuel |
||
| Welder | High frequency DC welding, 250 AMP at 100% duty cycle. CC: 40-25 AMP operating range, CV: 1500V | x | x | x |
| Generator | Totally brushless with capacitor, copper windings, bi-directional rotation, <6% distortion. 5 kW continuous, AC power, 60 Hz, single pase, 120V and 240V outlets | x | x | x |
| Compressor | Reciprocating type. 2 cylinder, dual stage, splash lubricated, with built-in head unloaders, steel braided discharge line and automatic throttle control. 24 CFM at up to 175 PSIG operation | x | x | x |
| Battery | 12V AGM sealed lead acid - per DOT specification 49 CFR 173.159 | x | x | x |
| Booster/Charger | 300 AMP 12/24V battery boost; 50 AMP 12V charge | x | x | x |
| Engine | V-twin fuel injected, electric start gasoline engine, Kohler® model Command PRO ECH730, air cooled, 23 HP per SAE J1940 specification, automatic electronic throttle control | x | x | x |
| Fuel Capacity | Fuel tank includes additonal 12V solid state electronic fuel pump 1.5-2.5 GPH flow. | Plumb to chassis | 11.5 Gallon | Plumb to chassis |
| Air Storage Tank | Optons for 30 gallon or remote air tank. Tank to be ASME/CRN certificed. Unit to include pressure gauge, pressure relief valve, and condensation drain | Optional remote | 30 Gallon |
Optional remote 11 Gal |
| Dry weight (lbs) | 500 | 725 | 368 | |
| Dimensions (in) | 48.1L x 22.9W x 27.0H | 48.8L x 23.4W x 43.3H | 47.6L x 21.2W x 27.0H | |
| Instrument Panel | Panel to include engine start/stop function, digital fuel gauge and hour meter, air pressure gauge, generator on/off switch, thermal breakers, 120V and 240V receptacles, weld cable connections, weld mode selector switch, digital display for amperage and voltage output, potentiometer for adjustment of amperage and voltage for weld mode, battery boost mode selector switch, battery booster cable connection, mode indicator lights and system fault lights. | x | x | x |
| Drive System | Heavy duty belt-drive system with auto tensioner and self-cooling, self-cleaning link belts to drive compressor. Belt is made of a custom-designed, high-tech polyurethane/polyester composite with an operating temperature range of -40°F to +240°F. Belt to drive the generators to be poly-V serpentine belt with quiet channel technology. | x | x | x |
| Metal & Tanks | Fully powder-coated with galvanneal sheet metal, ¼" plate steel main frame, integrated lift hook and full service access. | x | x | |
| Metal & Tanks | Aluminum base, air end and sheet metal | x | ||
| Parts & Accessories | ||||||
|---|---|---|---|---|---|---|
| Gas Model | Diesel Model | |||||
| Remote Mount Control Panel Connection Harness - 6' | MA274613-06 | $602.00
|
Remote Mount Control Panel Connection Harness - 6' | MA269937-06 | $503.00
|
|
| Remote Mount Control Panel Connection Harness - 10' | MA274613-10 | $766.00
|
Remote Mount Control Panel Connection Harness -10' | MA269937-10 | $637.00
|
|
| Remote Mount Control Panel Connection Harness - 14' | MA274613-14 | $866.00
|
Remote Mount Control Panel Connection Harness -14' | MA269937-14 | $824.00
|
|
| Remote Mount Control Panel Connection Harness - 18' | MA274613-18 | $1,091.00
|
Remote Mount Control Panel Connection Harness - 18' | MA269934-18 | CALL | |
| Cold Weather Package (12V, Air Compressor, Oil, Engine Oil Pan and Air Inlet Heater) Installed at time of buil | 032770 | $451.00
|
Remote Mount Control Panel Connection Harness - 22' | MA269934-22 | CALL | |
| Engine Service Kit - (Oil, oil filter, air filter, fuel filter, inline fuel filter and pre-filter) | KIT1119 | $76.00
|
Remote Mount Control Panel Connection Harness - 26' | MA269934-26 | CALL | |
| Engine Service Kit (Oil, oil filter, fuel filter and air filter) | KIT1154-01 | $139.00
|
||||
| Underbody Slide Out Frame | 033176 | $5,083.00
|
||||
| All 300 Compact Models | ||||||
| Compressor Service Kit - 50 HOur (Vanguard oil and oil filter) | KIT1285 | $148.00
|
Weld Cable Set - 25" | 033020-25 | $454.00
|
|
| Compressor Service Kit - 500 Hour with Coalescer (Vanguard oil, oil filter, air filter and oil/air separator) | KIT1153 | $277.00
|
Weld Cable Set - 50- | 033020-50 | $785.00
|
|
| Vanguard Premium Green Oil - 1 Gal - 4 Pack | 264626-4GREEN | $413.00
|
Weld Cable Reel, Manual Rewind with 50' Leads, 400A | 033136 | $3,705.00
|
|
| Vanguard Permium Oil - 1 Gal - 4 Pack | 264626-4PACK | $272.00
|
Weld Cable Reel, Spring Foward with 50' Leads, 400A | 033137 | $zzcp1 | |
| Battery Boost Cables 25' Two Gauge with Quick Connect Ends | MA269938 | $333.00
|
||||
| Air Reservoir Tank - 28 Gallon - Twin 14 Gallon Underdeck | 032707 | $2,278.00
|
Battery Boost Cables - 25' Two Gauage w/ Quick Connect Ends | MA269938 | $333.00
|
|
| Air Reservoir Tank - 14 Gallon Underdeck | 032708 | $1,196.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 8' (for connection to chassis) | MA269945-08 | $263.00
|
|
| Air Reservoir Tank - 30 Gallon | OA49645 | $930.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 12' | MA269945-12 | $300.00
|
|
| Power Segment Cable (for connecting a suitcase-type welder) | MA270699 | $189.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 16' | MA269945-16 | $354.00
|
|
| Tanner De-Icer | 032515 | $830.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 20' | MA269945-20 | $407.00
|
|
| Ext Segment for Boost Cable - 25' (Two gauge cable with connectors) | MA270012-25 | $366.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 24' | MA269945-24 | $450.00
|
|
| Ext Segment for Boost Cable - 50' | MS270012-50 | CALL | Module to make Standard Outlets GFCI Protected | OA032817 | $408.00
|
|
| Ext Segment for Weld Cable - 50' (I/O Cable with Connectors) | MA269942 | $405.00
|
Filter Lubricator Regulator - 1/2" | 264493 | $388.00
|
|
| Air Hose - 1/2" x 50' NPT, 300 WP | 264514 | $247.00
|
Hose Stop - 1/2" | 276175 | $26.00
|
|
| Hose Reel for 1/2" x 50' hose (hose NOT included) | 269602 | $885.00
|
Hose Reel for 3/4" x 50' Hose (with high temp hose and ball stop) | 263914 | $1,255.00
|
|
| Hydraulic Tank Heater - 350W, 12V, DC | MA273856 | $200.00
|
Stellar Carne Interface Harness | 032950 | $255.00
|
|
| Moisture Separator - Service Line | 265243 | $329.00
|
IMT Crane Intrface Harness | 032951 | $255.00
|
|
| OSHA Valve up to 70cfm 1/2" | MA272578 | $63.00
|
Auto Crane Interface Harness | 032959 | $211.00
|
|
| Trunk Line with Receptacle Box (2 duplex 120V GFCI outlets) 10' | EP273416-10 | $220.00
|
Vibration Isolator Kits - 1/2" | KIT1202-001 | $115.00
|
|
| Trunk Line with Receptacle Box - 25' | EP273416-25 | $240.00
|
Remote Panel Metal Cover | 033189 | $256.00
|
|
Air N Arc 250 All in One Power System
Safety & Operating Instructions
Air N Arc 250-L All in One Power System
Safety & Operating Instructions - Not available
Spare Parts List / Breakdown - Not available
Increase your Efficiency, Increase your Productivity, Increase your Profitability, With One System
The Air N Arc® 300 system provides more efficient use of your truck bed and reduces cost by combining five power sources - rotary screw on-demand air compressor, 7 kW generator, 300 AMP welder, battery booster and battery charger - into one single unit. Designed as a true two generator system, the Air N Arc® 300 series allows multi-functioning such as welding and generator for lights for night time service.
| Air N Arc 300 Series | ||
|---|---|---|
| 050518 | Air N Arc 300 Gas - 29 HP, 4 Gal Air Storage, 12 Gal Fuel Storage | $16,850.00
|
| 050580 | Air N Arc 300 Gas - 29 HP, 4 Gal Air Storge, No Fuel Storage | $15,775.00
|
| 050590 | Air N Arc 300 Diesel - 25 HP, 4 Gal Air Storage, 12 Gal Fuel Storage | $23,790.00
|
| 050591 | Air N Arc 300 Diesel - 25 HP, 4 Gal Air Storage, No Fuel Storage | $22,690.00
|
Special Features
- True two generator system for safe multi-function of welder and electric tools
- All the benefits of a high frequency welder offering excellent weld characteristics
- 40 CFM rotary screw compressor for air on demand and extended life of unit
- Heavy duty belt drive system for anti-vibration and long service intervals
- Remote mount control panel for the ultimate in user convenience
- Fuel system can be integrated with the chassis
- Integrated lift hook and battery tray
- Designed for easy maintenance
- Small footprint - will fit on side pack or behind cab
- Powder coated sheet metal
- Galvannealed steel
AIR COMPRESSOR
- Encapsulated rotary screw compressor for air on demand
- 40 CFM @ 100 PSI
- 175 MAX PSI
WELDER
- High frequency DC welding
- 270 AMPs at 100% duty cycle
- CC range 40-300 AMPs operating range
- CV range 15-30 Volts
- Independent DC welder
- Auto speed control
- CV MIG capabilities
GENERATOR
- 7 kW peak
- 6.8 kW continuous @ 60 Hz (available in 5.7 Kw continuous watts @ 50 Hz)
- Independent AC Generator
- Brushless
- Smooth wave for minimal distortion
- Two 120V outlets and one 240V outlet
BATTERY BOOST/CHARGE
- 300 amp 12v/24v boost
- 50 amp 12v charge
COLD WEATHER PACKAGE
- Optional integrated 12V weather package on diesel only
- Optional 12V heaters for gas model
ENGINE
- 26.5 HP EFI Kohler, air cooled, or 25 HP Kubota®, liquid cooled
- Electric start
- 12 Gallon integral tank
- Provides power for emergency and safety lights with truck engine turned off
- Tier 4 emission compliant
- Glow plugs
| Specifications | |||||
|---|---|---|---|---|---|
|
Air N Arc 300 29 HP Gas, 4 Gal Air, 12 Gal Fuel |
Air N Arc 300 29 HP Gas, 4 Gal Air, No Fuel |
Air N Arc 300 25 HP Diesel, 4 Gal Air, 12 Gal Fuel |
Air N Arc 300 25 HP Diesle, 4 Gal Air, No Fuel |
||
| Welder | High frequency DC welding, 270 AMP at 100% duty cycle. CC: 40-300 AMP operating range, CV: 15-30V | x | x | x | x |
| Generator | Totally brushless with capacitor, copper windings, bi-directional rotation, <6% distortion. 7kW peak, 6.8kW continuous, AC power, 60 Hz, single phase, 120V and 240V outlets | x | x | x | x |
| Compressor | Vanair® encapsulated 40 CFM rotary screw air compressor system with clutch to elminate horsepower consumption during unloaded condition. 40 CFM free air at up to 175 PSIG | x | x | x | x |
| Battery | 12V sealed lead acid - per DOT specification 49 CFR 173.159 | x | x | x | x |
| Booster/Charger | 300 AMP 12V/24V boost, 50 AMP 12V charge | x | x | x | x |
| Engine - Gas | V-twin fuel injected, electric start gasoline engine, Kohler® model Command PRO ECH749, air cooles, 26.5 HP oer SAE J1940 specification, automatic electronic throttle control | x | x | ||
| Engine - Diesel | Electric start diesel engine, Kubota® model DH902, liquid cooled, 25 HP tier 4 final with high temperature and low oil pressure shut down | x | x | ||
| Fuel Capacity | 12 Galloon Integral Tank | Plumb to Chassis | 12 Gallon Integral Tank | Plumb to Chassis | |
| Air Stoarge Tank | 4 Gallon Integrated | x | x | x | x |
| Air Intake Filters | Separate two-stage, heavy duty, dry-type air filters with dust evacuators shall be provided for air compressor | x | x | x | x |
| Air/Fluid Separator | Separator to be externally mounted spin-on design. Vanair separator shall provide for enhanced air quality, reduced operating and maintenace cost and optimized compressor performacnce. | x | x | x | x |
| Protective Circuit | Compressor to automatically shutdown in case of high compressor temperature or over pressurization. Additional protective features provided include automatic blow down valve, receiver relief valve and minimum pressure valve. | x | x | x | x |
| Cooling System - Gas | Compressor cooling system shall allow rated air delivery and pressure operation continuously in 110°F ambient temperatures. Cooler to be mounted in a powder coated valvanneal sheet metal enclosure with a suction type fan assembly. Compressor fluid shall be filtered by a 25 micron full flow spin-on replaceable filter canister. A fan temperature switch is included to regulate compressor cooling. An additonal fan temperature switch is included to regulate enclosure cooling. | x | x | ||
| Cooling System - Diesel | Compressor cooling system shall allow rated air delivery and pressure operation continuously in 110°F ambient temperatures. Cooler to be mounted in a powder coated galvanneal sheet metal enclosure with a blower type fan assembly. Compressor fluid shall be filtered by a 25micron full flow spin-on replaceable filter canister. A thermal valve is included ot regulate compressor cooling. | x | x | ||
| Inlet Controls | Electric inlet cntrol valve shall be integrated into compressor system and automatically modulate output from 0 to 100% in response to air demand | x | x | x | x |
| Dry Weight (lbs) | 700 | 700 | 870 | 870 | |
| Dimensions - Gas |
|
x | x | ||
| Dimensions - Diesel | Platform - 47.5L x 21.0W x 33.4H | x | x | ||
| Instrument Panel | Panel to have quick disconnects and be capable of being remotely mounted. Panel to include engine start/stop function, digital fuel gauge and hour meter, air compressor on/off switch, air pressure gauge, generator on/off switch, thermal breakers, 120V and 240V receptacles, weld cable connections, weld mode selector switch, digital display for amperage and voltage output, potentiometer for adjustment of amperage and voltage for weld mode, battery boost mode selector switch, battery booster cable connection, mode indicator lights and system fault lights. | x | x | x | x |
| Drive System | Heavy duty belt-drive system. Belt to drive the generators to be poly-V serpentine belt with quiet channel technology and automatic tensioner. Belt for compressor to be poly-V serpentine belt with quiet channel technology and tensioner. | x | x | x | x |
| Metal and Tanks | Fully powder-coated with galvanneal sheet metal enclosure, ¼" plate steel main frame, inegrated lift hook and full service access. | x | x | x | x |
| Options Kits and Accessories | ||||||
| Remote Mount Control Pannel Connection Harness - 6' | MA269937-06 | $503.00
|
Air reservoir Tank - 28 Gal - Twin 14 Gal Underdeck | 032707 | $2,278.00
|
|
| Remote Mount Control Pannel Connection Harness - 10' | MA269937-10 | $637.00
|
Air Reservoir Tank - 14 Gal Underdeck | 032708 | $1,196.00
|
|
| Remote Mount Control Pannel Connection Harness - 14' | MA269937-14 | $824.00
|
Air Reservoir Tank - 30 Gal | OA49645 | $930.00
|
|
| Remote Mount Control Pannel Connection Harness - 18' | MA269937-18 | $940.00
|
Battery Boost Cable - 25' Two Gauge w/ Quick Connect Ends | MA269938 | $333.00
|
|
| Remote Mount Control Pannel Connection Harness - 22' | MA269937-22 | $1,159.00
|
Batter Cable Ext, Two Gauge Positive & Negative - 8' | MA269945-08 | $263.00
|
|
| Remote Mount Control Pannel Connection Harness - 26' | MA269937-26 | $1,220.00
|
Batter Cable Ext, Two Gauge Positive & Negative - 12' | MA269945-12 | $300.00
|
|
| California CAB Compliance Kit | 032853 | $99.00
|
Batter Cable Ext, Two Gauge Positive & Negative -16' | MA269945-16 | $354.00
|
|
| Optional Cold Weather Package for 300G - installed at time of machine build | 032770 | $451.00
|
Batter Cable Ext, Two Gauge Positive & Negative - 20' | MA269945-20 | $407.00
|
|
| Weld Cable Set 25' for 300G | 033020-25 | $454.00
|
Batter Cable Ext, Two Gauge Positive & Negative - 24' | MA269945-24 | $450.00
|
|
| Weld Cable Set 50' for 300G | 033020-50 | $785.00
|
Power Segment Cable for connecting a suitcase-type welder | MA270699 | $189.00
|
|
| Weld Cable Reel, Manual Rewind w/ 50' leads 400A for 300G | 033136 | $3,705.00
|
Tanner De-Icer | 032515 | $830.00
|
|
| Wel Cable Reel, Spring Forward w/ 50' Leads 400A for 300G | 033137 | $3,996.00
|
Ext Segment for Boost Cable (Two Gauge Cable with Connectors) - 25' | MA270012-25 | $366.00
|
|
| Battery Boost Cables 25' two gauge with quick connect ends for 300G | MA269938 | $333.00
|
Ext Segment for Boost Cable (Two Gauge Cable with Connectors) - 50' | MA270012-50 | $611.00
|
|
| Compressor Service Kit, 500 for 300G and 300D | KIT1285 | $148.00
|
Ext Segment for Weld Cable (I/O Cable with Connectors) - 50' | MA269942 | $405.00
|
|
| Compressor Service Kit, 500 Hours with Coalescer 300G and 300D | KIT1153 | $277.00
|
Module to Make Standard Outlets GFCI Protected | OA032817 | $408.00
|
|
| Engine Service Kit 300G | KIT1119 | $76.00
|
Filter Lubricator Regulator 1/2" | 264493 | $388.00
|
|
| Engine Service Kit - 300D | KIT1154-01 | $139.00
|
Fuel Tank Assy - Gas - Slimline 11 Gal Fuel Gauge Sender |
OA032767 |
$897.00
|
|
| Vanguard Premium Green Oil - 1 Gal - 4 pack | 264626-4GREEN | $413.00
|
Fuel Tank Assy - Diesel - Slimline 11 Gal, Guel Gauge Sender | OA032930 | $768.00
|
|
| Vanguard Permium OIl - 1 Gal - 4 pack | 264626-4PACK | $272.00
|
Engine Block Heater - Kubota Diesel 400W 120V AC | MA032938 | $264.00
|
|
| Air Hose - 1/2" x 50' NPT 300WP | 264514 | $247.00
|
||||
| Hydraulic Tank Heater - 350W 12V DC | MA273856 | $200.00
|
Hose Stop 1/2" | 276175 | $26.00
|
|
| Stellar Crane Interface Harness | 032950 | $255.00
|
Hose Reel for 1/2" hose 50' (hose not included) | 269602 | $885.00
|
|
| IMT Crane Interface Harness | 032951 | $255.00
|
Hose Reel for 3/4" hose x 50' (with high temp hose and ball stop) | 263914 | $1,255.00
|
|
| Auto Crane Intrace Harness | 032959 | $211.00
|
Moisture Separator - Service Line | 265243 | $329.00
|
|
| OSHA Valve up to 70 CFM 1/2" | MA272578 | $63.00
|
Trunk Line with Receptacle Box - Two Duplex 120V GFCI Outlets - 10' | EP273416-10 | $220.00
|
|
| Vibration Isolator Kit - 1/2" | KIT1202-001 | $115.00
|
Trunk Line with Receptacle Box - Two Duplex 120V GFCI Outlets - 25' | EP273416-25 | $240.00
|
|
| Remote Panel Metal Cover | 033189 | $256.00
|
||||

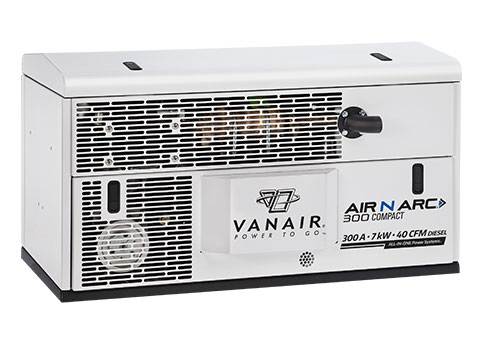

The industry leading Air N Arc® 300 Diesel and Gas All in One Power System® is now available in a skid mount for greater mounting flexibility!
While keeping full functionality of five power sources in one unit and the capability of multi-functioning, the Air N Arc® 300 Compact All in One Power System® was designed to be mounted under a box type body. Coming in 7.5 inches shorter and up to 100lbs lighter than the standard Air N Arc 300 with fuel tank, the new compact unit provides the flexibility and space-saving capability to mount the unit outside the body of the vehicle while still maintaining ground clearance.
| Air N Arc 300 Series | ||
|---|---|---|
| 051710 | Air N Arc 300 Compact Gas without Air or Fuel Tank | $15,775.00
|
| 051716 | Air N Arc 300 Compact Diesel without Batter, Air or Fuel Tank | $22,360.00
|
Special Features
- True two generator system for safe multi-function of welder and electric tools
- All the benefits of a high frequency welder offering excellent weld characteristics
- 40 CFM rotary screw compressor for air on demand and extended life of unit
- Heavy duty belt drive system for anti-vibration and long service intervals
- Remote mount control panel for the ultimate in user convenience
- Fuel system integrated with the chassis
- Integrated lift hook and battery tray
- Designed for easy maintenance
- Small footprint - will fit on side pack or behind cab or under box type body
- Powder coated sheet metal
- Galvannealed steel
- Low profile height
AIR COMPRESSOR
- Encapsulated rotary screw compressor for air on demand
- 40 CFM @ 100 PSI
- 175 MAX PSI
WELDER
- High frequency DC welding
- 270 AMPs at 100% duty cycle
- CC range 40-300 AMPs operating range
- CV range 15-30 Volts
- Independent DC welder
- Auto speed control
- CV MIG capabilities
GENERATOR
- 7 kW peak
- 6.8 kW continuous @ 60 Hz (available in 5.7 Kw continuous watts @ 50 Hz)
- Independent AC Generator
- Brushless
- Smooth wave for minimal distortion
- Two 120V outlets and one 240V outlet
BATTERY BOOST/CHARGE
- 300 amp 12v/24v boost
- 50 amp 12v charge
COLD WEATHER PACKAGE
- Integrated 12V weather package on diesel only
- 120V engine block heatr on diesel only
- Optional 12V heaters for gas model
ENGINE
- 26.5 HP EFI Kohler, air cooled, or 25 HP Kubota®, liquid cooled
- Electric start
- Provides power for emergency and safety lights with truck engine turned off
- Tier 4 emission compliant
- Automatic glow plugs on diesel only
| Specifications | |||
|---|---|---|---|
|
Air N Arc 300 Compact - Gas |
Air N Arc 300 Compact - Diesel |
||
| Welder | High frequency DC welding, 270 AMP at 100% duty cycle. CC: 40-300 AMP operating range, CV: 15-30V | x | x |
| Generator | Totally brushless with capacitor, copper windings, bi-directional rotation, <6% distortion. 7kW peak, 6.8kW continuous, AC power, 60 Hz, single phase, 120V and 240V outlets | x | x |
| Compressor | Vanair® encapsulated 40 CFM rotary screw air compressor system with clutch to elminate horsepower consumption during unloaded condition. 40 CFM free air at up to 175 PSIG | x | x |
| Battery | 12V sealed lead acid - per DOT specification 49 CFR 173.159 | x | |
| Booster/Charger | 300 AMP 12V/24V boost, 50 AMP 12V charge | x | x |
| Engine - Gas | V-twin fuel injected, electric start gasoline engine, Kohler® model Command PRO ECH749, air cooles, 26.5 HP oer SAE J1940 specification, automatic electronic throttle control | x | |
| Engine - Diesel | Electric start diesel engine, Kubota® model DH902, liquid cooled, 25 HP tier 4 final with high temperature and low oil pressure shut down | x | |
| Fuel Capacity | Plumb to Chassis | Plumb to Chassis | |
| Air Stoarge Tank | 4 Gallon Integrated | x | x |
| Air Intake Filters | Separate two-stage, heavy duty, dry-type air filters with dust evacuators shall be provided for air compressor | x | x |
| Air/Fluid Separator | Separator to be externally mounted spin-on design. Vanair separator shall provide for enhanced air quality, reduced operating and maintenace cost and optimized compressor performacnce. | x | x |
| Protective Circuit | Compressor to automatically shutdown in case of high compressor temperature or over pressurization. Additional protective features provided include automatic blow down valve, receiver relief valve and minimum pressure valve. | x | x |
| Cooling System - Gas | Compressor cooling system shall allow rated air delivery and pressure operation continuously in 110°F ambient temperatures. Cooler to be mounted in a powder coated valvanneal sheet metal enclosure with a suction type fan assembly. Compressor fluid shall be filtered by a 25 micron full flow spin-on replaceable filter canister. A fan temperature switch is included to regulate compressor cooling. An additonal fan temperature switch is included to regulate enclosure cooling. | x | |
| Cooling System - Diesel | Compressor cooling system shall allow rated air delivery and pressure operation continuously in 110°F ambient temperatures. Cooler to be mounted in a powder coated galvanneal sheet metal enclosure with a blower type fan assembly. Compressor fluid shall be filtered by a 25micron full flow spin-on replaceable filter canister. A thermal valve is included ot regulate compressor cooling. | x | |
| Inlet Controls | Electric inlet control valve shall be integrated into compressor system and automatically modulate output from 0 to 100% in response to air demand | x | x |
| Dry Weight (lbs) | 650 | 775 | |
| Dimensions - Gas |
|
x | |
| Dimensions - Diesel |
|
x | |
| Instrument Panel | Panel to have quick disconnects and be capable of being remotely mounted. Panel to include engine start/stop function, digital fuel gauge and hour meter, air compressor on/off switch, air pressure gauge, generator on/off switch, thermal breakers, 120V and 240V receptacles, weld cable connections, weld mode selector switch, digital display for amperage and voltage output, potentiometer for adjustment of amperage and voltage for weld mode, battery boost mode selector switch, battery booster cable connection, mode indicator lights and system fault lights. | x | x |
| Drive System | Heavy duty belt-drive system. Belt to drive the generators to be poly-V serpentine belt with quiet channel technology and automatic tensioner. Belt for compressor to be poly-V serpentine belt with quiet channel technology and tensioner. | x | x |
| Metal and Tanks | Fully powder-coated with galvanneal sheet metal enclosure, ¼" plate steel main frame, inegrated lift hook and full service access. | x | x |
| Parts & Accessories | ||||||
|---|---|---|---|---|---|---|
| Gas Model | Diesel Model | |||||
| Remote Mount Control Panel Connection Harness - 6' | MA274613-06 | $602.00
|
Remote Mount Control Panel Connection Harness - 6' | MA269937-06 | $503.00
|
|
| Remote Mount Control Panel Connection Harness - 10' | MA274613-10 | $766.00
|
Remote Mount Control Panel Connection Harness -10' | MA269937-10 | $637.00
|
|
| Remote Mount Control Panel Connection Harness - 14' | MA274613-14 | $866.00
|
Remote Mount Control Panel Connection Harness -14' | MA269937-14 | $824.00
|
|
| Remote Mount Control Panel Connection Harness - 18' | MA274613-18 | $1,091.00
|
Remote Mount Control Panel Connection Harness - 18' | MA269937-18 | $940.00
|
|
| Cold Weather Package (12V, Air Compressor, Oil, Engine Oil Pan and Air Inlet Heater) Installed at time of buil | 032770 | $451.00
|
Remote Mount Control Panel Connection Harness - 22' | MA269937-22 | $1,159.00
|
|
| Engine Service Kit - (Oil, oil filter, air filter, fuel filter, inline fuel filter and pre-filter) | KIT1119 | $76.00
|
Remote Mount Control Panel Connection Harness - 26' | MA269937-26 | $1,220.00
|
|
| Engine Service Kit (Oil, oil filter, fuel filter and air filter) | KIT1154-01 | $139.00
|
||||
| Underbody Slide Out Frame | 033176 | $5,083.00
|
||||
| All 300 Compact Models | ||||||
| Compressor Service Kit - 50 HOur (Vanguard oil and oil filter) | KIT1285 | $148.00
|
Weld Cable Set - 25" | 033020-25 | $454.00
|
|
| Compressor Service Kit - 500 Hour with Coalescer (Vanguard oil, oil filter, air filter and oil/air separator) | KIT1153 | $277.00
|
Weld Cable Set - 50- | 033020-50 | $785.00
|
|
| Vanguard Premium Green Oil - 1 Gal - 4 Pack | 264626-4GREEN | $413.00
|
Weld Cable Reel, Manual Rewind with 50' Leads, 400A | 033136 | $3,705.00
|
|
| Vanguard Permium Oil - 1 Gal - 4 Pack | 264626-4PACK | $272.00
|
Weld Cable Reel, Spring Foward with 50' Leads, 400A | 033137 | $3,996.00
|
|
| Air Reservoir Tank - 28 Gallon - Twin 14 Gallon Underdeck | 032707 | $2,278.00
|
Battery Boost Cables - 25' Two Gauage w/ Quick Connect Ends | MA269938 | $333.00
|
|
| Air Reservoir Tank - 14 Gallon Underdeck | 032708 | $1,196.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 8' (for connection to chassis) | MA269945-08 | $263.00
|
|
| Air Reservoir Tank - 30 Gallon | OA49645 | $930.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 12' | MA269945-12 | $300.00
|
|
| Power Segment Cable (for connecting a suitcase-type welder) | MA270699 | $189.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 16' | MA269945-16 | $354.00
|
|
| Tanner De-Icer | 032515 | $830.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 20' | MA269945-20 | $407.00
|
|
| Ext Segment for Boost Cable - 25' (Two gauge cable with connectors) | MA270012-25 | $366.00
|
Battery Cable Ext, Two Gauge Poistive and Negative - 24' | MA269945-24 | $450.00
|
|
| Ext Segment for Boost Cable - 50' |
MA270012-50 |
$611.00
|
Module to make Standard Outlets GFCI Protected | OA032817 | $408.00
|
|
| Ext Segment for Weld Cable - 50' (I/O Cable with Connectors) | MA269942 | $405.00
|
Filter Lubricator Regulator - 1/2" | 264493 | $388.00
|
|
| Air Hose - 1/2" x 50' NPT, 300 WP | 264514 | $247.00
|
Hose Stop - 1/2" | 276175 | $26.00
|
|
| Hose Reel for 1/2" x 50' hose (hose NOT included) | 269602 | $885.00
|
Hose Reel for 3/4" x 50' Hose (with high temp hose and ball stop) | 263914 | $1,255.00
|
|
| Hydraulic Tank Heater - 350W, 12V, DC | MA273856 | $200.00
|
Stellar Carne Interface Harness | 032950 | $255.00
|
|
| Moisture Separator - Service Line | 265243 | $329.00
|
IMT Crane Intrface Harness | 032951 | $255.00
|
|
| OSHA Valve up to 70cfm 1/2" | MA272578 | $63.00
|
Auto Crane Interface Harness | 032959 | $211.00
|
|
| Trunk Line with Receptacle Box (2 duplex 120V GFCI outlets) 10' | EP273416-10 | $220.00
|
Vibration Isolator Kits - 1/2" | KIT1202-001 | $115.00
|
|
| Trunk Line with Receptacle Box - 25' | EP273416-25 | $240.00
|
Remote Panel Metal Cover | 033189 | $256.00
|
|
Air N Arc 300G Compact Series - Safety & Operating Instructions
Air N Arc 300G Compact Series - Spare Parts List / Breakdown
Air N Arc 300D Compact Series - Safety & Operating Instructions
Air N Arc 300D Compact Series - Spare Parts List / Breakdown
Five Forms of Power - One Unit, Hydraulically Driven

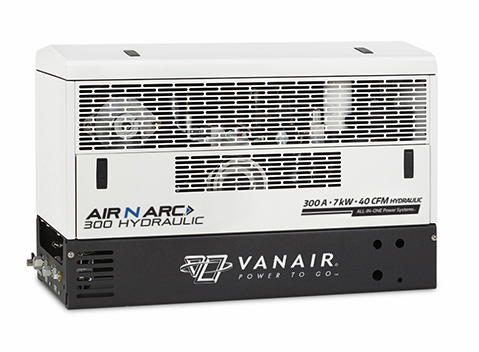

The Air N Arc® 300 Hydraulic All In One Power System® features the innovation of being hydraulically driven, while still offering all the advantages of the Air N Arc® 300 engine drive system including a 40 CFM rotary screw air compressor, 300 AMP welder, 300 AMP 12V charger and 12V/24V booster, and 7 kW generator. Designed as a true two generator system, the Air N Arc® 300 Hydraulic allows simultaneous dual functionality such as welding and generator for lights for night time servce. The system offers a small footprint for side pack or behind the cab mounting and is ideal for trucks with hydraulics already installed, such as crane trucks.
| Air N Arc 300 HYDRAULIC Series | ||
|---|---|---|
| 050790 | Air N Arc | $31,255.00
|
| $zzpc2 | ||
Special Features
- Single function 14.5 GPM model is suitable for Ford® 4x4 Super Duty and Dodge® trucks
- True two generator system for safe multi-function of welder and electric tools
- Small footprint - will fit on side pack or behind cab
- Integrated hydraulic cooler
- CV MIG capability
- One unit to start all your equipment with battery charge and boost capability
- Rotary screw air compressor air on demand
- Heavy duty belt drive system for anti-vibration and long service intervals
- Integrated lift hook
- Designed with hinged lid for easy maintenance
- Powder coated sheet metal and galvannealed steel
AIR COMPRESSOR
- Encapsulated rotary screw compressor for air on demand
- 40 CFM @ 150 PSI
- 175 MAX PSI
WELDER
- High frequency DC welding
- 270 AMPs at 100% duty cycle
- CC range 40-300 AMPs operating range
- CV range 15-30 Volts
- Independent DC welder
- Safe multi-function
GENERATOR
- 7 kW peak
- 6.8 kW continuous @ 60 Hz
- Independent AC Generator for safe multi-functioning
- Brushless
- Smooth wave for minimal distortion
- Two 120V outlets and one 240V outlet
BATTERY BOOST/CHARGE
- 300 amp 12v/24v boost
- 50 amp 12v charge
REMOTE CONTROL PANEL
- Provides ultimate user convenience and safety
- All functions accessible at panel. No need to jump in and out of vehicle.
| Specifications | |||
|---|---|---|---|
|
Air N Arc 300H |
Air N Arc 300H |
||
| Welder | High frequency DC welding, 270 AMP at 100% duty cycle. CC: 40-300 AMP operating range, CV: 15-30V | x | x |
| Generator | Totally brushless with capacitor, copper windings, bi-directional rotation, <6% distortion. 7kW peak, 6.8kW continuous, AC power, 60 Hz, single phase, 120V and 240V outlets | x | x |
| Compressor | Vanair® encapsulated 40 CFM rotary screw air compressor system. 40 CFM free air at up to 175 PSIG | x | x |
| Booster/Charger | 300 AMP 12V/24V boost, 50 AMP 12V charge | x | x |
| Hydraulic Motor | Gear type hydraulic motor with flow control valve to regulate flow to a designed flow of 19 GPM or 14.5 GPM on reduced flow models | x | x |
| Hydraulic Requirements |
19 GPM @ 2800 PSI Multi Function |
14.5 GPM @ 2500 PSI Single Function |
|
| Hydraulic Cooler | Hydraulic cooling system shall allow rated functions up to 110°F ambient temperatures. Hydraulic fan and cooler are to operate when PTO is engaged and hydraulic temperature is over 100°F to provide hydraulic cooling when unit and hydraulic system are loaded or unloaded. | x | x |
| Air Storage Tank | 4 Gallon Integrated | x | x |
| Air Intake Filters | Heavy duty dry-type air filter shall be provided for air compressor | x | x |
| Air/Fluid Separator | Separator to be externally mounted spin-on design. Vanair separator shall provide for enhanced air quality, reduced operating and maintenace cost and optimized compressor performacnce. | x | x |
| Protective Circuit | Machine will shut down by bypassing hydraulic flow in case of high compressor temperature or over pressurization. Additional protective features provided include automatic blow down valve, receiver relief valve and minimum pressure valve. Additional protections include a hydraulic flow bypass when belt access panel is opened, and when hydraulic fluid is over temperature. After any automatic safety shutdown, system reset must be pressed to re-engage | x | x |
| Compressor Cooling System | Compressor cooling system shall allow rated air delivery and pressure operation continuousy in 110°F ambient temperatures. Cooler to be mounted in a powder-coated galvanneal sheet metal enclosure with a blower type fan assembly. Compressor fluid shall be filtered by a 25 micron full flow spin-on replaceable filter canister. A thermal valve and fan temperature switch are included to regulate compressor cooling | x | x |
| Inlet Controls | Electric inlet control valve shall be integrated into compressor system and automatically modulate output from 0 to 100% in response to air demand | x | x |
| Dry Weight (lbs) | 621 | x | x |
| Dimensions | 48.7L x 21.0W x 30.9H | x | x |
| Instrument Panel | Panel to have quick disconnects and be capable of being remotely mounted. Panel to include display for AC generator displaying hertz and volts, hour meter, air pressure gauge, generator on/off switch, thermal breakers, 120V and 240V receptacles, weld cable connections, weld mode selector switch, digital display for welder amperage and boosting voltage output, potentiomenter for adjustment of amperage and voltage for weld mode, battery boost mode selector switch, battery booster cable connection, mode indicator lights and system fault lights. | x | x |
| Drive System | Heavy duty belt-drive system. Belt to drive the generators to be poly-V serpentine belt with quiet channel technology. Belt for compressor to be poly-V serpentine belt with quiet channel technology and tensioner. | x | x |
| Metal and Tanks | Fully powder-coated with galvanneal sheet metal enclosure, ¼" plate steel main frame, inegrated lift hook and full service access. | x | x |
| Parts & AccessorieRemote Mount Cntrol Panel Connection Harness - 6s | ||||||
|---|---|---|---|---|---|---|
| Remote Mount Control Panel Connection Harness - 6' | MA269937-06 | $503.00
|
Remote Mount Control Panel Connection Harness - 10' | MA269937-10 | $637.00
|
|
| Remote Mount Control Panel Connection Harness - 14' | MA269937-14 | $824.00
|
Remote Mount Control Panel Connection Harness - 18' | MA269937-18 | $940.00
|
|
| Remote Mount Control Panel Connection Harness - 22' | MA269937-22 | $1,159.00
|
Remote Mount Control Panel Connection Harness - 26' | MA269937-26 | $1,220.00
|
|
| Weld Cable Set - 25' 1/0 | 033020-25 | $454.00
|
Vanguard Premium Green Oil - 1 Gallon 4 Pack | 264626-4GREEN | $413.00
|
|
| Weld Cable Set - 50' 1/0 | 033020-50 | $785.00
|
Vanguard Premium Oil - 1 Gallon 4 Pack | 264626-4PACK | $272.00
|
|
| Weld Cable Reel - Manual Rewind w/ 50' Leads, 400 AMP | 033136 | $3,705.00
|
Air Reservoir Tank - 23 Gallon (underdeck mounted tank with mounting brackets) | 032707 | $2,278.00
|
|
| Weld Cable Reel - Spring Forward w/ 50' Leads, 400 AMP | 033137 | $3,996.00
|
Air Reservoir Tank - 30 Gallons | OA49645 | $930.00
|
|
| Battery Boost Cables - 25' 2 gauge with quick connect ends | MA269938 | $333.00
|
Power Segment Cable for connecting a suitcase-type welder | MA270699 | $189.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 8' | MA269945-08 | $263.00
|
Tanner De-Icer | 032515 | $830.00
|
|
| Battery Cable Ext, 2 gauge Postitve & Negative for connection to chassis battery - 12' | MA269945-12 | $300.00
|
Ext segment for boost cable - 25' 2 gauge cable with connectors | MA270012-25 | $366.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 16' | MA269945-16 | $354.00
|
Ext segment for boost cable - 50' 2 gauge cable with connectors | MA270012-50 | $611.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 20' | MA269945-20 | $407.00
|
Ext segment for weld cable - 50': 1/0 cable wiht connectors | MA269942 | $405.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 24' | MA269945-24 | $450.00
|
Module to make standard outlets GFCI protected | OA032929 | $400.00
|
|
| Filter Lubricator Regulator (FLR) ½" | 264493 | $388.00
|
Fuel Pump Kit - 12V, solid state 3-5 PSI (filter and clamps) | MA277170 | QUOTE |
|
| Moisture Separator (service line) | 265243 | $329.00
|
AC Electric Splitter Harness | MA273949 | QUOTE |
|
| OSHA Valve up to 70 CFM ½" (excess flow safety valve) | MA272578 | $63.00
|
Hose Reel - for ½" Hose, 50' (with high temperature hose and ball stop) | 269602 | $885.00
|
|
| Trunk Line with receptacle Box (2 duplex 120V GFCI outlets) 10' | EP273416-10 | $220.00
|
Hose Reel - for ¾" Hose, 50' (with high temperature hose and ball stop) | 263914 | $1,255.00
|
|
| Trunk Line with Receptacle Box (2 duplex 120V GFCI outlets) 25' | EP273416-25 | $240.00
|
Vibration Isolator Kits - 3/8" | KIT1203 | QUOTE |
|
The All in One Power System® Six Forms of Power Plus Multi-Functioning Capabilities

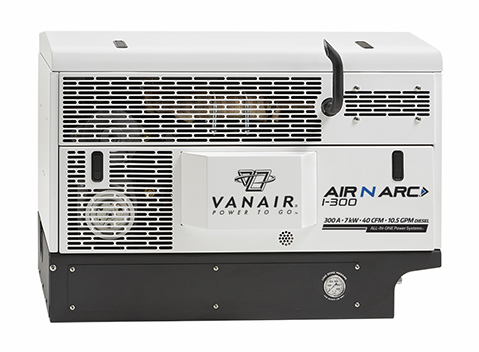

Vanair's Air N Arc® I-300 is the first system in the world to offer six forms of power in a single 48" unit with multi-functioning capabilities. The Air N Arc® I-300's unique system allows you to turn off the truck's engine while still supporting the electrical of the truck, so all the emergency lighting can still be used without fear of killing the truck battery. The Air N Arc® I-300 provides an integrated 40 CFM rotary screw compressor, 7 kW AC generator, 300 AMP welder, battery booster and battery charger, with the added power of a hydraulic pump....all driven by a single engine. The Air N Arc® I-300 offers enough power to run a crane and the technology to integrate with the crane control.
| Air N Arc I-300 Series | ||
|---|---|---|
| 050790 | Air N Arc I-300 - Open System (up to 3000 PSI and 12V fuel pump) | $31,255.00
|
| 051065 | Air N Arc I-300 - Closed System (up to 3000 PSI and 12V fuel pump) | $31,255.00
|
Special Features
- One unit incorporates air compressor, generator, battery booster, battery charger, welder and hydraulic pump. No need for auxiliary plug-in welder or battery booster
- Reliable and easy electric starting Kubota® engine
- Heavy duty belt drive system for anti-vibration and long service intervals
- Electric fuel pump for ease of chassis fuel system integration
- Capable of charging vehicle's battery
- True two generator system for safe multi-function of welder and electric tools
- CV functionality for voltage sensing suitcase feeder for MIG welding
- Rotary screw air compressor for air on demand
- Integrated lift hook and battery tray
- Battery jump start receptacle
- Manual reset AC circuit breakers
- Designed for easy maintenance and fuel efficiency
- Small footprint - will fit on side pack or behind cab
- Powder coated sheet metal
- Galvannealed canopy
AIR COMPRESSOR
- Encapsulated rotary screw compressor for air on demand
- 40 CFM @ 100 PSI High speed; 30 CFM @ 100 PSI Low speed
- 175 MAX PSI (factory set @ 150 PSI)
WELDER
- High frequency DC welding
- 260 AMPs at 100% duty cycle
- CC range 40-300 AMPs operating range
- CV range 15-30 Volts
- Independent welding generator
- Safe multi-function
- Auto speed control
- CV MIG capatility
GENERATOR
- 7 kW peak
- 6.8 kW continuous @ 60 Hz
- Independent AC Generator for safe multi-functioning
- Brushless
- Smooth wave for minimal distortion
- Two 120V outlets and one 240V outlet
COLD WEATHER PACKAGE
- Standard 12V chasis powered thermal blankets for cold weather
BATTERY BOOST/CHARGE
- 300 amp 12v/24v boost
- 50 amp 12v charge
- Capable of jump starting your truck's engine
- Maintains truck's battery and operates work and emergency lights while engine is off
HYDRAULIC PUMP
- Up to 13 GPM
- 3000 Max PSI
- Variable displacement hydraulic piston pump compatible with both an open center and closed center system
ENGINE
- 24,8 HP Kubota® diesel engine, liquid cooler
- Tier 4 compliant
- Electric start
- Automatic glow plug
| Specifications | |||
|---|---|---|---|
|
Air N Arc I-300 Open Center |
Air N Arc I-300 Closed Center |
||
| Welder | High frequency DC welding, 270 AMP at 100% duty cycle. CC: 40-300 AMP operating range, CV: 15-30V | x | x |
| Generator | Totally brushless with capacitor, copper windings, bi-directional rotation, <6% distortion. 7kW peak, 6.8kW continuous, AC power, 60 Hz, single phase, 120V and 240V outlets | x | x |
| Compressor | Vanair® encapsulated 40 CFM rotary screw air compressor system with clutch to eliminate horsepower consumption during unloaded condition. 40 CFM free air at up to 175 PSIG at high speed; 30 CFM free air at 175 PSIG at idle | x | x |
| Battery | 12V sealed lead acid - per DOT specification 49 CFR 173.159 | x | x |
| Booster/Charger | 300 AMP 12V/24V boost, 50 AMP 12V charge | x | x |
| Engine | Electric start diesel engine with automatic glow plugs, Kubota® model DH902, liquid cooled, tier 4 final, 25 HP with high temperature and low oil pressue shut down | x | x |
| Fuel Capacity | With included 12V fuel pump you can draw fuel from chassis tank (diesel only), or optional 12 gallon slimline tank |
x |
x |
| Air Storage Tank | 4 Gallon Integrated | x | x |
| Air/Fluid Separator | Separator to be externally mounted spin-on design. Vanair separator shall provide for enhanced air quality, reduced operating and maintenace cost and optimized compressor performacnce. | x | x |
| Protective Circuit | Compressor to automatically shutdown in case of high compressor temperature or over pressurization. Additional protective features provided include automatic blow down valve, compressor relief valve, air receiver relief valve and minimum pressure valve | x | x |
| Compressor Cooling System | Compressor cooling system shall allow rated air delivery and pressure operation continuousy in 110°F ambient temperatures. Cooler to be mounted in a powder-coated galvanneal sheet metal enclosure with a blower type fan assembly. Compressor fluid shall be filtered by a 25micron full flow spin-on replaceable filter canister. A thermal valve is included to regulate compressor cooling | x | x |
| Inlet Controls | Electric inlet control valve shall be integrated into compressor system and automatically modulate output from 0 to 100% in response to air demand | x | x |
| Hydraulic Circuit | Variable displacement piston pump. Capable of closed or open center hydraulic crane systems. Output is up to 13 GPM maximum pressure out put is 3000 PSI. Rated at 10 GPM at 2000 PSI | x | x |
| Truck/Body Interface | Unit can be remotely started from crane remote. Unit ties to chassis battery to keep batteries charged when running safety and work lights. Unit designed to pull fuel from chassis fuel tank | x | x |
| Dry Weight (lbs) | 852 | x | x |
| Dimensions |
|
x | x |
| Instrument Panel | Panel to have quick disconnects and be capable of being remotely mounted with use of factory supplied harness. Panel to include engine start/stop function, hour meter, air compressor on/off switch, air pressure gauge, 2 air discharge ports, hydraulic on/off switch, generator on/off switch, thermal breakers, 120V GFCI and 240V receptacles, weld cable connections, weld mode selector switch, digital display for amperage and voltage output, potentiometer for adjustment of amperage and voltage for weld mode, battery boost mode selector switch, battery booster cable connection, mode indicator lights and system fault lights. | x | x |
| Drive System | Heavy duty belt-drive system. Belt to drive the generators, and hydraulic pump to be poly-V serpentine belt with quiet channel technology. Belt for compressor to be poly-V serpentine belt with quiet channel technology and tensioner. | x | x |
| Metal and Tanks | Fully powder-coated with galvanneal sheet metal enclosure, ¼" plate steel main frame, inegrated lift hook and full service access. | x | x |
| Parts & AccessorieRemote Mount Cntrol Panel Connection Harness - 6s | ||||||
|---|---|---|---|---|---|---|
| Remote Mount Control Panel Connection Harness - 6' | MA269937-06 | $503.00
|
Engine Service Kit for 300D & I-300 Series (Oil, Oil Filter, Fuel Filter and Air Filter) | KIT1154-01 | $139.00
|
|
| Remote Mount Control Panel Connection Harness - 10' | MA269937-10 | $637.00
|
Fuel Tank Assemlby - Disel - Slimline 11 Gallon, Fuel Gauge Sender (300D & I-300 Series) | OA032930 | $768.00
|
|
| Remote Mount Control Panel Connection Harness - 14' | MA269937-14 | $824.00
|
Engine Block Heater for Kubota Diesel 400 W 120V AC | MA032938 | $264.00
|
|
| Remote Mount Control Panel Connection Harness - 18' | MA269937-18 | $940.00
|
Hydraulic Reservoir, 20 Gallon with Internal Filter and Hose Kit (I-300 series) | MA6120139 | $1,100.00
|
|
| Remote Mount Control Panel Connection Harness - 22' | MA269937-22 | $1,159.00
|
Hydraulic Tank Heater- 12V DC 350 W | MA273856 | $200.00
|
|
| Remote Mount Control Panel Connection Harness - 26' | MA269937-26 | $1,220.00
|
Vanguard Premium Green Oil - 1 Gallon 4 Pack | 264626-4GREEN | $413.00
|
|
| Weld Cable Set - 25' 1/0 | 033020-25 | $454.00
|
Vanguard Premium Oil - 1 Gallon 4 Pack | 264626-4PACK | $272.00
|
|
| Weld Cable Set - 50' 1/0 | 033020-50 | $785.00
|
Air Reservoir Tank - 23 Gallon (underdeck mounted tank with mounting brackets) | 032707 | $2,278.00
|
|
| Weld Cable Reel - Manual Rewind w/ 50' Leads, 400 AMP | 033136 | $3,705.00
|
Air Reservoir Tank - 30 Gallons | OA49645 | $930.00
|
|
| Weld Cable Reel - Spring Forward w/ 50' Leads, 400 AMP | 033137 | $3,996.00
|
Power Segment Cable for connecting a suitcase-type welder | MA270699 | $189.00
|
|
| Battery Boost Cables - 25' 2 gauge with quick connect ends | MA269938 | $333.00
|
Tanner De-Icer | 032515 | $830.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 8' | MA269945-08 | $263.00
|
Ext segment for boost cable - 25' 2 gauge cable with connectors | MA270012-25 | $366.00
|
|
| Battery Cable Ext, 2 gauge Postitve & Negative for connection to chassis battery - 12' | MA269945-12 | $300.00
|
Ext segment for boost cable - 50' 2 gauge cable with connectors | MA270012-50 | $611.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 16' | MA269945-16 | $354.00
|
Ext segment for weld cable - 50': 1/0 cable wiht connectors | MA269942 | $405.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 20' | MA269945-20 | $407.00
|
Module to make standard outlets GFCI protected | OA032929 | $400.00
|
|
| Battery Cable Ext, 2 gauge Positive & Negative for connection to chassis battery - 24' | MA269945-24 | $450.00
|
Filter Lubricator Regulator (FLR) ½" | 264493 | $388.00
|
|
| Moisture Separator (service line) | 265243 | $329.00
|
Hose Reel - for ½" Hose, 50' (with high temperature hose and ball stop) | 269602 | $885.00
|
|
| OSHA Valve up to 70 CFM ½" (excess flow safety valve) | MA272578 | $63.00
|
Hose Reel - for ¾" Hose, 50' (with high temperature hose and ball stop) | 263914 | $1,255.00
|
|
| Trunk Line with receptacle Box (2 duplex 120V GFCI outlets) 10' | EP273416-10 | $220.00
|
Trunk Line with Receptacle Box (2 duplex 120V GFCI outlets) 25' | EP273416-25 | $240.00
|
|
| Vibraton Isolator Kits - 1/2" | KIT1202 | CALL | ||||
40 or 60 CFM Air Compressor; 10kW Generator; 330A Welder; 12/24V Battery Boost/Charge Models with standard Cold Weather Package - Remote Control Panel Air N Arc 330 Diesel - Diesel Driven

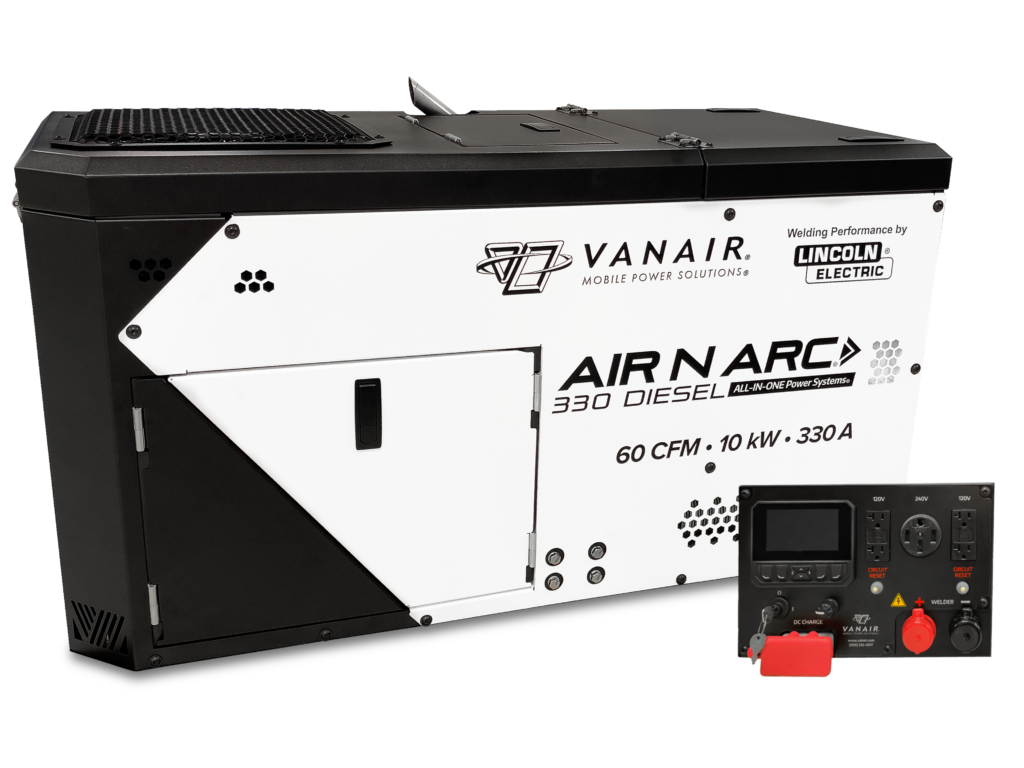

Empower your workday with the Air N Arc® 330 Diesel All-In-One Power System®, boasting cutting-edge Lincoln Electric® welding technology. This adavnced system redevines versatility, efficiency, and reliability. It seamlessly inegrates air, welding, engine starting and AC power capabilities to boost productivity, optimize bed space, and reduce weight while ensuring cnvenience and safety through a single control panel. With the Air N Arc® All-In-One Power System® you're ready for any workday challenge.
ACCEPTING PRE-ORDERS FOR Q1 2024!
| Air N Arc 330 Diesel All-in-One Power System | ||
|---|---|---|
| 052281 | Air N Arc 330 Diesel - Welder, Generator, 60CFM Compressor, Jump Starter, Cold Weather Kit (Chassis Fuel, Chassis Battery) | $26,285.00
|
| 052282 | Air N Arc 330 Diesel - Welder, Generator, 40CFM Compressor, Jump Starter, Cold Weather Kit (Chassis Fuel, Chassis Battery) | $26,285.00
|
SPECIAL FEATURES
FEATURES
|
AIR COMPRESSOR
|
|
WELDER
|
GENERATOR
|
|
BATTERY BOOST/CHARGE
|
CHARGE BACK TO CHASSIS MODE
|
|
SINGLE REMOTE CONTROL PANEL
|
COLD WEATHER PACKAGE
|
|
ENGINE
|
EV CHARGING
|
SPECIFICATIONS
| Engine | 24.8HP Kubota D902-E4B | |
| Air Compressor | Rotary Screw | |
| Air Consumption | 60 CFM @ 100 PSI up to 175 PSI | |
| Generator | LIncoln Electr AC Brushed Generator, 10kW Continuous Output, 120/240V, 60Hz | |
| Welder | LIncoln Electric DC Multi-Process Arc Welder Cc (Stick, Gouging, and TIG); 35-330A, CV (MIG and FCAW): 14-40V | |
| Battery Boost/Charge | 330A, 12V/24V Boost 50A, 12V-24V-489V Charge | |
| Drive System | Belt Driven Compressor, Direct Driven Generator and Welder | |
| Chassis Charge Bafck | Up to 150A | |
| Fuel Capacity | 11 Ga with Bolt-on Frame Option | |
| Dimensions | Footprint (in) | 47.5L x 21.4W and 25.6H |
| with Fittings (in) | 48.2X x 21.9W x 27H | |
| Dry Weight | lbs | 750 |
ACCESSORIES
| Remote Mount Control Panel Connection Harness - 6' | 284260-6 | QUOTE |
Bolt-On Frame, Includes 10 Gal Fuel Tank, 4 Gal Air Tank and Battery | 033345 | QUOTE |
|
| Remote Mount Control Panel Connection Harness - 10' | 284260-10 | QUOTE |
EPEQ EPTO Kit includes Gateway Module, Interface Harness, Motor Controller, Motor and Hydraulic Pump Rated at 15 GPM up to 3300PSI | 033348 | QUOTE |
|
| Remote Mount Control Panel Connection Harness - 14' | 284260-14 | QUOTE |
ElIMENT Battery - 48V, 100Ah | 6220003 | QUOTE |
|
| Remote Mount Control Panel Connection Harness - 22' | 284260-22 | QUOTE |
Weld Cable Set - 25' | 033020-25 | $454.00
|
|
| Remote Mount Control Panel Connection Harness - 26' | 284260-26 | QUOTE |
Weld Cable Set - 50' | 033020-50 | $785.00
|
|
| Underbody Slide Out Frame | 033176 | $5,083.00
|
Weld Cable Reel, Manual Rewind with 50' leads, 400A | 033136 | $3,705.00
|
|
| 120V Block Heater | MA273477 | QUOTE |
Weld Cable Reel, Spring Foward with 50' leads, 400A | 033137 | $3,996.00
|
|
| Inverter, 12V, 3kW, Low Frequency, Dueal Voltage 120V/.240V | 282905 | $883.00
|
Battery Boost Cables 25' Two Gauge with Quick Connect Ends | MA269938 | $333.00
|
|
| Machine Cover, Base Machine Only, Remote Panel | 283749 | $198.00
|
Engine Maintenance Kit | KIT1518 | QUOTE |
|
| 50 Hour Compressor Maintenance Kit | KIT1505 | QUOTE |
Engine Maintenace Kit with Bolt on Frame | KIT1519 | QUOTE |
|
| 500 Hour Compressor Maintenance Kit | KIT1501 | QUOTE |
Replacement Compressor Air Filter Element | 280661-1 | QUOTE |
|

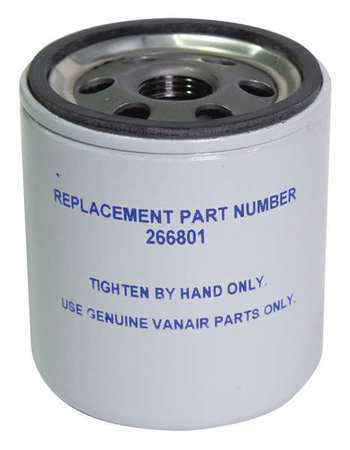

| Replacement Compressor Oil Filter | 266801 | QUOTE |
Replacement Separator Element | 264470 | QUOTE |
|
| Replacement Compressor Oil Filter | 266801 | QUOTE |
