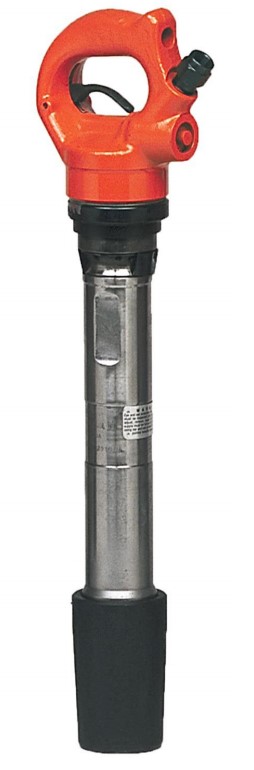

APT 1133 Pneumatic Closed Nose Rivet Buster with D Handle

APT 1133 Closed Nose Rivet Buster with D Handle

The APT 1133 Closed Nose Rivet Buster with D-Handle was originally designed to cut rivets off metal structures.  Today, the 1133 Rivet Buster series is widely known for its tough, powerful tools made from jumbo 11X steel.  They have the ability to perform all types of medium to heavy demolition work.  With half the weight of the 60 lb. class paving breaker, the ratio of their high impact energy versus their weight makes them the most efficient tool APT makes.  The model 1133 meets the weight requirements for bridge deck repair work, and are also popular for cutting up underground tanks.  Rivet busters are offered in 8" and 11" stroke.

Features:

  • Deep case hardened alloy steel cylinder
  • Uses jumbo extra heavy duty tool steel
  • Heavy duty upper and lower sleeves
  • Adjustable exhaust deflector

** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES FOR NON-DEALERS

SPECIFICATIONS

18846   $1,660.00
Handle Style   D Handle
Bore  in 1-316
Stroke  in 11
Impact Rate  bpm 850
Air Consumption  cfm 48-52
Weight  lbs 33
Length  in 25-12
Air Inlet  in 38 Female NPT

** Price includes Whip Hose Assembly (#9266) - UF, 12" Hose x 6' with 12" NPT swivel

CONSUMABLES

DOCUMENTATION

ACCESSORIES & COMMON REPLACEABLE PARTS

Retainer Kit (incl. spring, bumper, upper & lower sleeves) 18741 $42.45 Rock Drill Oil - 1 Gal RDO1G $42.00
Lower Sleeve 3171 $25.35 Rock Drill Oil - 5 Gal RDO5G $122.00
Upper Sleeve 4374 $18.52 Line Oiler LO-10PF $81.00
Bumper 3170 $8.01 Whip Check WCSML $12.50
Polyurethane Bumper 16543 $10.55 Contractors Air Hose - 50' AIRH-19-50R $124.00
Lock Spring 2994 $6.22 Whip Hose Assy - 6' x ½" Hose with ½" Swivel 18833 $75.64
Bag of 25 Lock Springs USPRG-RB-BAG $62.00 Whip Hose Assy - 6' x ½" Hose with ½" Swivel, 2L Oiler 18837 $104.00
O-Ring & Seal Kit 18785 $94.12 Dust Control Spray Kit 9753300015 $146.87
Dust Extraction Kit for Rivet Busters RB-VDEX-KIT $1,480.00
