APT Rock Drills, Standard and Vibration Dampened

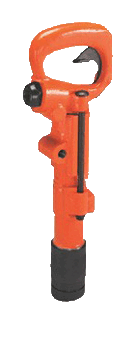

109 Rock Drill and Utility Drill
Weighing only 9 lbs., the APT Model 109 Rock Drill and Utility Drill is the lightest tool American Pneumatics makes. It is the ideal tool for drilling holes for anchor bolts as well as for small dowel hole drilling. The stop rotation feature easily converts the tool from a drilling machine to a percussion only tool.
- Lightweight, aluminum cast, D-style handle
- Inside trigger for better control and safety
- Deep case hardened alloy steel cylinder
- Rubber dust excluder helps protect internal parts from dust and debris
- Ball type retainer allows for quick change-out of drill bits
| Part No. | Size | Air Consumption (cfm) | Impact Rate (bpm) | Weight (lbs) | Price |
|---|---|---|---|---|---|
| 17643 | 3⁄4 x 3-3⁄4 | 19-21 | 3400 | 9 |
$1,350.00 |

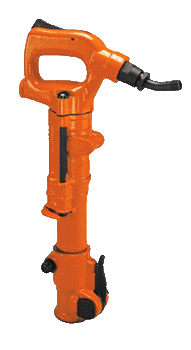

115 Rock Drill
The APT Model 115 Rock Drill works as a drilling tool for drillng holes for anchor bolts and small dowel hole drilling. This versatile tool has a stop rotation feature that converts it from a drilling tool to a percussion tool. It an ideal tool for ight chipping in horizontal and overhead work.
- Stop rotation feature
- Built-in automatic oiler
- Latch type retainer
- Lightweight aluminum cast handle
| Part No. | Size | Air Consumption (cfm) | Impact Rate (bpm) | Weight (lbs) | Price |
|---|---|---|---|---|---|
|
7/8 x 3-¼" |
32-36 |
2900 |
19 |
$1,620.00 |

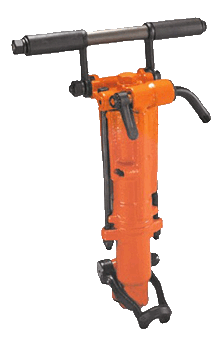

137 Rock Drill
The APT Model 137 Rock Drill is a versatile midsize rock drill used in general construciton, utility work, and plant maintenance. It is designed for drilling through granite, hard faced rock, quarry drilling and for drilling secondary holes for blasting. It can also be used in conjunction with dowel hole drilling machines. The Model 137 is adaptable to wet drilling application by attaching the APT valve, wet tube and swivel assembly.
- 4 drilling speeds
- Replaceable piston stem bearing
- Available in wet or dry models
- Counter clockwise rotation
- Rubber handle grips
| Part No. | Size | Air Consumption (cfm) | Impact Rate (bpm) | Weight (lbs) | Price |
|---|---|---|---|---|---|
| 5223 |
7/8 x 3-¼" |
85-90 |
2300 |
38 |
$1,930.00
|
| 5224 |
7/8 x 3-¼" Wet |
85-90 |
2300 |
38 |
$2,040.00
|
| 5225 |
7/8 x 4-¼" |
85-90 |
2300 |
38 |
$1,930.00
|
| 5226 |
7/8 x 4-¼" Wet |
85-90 |
2300 |
38 |
$2,040.00
|
| 5227 |
1 x 4-¼" |
85-90 |
2300 |
38 |
$1,930.00
|

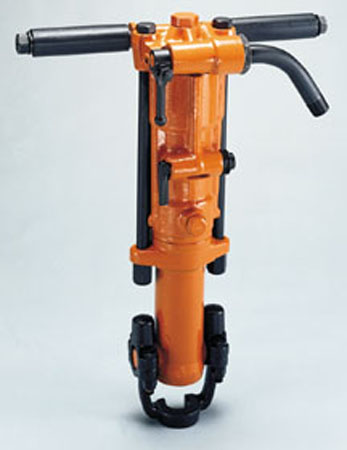

155 Rock Drill
The Model 155 is used in general construction, utility work, and plant maintenance. It is designed for drilling through granite, hard faced rock, quarry drilling and drilling secondary holes for blasting. It is also used with dowel hole drilling machines. Adaptable to wet drilling application by attaching APT valve, wet tube and swivel assembly.
- 3 drilling speeds
- Built-in automatic oiler
- Replaceable piston stem bearing
- Available in wet or dry models
- Counter clockwise ritaton
- Rubber handle grips
| Part No. | Size | Air Consumption (cfm) | Impact Rate (bpm) | Weight (lbs) | Price |
|---|---|---|---|---|---|
| 5229 | 7/8 x 3-¼" | 110-120 | 2100 | 61 | $2,290.00
|
| 5230 | 7/8 x 3-¼" Wet | 110-120 | 2100 | 61 | $2,370.00
|
| 5231 | 7/8 x 4-¼" | 110-120 | 2100 | 61 | $2,290.00
|
| 5232 | 7/8 x 4-¼" Wet | 110-120 | 2100 | 61 | $2,370.00
|
| 5233 | 1 x 4-¼" | 110-120 | 2100 | 61 | $2,290.00
|
| 5234 | 1 x 4-¼" Wet | 110-120 | 2100 | 61 | $2,370.00
|
