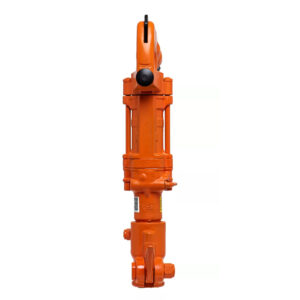

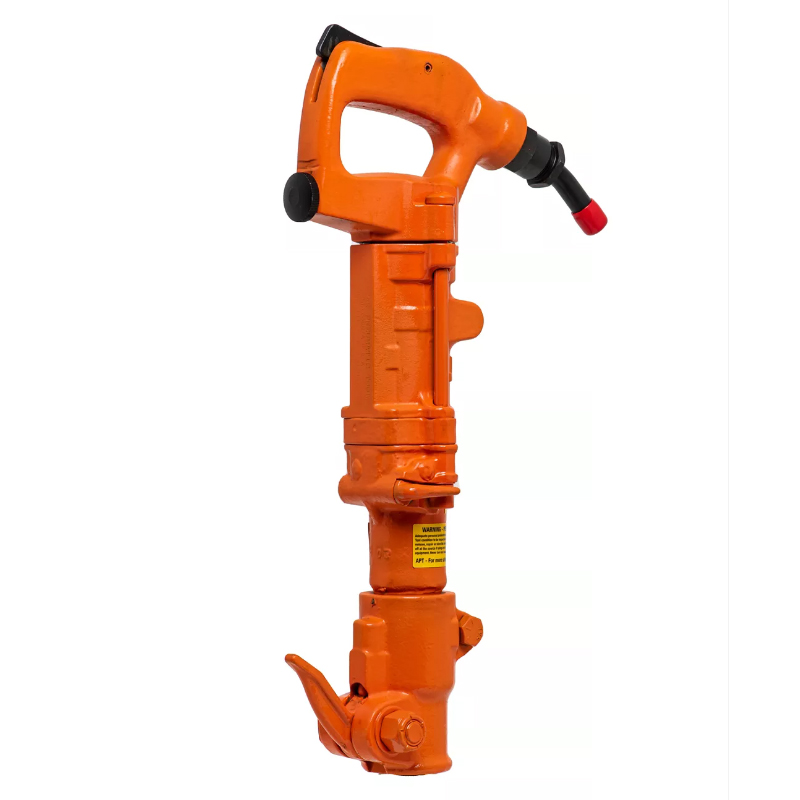

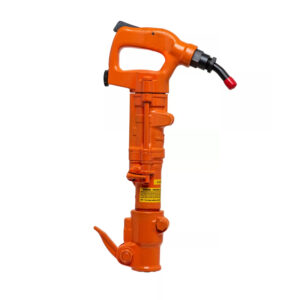

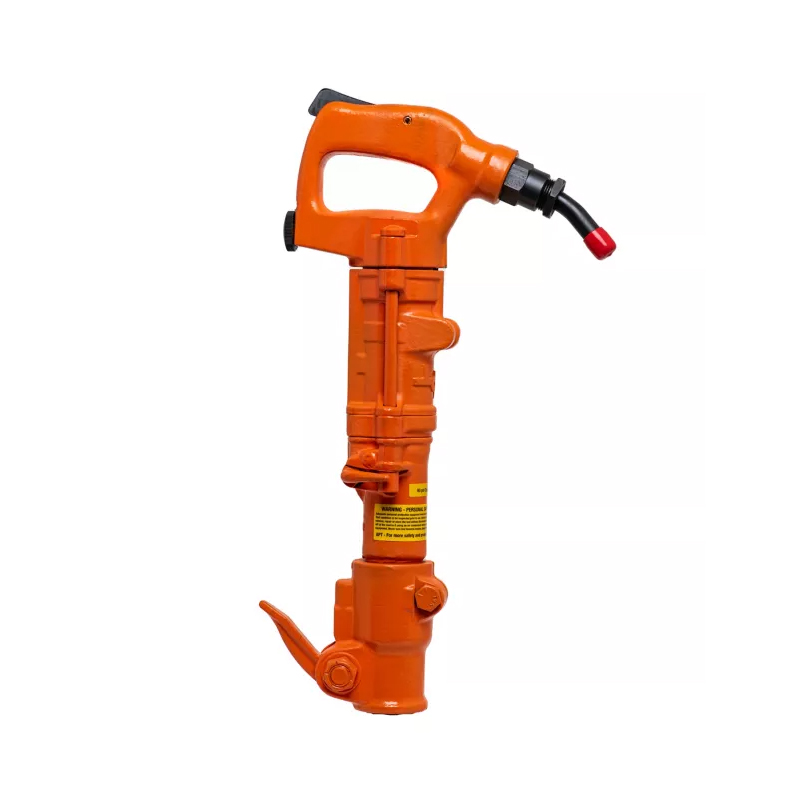

The APT 115 is a 14 lb class handheld pneumatic rock drill from American Pneumatic Tools among the lightest hex-shank rock drills in the APT range at a 19 lb tool weight. A fast 2,900 BPM from its 1-15/16 in. bore, 1-3/8 in. stroke motor covers anchor-bolt holes, foundation pins and small downward blast holes without wearing the crew down. Compare it across the APT rock drill line.

The 7/8 x 3-1/4 in. hex chuck takes standard shanked drill steel, and air demand is only 24 CFM at 90 PSI through a 3/8 in. male NPT inlet a 50 CFM compressor runs one drill. At 19 in. long it stows on any truck. When the job calls for more blow energy, the 60 lb class APT 155 is the step up, and the full rock drill category maps every class we stock.

• 14 lb class drill; 19 lb tool weight and 19 in. overall length for easy handling
• 2,900 BPM from a 1-15/16 in. bore and 1-3/8 in. stroke percussion motor
• 24 CFM at 90 PSI through a 3/8 in. male NPT inlet; a 50 CFM compressor supports one drill
• 7/8 x 3-1/4 in. hex chuck runs standard shanked drill steels
• Applications: anchor-bolt holes, foundation pins, secondary breaking and small blast holes
• Stocked by Crowder Supply in Denver with steels, bits, replacement chucks, pistons and seal kits
