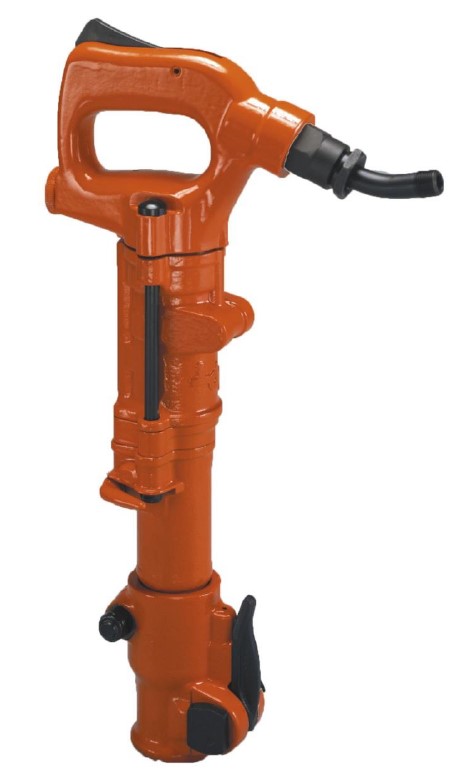

APT 115 Pneumatic Rock Drill
The Model 115 is a lightweight tool for drilling holes for anchor bolts and small dowel hole drilling. This versatile tool has a stop rotation feature that converts it from a drilling tool to a percussion tool for light chipping in horizontal and overhead work.
Features
- 15 lb. class
- Built-in automatic oiler
- Stop-rotation feature
- Latch-type retainer
- Light-weight aluminum cast handle
** FREE GROUND SHIPPING WITHIN THE CONTINENTAL UNITED STATES
SPECIFICATIONS
| 5197 | $1,762.00
|
|
| Chuck Size | in | 7⁄8 x 3-1⁄4 |
| Bore | in | 1-15⁄16 |
| Stroke | in | 1-3⁄8 |
| Impact Rate | bpm | 2900 |
| Air Consumption | cfm | 32-36 |
| Weight | lbs | 19 |
| Length | in | 18-3⁄8 |
| Air Inlet | in | 3⁄8 Female NPT |
CONSUMABLES
DOCUMENTATION
ACCESSORIES & COMMON REPLACEABLE PARTS
| 2058 | Retainer | $168.65
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
| 18794 | Latch Kit | $133.33
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
| 18797 | Side Rod Kit | QUOTE |
Line Oiler | LO-10PF | $81.00
|
| 18784 | O-Ring & Seal Kit | QUOTE |
Whip Check | WCSML | $11.00
|
| 9753300015 | Dust Control Spray Kit | $157.15
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
| PB-RD-VDEX-KIT | Dust Extraction Kit for Paving Breakers & Rock Drills - includes TAM3P Pail and 10' Vacuum Hose | QUOTE |
Whip Hose Assy (1⁄2" x 6" Hose, 3⁄8" NPT Universal Male Fitting) and 1L Oiler |
18842 |
$171.80
|
