Red Hawk Road
The Red Hawk Road is one of the most powerful gasoline-powered breakers available, offering 44 ft-lb and 1,440 bpm.
| Part Number | Chuck Size | Price |
|---|---|---|
| 8318-0900-29 | Hex 1" x 4-1⁄4" | $4,370.00
|
| 8318-0900-27 | Hex 1-1⁄8" x 6" | $4,370.00
|
| 8318-0900-23 | Hex 1-1⁄4" x 6" | $4,370.00
|
Compact yet powerful, the portable Red Hawk Road is easy to move from task to task. With 60 J of power and 1,440 bpm, it delivers the same power-to-weight ratio as many pneumatic and hydraulic breakers without being tied to an external power source or hoses. In addition, an extensive range of tools allows you to use the Red Hawk Road for everything from cutting and breaking to driving and compacting.
Features and Benefits
- Portable gasoline-driven design for easy setup and handling
- Ergonomic vibration-reducing handles allow operators to work longer
- Hand throttle provides excellent control
- Spring-loaded kill switch springs back to starting position
- Optional carrying harness, trolley or wooden case available for easy transport
Typically $250-$500 LTL Shipping*
* LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to Residential addresses will be higher.
Applications
Ideal for breaking concrete and asphalt, sidewalk service, pothole repair/tamping, installing post signs/barriers and fences, and digging frozen or hard ground.
Specifications
WEIGHT: 49.6 lbs*
LENGTH: 31.2 in*
IMPACT ENERGY: 44 ft-lb
BLOW FREQUENCY: 1620 bpm
POWER: 1.5 kW
MOTOR: 90 cc, 2 stroke
FUEL CAPACITY: 0.22 gal
FUEL MIX: 2%
FUEL CONSUMPTION: 0.18 gal/hour
VIBRATION LEVEL 3-AXIS: 22.0 (ISO 28927-10 on Dynaload)* ft/s2
SOUND POWER LEVEL GUARANTEED: 109 (2000/14/)* dB(A)
ALKYLATE FUEL: Yes
* CP-8318090039 Hex 1" x 4-1/4" has a weight of 48.5 lbs and a length of 29.3"
Choose Tool Shank Size
Choose a Tool for your Breaker
Moil Point |
|||||||
|---|---|---|---|---|---|---|---|
| Length | Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||
| 14" | PB77-MP-14 $26.60
|
PB78-MP-14 $26.80
|
PB88-MP-14 $28.30
|
PB98-MP-14 $32.00
|
PB108-MP-14 $36.90
|
||
| 18" | PB77-MP-18 $29.50
|
PB78-MP-18 $29.50
|
PB88-MP-18 $32.40
|
PB98-MP-18 $35.90
|
PB108-MP-18 $40.70
|
||
| 24" | PB77-MP-24 $38.30
|
PB78-MP-24 $38.30
|
PB88-MP-24 $37.30
|
PB98-MP-24 $40.70
|
PB108-MP-24 $46.20
|
||
| 36" | PB77-MP-36 $53.90
|
PB78-MP-36 $53.90
|
PB88-MP-36 $52.30
|
PB98-MP-36 $63.90
|
PB108-MP-36 $76.90
|
||
| 48" | PB77-MP-48 $60.44
|
PB78-MP-48 $70.10
|
PB88-MP-48 $72.60
|
PB98-MP-48 $86.70
|
PB108-MP-48 $111.30
|
||
| 60" | PB77-MP-60 $75.55
|
PB78-MP-60 $85.21
|
PB88-MP-60 $91.30
|
PB98-MP-60 $110.80
|
PB108-MP-60 $143.90
|
||
| 72" | PB77-MP-72 $90.66
|
PB78-MP-72 $102.40
|
PB88-MP-72 $109.60
|
PB98-MP-72 $135.70
|
PB108-MP-72 $178.80
|
||
| 96" | PB77-MP-96 $120.88
|
PB78-MP-96 $132.62
|
PB88-MP-96 $145.30
|
PB98-MP-96 $188.10
|
PB108-MP-96 $242.90
|
||
Narrow Chisel |
|||||||
|---|---|---|---|---|---|---|---|
| Length | Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||
| 14" | PB77-NC-14 $26.60
|
PB78-NC-14 $26.80
|
PB88-NC-14 $28.30
|
PB98-NC-14 $32.00
|
PB108-NC-14 $36.90
|
||
| 18" | PB77-NC-18 $29.50
|
PB78-NC-18 $29.50
|
PB88-NC-18 $32.40
|
PB98-NC-18 $35.90
|
PB108-NC-18 $40.70
|
||
| 24" | PB77-NC-24 $38.30
|
PB78-NC-24 $38.30
|
PB88-NC-24 $37.30
|
PB98-NC-24 $40.70
|
PB108-NC-24 $46.20
|
||
| 36" | PB77-NC-36 $53.90
|
PB78-NC-36 $53.90
|
PB88-NC-36 $52.30
|
PB98-NC-36 $63.90
|
PB108-NC-36 $76.90
|
||
| 48" | PB77-NC-48 $60.44
|
PB78-NC-48 $70.10
|
PB88-NC-48 $72.60
|
PB98-NC-48 $86.70
|
PB108-NC-48 $111.30
|
||
| 60" | PB77-NC-60 $75.55
|
PB78-NC-60 $86.20
|
PB88-NC-60 $91.30
|
PB98-NC-60 $110.80
|
PB108-NC-60 $143.90
|
||
| 72" | PB77-NC-72 $90.66
|
PB78-NC-72 $102.40
|
PB88-NC-72 $109.60
|
PB98-NC-72 $135.70
|
PB108-NC-72 $178.80
|
||
| 96" | PB77-NC-96 $120.88
|
PB78-NC-96 $134.60
|
PB88-NC-96 $145.30
|
PB98-NC-96 $188.10
|
PB108-NC-96 $242.90
|
||
3" Chisel |
|||||||
|---|---|---|---|---|---|---|---|
| Length | Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||
| 14" | PB77-3C-14 $36.90
|
PB78-3C-14 $37.30
|
PB88-3C-14 $37.60
|
PB98-3C-14 $41.90
|
PB108-3C-14 $46.20
|
||
| 18" | PB77-3C-18 $40.80
|
PB78-3C-18 $40.80
|
PB88-3C-18 $42.70
|
PB98-3C-18 $45.30
|
PB108-3C-18 $51.50
|
||
| 24" | PB77-3C-24 $56.10
|
PB78-3C-24 $56.10
|
PB88-3C-24 $51.80
|
PB98-3C-24 $56.40
|
PB108-3C-24 $49.50
|
||
| 36" | PB77-3C-36 $83.00
|
PB78-3C-36 $83.00
|
PB88-3C-36 $79.70
|
PB98-3C-36 $89.00
|
PB108-3C-36 $101.00
|
||
| 48" | PB77-3C-48 $105.12
|
PB78-3C-48 $111.00
|
PB88-3C-48 $114.60
|
PB98-3C-48 $126.70
|
PB108-3C-48 $147.20
|
||
| 60" | PB77-3C-60 $131.40
|
PB78-3C-60 $139.00
|
PB88-3C-60 $150.80
|
PB98-3C-60 $164.40
|
PB108-3C-60 $192.20
|
||
| 72" | PB77-3C-72 $157.68
|
PB78-3C-72 $166.90
|
PB88-3C-72 $182.00
|
PB98-3C-72 $205.10
|
PB108-3C-72 $239.00
|
||
| 96" | PB77-3C-96 $210.24
|
PB78-3C-96 $203.50
|
PB88-3C-96 $252.40
|
PB98-3C-96 $278.90
|
PB108-3C-96 $320.60
|
||
Tools |
||||||
|---|---|---|---|---|---|---|
| Tool Name | Shank Size | |||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||

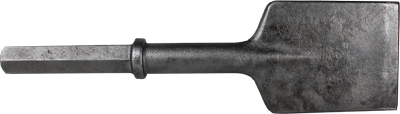

Asphalt Cutter |
PB77-AC $95.30
|
PB78-AC $95.30
|
PB88-AC $95.30
|
PB98-AC $95.40
|
PB108-AC $97.80
|
|
Brushing Tool |
PB77-BH $121.50
|
PB78-BH QUOTE |
PB88-BH $108.80
|
PB98-BH $113.30
|
PB108-BH $116.20
|
|
Digging Chisel |
PB77-DC $106.10
|
PB78-DC QUOTE |
PB88-DC $106.10
|
PB98-DC $110.80
|
PB108-DC $114.60
|
|
Railroad Spike Driver |
PB77-SPIKE $125.40
|
PB88-SPIKE $125.40
|
PB98-SPIKE $125.40
|
PB108-SPIKE $125.40
|
||
Asphalt Wedge |
PB88-AW $93.40
|
PB98-AW $94.90
|
PB108-AW $103.70
|
|||
Frost Wedge |
PB88-FW $115.90
|
PB98-FW $115.90
|
PB108-FW $115.90
|
|||
Concrete Breaker |
PB88-CB $122.00
|
PB98-CB $124.00
|
PB108-CB $132.90
|
|||

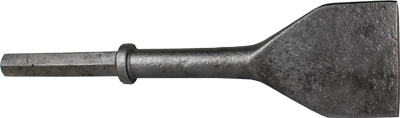

Tarmac Cutter (10-1⁄2" under collar) |
PB98-TC $92.60
|
PB108-TC $94.00
|
||||

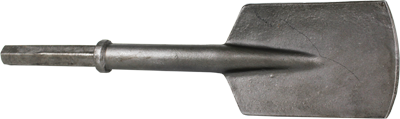

Clay Spade |
||||||
|---|---|---|---|---|---|---|
| Length | Shank Size | |||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 4-1⁄2" | PB77-CS-45 $120.50
|
PB88-CS-45 $120.50
|
PB98-CS-45 $127.90
|
PB108-CS-45 $134.40
|
||
| 5-1⁄2" | PB77-CS-55 $120.50
|
PB78-CS-55 $120.50
|
PB88-CS-55 $120.50
|
PB98-CS-55 $127.90
|
PB108-CS-55 $134.40
|
|
| 8" | PB98-CS-80 $357.30
|
PB108-CS-80 $357.30
|
||||
Pin Driver |
||||||
|---|---|---|---|---|---|---|
| Pin Size | Shank Size | |||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 5⁄8" | PB88-PD625 $105.40
|
PB98-PD625 $110.90
|
PB108-PD625 $115.00
|
|||
| 3⁄4" | PB88-PD750 $105.40
|
PB98-PD750 $110.90
|
PB108-PD750 $115.00
|
|||
| 7⁄8" | PB88-PD875 $105.40
|
PB98-PD875 $110.90
|
PB108-PD875 $115.00
|
|||
| 1" | PB88-PD100 $105.40
|
PB98-PD100 $110.90
|
PB108-PD100 $115.00
|
|||
| 1-1⁄4" | PB88-PD125 $177.00
|
PB98-PD125 $177.00
|
PB108-PD125 $177.00
|
|||
| 1-1⁄2" | PB88-PD150 $177.00
|
PB98-PD150 $177.00
|
PB108-PD150 $177.00
|
|||
| 1-3⁄4" | PB88-PD175 $177.00
|
PB98-PD175 $177.00
|
PB108-PD175 $177.00
|
|||
| 2" | PB88-PD200 $177.00
|
PB98-PD200 $177.00
|
PB108-PD200 $177.00
|
|||
| 2-1⁄2" | PB88-PD250 $264.60
|
PB98-PD250 $264.90
|
PB108-PD250 $264.90
|
|||
Ground Rod Driver |
||||||
|---|---|---|---|---|---|---|
| Rod Size | Socket Size | Shank Size | ||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 5⁄8" | 11⁄16" | PB77-GR-625 $92.60
|
PB88-GR-625 $92.60
|
PB98-GR-625 $95.40
|
PB108-GR-625 $105.30
|
|
| 3⁄4" | 13⁄16" | PB77-GR-750 $92.60
|
PB88-GR-750 $92.60
|
PB98-GR-750 $95.40
|
PB108-GR-750 $105.30
|
|
| 7⁄8" | 15⁄16" | PB88-GR-875 $104.80
|
PB98-GR-875 $110.00
|
PB108-GR-875 $117.80
|
||
| 1" | 1-1⁄16" | PB88-GR-100 $114.00
|
PB98-GR-100 $120.20
|
PB108-GR-100 $130.20
|
||

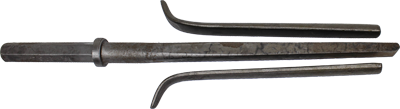

Plug and Feathers |
||||||
|---|---|---|---|---|---|---|
| Hole Size | Part | Shank Size | ||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 1-1⁄2" | Shank | PB98-SHK-150 $120.20
|
PB108-SHK-150 $122.00
|
|||
| 1-1⁄2" | Feathers | PB-FTH-150 $31.90
|
PB-FTH-150 $31.90
|
|||
| 2" | Shank | PB98-SHK-200 $120.20
|
PB108-SHK-200 $122.00
|
|||
| 2" | Feathers | PB-FTH-200 $34.50
|
PB-FTH-200 $34.50
|
|||

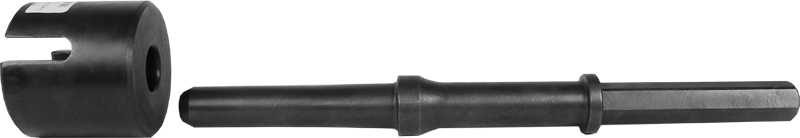

U-Channel and Pipe Drivers |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part | Shank Size | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shank only | PD78-PIPE $108.00
|
PD88-PIPE $108.00
|
PD98-PIPE $108.00
|
PD108-PIPE $108.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cup only 2-5⁄8" ID |
PD-PIPE-CUP $134.00
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detachable Shank |
||||||
|---|---|---|---|---|---|---|
| Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| PB77-DS $72.80
|
PB78-DS $75.30
|
PB88-DS $72.80
|
PB98-DS $72.80
|
PB108-DS $72.80
|
||
ROUND PIPE DRIVERS(for large taper shank) |
||
|---|---|---|
| Pad Size | Type | Part No |
| 1-1⁄4" | Cup | PD-LT-32CUP $115.00
|
| 1-1⁄2" | Cup | PD-LT-38CUP $115.00
|
| 2" | Pin | PD-LT-51PIN $121.00
|
| 2" | Cup | PD-LT-51CUP $115.00
|
| 2-1⁄2" | Pin | PD-LT-64PIN $121.00
|
| 2-1⁄2" | Cup | PD-LT-64CUP $121.00
|
| 3" | Pin | PD-LT-76PIN $122.00
|
| 3" | Cup | PD-LT-76CUP $134.00
|
| 4" | Cup | PD-LT-102CUP $268.00
|
SQUARE POST DRIVERSUse with Detachable Shank |
||
|---|---|---|
| Size | Type | Part No |
| 1 1⁄2" | Small Taper | PD-ST-38SQ CALL |
| 1 1⁄2" | Large Taper | PD-LT-38SQ $128.00
|
| 1 3⁄4" | Small Taper | PD-ST-45SQ CALL |
| 1 3⁄4" | Large Taper | PD-LT-45SQ $128.00
|
| 2" | Small Taper |
PD-ST-51SQ |
| 2" | Large Taper | PD-LT-51SQ $128.00
|
| 2 1⁄4" | Large Taper | PD-LT-57SQ $185.00
|
| 2 1⁄2" | Large Taper | PD-LT-64SQ $185.00
|
TAMPING PADS |
||
|---|---|---|
| Pad Size | Type | Part No |
| 6" | Round | PB-TAMP-LT-6RD $127.00
|
| 6" | Square | PB-TAMP-LT-6SQ $125.50
|
| 7 " | Round | PB-TAMP-LT-7RD $125.50
|
| 8" | Square | PB-TAMP-LT-8SQ $149.00
|
| 2" | PB-SHOE-2 $287.30
|
|
| 3" | PB-SHOE-3 $288.20
|
|
| One Month Service Kit | 9234000687 | $52.31
|
Starter Spring | 9234000491 | $62.16
|
| Three Months Service Kit | 9234000688 | $176.15
|
Starter Rope | 9234000059 | $8.81
|
| Six Months Service Kit | 9234000689 | $474.74
|
Starter Handle | 9234000045 | $6.48
|
| Twelve Months Service Kit | 9234000690 | $828.40
|
Spark Plug | 9234000448 | CALL |
| Big Service Kit | 9234001106 | $409.99
|
Complete Spark Plug Cable | 9234000601 | $62.07
|
| Bearing & Seal Kit | 9234000318 | $195.39
|
Air Filter | 9234000136 | $86.61
|
| Repair Kit | 9234021370 | $21.79
|
Trolley | 9234000654 | $604.22
|
| Complete Seal Kit | 9234000691 | $449.34
|

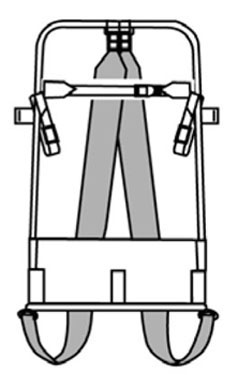

Carrying Harness | 9238281410 | $2,324.64
|
| Carburettor Repair Kit | 9234000912 | $32.75
|
Mixolene Oil - 1 L | 9234020996 | $23.73
|
| Powerolene Eccentric & Transmission Oil | 3382100555 | $43.46
|
