Picks and Clay Diggers

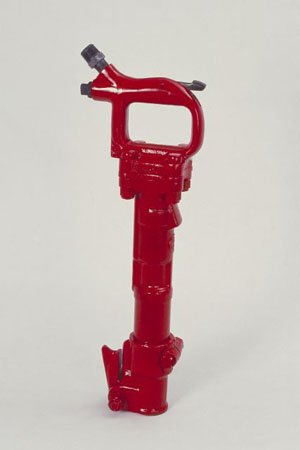

CP 0111 Clay Digger/Pick
Very popular multi-purpose picks, with good power-to-weight ratio and latch retainer for quick and easy change of steels. Both are available with inside or outside trigger.
- Heat-treated alloy steel components for excellent durability
- Latch retainer
- High power-to-weight ratio
**FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 0111 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Weight (lb) | Chuck size (in) | Air Usage (cfm) | Blows per minute | Retainer type | Handle type | Muffler incl. | Price |
| 8900-0001-41 | CP 0111 CHIT | 29.0 | 7⁄8 x 3-1⁄4 | 45 | 1800 | Latch | Closed Handle - Inside Trigger | - | $1,335.00
|
| 8900-0001-20 | CP 0111 CHLA | 29.0 | 1 x 4-1⁄4 | 45 | 1800 | Latch | Closed Handle - Outside Trigger | - | $1,335.00
|
| CP 0111 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Weight (lb) | Chuck size (in) | Air Usage (cfm) | Blows per minute | Retainer type | Handle type | Muffler incl. | Price |
| 8900-0001-41 | CP 0111 CHIT | 29.0 | 7⁄8 x 3-1⁄4 | 45 | 1800 | Latch | Closed Handle - Inside Trigger | - | $1,335.00
|
| 8900-0001-20 | CP 0111 CHLA | 29.0 | 1 x 4-1⁄4 | 45 | 1800 | Latch | Closed Handle - Outside Trigger | - | $1,335.00
|
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| R092500 | Complete Latch Retainer | $932.66
|
RDO1G | Rock Drill Oil - 1 Gal | $42.00
|
|
| R070111 | Back Head Bolt | $15.90
|
RDO5G | Rock Drill Oil - 5 Gal | $122.00
|
|
| P006099 | Back Head Bolt Nut | $2.24
|
LO-10PF | Line Oiler | $81.00
|
|
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
WCSML | Whip Check | $12.50
|
|
| 9753300015 | Dust Control Spray Kit | $132.58
|
AIRH-19-50R | Contractors Air Hose | $124.00
|
|
| AM8 | Air King Universal Coupling | $10.20
|
TX2HW | Hose Whip Assembly w/ 1.4oz. Lubricator | $86.65
|
|
| TX5HW | Hose Whip Assembly w/ 3.7oz. Lubricator | $99.10
|
||||
CP 0222 Clay Digger/Pick
Very popular multi-purpose picks, with good power-to-weight ratio and latch retainer for quick and easy change of steels. Both are available with inside or outside trigger.
- Lightweight and compact for easy handling
- High power-to-weight ratio
- Latch Retainer
**FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 0222 CHIT BS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Weight (lb) | Chuck size (in) | Air Usage (cfm) | Blows per minute | Retainer type | Handle type | Muffler incl. | Price |
| 8900-0001-21 | CP 0222 CHIT | 22 | 7⁄8 x 3-1⁄4 | 40 | 1700 | Latch | Closed Handle - Inside Trigger | - | $1,080.00
|
| CP 0222 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part No | Description | Weight (lbs) | Chuck Size (in) | Air Usage (cfm) | Blows per Minute | Retainer Type | Handle Type | Muffler incl. | Price |
| 8900-0001-21 | CP 0222 CHIT | 22.0 | 7⁄8 x 3-1⁄4 | 40 | 1700 | Latch | Closed Handle - Inside Trigger | - | $1,080.00
|
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| F815269 | Complete Latch Retainer | $8.83
|
RDO1G | Rock Drill Oil - 1 Gal | $42.00
|
|
| R141765 | Complete Muffler | $180.33
|
RDO5G | Rock Drill Oil - 5 Gal | $122.00
|
|
| LO-10PF | Line Oiler | $81.00
|
||||
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
WCSML | Whip Check | $12.50
|
|
| 9753300015 | Dust Control Spray Kit | $132.58
|
AIRH-19-50R | Contractors Air Hose | $124.00
|
|
| TX4HW1/2 | Hose Whip Assembly w/ 1.4oz Lubricator | $111.50
|
TX8HW1/2 | Hose Whip Assembly w/ 3.7oz. Lubricator | $123.60
|
|
| AM8 | Air King Universal Coupling | $10.20
|
||||

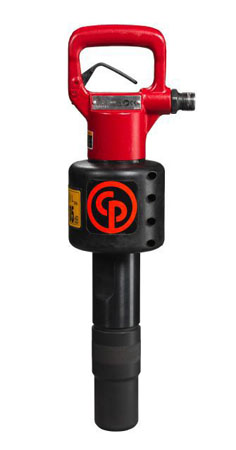

CP 0122
CP 0122: The most powerful pick hammer in the range, weighing 24-31 lbs. It is particularly suitable for working with relatively hard concrete in demolition, pile-capping or bridge deck applications
**FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 0122 S/SVR | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Weight (lbs) | Chuck Size (in) | Air Usage (cfm) | Blows per Minute | Retainer Type | Handle Type | Muffler Included | Price |
| 8900-0001-43 | CP 0122 S | 24.3 | 7⁄8 x 3-1⁄4 | 46.6 | 1380 | Screw-on | Closed Handle - Inside Trigger | Yes | $1,335.00
|
| CP 0122 S/SVR | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Weight (lbs) | Chuck Size (in) | Air Usage (cfm) | Blows per Minute | Retainer Type | Handle Type | Muffler Included | Price | |
| 8900-0001-43 | CP 0122 S | 24.3 | 7⁄8 x 3-1⁄4 | 46.6 | 1380 | Screw-on | Closed Handle - Inside Trigger | Yes | $1,335.00
|
|
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|

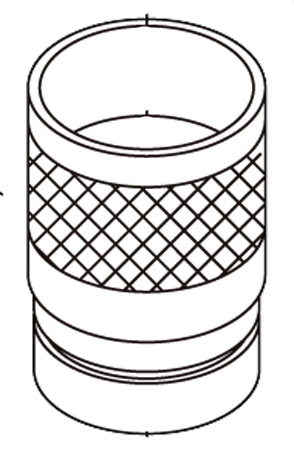

| Z8767427 | Complete Standard Retainer | $443.53
|
RDO1G | Rock Drill Oil - 1 Gallon | $42.00
|
|

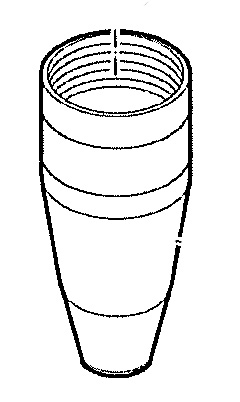

| Z8766427 | Complete Conical Retainer | $276.20
|
RDO5G | Rock Drill Oil - 5 Gallon | $122.00
|
|
| F814201 | Muffler | $133.00
|
LO-10PF | Line Oiler | $81.00
|
|
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
WCSML | Whip Check | $12.50
|
|
| 9753300015 | Dust Control Spray Kit | $132.58
|
AIRH-19-50R | Contractors Air Hose | $124.00
|
|
| AM8 | Air King Universal Coupling | $10.20
|
||||
| TX2HW | Hose Whip Assy w/ 1.4oz Lubricator | $86.65
|
||||
| TX5HW | Hose Whip Assy w/ 3.7oz Lubricator | $99.10
|
||||
Choose Tool Shank Size
Choose a Tool for your Breaker
Moil Point |
|||
| Shank Size | |||
| Length | 7/8" x 3-1/4" | 1" x 4-1/4" | |
| 14" | PB77-MP-14 $26.60
|
PB88-MP-14 $28.30
|
|
| 18" | PB77-MP-18 $29.50
|
PB88-MP-18 $32.40
|
|
| 24" | PB77-MP-24 $38.30
|
PB88-MP-24 $37.30
|
|
| 36" | PB77-MP-36 $53.90
|
PB88-MP-36 $52.30
|
|
| 48" | PB88-MP-48 $72.60
|
||
| 60" | PB88-MP-60 $91.30
|
||
| 72" | PB88-MP-72 $109.60
|
||
| 96" | PB88-MP-96 $145.30
|
||
Narrow Chisel |
||||||
| Shank Size | ||||||
| Length | 7/8" x 3-1/4" | 1" x 4-1/4" | ||||
| 14" | PB77-NC-14 $26.60
|
PB88-NC-14 $28.30
|
||||
| 18" | PB77-NC-18 $29.50
|
PB88-NC-18 $32.40
|
||||
| 24" | PB77-NC-24 $38.30
|
PB88-NC-24 $37.30
|
||||
| 36" | PB77-NC-36 $53.90
|
PB88-NC-36 $52.30
|
||||
| 48" | PB88-NC-48 $72.60
|
|||||
| 60" | PB88-NC-60 $91.30
|
|||||
| 72" | PB88-NC-72 $109.60
|
|||||
| 96" | PB88-NC-96 $145.30
|
|||||
3" Chisel |
|||
| Shank Size | |||
| Length | 7/8" x 3-1/4" | 1" x 4-1/4" | |
| 14" | PB77-3C-14 $36.90
|
PB88-3C-14 $37.60
|
|
| 18" | PB77-3C-18 $40.80
|
PB88-3C-18 $42.70
|
|
| 24" | PB77-3C-24 $56.10
|
PB88-3C-24 $51.80
|
|
| 36" | PB77-3C-36 $83.00
|
PB88-3C-36 $79.70
|
|
| 48" | PB88-3C-48 $114.60
|
||
| 60" | PB88-3C-60 $150.80
|
||
| 72" | PB88-3C-72 $182.00
|
||
| 96" | PB88-3C-96 $252.40
|
||
Clay Spade |
|||
| Shank Size | |||
| Length | 7/8" x 3-1/4" | 1" x 4-1/4" | |
| 4-1/2" | PB77-CS-45 $120.50
|
PB88-CS-45 $120.50
|
|
| 5-1/2" | PB77-CS-55 $120.50
|
PB88-CS-55 $120.50
|
|
| 8" | |||
Tools |
|||||
| Shank Size | |||||
| 7/8" x 3-1/4" | 1" x 4-1/4" | ||||
Digging Chisel  |
PB77-DC $106.10
|
PB88-DC $106.10
|
|||
