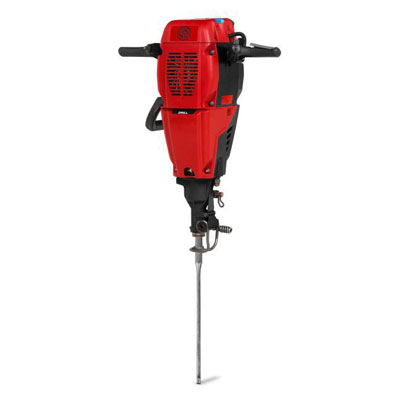

Red Hawk Drill

The Red Hawk Drill combines breaking and drilling in one convenient tool with no external power source needed.

Part Number Chuck Size Price
8318-0900-40 Hex 7⁄8" x 4-1⁄4" $5,650.00

Whether you're breaking a small patch of concrete or splitting a rock, the Red Hawk Drill can do the job in the time it would take to set up a compressor and hoses for a pneumatic breaker. This convenient, multipurpose tool is perfect for remote areas that are difficult to access. It also works with a wide range of working tools, so you can use it to break, drill, drive, compact and more.

Features and Benefits

  • Compact, lightweight and portable
  • Easy to maneuver with low center of gravity and carrying handle
  • Ergonomic vibration-reducing handles allow operators to work longer
  • Hand throttle provides excellent control
  • Built-in air flushing device allows drilling to depths of 2 m (6.6 ft)
  • Optional carrying harness, trolley or wooden case available for easy transport
Typically $250-$500 LTL Shipping*
* LTL rates are currently volatile and vary widely depending on delivery conditions. We send all LTL shipments out for bid to logistics companies to find the best price and service. Shipping to Residential addresses will be higher.

 For Help with your Gas Tool, call Red Hawk Tech Support at 803-817-7217.

Applications

Well suited for light service applications such as installing signposts, breaking small areas of concrete, fencing, and digging holes in hard and frozen ground.

Specifications

WEIGHT: 55.1 lbs

LENGTH: 28.8 in

IMPACT ENERGY: 16-18 ft-lb

BLOW FREQUENCY: 2700 bpm

POWER: 2 kW

MOTOR: 185 cc, 2 stroke

FUEL CAPACITY: 0.26 gal

FUEL MIX: 2%

FUEL CONSUMPTION: 0.29-0.33 gal/hour

VIBRATION LEVEL 3-AXIS: Breaking: 19.0 (ISO 28927-10 on Dynaload) * ft/s2
Drilling: 30.5 (ISO 28927-10 on Dynaload) * ft/s2

SOUND POWER LEVEL GUARANTEED: 108 (2000/14/)* dB(A)

ALKYLATE FUEL: Yes

Choose Tool Shank Size


Choose a Tool for your Breaker

Moil Point
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  14" PB77-MP-14
$26.60 		PB78-MP-14
$26.80 		PB88-MP-14
$28.30 		PB98-MP-14
$32.00 		PB108-MP-14
$36.90
  18" PB77-MP-18
$29.50 		PB78-MP-18
$29.50 		PB88-MP-18
$32.40 		PB98-MP-18
$35.90 		PB108-MP-18
$40.70
  24" PB77-MP-24
$38.30 		PB78-MP-24
$38.30 		PB88-MP-24
$37.30 		PB98-MP-24
$40.70 		PB108-MP-24
$46.20
  36" PB77-MP-36
$53.90 		PB78-MP-36
$53.90 		PB88-MP-36
$52.30 		PB98-MP-36
$63.90 		PB108-MP-36
$76.90
  48" PB77-MP-48
$60.44 		PB78-MP-48
$70.10 		PB88-MP-48
$72.60 		PB98-MP-48
$86.70 		PB108-MP-48
$111.30
  60" PB77-MP-60
$75.55 		PB78-MP-60
$85.21 		PB88-MP-60
$91.30 		PB98-MP-60
$110.80 		PB108-MP-60
$143.90
  72" PB77-MP-72
$90.66 		PB78-MP-72
$102.40 		PB88-MP-72
$109.60 		PB98-MP-72
$135.70 		PB108-MP-72
$178.80
  96" PB77-MP-96
$120.88 		PB78-MP-96
$132.62 		PB88-MP-96
$145.30 		PB98-MP-96
$188.10 		PB108-MP-96
$242.90

Narrow Chisel


narrow chisel
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  14" PB77-NC-14
$26.60 		PB78-NC-14
$26.80 		PB88-NC-14
$28.30 		PB98-NC-14
$32.00 		PB108-NC-14
$36.90
  18" PB77-NC-18
$29.50 		PB78-NC-18
$29.50 		PB88-NC-18
$32.40 		PB98-NC-18
$35.90 		PB108-NC-18
$40.70
  24" PB77-NC-24
$38.30 		PB78-NC-24
$38.30 		PB88-NC-24
$37.30 		PB98-NC-24
$40.70 		PB108-NC-24
$46.20
  36" PB77-NC-36
$53.90 		PB78-NC-36
$53.90 		PB88-NC-36
$52.30 		PB98-NC-36
$63.90 		PB108-NC-36
$76.90
  48" PB77-NC-48
$60.44 		PB78-NC-48
$70.10 		PB88-NC-48
$72.60 		PB98-NC-48
$86.70 		PB108-NC-48
$111.30
  60" PB77-NC-60
$75.55 		PB78-NC-60
$86.20 		PB88-NC-60
$91.30 		PB98-NC-60
$110.80 		PB108-NC-60
$143.90
  72" PB77-NC-72
$90.66 		PB78-NC-72
$102.40 		PB88-NC-72
$109.60 		PB98-NC-72
$135.70 		PB108-NC-72
$178.80
  96" PB77-NC-96
$120.88 		PB78-NC-96
$134.60 		PB88-NC-96
$145.30 		PB98-NC-96
$188.10 		PB108-NC-96
$242.90

3" Chisel


3 inch chisel
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  14" PB77-3C-14
$36.90 		PB78-3C-14
$37.30 		PB88-3C-14
$37.60 		PB98-3C-14
$41.90 		PB108-3C-14
$46.20
  18" PB77-3C-18
$40.80 		PB78-3C-18
$40.80 		PB88-3C-18
$42.70 		PB98-3C-18
$45.30 		PB108-3C-18
$51.50
  24" PB77-3C-24
$56.10 		PB78-3C-24
$56.10 		PB88-3C-24
$51.80 		PB98-3C-24
$56.40 		PB108-3C-24
$49.50
  36" PB77-3C-36
$83.00 		PB78-3C-36
$83.00 		PB88-3C-36
$79.70 		PB98-3C-36
$89.00 		PB108-3C-36
$101.00
  48" PB77-3C-48
$105.12 		PB78-3C-48
$111.00 		PB88-3C-48
$114.60 		PB98-3C-48
$126.70 		PB108-3C-48
$147.20
  60" PB77-3C-60
$131.40 		PB78-3C-60
$139.00 		PB88-3C-60
$150.80 		PB98-3C-60
$164.40 		PB108-3C-60
$192.20
  72" PB77-3C-72
$157.68 		PB78-3C-72
$166.90 		PB88-3C-72
$182.00 		PB98-3C-72
$205.10 		PB108-3C-72
$239.00
  96" PB77-3C-96
$210.24 		PB78-3C-96
$203.50 		PB88-3C-96
$252.40 		PB98-3C-96
$278.90 		PB108-3C-96
$320.60

Tools
Tool Name Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  Asphalt Cutter
asphalt cutter		 PB77-AC
$95.30 		PB78-AC
$95.30 		PB88-AC
$95.30 		PB98-AC
$95.40 		PB108-AC
$97.80
  Brushing Tool
bushing tool		 PB77-BH
$121.50 		PB78-BH
QUOTE 		PB88-BH
$108.80 		PB98-BH
$113.30 		PB108-BH
$116.20
  Digging Chisel
digging chisel		 PB77-DC
$106.10 		PB78-DC
QUOTE 		PB88-DC
$106.10 		PB98-DC
$110.80 		PB108-DC
$114.60
  Railroad Spike Driver
railroad spike driver		 PB77-SPIKE
$125.40 		  PB88-SPIKE
$125.40 		PB98-SPIKE
$125.40 		PB108-SPIKE
$125.40
  Asphalt Wedge
asphalt wedge		     PB88-AW
$93.40 		PB98-AW
$94.90 		PB108-AW
$103.70
  Frost Wedge
frost wedge		     PB88-FW
$115.90 		PB98-FW
$115.90 		PB108-FW
$115.90
  Concrete Breaker
concrete breaker		     PB88-CB
$122.00 		PB98-CB
$124.00 		PB108-CB
$132.90
  Tarmac Cutter (10-1⁄2" under collar)
tarmac cutter		       PB98-TC
$92.60 		PB108-TC
$94.00

Clay Spade


clay spade
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  4-1⁄2" PB77-CS-45
$120.50 		  PB88-CS-45
$120.50 		PB98-CS-45
$127.90 		PB108-CS-45
$134.40
  5-1⁄2" PB77-CS-55
$120.50 		PB78-CS-55
$120.50 		PB88-CS-55
$120.50 		PB98-CS-55
$127.90 		PB108-CS-55
$134.40
  8"       PB98-CS-80
$357.30 		PB108-CS-80
$357.30

Pin Driver


pin driver
Pin Size Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  5⁄8"     PB88-PD625
$105.40 		PB98-PD625
$110.90 		PB108-PD625
$115.00
  3⁄4"     PB88-PD750
$105.40 		PB98-PD750
$110.90 		PB108-PD750
$115.00
  7⁄8"     PB88-PD875
$105.40 		PB98-PD875
$110.90 		PB108-PD875
$115.00
  1"     PB88-PD100
$105.40 		PB98-PD100
$110.90 		PB108-PD100
$115.00
  1-1⁄4"     PB88-PD125
$177.00 		PB98-PD125
$177.00 		PB108-PD125
$177.00
  1-1⁄2"     PB88-PD150
$177.00 		PB98-PD150
$177.00 		PB108-PD150
$177.00
  1-3⁄4"     PB88-PD175
$177.00 		PB98-PD175
$177.00 		PB108-PD175
$177.00
  2"     PB88-PD200
$177.00 		PB98-PD200
$177.00 		PB108-PD200
$177.00
  2-1⁄2"     PB88-PD250
$264.60 		PB98-PD250
$264.90 		PB108-PD250
$264.90

Ground Rod Driver


ground rod driver
Rod Size Socket Size Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
5⁄8" 11⁄16" PB77-GR-625
$92.60 		  PB88-GR-625
$92.60 		PB98-GR-625
$95.40 		PB108-GR-625
$105.30
3⁄4" 13⁄16" PB77-GR-750
$92.60 		  PB88-GR-750
$92.60 		PB98-GR-750
$95.40 		PB108-GR-750
$105.30
7⁄8" 15⁄16"     PB88-GR-875
$104.80 		PB98-GR-875
$110.00 		PB108-GR-875
$117.80
1" 1-1⁄16"     PB88-GR-100
$114.00 		PB98-GR-100
$120.20 		PB108-GR-100
$130.20

Plug and Feathers


plug and feathers
Hole Size Part Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
1-1⁄2" Shank       PB98-SHK-150
$120.20 		PB108-SHK-150
$122.00
1-1⁄2" Feathers       PB-FTH-150
$31.90 		PB-FTH-150
$31.90
2" Shank       PB98-SHK-200
$120.20 		PB108-SHK-200
$122.00
2" Feathers       PB-FTH-200
$34.50 		PB-FTH-200
$34.50

U-Channel and Pipe Drivers


u-channel and pipe drivers
Part Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  Shank only   PD78-PIPE
$108.00 		PD88-PIPE
$108.00 		PD98-PIPE
$108.00 		PD108-PIPE
$108.00

  Cup only
2-5⁄8" ID		           PD-PIPE-CUP
$134.00

Detachable Shank


detachable shank
  Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
    PB77-DS
$72.80 		PB78-DS
$75.30 		PB88-DS
$72.80 		PB98-DS
$72.80 		PB108-DS
$72.80

ROUND PIPE DRIVERS

(for large taper shank)
round post drivers
Pad Size Type Part No
1-1⁄4" Cup PD-LT-32CUP
$115.00
1-1⁄2" Cup PD-LT-38CUP
$115.00
2" Pin PD-LT-51PIN
$121.00
2" Cup PD-LT-51CUP
$115.00
2-1⁄2" Pin PD-LT-64PIN
$121.00
2-1⁄2" Cup PD-LT-64CUP
$121.00
3" Pin PD-LT-76PIN
$122.00
3" Cup PD-LT-76CUP
$134.00
4" Cup PD-LT-102CUP
$268.00

SQUARE POST DRIVERS

Use with Detachable Shank
square post drivers
Size Type Part No
1 1⁄2" Small Taper PD-ST-38SQ
CALL
1 1⁄2" Large Taper PD-LT-38SQ
$128.00
1 3⁄4" Small Taper PD-ST-45SQ
CALL
1 3⁄4" Large Taper PD-LT-45SQ
$128.00
2" Small Taper

PD-ST-51SQ
CALL
2" Large Taper PD-LT-51SQ
$128.00
2 1⁄4" Large Taper PD-LT-57SQ
$185.00
2 1⁄2" Large Taper PD-LT-64SQ
$185.00

TAMPING PADS


tamping pad
Pad Size Type Part No
6" Round PB-TAMP-LT-6RD
$127.00
6" Square PB-TAMP-LT-6SQ
$125.50
7 " Round PB-TAMP-LT-7RD
$125.50
8" Square PB-TAMP-LT-8SQ
$149.00

2"   PB-SHOE-2
$287.30
3"   PB-SHOE-3
$288.20

ACCESSORIES & COMMON REPLACEABLE PARTS

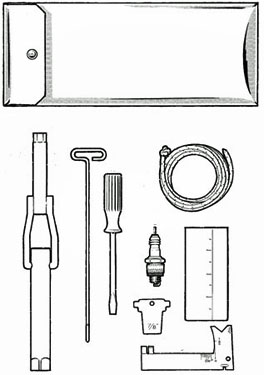

Complete Tool Bag 9234000905 $186.11 Machine Box 9234001125 $1,218.80
 - Tool Bag 9238271020 CALL Carrying Harness 9238281410 $2,324.64
 - Socket Wrench (10/21mm - 0.4/0.8in) 9238271400 $22.85 Trolley 9234000654 $604.22

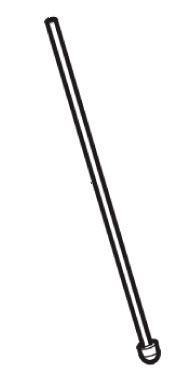

 - Cleaning Needle 9238270100 $6.89 Complete Spare Wheele 9234021139 CALL
 - Spark Plug 9234000904 $14.78 Two-Stroke Oil - 1 Liter 9234020996 $23.73
 - Starter Rope 9232240510 $5.59 Powerolene Eccentric & Transmission Oil - 1 Liter 3382100555 $43.46
 - Chuck Bushing Gauge - 7/8" Hex 9238270790 $2.10 Service Kit 9234001552 $265.90

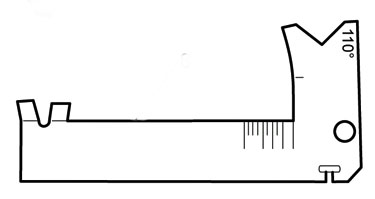

 - Grinding Template 9238270810 $93.01 Gasket Kit 9234000922 $69.84

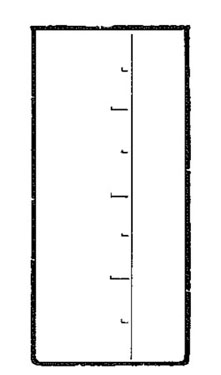

 - Oil Measure 9238271840 $16.88 Diaphragm Kit 9234000912 $32.75
