Pneumatic Chipping Hammers & Picks, by Chicago Pneumatic (CP)

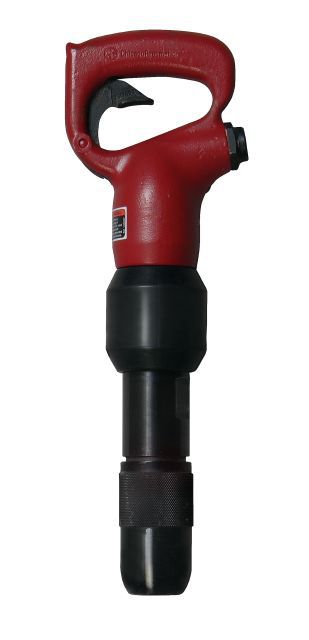

CP 0012
| CP 0012 - Screw-on D-Handle | |||
|---|---|---|---|
| Part Number | Description | Chuck (in) | Price |
| 8900000103 | CP 0012 Hammer (.580) | .580" Hex | $565.00
|
| 8900000102 | CP 0012 Hammer (.680) | .680" Round | $565.00
|

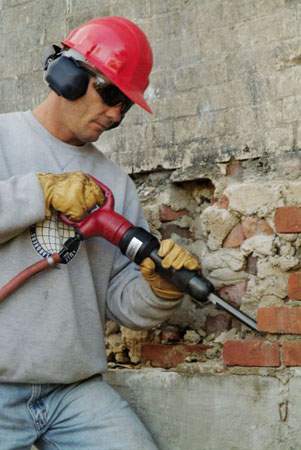

The CP 0012 is the new addition to the CP range of pneumatic hammers for light chipping and scaling duties. Since the CP 0012 is light and has medium hitting power, it is very easy to handle and control for more precise jobs. Typical applications include alteration work, hole making and trimming.
- Optimum power-to-weight ratio for a good balance between hitting power and easy handling
- Straight forward design for easy maintenance and repair
- Handle design similar to the well known CP 0009
- Teasing throttle and an air cushioned piston to give the operator precise control
- Muffler assembly as standard
- Rugged construction, hardened steel cylinder and handle

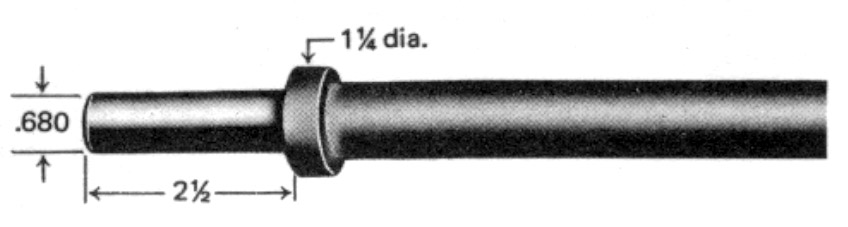

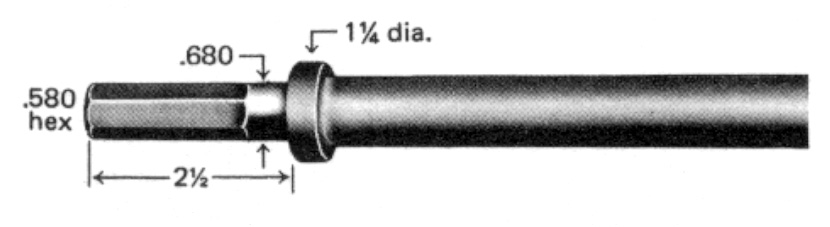

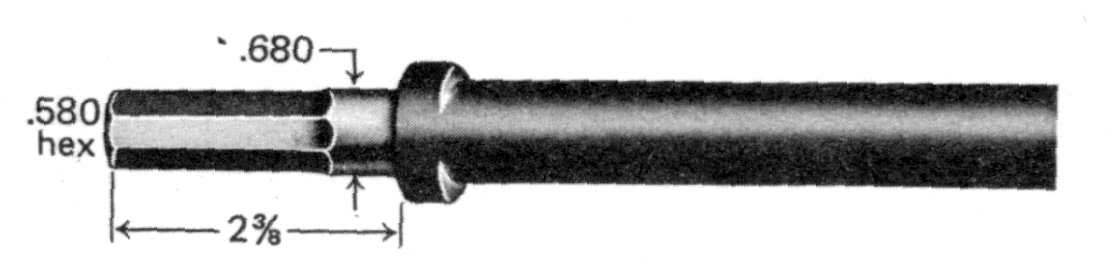

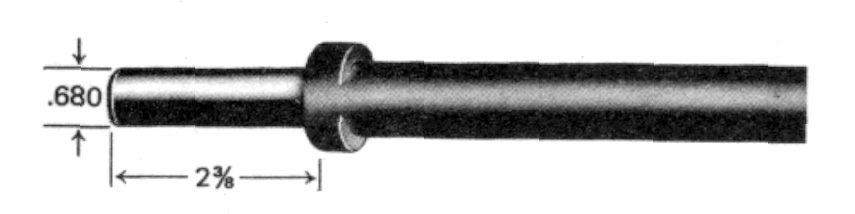

- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 0012 | |||
|---|---|---|---|
| Description | CP 0012 2H | CP 0012 2R | |
| Part No. | 8900-0001-03 | 8900-0001-02 | |
| Price | CALL | CALL | |
| Weight | lbs | 12 | 12 |
| Length | in | 16 | 16 |
| Chuck Size | in | .580 Hex | .680 Round |
| Air Consumption | cfm | 20 | 20 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 2 | 2 |
| Impact Rate | bpm | 2600 | 2600 |
| Retainer Type | Ball-Type | Ball-Type | |
| Muffler Included | Yes | Yes | |
| Handle Type | D-Handle/Inside Trigger | D-Handle/Inside Trigger | |
| Vibration Level 3 Axes (ISO 20643) | m/s2 | 14.6 | 14.6 |
| Sound Power Level Guaranteed (2000/14/EC) | dB(A) | 104 | 104 |
| Sound Pressure Level (2000/14/EC) | dB(A) | 89 | 89 |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Universal Chipping Hammer Retainer Spring - Bag of 25 |
USPRG-CH-BAG |
$60.00
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Standard Retainer | C8788859 | $79.88
|
Line Oiler | LO-10PF | $81.00
|
|
| Retainer & Lock Spring | P107243 | $139.14
|
Whip Check | WCSML | $12.50
|
|
| Lock Spring | H3437857 | $5.19
|
Contractors Air Hose | AIRH-19-50R | $124.00
|
|

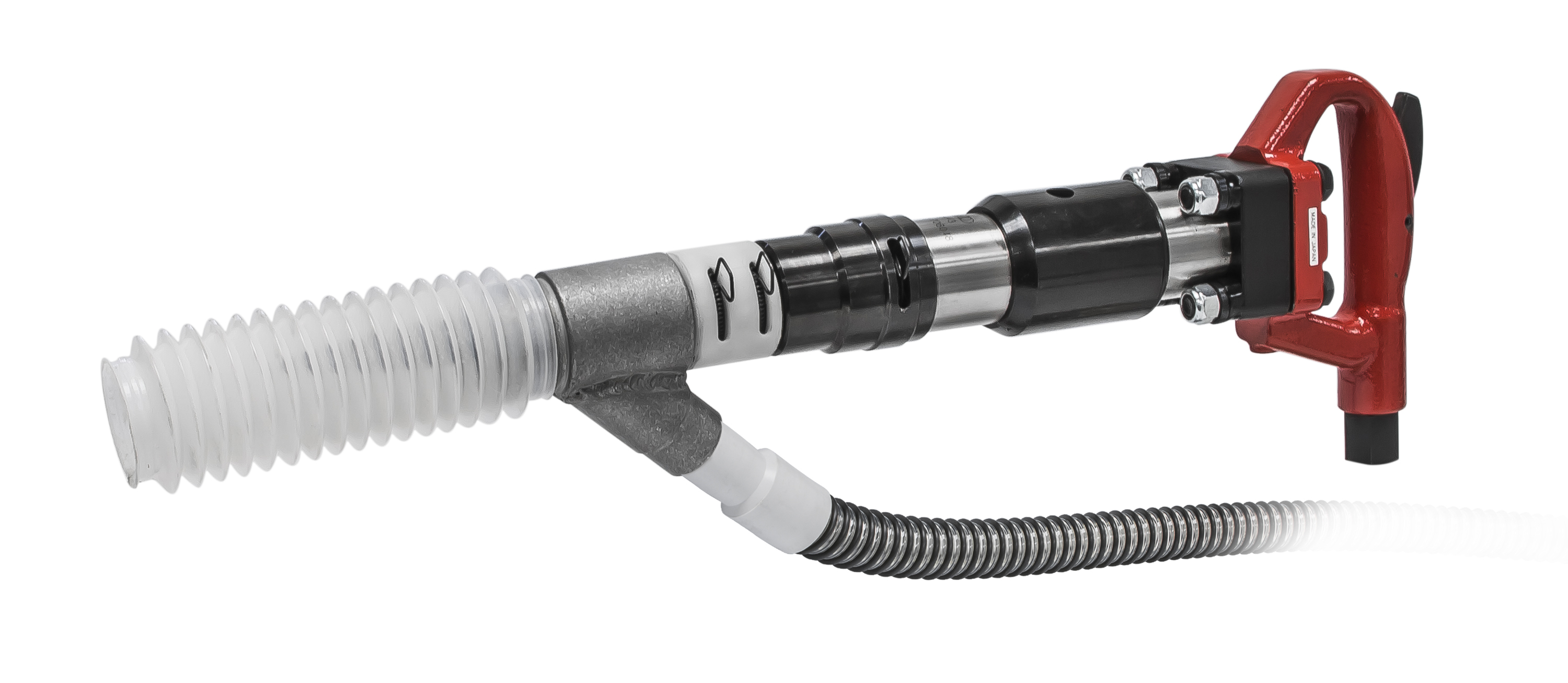

| Vacuum Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
Hose Whip Assembly w/ 1.4 oz. Lubricator | TX2HW | $86.65
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assembly w/ 3.7 oz. Lubricator | TX5HW | $99.10
|
|

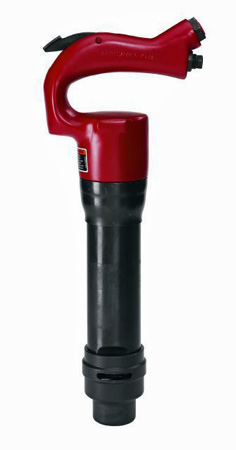

CP 4123
| CP 4123 - Pistol Grip with Outside Trigger | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 8900000105 | CP 4123 2H Hammer | .580" Hex | 2 | $580.00
|
| 8900000104 | CP 4123 2R Hammer | .680" Round | 2 | $580.00
|
| 8900000107 | CP 4123 3H Hammer | .580" Hex | 3 | $580.00
|
| 8900000106 | CP 4123 3R Hammer | .680" Round | 3 | $580.00
|
| 8900000109 | CP 4123 4H Hammer | .580" Hex | 4 | $580.00
|
| 8900000108 | CP 4123 4R Hammer | .680" Round | 4 | $580.00
|
The most popular CP chipping hammer of all times, the CP 4123 is used for a wide variety of construction and industrial applications, from light to medium chipping to heavy cutting. Choose the cylinder size that best suits your particular application.
- Classic simplate valve
- Heat treated cylinder
- Now with spline lock instead of clip locking mechanism.
- Powerful, yet compact and lightweight
- Rugged construction, hardened steel cylinder and handle
- Teasing throttle for precise control
- Open grip handle with self closing outside trigger
- Available in 2", 3", and 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4123 | |||||||
|---|---|---|---|---|---|---|---|
| Description | 4123 2H | 4123 2R | 4123 3H | 4123 3R | 4123 4H | 4123 4R | |
| Part No | 8900000105 | 8900000104 | 8900000107 | 8900000106 | 8900000109 | 8900000108 | |
| Price | $580.00
|
$580.00
|
$580.00
|
$580.00
|
$580.00
|
$580.00
|
|
| Weight | lbs | 15.4 | 15.4 | 16.5 | 16.5 | 17.6 | 17.6 |
| Length | in | 14.8 | 14.8 | 16.7 | 16.7 | 16.1 | 16.1 |
| Chuck Size | .580 Hex | .680 Round | .580 Hex | .680 Round | .580 Hex | .680 Round | |
| Air Consumption | cfm | 25.4 | 25.4 | 29.7 | 29.7 | 27.5 | 27.5 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 2 | 2 | 3 | 3 | 4 | 4 |
| Impact Rate | bpm | 2220 | 2220 | 1800 | 1800 | 1440 | 1440 |
| Retainer Type | Spring | Spring | Spring | Spring | Spring | Spring | |
| Muffler Included | No | No | No | No | No | No | |
| Handle Type | Pistol | Pistol | Pistol | Pistol | Pistol | Pistol | |
| Vibration Level 3 Axes (ISO 20643) | m/s2 | 13.2 |
13.2 |
11.4 | 11.4 | 13.9 | 13.9 |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Universal Chipping Hammer Retainer Springs - Bag of 25 | USPRG-CH-BAG | $60.00
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Standard Retainer w/ Spring | P107243 | $139.14
|
Line Oiler | LO-10PF | $81.00
|
|
| Lock Spring | P070994 | $7.51
|
Whip Check | WCSML | $12.50
|
|
| Vacuum Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
||||

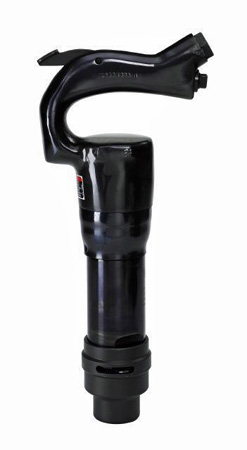

CP 4125
| CP 4125 - Pistol Grip with Outside Trigger | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 8900000111 | CP 4125 2H Hammer | .580" Hex | 2 | $665.00
|
| 8900000110 | CP 4125 2R Hammer | .680" Round | 2 | $665.00
|
| 8900000113 | CP 4125 3H Hammer | .580" Hex | 3 | $665.00
|
| 8900000112 | CP 4125 3R Hammer | .680" Round | 3 | $665.00
|
| 8900000115 | CP 4125 4H Hammer | .580" Hex | 4 | $665.00
|
| 8900000114 | CP 4125 4R Hammer | .680" Round | 4 | $665.00
|
The extra features of the CP 4125 make it more suitable for tough construction and industrial applications, including foundries, shipyards, refineries, or fabrication shops. Even in hot, dirty working conditions, the reliable CP 4125 will consistently hit hard and last longer than conventional hammers.
- Unique ring valve as standard for harder blow in tough applications or dirty environments
- Chrome plated cylinder for extra durability
- Spline locking to prevent loosening of handle or cylinder.
- Powerful, yet compact and light weight
- Rugged construction, hardened steel cylinder and handle
- Teasing throttle for precise control
- Open grip handle with self-closing outside trigger
- Available in 2", 3", and 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4125 | |||||||
|---|---|---|---|---|---|---|---|
| Description | 4125 2H | 4125 2R | 4125 3H | 4125 3R | 4125 4H | 4125 4R | |
| Part No | 8900000111 | 8900000110 | 8900000113 | 8900000112 | 8900000115 | 8900000114 | |
| Price | $665.00
|
$665.00
|
$665.00
|
$665.00
|
$665.00
|
$665.00
|
|
| Weight | lbs | 15.4 | 15.4 | 16.5 | 16.5 | 17.6 | 17.6 |
| Length | in | 15 | 15 | 16.3 | 16.3 | 17.5 | 17.5 |
| Chuck Size | in | .580 Hex | .680 Round | .580 Hex | .680 Round | .580 Hex | .680 Round |
| Air Consumption | cfm | 27.5 | 27.5 | 31.8 | 31.8 | 31.8 | 31.8 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 2 | 2 | 3 | 3 | 4 | 4 |
| Impact Rate | bpm | 1920 | 1920 | 1680 | 1680 | 1440 | 1440 |
| Retainer Type | Spring | Spring | Spring | Spring | Spring | Spring | |
| Muffler Included | No | No | No | No | No | No | |
| Handle Type | Pistol | Pistol | Pistol | Pistol | Pistol | Pistol | |
| Vibration Level 3 Axes (ISO 20643) | m/sec2 | 13.8 | 13.8 | 15.3 | 15.3 | 14.6 | 14.6 |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Universal Chipping Hammer Retainer Spring - Bag of 25 | USPRG-CH-BAG | $60.00
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Standard Retainer with Spring | P107243 | $139.14
|
Line Oiler | LO-10PF | $81.00
|
|
| Lock Spring | P070994 | $7.51
|
Whip Check | WCSML | $12.50
|
|
| Vacuum Dust Extraction Kit for Chipping Hammer | CH-VDEX-KIT | $1,371.43
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
||||

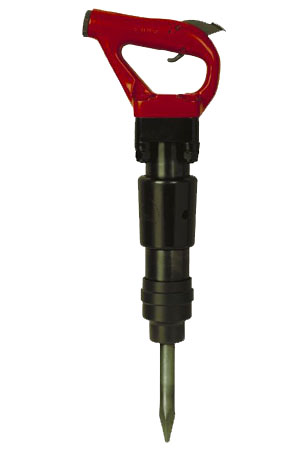

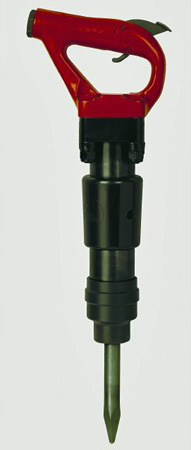

CP 4130
| CP 4130 - 4 Bolt with Standard Retainer | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 8900000117 | CP 4130 3H Hammer | .580" Hex | 3 | $605.00
|
| 8900000116 | CP 4130 3R Hammer | .680" Round | 3 | $605.00
|
| 8900000119 | CP 4130 4H Hammer | .580" Hex | 4 | $605.00
|
| 8900000118 | CP 4130 4R Hammer | .680" Round | 4 | $605.00
|
The CP 4130 hammer is designed to tackle punishing jobs with the hard hitting power that you expect from CP. It is used for medium-duty to heavy-duty chipping, cutting and trimming operations. The four-bolt handle provides higher air flow and durability.
- Locking mechanism with four high-strength 1⁄2" bolts
- "D" handle with outside trigger and extra safety mechanism
- Muffler assembly as standard
- Simplate valve for smooth operation
- Strong and reliable
- Available in 3" or 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4130 | |||||
|---|---|---|---|---|---|
| Description | 4130 3H | 4130 3R | 4130 4H | 4130 4R | |
| Part No | 8900000117 | 8900000116 | 8900000119 | 8900000118 | |
| Price | $605.00
|
$605.00
|
$605.00
|
$605.00
|
|
| Weight | lbs | 18.5 | 18.5 | 19.5 | 19.5 |
| Length | in | 16.5 | 16.5 | 17.7 | 17.7 |
| Chuck Size | in | .580 Hex | .680 Round | .580 Hex | .680 Round |
| Air Consumption | cfm | 26 | 26 | 27 | 27 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 3 | 3 | 4 | 4 |
| Impact Rate | in | 1920 | 1920 | 1440 | 1440 |
| Retainer Type | Spring | Spring | Spring | Spring | |
| Muffler Included | Yes | Yes | Yes | Yes | |
| Handle Type | D-Handle | D-Handle | D-Handle | D-Handle | |
| Vibration Level 3 Axes (ISO 20643) | m/sec2 | 9.6 | 9.6 | 12.3 | 12.3 |
| Sound Power Level Guaranteed (2000/14/EC) | dB(A) | 104 | 104 | 104 | 104 |
| Sound Pressure Level (2000/14/EC) | dB(A) | 90 | 90 | 90 | 90 |
| Parts and Accessories | ||||||
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Universal Chipping Hammer Retainer Spring - Bag of 25 | USPRG-CH-BAG | $60.00
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Standard Retainer with Spring | P107243 | $139.14
|
Line Oiler | LO-10PF | $81.00
|
|
| Lock Spring | P070994 | $7.51
|
Whip Check | WCSML | $12.50
|
|
| Vacuum Dust Extraction Kit for Chipping Hammer | CH-VDEX-KIT | $1,371.43
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
||||
CP 4132
| CP 4132 - 4-Bolt Handle, Inside Trigger, Standard Retainer | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 9245999799 | CP 4132 3H Hammer | .580" Hex | 3 | $605.00
|
| 9245999800 | CP 4132 3R Hammer | .680" Round | 3 | $605.00
|
| 9245999880 | CP 4132 4H Hammer | .580" Hex | 4 | $605.00
|
| 9245999898 | CP 4132 4R Hammer | .680" Round | 4 | $605.00
|
A durable 4-bolt chipping hammer with inside trigger and standard retainer. Available in two cylinder sizes to suit your particular application.
- Four high strength 1⁄2" bolts locking mechanism
- "D" handle with inside trigger
- Standard retainer
- Strong and reliable
- Available in 3" or 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4132 | |||||
|---|---|---|---|---|---|
| Description | 4132 3H | 4132 3R | 4132 4H | 4132 4R | |
| Part No | 9245999799 | 9245999800 | 9245999880 | 9245999898 | |
| Price | $605.00
|
$605.00
|
$605.00
|
$605.00
|
|
| Weight | lb | 15 | 15 | 15 | 15 |
| Length | in | 17 | 17 | 17 | 17 |
| Chuck Size | in | .580 Hex | .680 Round | .580 Hex | .680 Round |
| Air Consumption | cfm | 33.23 | 33.23 | 33.23 | 33.23 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 3 | 3 | 4 | 4 |
| Impact Rate | bpm | 1800 | 1800 | 1800 | 1800 |
| Retainer Type | Spring | Spring | Spring | Spring | |
| Muffler Included | No | No | No | No | |
| Handle Type | D-Handle/Inside Trigger | D-Handle/Inside Trigger | D-Handle/Inside Trigger | D-Handle/Inside Trigger | |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Retainer - Oval Collar | 9247985350 | CALL | Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Bushing - Hex | P001551 | $38.79
|
Line Oiler | LO-10PF | $81.00
|
|
| Bushing - Round | P001550 | $38.79
|
Whip Check | WCSML | $12.50
|
|
| Universal Chipping Hammer Retainer Springs - Bag of 25 | USPRG-CH-BAG | $60.00
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Vacuum Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
|
CP 4133
| CP 4133 - 4-Bolt D-Handle, Outside Trigger, Standard Retainer | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 9753219585 |
4133 3H |
.580" Hex | 3 | $605.00
|
| 9753219584 | 4133 3R | .680" Round | 3 | $605.00
|
| 9753219587 | 4133 4H | .580" Hex | 4 | $605.00
|
| 9753219586 | 4133 4R | .680" Round | 4 | $605.00
|
A durable 4-bolt chipping hammer with outside trigger and standard retainer. Available in two cylinder sizes to suit your particular application.
- Four high strength 1⁄2" bolts locking mechanism
- "D" handle with inside trigger
- Standard retainer
- Strong and reliable
- Available in 3" or 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4133 | |||||
|---|---|---|---|---|---|
| Description | 4133 3H | 4133 3R | 4133 4H | 4133 4R | |
| Part No | 9753219585 | 9753219584 | 9753219587 | 9753219586 | |
| Price | $605.00
|
$605.00
|
$605.00
|
$605.00
|
|
| Weight | lb | 15 | 15 | 15 | 15 |
| Length | in | 17 | 17 | 17 | 17 |
| Chuck Size | in | .580 Hex | .680 Round | .580 Hex | .680 Round |
| Air Consumption | cfm | 33.23 | 33.23 | 33.23 | 33.23 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 3 | 3 | 4 | 4 |
| Impact Rate | bpm | 1800 | 1800 | 1800 | 1800 |
| Retainer Type | Spring | Spring | Spring | Spring | |
| Muffler Included | Yes | Yes | Yes | Yes | |
| Handle Type | D-Handle/Outside Trigger | D-Handle/Outside Trigger | D-Handle/Outside Trigger | D-Handle/Outside Trigger | |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Complete Retainer | P107243 | $139.14
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Bushing - Hex | P001551 | $38.79
|
Line Oiler | LO-10PF | $81.00
|
|
| Bushing - Round | P001550 | $38.79
|
Whip Check | WCSML | $12.50
|
|
| Universal Chipping Hammer Retainer Springs - Bag of 25 | USPRG-CH-BAG | $60.00
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Vacuum Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
|
CP 4134
| CP 4134 - 4-Bolt D-Handle, Inside Trigger, Quick Release Retainer | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 9246020865 |
4134 3H |
.580" Hex | 3 | $665.00
|
| 9246020864 | 4134 3R | .680" Round | 3 | $665.00
|
| 9753219642 | 4134 4H | .580" Hex | 4 | $665.00
|
| 9753219641 | 4134 4R | .680" Round | 4 | $665.00
|
A durable 4-bolt chipping hammer with inside trigger and screw-on quick release retainer. Available in two cylinder sizes to suit your particular application.
- Four high strength 1⁄2" bolts locking mechanism
- "D" handle with inside trigger
- Screw on quick release retainer
- Strong and reliable
- Available in 3" or 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4133 | |||||
|---|---|---|---|---|---|
| Description | 4134 3H | 4134 3R | 4134 4H | 4134 4R | |
| Part No | 9246020865 | 9246020864 | 9753219642 | 9753219641 | |
| Price | $665.00
|
$665.00
|
$665.00
|
$665.00
|
|
| Weight | lb | 15 | 15 | 15 | 15 |
| Length | in | 17 | 17 | 17 | 17 |
| Chuck Size | in | .580 Hex | .680 Round | .580 Hex | .680 Round |
| Air Consumption | cfm | 33.23 | 33.23 | 33.23 | 33.23 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 3 | 3 | 4 | 4 |
| Impact Rate | bpm | 1800 | 1800 | 1800 | 1800 |
| Retainer Type | Screw-on Quick Release | Screw-on Quick Release | Screw-on Quick Release | Screw-on Quick Release | |
| Muffler Included | Yes | Yes | Yes | Yes | |
| Handle Type | D-Handle/Inside Trigger | D-Handle/Inside Trigger | D-Handle/Inside Trigger | D-Handle/Inside Trigger | |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
||||
| Bushing - Hex | P001551 | $38.79
|
Line Oiler | LO-10PF | $81.00
|
|
| Bushing - Round | P001550 | $38.79
|
Whip Check | WCSML | $12.50
|
|
| Universal Chipping Hammer Retainer Springs - Bag of 25 | USPRG-CH-BAG | $60.00
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Vacuum Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
|
CP 4136
| CP 4136 - 4-Bolt D-Handle, Outside Trigger, Quick Release Retainer | ||||
|---|---|---|---|---|
| Part Number | Description | Chuck (in) | Stroke (in) | Price |
| 9753227669 |
4136 3H |
.580" Hex | 3 | $665.00
|
| 9753227668 | 4136 3R | .680" Round | 3 | $665.00
|
| 9753227671 | 4136 4H | .580" Hex | 4 | $665.00
|
| 9753227670 | 4136 4R | .680" Round | 4 | $665.00
|
A durable 4-bolt chipping hammer with outside trigger and screw-on quick release retainer. Available in two cylinder sizes to suit your particular application.
- Four high strength 1⁄2" bolts locking mechanism
- "D" handle with outside trigger
- Screw on quick release retainer
- Strong and reliable
- Available in 3" or 4" cylinder stroke versions
- Choice of bushing: .680" Round chisel rotates freely; .580" Hex prevents chisel rotation
- WHIP HOSE NOT INCLUDED - Sold Separately Below
| CP 4133 | |||||
|---|---|---|---|---|---|
| Description | 4136 3H | 4136 3R | 4136 4H | 4136 4R | |
| Part No | 9753227669 | 9753227668 | 9753227671 | 9753227670 | |
| Price | $665.00
|
$665.00
|
$665.00
|
$665.00
|
|
| Weight | lb | 15 | 15 | 15 | 15 |
| Length | in | 17 | 17 | 17 | 17 |
| Chuck Size | in | .580 Hex | .680 Round | .580 Hex | .680 Round |
| Air Consumption | cfm | 33.23 | 33.23 | 33.23 | 33.23 |
| Air Inlet | in | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF | 3/8 NPTF |
| Stroke | in | 3 | 3 | 4 | 4 |
| Impact Rate | bpm | 1800 | 1800 | 1800 | 1800 |
| Retainer Type | Screw-on Quick Release | Screw-on Quick Release | Screw-on Quick Release | Screw-on Quick Release | |
| Muffler Included | Yes | Yes | Yes | Yes | |
| Handle Type | D-Handle/Outside Trigger | D-Handle/Outside Trigger | D-Handle/Outside Trigger | D-Handle/Outside Trigger | |
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| Whip Hose | 9246020363 | $122.89
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
||||
| Bushing - Hex | P001551 | $38.79
|
Line Oiler | LO-10PF | $81.00
|
|
| Bushing - Round | P001550 | $38.79
|
Whip Check | WCSML | $12.50
|
|
| Universal Chipping Hammer Retainer Springs - Bag of 25 | USPRG-CH-BAG | $60.00
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Vacuum Dust Extraction Kit for Chipping Hammers | CH-VDEX-KIT | $1,371.43
|
Hose Whip Assy w/ 1.4 oz Lubricator | TX2HW | $86.65
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip Assy w/ 3.7 oz Lubricator | TX5HW | $99.10
|
|
Choose a Tool Shank
- Round Shank - Oval Collar
- Round Shank - Round Collar
- Hex Shank - Oval Collar
- Hex Shank - Round Collar
Choose a Tool for your Hammer
Blank
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 8-1/2" | CH680-BLK-8 $13.40
|
CH680R-BLK-8 $13.40
|
CH580-BLK-8 $14.50
|
CH580R-BLK-8 $13.40
|
|
| 11-1/2" | CH680-BLK-12 CALL |
CH680R-BLK-12 CALL |
CH580-BLK-12 CALL |
CH580R-BLK-12 CALL |
|
Moil Point
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 9" | CH680-MP-9 $15.40
|
CH680R-MP-9 $15.40
|
CH580-MP-9 $15.40
|
CH580R-MP-9 $15.40
|
|
| 12" | CH680-MP-12 $18.10
|
CH680R-MP-12 $18.10
|
CH580-MP-12 $18.10
|
CH580R-MP-12 $18.10
|
|
| 18" | CH680-MP-18 $23.30
|
CH680R-MP-18 $23.30
|
CH580-MP-18 $23.30
|
CH580R-MP-18 $23.30
|
|
| 24" | CH680-MP-24 $29.60
|
CH680R-MP-24 $29.60
|
CH580-MP-24 $29.60
|
CH580R-MP-24 $29.60
|
|
| 36" | CH680-MP-36 $38.90
|
CH680R-MP-36 $38.90
|
CH580-MP-36 $38.90
|
CH580R-MP-36 $38.90
|
|
| 48" | CH680-MP-48 $51.40
|
CH680R-MP-48 $51.40
|
CH580-MP-48 $51.40
|
CH580R-MP-48 $51.40
|
|
| 60" | CH680-MP-60 $63.40
|
CH680R-MP-60 $63.40
|
CH580-MP-60 $63.40
|
CH580R-MP-60 $69.10
|
|
| 72" | CH680-MP-72 $74.00
|
CH680R-MP-72 $74.00
|
CH580-MP-72 $74.00
|
CH580R-MP-72 $74.00
|
|
Narrow Chisel
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 9" | CH680-NC-9 $15.40
|
CH680R-NC-9 $15.40
|
CH580-NC-9 $15.40
|
CH580R-NC-9 $15.40
|
|
| 12" | CH680-NC-12 $18.10
|
CH680R-NC-12 $18.10
|
CH580-NC-12 $18.10
|
CH580R-NC-12 $18.10
|
|
| 18" | CH680-NC-18 $23.30
|
CH680R-NC-18 $23.30
|
CH580-NC-18 $23.30
|
CH580R-NC-18 $23.30
|
|
| 24" | CH680-NC-24 $29.60
|
CH680R-NC-24 $29.60
|
CH580-NC-24 $29.60
|
CH580R-NC-24 $29.60
|
|
| 36" | CH680-NC-36 $38.90
|
CH680R-NC-36 $38.90
|
CH580-NC-36 $38.90
|
CH580R-NC-36 $38.90
|
|
| 48" | CH680-NC-48 $51.40
|
CH680R-NC-48 $51.40
|
CH580-NC-48 $51.40
|
CH580R-NC-48 $51.40
|
|
| 60" | CH680-NC-60 $63.40
|
CH680R-NC-60 $63.40
|
CH580-NC-60 $63.40
|
CH580R-NC-60 $63.40
|
|
| 72" | CH680-NC-72 $74.00
|
CH680R-NC-72 $74.00
|
CH580-NC-72 $74.00
|
CH580R-NC-72 $74.00
|
|
1-1/2 inch Chisel
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 9" | CH680-C38-9 $18.20
|
CH680R-C38-9 $18.20
|
CH580-C38-9 $18.20
|
CH580R-C38-9 $18.20
|
|
| 12" | CH680-C38-12 $21.20
|
CH680R-C38-12 $21.20
|
CH580-C38-12 $21.20
|
CH580R-C38-12 $21.20
|
|
| 18" | CH680-C38-18 $26.70
|
CH680R-C38-18 $26.70
|
CH580-C38-18 $26.20
|
CH580R-C38-18 $26.70
|
|
2 inch Chisel
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 9" | CH680-C51-9 $20.40
|
CH680R-C51-9 $20.40
|
CH580-C51-9 $20.40
|
CH580R-C51-9 $20.40
|
|
| 12" | CH680-C51-12 $23.50
|
CH680R-C51-12 $23.50
|
CH580-C51-12 $23.50
|
CH580R-C51-12 $23.50
|
|
| 18" | CH680-C51-18 $28.10
|
CH680R-C51-18 $28.10
|
CH580-C51-18 $28.10
|
CH580R-C51-18 $28.10
|
|
2-1/2 inch Chisel
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 9" | CH680-C64-9 $42.20
|
CH680R-C64-9 $42.20
|
CH580-C64-9 $42.20
|
CH580R-C64-9 $42.20
|
|
| 12" | CH680-C64-12 $44.90
|
CH680R-C64-12 $44.90
|
CH580-C64-12 $44.90
|
CH580R-C64-12 $44.90
|
|
| 18" | CH680-C64-18 $50.70
|
CH680R-C64-18 $50.70
|
CH580-C64-18 $50.70
|
CH580R-C64-18 $50.70
|
|
3 inch Chisel
|
|||||
| Shank | |||||
| Length | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 9" | CH680-C76-9 $49.30
|
CH680R-C76-9 $49.30
|
CH580-C76-9 $49.30
|
CH580R-C76-9 $49.30
|
|
| 12" | CH680-C76-12 $55.80
|
CH680R-C76-12 $55.80
|
CH580-C76-12 $55.80
|
CH580R-C76-12 $51.80
|
|
Bushing Tools
|
|||||
| Shank | |||||
| Type | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 1-Piece | CH680-BH-1PC $75.30
|
CH680R-BH-1PC $75.30
|
CH580-BH-1PC $75.30
|
CH580R-BH-1PC $75.30
|
|
| Carbide Inserted | CH680-BH-CARBIDE $189.60
|
CH680R-BH-CARBIDE $189.60
|
CH580-BH-CARBIDE $189.60
|
CH580R-BH-CARBIDE $189.60
|
|
4-1/2 inch Clay Spade
|
|||||
| Shank | |||||
| Type | Round Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Oval Collar | Hex Shank - Round Collar | |
| 4-1/2 In. Clay Spade | CH680-CS115 $125.20
|
CH680R-CS115 $125.20
|
CH580-CS115 $125.20
|
CH580R-CS115 $125.20
|
|
Ground Rod Driver
|
|||||
| Shank | |||||
| Type | Length | Round Shank - Oval Collar | Hex Shank - Oval Collar | Round Shank - Round Collar | Hex Shank - Round Collar |
| 5/8" Rod | 11.25" | CH680-GRD625 $104.10
|
CH580-GRD625 $104.10
|
CH680R-GRD625 $104.10
|
CH580R-GRD625 $104.10
|
| 3/4" Rod | 11.25" | CH680-GRD750 $104.10
|
CH580-GRD750 $104.10
|
CH680R-GRD750 $104.10
|
CH580R-GRD750 $104.10
|
