Chicago Pneumatic RA1 Series – Chipping Hammers

Chicago Pneumatic RA1 Series – Chipping Hammers

$973.00

Add to Cart
Chicago Pneumatic RA1 Series – Chipping Hammers
Chicago Pneumatic RA1 Series - Chipping Hammers
$973.00

Chisel Scaler

Efficient Chipping hammer to work on very small areas.

  • Lightweight and compact pistol scaler.
  • Compact and robust steel construction.
  • Equipped with safety trigger.
  • Flat nose or round 3/8″ (9,2 mm) Shank.

Take advantages of this RA1 range of compact but powerfull chipping hammers.The RA1 range is defined by 2 models RA1 with round shank and RA1BL with Flatnose shank.

Accessories

Specifications

SKU
Product Name
Vendor SKU
Chisel shank diameter (in)
Chisel shank
Vibration (m/s²)
Stroke (in)
Blow per minute (bpm)
Power Source
Energy (J)
Sound Power (dB(A))
Sound Pressure (dB(A))
Uncertainty Vibration-k (ft/s²)
Cylinder Bore
Length (in)
Tool Weight (lb)
Air Consumption At Load (cfm)
Air Inlet Thread Size (in)
Max Dynamic Air Working Pressure (psi)
Min Hose Diam (mm)
Starting System
CI-6151740180
RA1 - 3/8 in, Round
6151740180
3/8
Round
22.3
1.77
4000
Pneumatic
2.3
100
89
8.2
0.51
7.48
2.43
6.4
1/4
90
0.38
Trigger
CI-6151740190

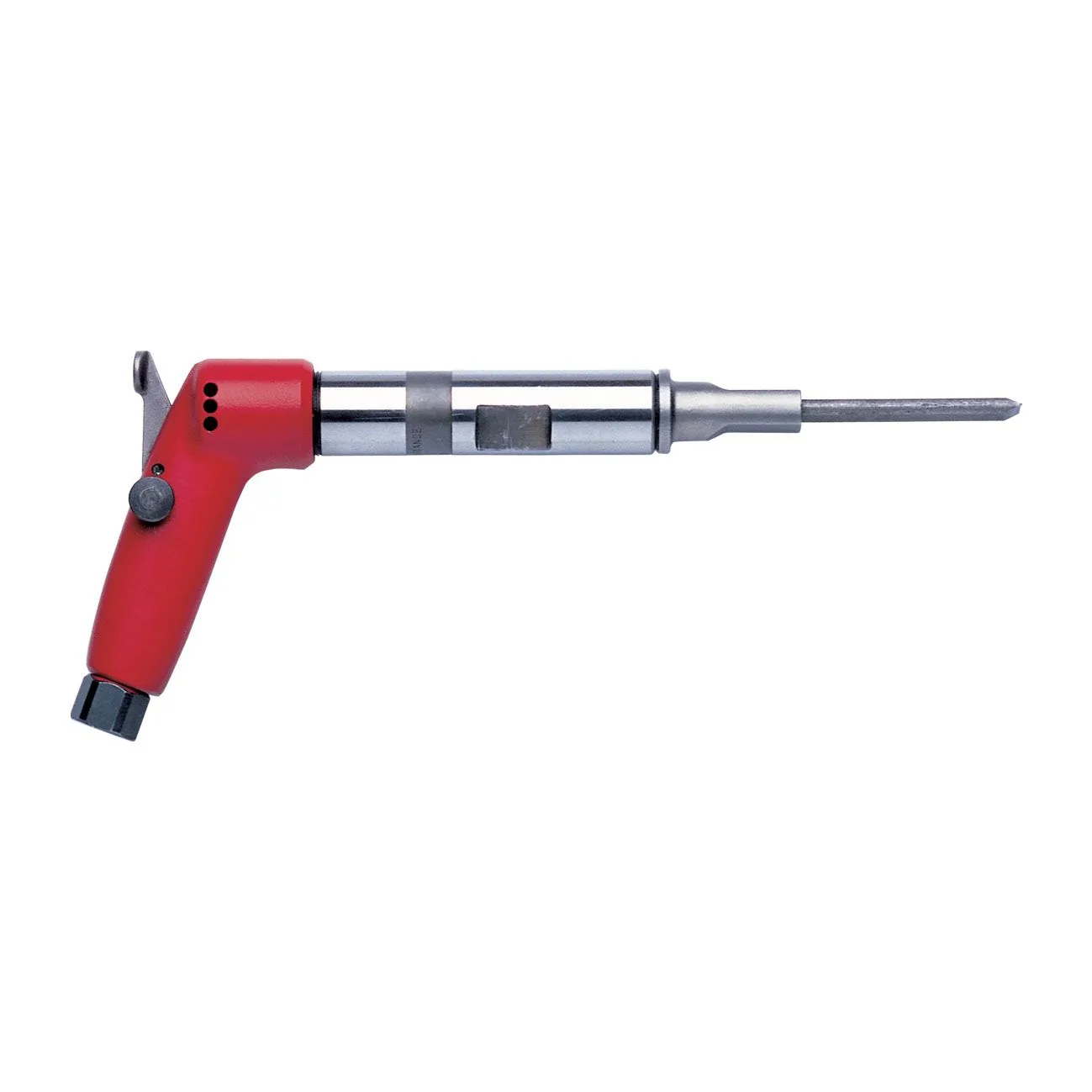

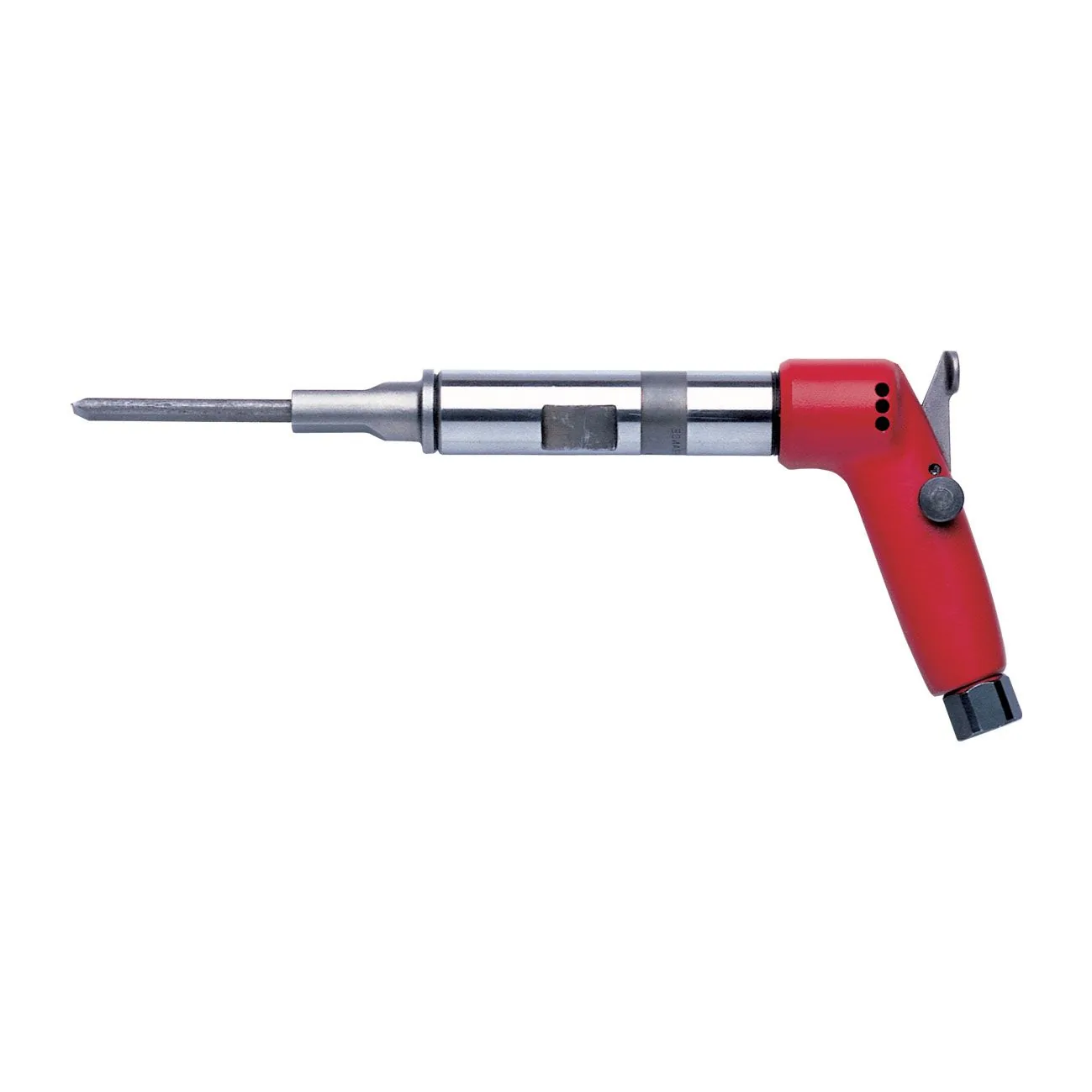

RA1BL - 3/8 in, Flatnose
6151740190
3/8
Flatnose
22.3
1.77
4000
Pneumatic
2.3
100
89
8.2
0.51
7.48
2.43
6.4
1/4
90
0.38
Trigger
