Paving Breakers by Chicago Pneumatic

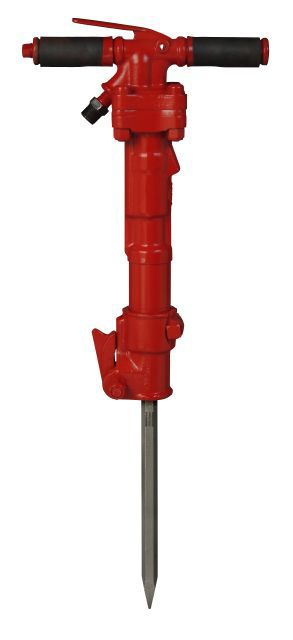

25 lb Class Paving Breaker
The 25 lb class (CP 0012) demolition tools are light-weight yet rugged. They are designed for light to medium construction and plant maintenance work such as demolition of floors, pavement, bridge maintenance, asphalt, frozen ground and masonry walls They are very popular for bridge deck jobs. The CP 0012EX has an extended handle for trench work.
FEATURES:
- Alloy steel forgings provide excellent durability
- Four-bolt back head design withstands rugged use
- Integral oilers provide continuous lubrication
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 0112 - 25 lb Class Paving Breaker | ||||
|---|---|---|---|---|
| Part No. | Description | Weight (lbs) | Chuck Size (in) | Price |
| 8900-0030-26 | CP 0112 | 30 | 7/8 x 3-1/4 | $1,280.00
|
| 8900-0030-23 | CP 0112 | 30 | 1 x 4-1⁄4 | $1,280.00
|
| 8900-0030-27 | CP 0112 EX | 35 | 7/8 x 3-1/4 | $1,430.00
|
| 8900-0030-24 | CP 0112 EX | 35 | 1 x 4-1⁄4 | $1,430.00
|
| 8900-0030-25 | CP 0112 S | 32 | 1 x -4⁄14 | $1,300.00
|
Select a row to show matching Tools for the Breaker
| CP 0112 - 25 lb Class Paving Breaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Description | Weight (lbs) | Length (in) | Air Usage (cfm) | Air Inlet (in) | Blows per Minute | Vibration Level 3 Axes ISO 20643 | Chuck Size (in) | Retainer Type | Muffler Included | VR Handles Included | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-26 | CP 0112 | 30 | 21 | 48 | 3⁄4 | 1620 | 7/8 x 3-1/4 | Latch | No | No | $1,280.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-23 | CP 0112 | 30 | 21 | 48 | 3⁄4 | 1620 | 1 x 4-1⁄4 | Latch | No | No | $1,280.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-27 | CP 0112 EX | 35 | 31.5 | 48 | 3⁄4 | 1620 | 7/8 x 3-1/4 | Latch | No | No | $1,430.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-24 | CP 0112 EX | 35 | 31.5 | 48 | 3⁄4 | 1620 | 1 x 4-1⁄4 | Latch | No | No | $1,430.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-25 | CP 0112 S | 32 | 21 | 48 | 3⁄4 | 1620 | 16.3 | 1 x -4⁄14 | Latch | Yes | No | $1,300.00
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| R092500 | Latch Retainer Kit | $932.66
|
RDO1G | Rock Drill Oil - 1 Gallon | $42.00
|
|
| F814133 | Complete Muffler | $329.09
|
RDO5G | Rock Drill Oil - 5 Gallon | $122.00
|
|
| R070111 | Back Head Bolt | $15.90
|
LO-10PF | Line Oiler | $81.00
|
|
| P006099 | Back Head Bolt Nut | $2.24
|
WCSML | Whip Check | $12.50
|
|
| AIRH-19-50R | Contractors Air Hose | $124.00
|
||||
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
TX7HW | Hose Whip Assembly w/ 3.7oz Lubricator | $99.10
|
|
| 9753300015 | Dust Control Spray Kit | $132.58
|
TX12HW | Hose Whip Assembly w/ 11oz Lubricator | $134.25
|
|
| AM8 | Air King Universal Coupling | $10.20
|
||||

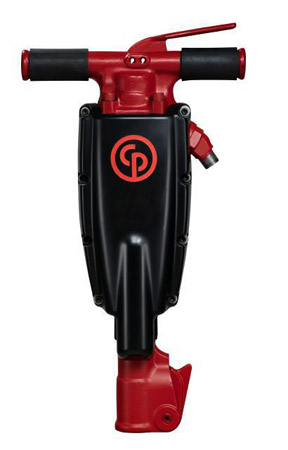

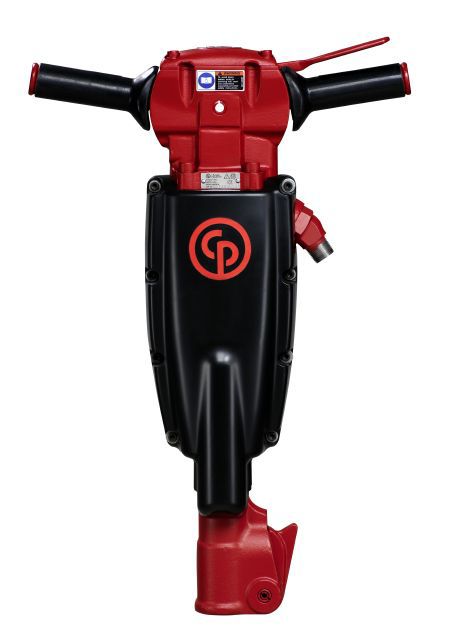

35 lb Class Paving Breaker
The 35 lb class (CP1210) demolition tools are light-weight yet rugged. They have been designed for light to medium construction and plant maintentance work, such as light demolition of floors, pavement, macadam, frozen ground and masonry walls. These tools are also very popular for bridge deck jobs.
FEATURES:
- Alloy steel forgings provide excellent durability
- Four-bolt back head design withstands rugged use
- Integral oilers provide continuous lubrication
- Heavy-duty front head springs reduce reaction back to operator
- CP 1210-S equipped with a 'Hushed Power' muffler reduces sound level
- Vibration reduced handle (VR Series) available
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 1210 - 35 lb Class Breaker | ||||
|---|---|---|---|---|
| Part No | Description | Weight (lbs) | Chuck Size (in) | Price |
| 8900-0030-01 | CP 1210 | 44 | 1 x 4-1⁄4 | $1,255.00
|
| 8900-0030-03 | CP 1210S | 48 | 1 x 4-1⁄4 | $1,365.00
|
| 8900-0030-09 | CP 1210S | 50 | 1-1⁄4 x 6 | $1,365.00
|
| 8900-0030-07 | CP 1210S | 50 | 1-1⁄8 x 6 | $1,365.00
|
| 8900-0030-05 | CP 1210SVR | 54 | 1 x 4-1⁄4 | $1,675.00
|
| 8900-0030-08 | CP 1210SVR | 56 | 1-1⁄8 x 6 | $1,675.00
|
| 8900-0030-10 | CP 1210SVR | 56 | 1-1⁄4 x 6 | $1,675.00
|
| CP 1210 - 35 lb Class Breaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No | Description | Weight (lbs) | Length (in) | Chuck Size (in) | Air Consump (cfm) | Air Inlet (in) | Blows per Min | Retainer Type | Muffler Included | VR Handles Included | Price | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-01 | CP 1210 | 44 | 21 | 1 x 4-1⁄4 | 56.15 | 3⁄4 NPTF | 1400 | Latch | No | No | $1,255.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-03 | CP 1210S | 48 | 21 | 1 x 4-1⁄4 | 56.15 | 3⁄4 NPTF | 1400 | Latch | Yes | No | $1,365.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-09 | CP 1210S | 50 | 23 | 1-1⁄4 x 6 | 56.15 | 3⁄4 NPTF | 1400 | Latch | Yes | No | $1,365.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-07 | CP 1210S | 50 | 23 | 1-1⁄8 x 6 | 56.15 | 3⁄4 NPTF | 1400 | Latch | Yes | No | $1,365.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-05 | CP 1210SVR | 54 | 24 | 1 x 4-1⁄4 | 56.15 | 3⁄4 NPTF | 1400 | Latch | Yes | Yes | $1,675.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-08 | CP 1210SVR | 56 | 26 | 1-1⁄8 x 6 | 56.15 | 3⁄4 NPTF | 1400 | Latch | Yes | Yes | $1,675.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-10 | CP 1210SVR | 56 | 26 | 1-1⁄4 x 6 | 56.15 | 3⁄4 NPTF | 1400 | Latch | Yes | Yes | $1,675.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| 3303005044 | Side Bolt Kit | $112.86
|
LO-10PF | Line Oiler | $81.00
|
|
| 3303005043 | Latch Kit | $65.24
|
WCSML | Whip Check | $12.50
|
|

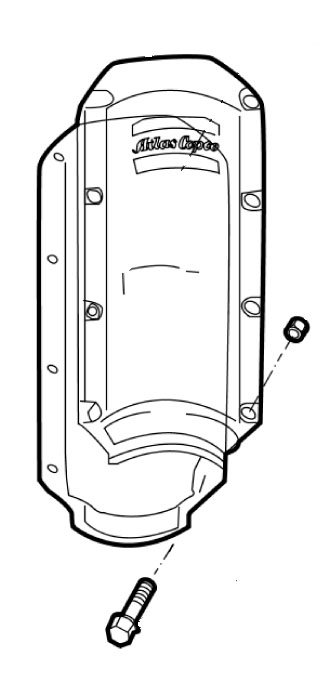

| 3303005042 | Complete Muffler | $364.26
|
AIRH-19-50R | Contractors Air Hose | $124.00
|
|
| 3303005045 | Side Bolt Kit - PU Spring for 1-1/8" & 1-1/4" Chuck | $71.33
|
TX7HW | Hose Whip Assembly w/ 3.7oz Lubricator | $99.10
|
|
| RDO1G | 1 Gallon Rock Drill Oil | $42.00
|
TX12HW | Hose Whip Assembly w/ 11oz Lubricator | $134.25
|
|
| RDO5G | 5 Gallons Rock Drill Oil | $122.00
|
AM8 | Air King Universal Coupling | $10.20
|
|
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
9753300015 | Dust Control Spray Kit | $132.58
|
|

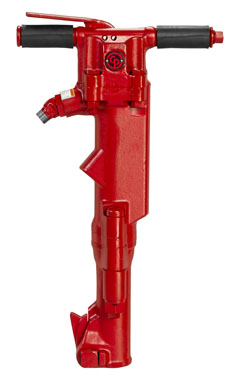

Standard Model 1260

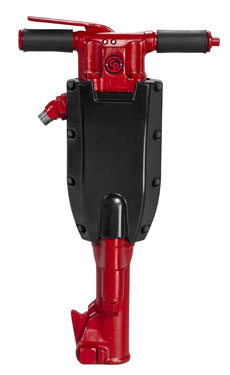

Muffled Model 1260S60 lb Class Paving Breaker

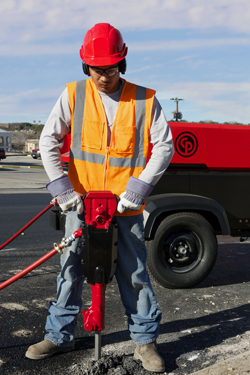

CP 1260 PAVING BREAKER
ENGINEERED FOR HIGH PERFORMANCE
Chicago Pneumatic construction tools are known for their pioneering design, high-impact technology and durability.
CHOOSE THE OPTION THAT FITS YOUR NEEDS
CP Pneumatic breakers are available in different models and sizes in order to suit a variety of applications. There is a choice of several different shanks to cater to needs in different markets. You can also choose from standard breakers, standard breakers with a muffler for noise reduction (S models) and vibration-reduced breakers with state-of-the-art vibration dampening (SVR models). All S and SVR models comply with the European Union Noise Directive 92000⁄14/ED) and are CE-marked.
- TEASING THROTTLE - Makes starting a cut easy, even under difficult conditions
- MORE COMFORTABLE HANDLES - Operator comfort and tool control are enhanced
- INTERNAL OILER - The easy-to-fill oiler keeps your tool in shape
- BUILT IN AIR INLET SWIVEL - Swiveling action also under pressure - that is when you actually need it. Swivels accept both US and International standard claw couplings with 3⁄4" thread. Claw coupling is NOT shipped with breaker
- OPERATOR FRIENDLY DESIGN - Breakers are designed with smooth, curved lines instead of sharp edges wherever possible, making them more comfortable to work with
- ADVANCED VIBRATION REDUCTION SYSTEM - Operator comfort is increased, so is productivity. Negative effects of vibrations are reduced (SVR models)
- TUNED VALVE SYSTEM - Gets more power out of your breaker and increases productivity
- BETTER VISIBILTY - The streamlined, flatter profile of the breaker gives the operator a better view of the work area, and also makes it easier for the operator to lift and re-position the tool.
- NEW DURABLE POLYURETANE FRONT HEAD SPRINGS - Extends the service life of the springs and front head bolts, reducing costs
- SEPARATE SHANK BUSHING - The shank bushing is replaceable, if the need should ever arise
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES

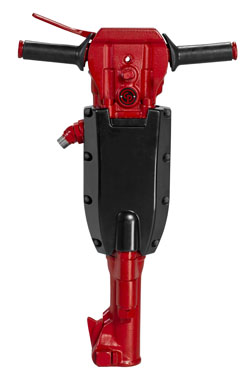

| CP 1260 - 60 lb Class Paving Breaker | ||||
|---|---|---|---|---|
| Part No | Model | Weight (lbs) | Chuck Size (in) | Price |
| 8900-0030-29 | CP 1260 | 64 | 1-1⁄8 x 6 | $1,345.00
|
| 8900-0030-28 | CP 1260 | 64 | 1-1⁄4 x 6 | $1,345.00
|
| 8900-0030-31 | CP 1260S | 68 | 1-1⁄8 x 6 | $1,455.00
|
| 8900-0030-30 | CP 1260S | 68 | 1-1⁄4 x 6 | $1,455.00
|
| 8900-0030-33 | CP 1260SVR | 74 | 1-1⁄8 x 6 | $1,760.00
|
| 8900-0030-32 | CP 1260SVR | 74 | 1-1⁄4 x 6 | $1,760.00
|
| CP 1260 - 60 lb Class Paving Breaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No | Description | Weight (lbs) | Length (in) | Chuck Size (in) | Air Consump (cfm) | Air Inlet (in) | Blows per Minute | Retainer Type | Muffler Included | VR Handles Included | Price | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-29 | CP 1260 | 64 | 26 | 1-1⁄8 x 6 | 73 | 3⁄4 NPTF | 1300 | Latch | No | No | $1,345.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-28 | CP 1260 | 64 | 26 | 1-1⁄4 x 6 | 73 | 3⁄4 NPTF | 1300 | Latch | No | No | $1,345.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-31 | CP 1260S | 68 | 26 | 1-1⁄8 x 6 | 73 | 3⁄4 NPTF | 1300 | Latch | Yes | No | $1,455.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-30 | CP 1260S | 68 | 26 | 1-1⁄4 x 6 | 73 | 3⁄4 NPTF | 1300 | Latch | Yes | No | $1,455.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-33 | CP 1260SVR | 74 | 28 | 1-1⁄8 x 6 | 73 | 3⁄4 NPTF | 1300 | Latch | Yes | Yes | $1,760.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-32 | CP 1260SVR | 74 | 28 | 1-1⁄4 x 6 | 73 | 3⁄4 NPTF | 1300 | Latch | Yes | Yes | $1,760.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts and Accessories | ||||||
|---|---|---|---|---|---|---|
| 3303005388 | Complete Latch Kit | $122.18
|
RDO1G | Rock Drill Oil - 1 Gal | $42.00
|
|
| 3303005385 | Side Bolt Kit | $62.68
|
RDO5G | Rock Drill Oil - 5 Gal | $122.00
|
|
| R047970 | Front Head Bolt | $32.14
|
LO-10PF | Line Oiler | $81.00
|
|
| 3303005386 | Complete Muffler | $384.13
|
WCSML | Whip Check | $12.50
|
|
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
AIRH-19-50R | Contractors Air Hose | $124.00
|
|
| 9753300015 | Dust Control Spray Kit | $132.58
|
TX7HW | Hose Whip Assembly w/ 3.7 oz Lubricator | $99.10
|
|
| AM8 | Air King Universal Coupling | $10.20
|
TX12HW | Hose Whip Assembly w/ 11 oz Lubricator | $134.25
|
|

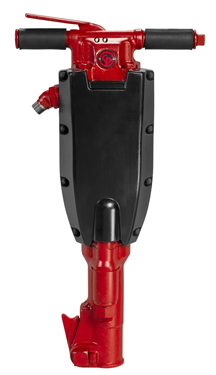

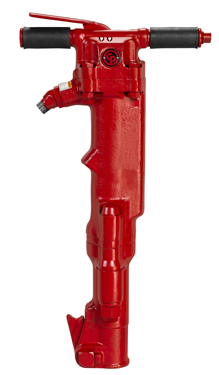

Model 1290S

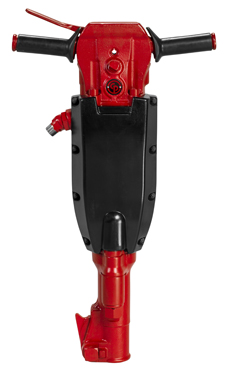

Model 1290SVR90 lb Class Paving Breaker
CP 1290 PAVING BREAKER
ENGINEERED FOR HIGH PERFORMANCE
Chicago Pneumatic construction tools are known for their pioneering design, high-impact technology and durability.
CHOOSE THE OPTION THAT FITS YOUR NEEDS
CP Pneumatic breakers are available in different models and sizes in order to suit a variety of applications. There is a choice of several different shanks to cater to needs in different markets. You can also choose from standard breakers, standard breakers with a muffler for noise reduction (S models) and vibration-reduced breakers with state-of-the-art vibration dampening (SVR models). All S and SVR models comply with the European Union Noise Directive 92000⁄14/ED) and are CE-marked.
- TEASING THROTTLE - Makes starting a cut easy, even under difficult conditions
- MORE COMFORTABLE HANDLES - Operator comfort and tool control are enhanced
- INTERNAL OILER - The easy-to-fill oiler keeps your tool in shape
- BUILT IN AIR INLET SWIVEL - Swiveling action also under pressure - that is when you actually need it. Swivels accept both US and International standard claw couplings with 3⁄4" thread. Claw coupling is NOT shipped with breaker
- OPERATOR FRIENDLY DESIGN - Breakers are designed with smooth, curved lines instead of sharp edges wherever possible, making them more comfortable to work with
- ADVANCED VIBRATION REDUCTION SYSTEM - Operator comfort is increased, so is productivity. Negative effects of vibrations are reduced (SVR models)
- TUNED VALVE SYSTEM - Gets more power out of your breaker and increases productivity
- BETTER VISIBILTY - The streamlined, flatter profile of the breaker gives the operator a better view of the work area, and also makes it easier for the operator to lift and re-position the tool.
- NEW DURABLE POLYURETANE FRONT HEAD SPRINGS - Extend the service life of the springs and front head bolts, reducing costs
- SEPARATE SHANK BUSHING - The shank bushing is replaceable, if the need should ever arise
** FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 1290 - 90 lb Class Paving Breaker | ||||
|---|---|---|---|---|
| Part No | Description | Weight (lbs) | Chuck Size (in) | Price |
| 8900-0030-38 | CP 1290 | 83 | 1-1⁄8 x 6 | $1,430.00
|
| 8900-0030-37 | CP 1290 | 83 | 1-1⁄4 x 6 | $1,430.00
|
| 8900-0030-40 | CP 1290S | 86 | 1-1⁄8 x 6 | $1,540.00
|
| 8900-0030-39 | CP 1290S | 86 | 1-1⁄4 x 6 | $1,540.00
|
| 8900-0030-42 | CP 1290SVR | 95 | 1-1⁄8 x 6 | $1,870.00
|
| 8900-0030-41 | CP 1290SVR | 95 | 1-1⁄4 x 6 | $1,870.00
|
| CP 1290 - 90 lb Class Paving Breaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No | Description | Weight (lbs) | Length (in) | Chuck Size (in) | Air Consump (cfm) | Air Inlet (in) | Blows per Minute | Retainer Type | Muffler Included | VR Handles Included | Price | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-38 | CP 1290 | 83 | 29 | 1-1⁄8 x 6 | 85 | 3⁄4 NPTF | 1150 | Latch | No | No | $1,430.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-37 | CP 1290 | 83 | 29 | 1-1⁄4 x 6 | 85 | 3⁄4 NPTF | 1150 | Latch | No | No | $1,430.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-40 | CP 1290S | 86 | 29 | 1-1⁄8 x 6 | 85 | 3⁄4 NPTF | 1150 | Latch | Yes | No | $1,540.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-39 | CP 1290S | 86 | 29 | 1-1⁄4 x 6 | 85 | 3⁄4 NPTF | 1150 | Latch | Yes | No | $1,540.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-42 | CP 1290SVR | 95 | 31 | 1-1⁄8 x 6 | 85 | 3⁄4 NPTF | 1150 | Latch | Yes | Yes | $1,870.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8900-0030-41 | CP 1290SVR | 95 | 31 | 1-1⁄4 x 6 | 85 | 3⁄4 NPTF | 1150 | Latch | Yes | Yes | $1,870.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts & Accessories | ||||||
|---|---|---|---|---|---|---|
| 3303005388 | Complete Latch Kit | $122.18
|
RDO1G | Rock Drill Oil - 1 Gal | $42.00
|
|
| 3303005377 | Complete Muffler | $330.82
|
RDO5G | Rock Drill Oil - 5 Gal | $122.00
|
|
| F037790 | Front Head Bolt | $42.76
|
LO-10PF | Line Oiler | $81.00
|
|
| 3303005374 | Side Bolt Kit | $121.04
|
WCSML | Whip Check | $12.50
|
|
| PB-RD-VDEX-KIT | Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | $1,545.00
|
AIRH-19-50R | Contractors Air Hose - 50' | $124.00
|
|
| 9753300015 | Dust Control Spray Kit | $132.58
|
TX7HW | Hose Whip Assembly w/ 3.7 oz Lubricator | $99.10
|
|
| AM8 | Air King Universal Coupling | $10.20
|
TX12HW | Hose Whip Assembly w/ 11 oz Lubricator | $134.25
|
|

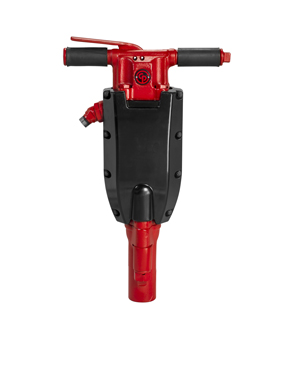

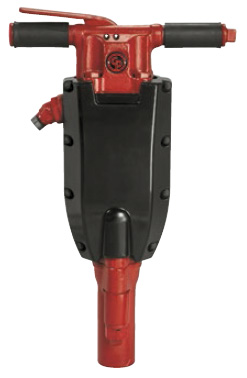

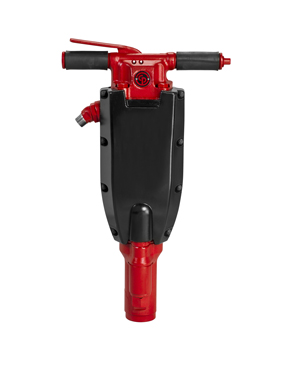

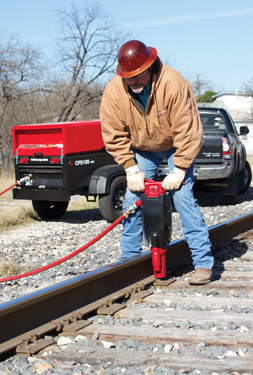

Spike Drivers - CP 1260 and 1290
Chicago Pneumatic spike drivers are rugged, powerful tools which can be used for driving spikes in railroad, construction and plant maintenance applications. These products feature the same qualities as the CP 1260 and CP 1290 breakers except that the front heads are equipped for spike driving.
| CP 1260S / CP 1290S - Spike Drivers | |||
|---|---|---|---|
| Part No | Description | Weight (lb) | Price |
| 8900-0030-34 | CP 1260S SPDR | 65 | $1,960.00
|
| 8900-0030-43 | CP 1290S SPDR | 84 | $2,135.00
|
FEATURES:
- Alloy steel forgings - excellent durability
- Four-bolt back head - for rugged use
- Integal oiler- provides continuous lubrication
- Heavy-duty front head springs - reduce reaction back to operator
- Reversible piston - lower maintenance costs
- Air inlet swivel - for easy handling
- "Hushed Power" versions - CP S-version spike divers are equipped with mufflers
- Maximum spike head diameter - 1-3⁄4"
- Improved modern design for excellent durability
- No vibration reduced handles are available
**FREE GROUND SHIPPING WITHIN CONTINENTAL UNITED STATES
| CP 1260S / CP 1290S - Spike Drivers | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No | Description | Weight (lb) | Length (in) | Blows per Minute | Air Consumption (cfm) | Air Inlet (in) | Max Head Diameter (in) | Muffler Included | Price | ||
| 8900-0030-34 | CP 1260S SPDR | 65 | 24.7 | 1300 | 73 | 3⁄4" NPTF | 1-3⁄4 | Yes | $1,960.00
|
||
| 8900-0030-43 | CP 1290S SPDR | 84 | 26 | 1100 | 91 | 3⁄4" NPTF | 1-3⁄4 | Yes | $2,135.00
|
||
| 3303005385 | Side Bolt Kit for CP 1260S Spike Driver | $62.68
|
RDO1G | Rock Drill Oil - 1 Gallon | $42.00
|
|
| 3303005374 | Side Bolt Kit for CP 1290S Spike Driver | $121.04
|
RDO5G | Rock Drill Oil - 5 Gallons | $122.00
|
|
| 3303005386 | Complete Muffler for CP 1260S Spike Driver | $384.13
|
LO-10PF | Line Oiler | $81.00
|
|
| 3303005377 | Complete Muffler for CP 1290S Spike Driver | $330.82
|
WCSML | Whip Check | $12.50
|
|
| K3206448 | CP 1240 SPDR Complete Muffler | $821.94
|
AIRH-19-50R | Contractors Air Hose | $124.00
|
|

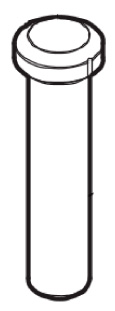

| R085573 | 6" Driving Block for CP 1260S Spike Driver | $215.96
|
TX7HW | Hose Whip Assembly w/ 3.7 oz Lubricator | $99.10
|
|
| R085573M | 5.81" Driving Block for CP 1260S Spike Driver | $74.36
|
TX12HW | Hose Whip Assembly w/ 7 oz Lubricator | $134.25
|
|
| R043649 | Driving Block for CP 1290S Spike Driver | $215.96
|
AM8 | Air King Universal Coupling | $10.20
|
|
Chicago Pneumatic will not accept returns of line items of $90.00 or less
Choose Tool Shank Size
Choose a Tool for your Breaker
Moil Point |
|||||||
|---|---|---|---|---|---|---|---|
| Length | Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||
| 14" | PB77-MP-14 $26.60
|
PB78-MP-14 $26.80
|
PB88-MP-14 $28.30
|
PB98-MP-14 $32.00
|
PB108-MP-14 $36.90
|
||
| 18" | PB77-MP-18 $29.50
|
PB78-MP-18 $29.50
|
PB88-MP-18 $32.40
|
PB98-MP-18 $35.90
|
PB108-MP-18 $40.70
|
||
| 24" | PB77-MP-24 $38.30
|
PB78-MP-24 $38.30
|
PB88-MP-24 $37.30
|
PB98-MP-24 $40.70
|
PB108-MP-24 $46.20
|
||
| 36" | PB77-MP-36 $53.90
|
PB78-MP-36 $53.90
|
PB88-MP-36 $52.30
|
PB98-MP-36 $63.90
|
PB108-MP-36 $76.90
|
||
| 48" | PB77-MP-48 $60.44
|
PB78-MP-48 $70.10
|
PB88-MP-48 $72.60
|
PB98-MP-48 $86.70
|
PB108-MP-48 $111.30
|
||
| 60" | PB77-MP-60 $75.55
|
PB78-MP-60 $85.21
|
PB88-MP-60 $91.30
|
PB98-MP-60 $110.80
|
PB108-MP-60 $143.90
|
||
| 72" | PB77-MP-72 $90.66
|
PB78-MP-72 $102.40
|
PB88-MP-72 $109.60
|
PB98-MP-72 $135.70
|
PB108-MP-72 $178.80
|
||
| 96" | PB77-MP-96 $120.88
|
PB78-MP-96 $132.62
|
PB88-MP-96 $145.30
|
PB98-MP-96 $188.10
|
PB108-MP-96 $242.90
|
||
Narrow Chisel |
|||||||
|---|---|---|---|---|---|---|---|
| Length | Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||
| 14" | PB77-NC-14 $26.60
|
PB78-NC-14 $26.80
|
PB88-NC-14 $28.30
|
PB98-NC-14 $32.00
|
PB108-NC-14 $36.90
|
||
| 18" | PB77-NC-18 $29.50
|
PB78-NC-18 $29.50
|
PB88-NC-18 $32.40
|
PB98-NC-18 $35.90
|
PB108-NC-18 $40.70
|
||
| 24" | PB77-NC-24 $38.30
|
PB78-NC-24 $38.30
|
PB88-NC-24 $37.30
|
PB98-NC-24 $40.70
|
PB108-NC-24 $46.20
|
||
| 36" | PB77-NC-36 $53.90
|
PB78-NC-36 $53.90
|
PB88-NC-36 $52.30
|
PB98-NC-36 $63.90
|
PB108-NC-36 $76.90
|
||
| 48" | PB77-NC-48 $60.44
|
PB78-NC-48 $70.10
|
PB88-NC-48 $72.60
|
PB98-NC-48 $86.70
|
PB108-NC-48 $111.30
|
||
| 60" | PB77-NC-60 $75.55
|
PB78-NC-60 $86.20
|
PB88-NC-60 $91.30
|
PB98-NC-60 $110.80
|
PB108-NC-60 $143.90
|
||
| 72" | PB77-NC-72 $90.66
|
PB78-NC-72 $102.40
|
PB88-NC-72 $109.60
|
PB98-NC-72 $135.70
|
PB108-NC-72 $178.80
|
||
| 96" | PB77-NC-96 $120.88
|
PB78-NC-96 $134.60
|
PB88-NC-96 $145.30
|
PB98-NC-96 $188.10
|
PB108-NC-96 $242.90
|
||
3" Chisel |
|||||||
|---|---|---|---|---|---|---|---|
| Length | Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||
| 14" | PB77-3C-14 $36.90
|
PB78-3C-14 $37.30
|
PB88-3C-14 $37.60
|
PB98-3C-14 $41.90
|
PB108-3C-14 $46.20
|
||
| 18" | PB77-3C-18 $40.80
|
PB78-3C-18 $40.80
|
PB88-3C-18 $42.70
|
PB98-3C-18 $45.30
|
PB108-3C-18 $51.50
|
||
| 24" | PB77-3C-24 $56.10
|
PB78-3C-24 $56.10
|
PB88-3C-24 $51.80
|
PB98-3C-24 $56.40
|
PB108-3C-24 $49.50
|
||
| 36" | PB77-3C-36 $83.00
|
PB78-3C-36 $83.00
|
PB88-3C-36 $79.70
|
PB98-3C-36 $89.00
|
PB108-3C-36 $101.00
|
||
| 48" | PB77-3C-48 $105.12
|
PB78-3C-48 $111.00
|
PB88-3C-48 $114.60
|
PB98-3C-48 $126.70
|
PB108-3C-48 $147.20
|
||
| 60" | PB77-3C-60 $131.40
|
PB78-3C-60 $139.00
|
PB88-3C-60 $150.80
|
PB98-3C-60 $164.40
|
PB108-3C-60 $192.20
|
||
| 72" | PB77-3C-72 $157.68
|
PB78-3C-72 $166.90
|
PB88-3C-72 $182.00
|
PB98-3C-72 $205.10
|
PB108-3C-72 $239.00
|
||
| 96" | PB77-3C-96 $210.24
|
PB78-3C-96 $203.50
|
PB88-3C-96 $252.40
|
PB98-3C-96 $278.90
|
PB108-3C-96 $320.60
|
||
Tools |
||||||
|---|---|---|---|---|---|---|
| Tool Name | Shank Size | |||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
Asphalt Cutter |
PB77-AC $95.30
|
PB78-AC $95.30
|
PB88-AC $95.30
|
PB98-AC $95.40
|
PB108-AC $97.80
|
|
Brushing Tool |
PB77-BH $121.50
|
PB78-BH QUOTE |
PB88-BH $108.80
|
PB98-BH $113.30
|
PB108-BH $116.20
|
|
Digging Chisel |
PB77-DC $106.10
|
PB78-DC QUOTE |
PB88-DC $106.10
|
PB98-DC $110.80
|
PB108-DC $114.60
|
|
Railroad Spike Driver |
PB77-SPIKE $125.40
|
PB88-SPIKE $125.40
|
PB98-SPIKE $125.40
|
PB108-SPIKE $125.40
|
||
Asphalt Wedge |
PB88-AW $93.40
|
PB98-AW $94.90
|
PB108-AW $103.70
|
|||
Frost Wedge |
PB88-FW $115.90
|
PB98-FW $115.90
|
PB108-FW $115.90
|
|||
Concrete Breaker |
PB88-CB $122.00
|
PB98-CB $124.00
|
PB108-CB $132.90
|
|||
Tarmac Cutter (10-1⁄2" under collar) |
PB98-TC $92.60
|
PB108-TC $94.00
|
||||
Clay Spade |
||||||
|---|---|---|---|---|---|---|
| Length | Shank Size | |||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 4-1⁄2" | PB77-CS-45 $120.50
|
PB88-CS-45 $120.50
|
PB98-CS-45 $127.90
|
PB108-CS-45 $134.40
|
||
| 5-1⁄2" | PB77-CS-55 $120.50
|
PB78-CS-55 $120.50
|
PB88-CS-55 $120.50
|
PB98-CS-55 $127.90
|
PB108-CS-55 $134.40
|
|
| 8" | PB98-CS-80 $357.30
|
PB108-CS-80 $357.30
|
||||
Pin Driver |
||||||
|---|---|---|---|---|---|---|
| Pin Size | Shank Size | |||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 5⁄8" | PB88-PD625 $105.40
|
PB98-PD625 $110.90
|
PB108-PD625 $115.00
|
|||
| 3⁄4" | PB88-PD750 $105.40
|
PB98-PD750 $110.90
|
PB108-PD750 $115.00
|
|||
| 7⁄8" | PB88-PD875 $105.40
|
PB98-PD875 $110.90
|
PB108-PD875 $115.00
|
|||
| 1" | PB88-PD100 $105.40
|
PB98-PD100 $110.90
|
PB108-PD100 $115.00
|
|||
| 1-1⁄4" | PB88-PD125 $177.00
|
PB98-PD125 $177.00
|
PB108-PD125 $177.00
|
|||
| 1-1⁄2" | PB88-PD150 $177.00
|
PB98-PD150 $177.00
|
PB108-PD150 $177.00
|
|||
| 1-3⁄4" | PB88-PD175 $177.00
|
PB98-PD175 $177.00
|
PB108-PD175 $177.00
|
|||
| 2" | PB88-PD200 $177.00
|
PB98-PD200 $177.00
|
PB108-PD200 $177.00
|
|||
| 2-1⁄2" | PB88-PD250 $264.60
|
PB98-PD250 $264.90
|
PB108-PD250 $264.90
|
|||
Ground Rod Driver |
||||||
|---|---|---|---|---|---|---|
| Rod Size | Socket Size | Shank Size | ||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 5⁄8" | 11⁄16" | PB77-GR-625 $92.60
|
PB88-GR-625 $92.60
|
PB98-GR-625 $95.40
|
PB108-GR-625 $105.30
|
|
| 3⁄4" | 13⁄16" | PB77-GR-750 $92.60
|
PB88-GR-750 $92.60
|
PB98-GR-750 $95.40
|
PB108-GR-750 $105.30
|
|
| 7⁄8" | 15⁄16" | PB88-GR-875 $104.80
|
PB98-GR-875 $110.00
|
PB108-GR-875 $117.80
|
||
| 1" | 1-1⁄16" | PB88-GR-100 $114.00
|
PB98-GR-100 $120.20
|
PB108-GR-100 $130.20
|
||
Plug and Feathers |
||||||
|---|---|---|---|---|---|---|
| Hole Size | Part | Shank Size | ||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| 1-1⁄2" | Shank | PB98-SHK-150 $120.20
|
PB108-SHK-150 $122.00
|
|||
| 1-1⁄2" | Feathers | PB-FTH-150 $31.90
|
PB-FTH-150 $31.90
|
|||
| 2" | Shank | PB98-SHK-200 $120.20
|
PB108-SHK-200 $122.00
|
|||
| 2" | Feathers | PB-FTH-200 $34.50
|
PB-FTH-200 $34.50
|
|||
U-Channel and Pipe Drivers |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part | Shank Size | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Shank only | PD78-PIPE $108.00
|
PD88-PIPE $108.00
|
PD98-PIPE $108.00
|
PD108-PIPE $108.00
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cup only 2-5⁄8" ID |
PD-PIPE-CUP $134.00
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detachable Shank |
||||||
|---|---|---|---|---|---|---|
| Shank Size | ||||||
| 7⁄8" x 3-1⁄4" | 7⁄8" x 4-1⁄4" | 1" x 4-1⁄4" | 1-1⁄8" x 6" | 1-1⁄4" x 6" | ||
| PB77-DS $72.80
|
PB78-DS $75.30
|
PB88-DS $72.80
|
PB98-DS $72.80
|
PB108-DS $72.80
|
||
ROUND PIPE DRIVERS(for large taper shank) |
||
|---|---|---|
| Pad Size | Type | Part No |
| 1-1⁄4" | Cup | PD-LT-32CUP $115.00
|
| 1-1⁄2" | Cup | PD-LT-38CUP $115.00
|
| 2" | Pin | PD-LT-51PIN $121.00
|
| 2" | Cup | PD-LT-51CUP $115.00
|
| 2-1⁄2" | Pin | PD-LT-64PIN $121.00
|
| 2-1⁄2" | Cup | PD-LT-64CUP $121.00
|
| 3" | Pin | PD-LT-76PIN $122.00
|
| 3" | Cup | PD-LT-76CUP $134.00
|
| 4" | Cup | PD-LT-102CUP $268.00
|
SQUARE POST DRIVERSUse with Detachable Shank |
||
|---|---|---|
| Size | Type | Part No |
| 1 1⁄2" | Small Taper | PD-ST-38SQ CALL |
| 1 1⁄2" | Large Taper | PD-LT-38SQ $128.00
|
| 1 3⁄4" | Small Taper | PD-ST-45SQ CALL |
| 1 3⁄4" | Large Taper | PD-LT-45SQ $128.00
|
| 2" | Small Taper |
PD-ST-51SQ |
| 2" | Large Taper | PD-LT-51SQ $128.00
|
| 2 1⁄4" | Large Taper | PD-LT-57SQ $185.00
|
| 2 1⁄2" | Large Taper | PD-LT-64SQ $185.00
|
TAMPING PADS |
||
|---|---|---|
| Pad Size | Type | Part No |
| 6" | Round | PB-TAMP-LT-6RD $127.00
|
| 6" | Square | PB-TAMP-LT-6SQ $125.50
|
| 7 " | Round | PB-TAMP-LT-7RD $125.50
|
| 8" | Square | PB-TAMP-LT-8SQ $149.00
|
| 2" | PB-SHOE-2 $287.30
|
|
| 3" | PB-SHOE-3 $288.20
|
|
