Chicago Pneumatic
Authorized Distributor

Breakers

Hard-Hitting Power to Get More Done

Looking for flexibility or just raw power? CP hydraulic breakers give you both the range includes flexible, lightweight models up to super heavy-duty models hitting as hard as a small rig-mounted breaker with a high impact rate for increased productivity. CP breakers feature a slim design, quick release couplings, and a well-balanced design with no protruding parts to get in the way.

Hoses, power packs, and tools are fitted with flat face EHTMA quick-release couplings for fast, easy connections. Couplings are designed to help keep hydraulic systems free of dust and dirt. Male and female couplings are mounted according to EHTMA standards, preventing connection mistakes and ensuring that the oil flow direction is always correct when the tools are connected to PACs or OFDs.

Vibration Reduced Models (VR)

Vibro-reduced models offer the same breaking performance as standard models with added vibration reduction and operator comfort for higher productivity. They feature four dampening springs, a central pivot pin, long solid steel handles, and extra long 1.6m flexible tail hoses.

High Back Pressure Models (HBP)

High back pressure models are designed for the higher hydraulic return pressure found on most skid steers as well as when using extra long hoses. HBP breakers can be operated from the PTO outloet of most skid steers. They also work perfectly with standard power packs to deliver flexibility and optimal equipment utilization.

"Can I Run Your Hydraulic Tools on My Power Source?"



brk 55 in use

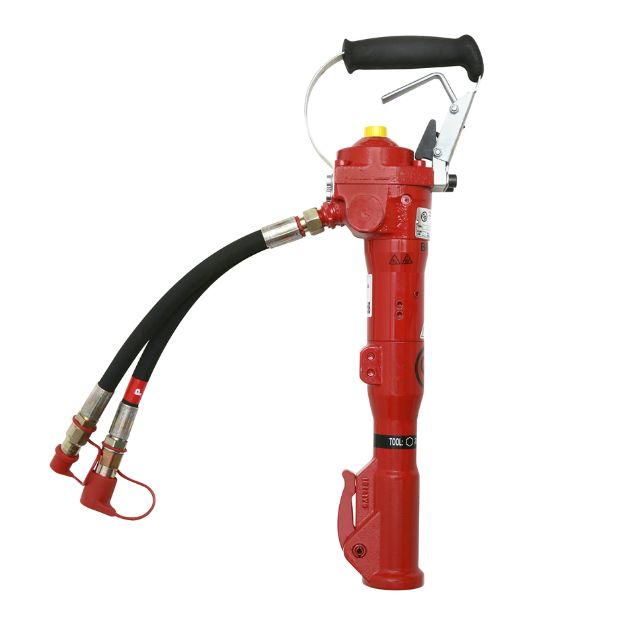

BRK 25 D

A powerful pick hammer designed for horizontal work in renovation, demolition, and structural alterations.

  • High Impact Power
  • 2,300 blows/min
  • Standard D-handle
  • Optional detachable front handle with 360 degree pivot
7⁄8" x 3-1⁄4" Chuck   1801174612
Price   $2,032.00
Weight (inc. hoses)  lbs 34
Length in 25.5
Oil Flow  gpm 5
Working Pressure  psi 1,160-1,450
Max Back Pressure  psi 145
Impact Rate  bpm 2,300
Vibration Level 3 Axes* (ISO 28927-10) m/ss 16.5
Sound Power Level Guaranteed* (2000/14/EC) Lw  dB(A) 105
Sound Pressure Level* (ISO 11203) (Lp, r=1m)  dB(A) 92
EHTMA Class   C

* BRK 25 D measured at 20l/min.

brk 25 d

Safety and Operating Instructions

BRK Safety and Operating Instructions

Parts Breakdowns

BRK 25D

OFD 5 Oil Flow Divider 1801163319 $1,325.45 Seal Kit 3371814057 $127.57

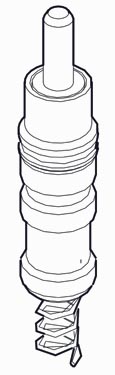

OFD 8 Oil Flow Divider 1801164318 $2,312.48 Trigger Valve Kit 3371814058 $280.85
Twin Extension Hose with Coupling - 23' AC-3371801087 $1,105.41 Accumulator Kit 3371814051 $485.26
Twin Extension Hose with Coupling - 39' AC-3371801089 $1,399.54 Label Kit 3371821091 $26.65

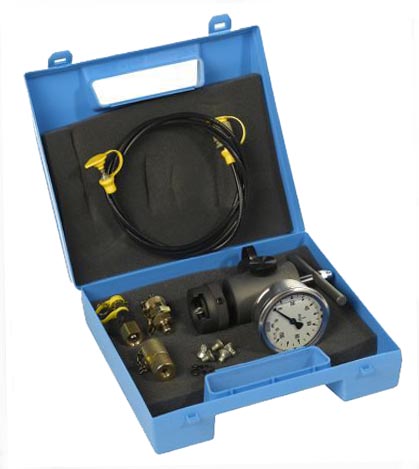

Hydraulic Oil - 4 L 3371807777 $84.55 Filling Device Kit 3371801155 $4,459.03
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-KIT QUOTE Dust Control Spray Kit 9753300015 $157.15

Hydraulic Power Pac Information

BRK 40

A lightweight, multipurpose breaker for indoor and outdoor renovation and demolition work on brickwork, soil, asphalt, and concrete. Used by Railroad companies for tie tamping applications. Also a favorite of contractors and rental companies.

  • Good impact energy with high frequency at a low weight compared with comparable models
  • effective for tamping and compaction
Part No   1801344719 1801344720 1801344721
Price   $2,467.00 $1,400.00 $2,467.00 $2,467.00

Chuck Size in 1 x 4¼ 11/8 x 6 1¼ x 6
Weight (inc. hoses) lbs 55 55 55
Length  in 25.5 25.5 25.5
Oil Flow  gpm 5 5 5
Working Pressure  psi 1375-1595 1375-1595 1375-1595
Max Back Pressure  psi 145 145 145
Impact Rate  bpm 1400 1400 1400
Vibration Level 3 Axes* (ISO 28927-10)  m/s2 5 5 5
Sound Power Level Guaranteed* (2000/14/EC) Lw  dB(A) 106 106 106
Sound Pressure Level* (ISO 11203) (Lp, r=1m)  dB(A) 93 93 93
EHTMA Class   C C C

* BRK 40 measured at 20l/min.

brk 40 vr

Safety and Operating Instructions

BRK Safety and Operating Instructions

Parts Breakdowns

BRK 40, 40VR



OFD 5 Oil Flow Divider 1801163319 $1,325.45 Seal Kit 3371814021 $160.09
OFD 8 Oil Flow Divider 1801164318 $2,312.48 Trigger ValveKit 3371814058 $280.85
Twin Extension Hose - 23' AC-3371801087 $1,105.41 Accumulator Kit 3371814051 $485.26
Twin Extension Hose - 39' AC-3371801089 $1,399.54 Label Kit 3371821092 $78.50
Hydraulic Oil - 4L 3371807777 $84.55 Filling Device Kit 3371801155 $4,459.03
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-KIT QUOTE Dust Control Spray Kit 9753300015 $157.15

Hydraulic Power Pac Information

BRK 55

A medium weight, multipurpose breaker ideal for road building and maintenance applications, whether on asphalt, brickwork, frozen soil, or concrete.

  • A favorite of rental companies
  • Reliable performance, especially when using the wide asphalt chisel on medium to hard asphalt
  • Can be used with both 30 l/min and 20 l/min power packs
Part no   1801354723 1801354724 1801800003
Price   $2,637.00 $2,637.00 $2,637.00

Chuck Size in 1 x 4¼ 1¼ x 6 11/8 x 6
Weight (inc. hoses)  lbs 62 62 62
Length in 27 27 27
Oil Flow  gpm 5-8 5-8 5-8
Working Pressure psi 1670-1885 1670-1885 1670-1885
Max Back Pressure  psi 510 510 510
Impact Rate bpm 1500-2100 1500-2100 1500-2100
Vibration Level 3 Axes* (ISO 28927-10) (m/s2) m/s2 4.9 4.9 4.9
Sound Power Level Guaranteed* (2000/14/EC) Lw) dB(A) 107 107 107
Sound Pressure Level* (ISO 11203) (Lp, r=1m)) dB(A) 95 95 95
EHTMA Class   C/D C/D C/D

* BRK 55 measured at 20l/min.

brk 55

Safety and Operating Instructions

BRK Safety and Operating Instructions

Parts Breakdowns

BRK 55, 55VR, 55VR HBP, 55HBP

OFD 5 Oil Flow Divider 1801163319 $1,325.45 Seal Kit 3371820089 $179.09
OFD 8 Oil Flow Divider 1801164318 $2,312.48 Trigger Valve Kit 3371820053 $582.28
Twin Extension Hose - 23' AC-3371801087 $1,105.41 Accumulator Kit 3371814051 $485.26
Twin Extension Hose - 39' AC-3371801089 $1,399.54 Label Kit 3371821089 $76.86
Hydraulic Oil - 4L 3371807777 $84.55 Filling Device Kit 3371801155 $4,459.03
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-KIT QUOTE Dust Control Spray Kit 9753300015 $157.15

Hydraulic Power Pac Information

BRK 70

The BRK 70 breakers are ideal for heavier jobs in tough materials such as asphalt, frozen soil, and reinforced concrete.  They work at a standard flow rate of 8 gpm and at 5 gpm with a simple adjustment.

  • A favorite of rental companies
  • Reliable performance, especially when using the wide asphalt chisel on medium to hard asphalt
  • Can be used with both 30 l/min and 20 l/min power packs
    BRK 70 VR BRK 70 VR
Part No   1801364727 1801800004
Prices   $2,725.00 $2,725.00

Chuck Size in 1¼ x 6 11/8 x 6
Weight (inc. hoses)  lbs 72 62
Length in 30 27
Oil Flow  gpm 5-8 5-8
Working Pressure psi 1670-1885 1670-1885
Max Back Pressure  psi 510 510
Impact Rate bpm 1350-1750 1500-2100
Vibration Level 3 Axes* (ISO 28927-10) (m/s2) m/s2 5.8 4.9
Sound Power Level Guaranteed* (2000/14/EC) Lw) dB(A) 107 107
Sound Pressure Level* (ISO 11203) (Lp, r=1m)) dB(A) 95 95
EHTMA Class   C/D C/D



brk 55

Safety and Operating Instructions

BRK Safety and Operating Instructions

Parts Breakdowns

BRK 55, 55VR, 55VR HBP, 55HBP

OFD 5 Oil Flow Divider 1801163319 $1,325.45 Seal Kit 3371820089 $179.09
OFD 8 Oil Flow Divider 1801164318 $2,312.48 Trigger Valve Kit 3371820053 $582.28
Twin Extension Hose - 23' AC-3371801087 $1,105.41 Accumulator Kit 3371814051 $485.26
Twin Extension Hose - 39' AC-3371801089 $1,399.54 Label Kit 3371821089 $76.86
Hydraulic Oil - 4L 3371807777 $84.55 Filling Device Kit 3371801155 $4,459.03
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-KIT QUOTE Dust Control Spray Kit 9753300015 $157.15

Hydraulic Power Pac Information

BRK 95

The BRK 95 breakers are ideal for heavier jobs in tough materials such as asphalt, frozen soil, and reinforced concrete.  They work at a standard flow rate of 8 gpm and at 5 gpm with a simple adjustment.

  • A favorite of rental companies
  • Reliable performance, especially when using the wide asphalt chisel on medium to hard asphalt
  • Can be used with both 30 l/min and 20 l/min power packs
    BRK 95 VR BRK 95 VR
Part No   1801374729 1801800005
Prices   $2,898.00 $2,898.00

Chuck Size in 1¼ x 6 11/8 x 6
Weight (inc. hoses)  lbs 85 85
Length in 30 30
Oil Flow  gpm 5-8 5-8
Working Pressure psi 1670-1885 1670-1885
Max Back Pressure  psi 300 300
Impact Rate bpm 1150-1600 1150-1600
Vibration Level 3 Axes* (ISO 28927-10) (m/s2) m/s2 6.4 6.4
Sound Power Level Guaranteed* (2000/14/EC) Lw) dB(A) 107 107
Sound Pressure Level* (ISO 11203) (Lp, r=1m)) dB(A) 95 95
EHTMA Class   C/D C/D



brk 55

Safety and Operating Instructions

BRK Safety and Operating Instructions

Parts Breakdowns

BRK 95, 95VR, 95VR HBP, 95HBP

OFD 5 Oil Flow Divider 1801163319 $1,325.45 Seal Kit 3371820087 $173.32
OFD 8 Oil Flow Divider 1801164318 $2,312.48 Trigger Valve Kit 3371820053 $582.28
Twin Extension Hose - 23' AC-3371801087 $1,105.41 Accumulator Kit 3371814051 $485.26
Twin Extension Hose - 39' AC-3371801089 $1,399.54 Label Kit 3371821093 $77.30
Hydraulic Oil - 4L 3371807777 $84.55 Filling Device Kit 3371801155 $4,459.03
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-KIT QUOTE Dust Control Spray Kit 9753300015 $157.15

Hydraulic Power Pac Information

Hydraulic Hammers and Breakers

  BRK 25 D BRK 40 VR BRK 55 VR
7⁄8" x 3-1⁄4" Chuck 1801174612
Prices $2,032.00

1" x 4-1⁄4" Chuck   1801344719

1801354723
Prices   $2,467.00 $1,400.00 $2,637.00

1-1⁄8" x 6" Chuck   1801344720
Prices   $2,467.00

1-1⁄4" x 6" Chuck   1801344721
Prices   $2,467.00

Weight (inc. hoses) (lbs) 34 55 62
Length (in) 25.5 25.5 27
Oil Flow (gpm) 5 5 5-8
Working Pressure (psi) 1,160-1,450 1,375-1,595 1,670-1,885
Max Back Pressure (psi) 145 145 510
Impact Rate (bpm) 2,300 1,400 1,500-2,100
Vibration Level 3 Axes* (ISO 28927-10) (m/s2) 16.5 5 4.9
Sound Power Level Guaranteed* (2000/14/EC) Lw (dB(A)) 105 106 107
Sound Pressure Level* (ISO 11203) (Lp, r=1m) (dB(A)) 92 93 95
EHTMA Class C C C/D

* BRK 25 D, BRK 40, BRK 55, and BRK 70 measured at 20l/min. BRK 95 measured at 30 l/min.

Choose Tool Shank Size


Choose a Tool for your Breaker

Moil Point
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  14" PB77-MP-14
$28.00 		PB78-MP-14
$28.20 		PB88-MP-14
$29.80 		PB98-MP-14
$33.60 		PB108-MP-14
$38.80
  18" PB77-MP-18
$31.00 		PB78-MP-18
$31.00 		PB88-MP-18
$34.10 		PB98-MP-18
$37.70 		PB108-MP-18
$42.80
  24" PB77-MP-24
$40.30 		PB78-MP-24
$40.30 		PB88-MP-24
$39.20 		PB98-MP-24
$42.80 		PB108-MP-24
$48.60
  36" PB77-MP-36
$56.60 		PB78-MP-36
$56.60 		PB88-MP-36
$55.00 		PB98-MP-36
$67.10 		PB108-MP-36
$80.80
  48" PB77-MP-48
$73.70 		PB78-MP-48
$73.70 		PB88-MP-48
$76.30 		PB98-MP-48
$91.10 		PB108-MP-48
$116.90
  60" PB77-MP-60
$90.60 		PB78-MP-60
$95.40 		PB88-MP-60
$95.90 		PB98-MP-60
$116.40 		PB108-MP-60
$151.10
  72" PB77-MP-72
$107.60 		PB78-MP-72
$107.60 		PB88-MP-72
$115.10 		PB98-MP-72
$142.50 		PB108-MP-72
$187.80
  96" PB77-MP-96
$141.40 		PB78-MP-96
$152.60 		PB88-MP-96
$152.60 		PB98-MP-96
$197.60 		PB108-MP-96
$255.10

Narrow Chisel


narrow chisel
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  14" PB77-NC-14
$28.00 		PB78-NC-14
$28.20 		PB88-NC-14
$29.80 		PB98-NC-14
$33.60 		PB108-NC-14
$38.80
  18" PB77-NC-18
$31.00 		PB78-NC-18
$31.00 		PB88-NC-18
$34.10 		PB98-NC-18
$37.70 		PB108-NC-18
$42.80
  24" PB77-NC-24
$40.30 		PB78-NC-24
$40.30 		PB88-NC-24
$39.20 		PB98-NC-24
$42.80 		PB108-NC-24
$48.60
  36" PB77-NC-36
$56.60 		PB78-NC-36
$56.60 		PB88-NC-36
$55.00 		PB98-NC-36
$67.10 		PB108-NC-36
$80.80
  48" PB77-NC-48
$73.70 		PB78-NC-48
$73.70 		PB88-NC-48
$76.30 		PB98-NC-48
$91.10 		PB108-NC-48
$116.90
  60" PB77-NC-60
$90.60 		PB78-NC-60
$90.60 		PB88-NC-60
$95.90 		PB98-NC-60
$116.40 		PB108-NC-60
$151.10
  72" PB77-NC-72
$107.60 		PB78-NC-72
$107.60 		PB88-NC-72
$115.10 		PB98-NC-72
$142.50 		PB108-NC-72
$187.80
  96" PB77-NC-96
$141.40 		PB78-NC-96
$141.40 		PB88-NC-96
$152.60 		PB98-NC-96
$197.60 		PB108-NC-96
$255.10

3" Chisel


3 inch chisel
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  14" PB77-3C-14
$38.80 		PB78-3C-14
$39.20 		PB88-3C-14
$39.50 		PB98-3C-14
$44.00 		PB108-3C-14
$48.60
  18" PB77-3C-18
$42.90 		PB78-3C-18
$42.90 		PB88-3C-18
$44.90 		PB98-3C-18
$47.60 		PB108-3C-18
$54.10
  24" PB77-3C-24
$59.00 		PB78-3C-24
$59.00 		PB88-3C-24
$54.40 		PB98-3C-24
$59.30 		PB108-3C-24
$62.50
  36" PB77-3C-36
$87.20 		PB78-3C-36
$87.20 		PB88-3C-36
$83.70 		PB98-3C-36
$93.50 		PB108-3C-36
$106.10
  48" PB77-3C-48
$116.60 		PB78-3C-48
$116.60 		PB88-3C-48
$120.40 		PB98-3C-48
$133.10 		PB108-3C-48
$154.60
  60" PB77-3C-60
$146.00 		PB78-3C-60
$146.00 		PB88-3C-60
$158.40 		PB98-3C-60
$172.70 		PB108-3C-60
$201.90
  72" PB77-3C-72
$175.30 		PB78-3C-72
$175.30 		PB88-3C-72
$191.10 		PB98-3C-72
$215.40 		PB108-3C-72
$251.00
  96" PB77-3C-96
$234.00 		PB78-3C-96
$265.10 		PB88-3C-96
$265.10 		PB98-3C-96
$292.90 		PB108-3C-96
$336.70

Tools
Tool Name Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  Asphalt Cutter
asphalt cutter		 PB77-AC
$100.10 		PB78-AC
QUOTE 		PB88-AC
$100.10 		PB98-AC
$100.20 		PB108-AC
$102.60
  Brushing Tool
bushing tool		 PB77-BH
$127.60 		PB78-BH
QUOTE 		PB88-BH
$114.30 		PB98-BH
$119.00 		PB108-BH
$122.10
  Digging Chisel
digging chisel		 PB77-DC
$111.50 		PB78-DC
QUOTE 		PB88-DC
$111.50 		PB98-DC
$116.40 		PB108-DC
$120.40
  Railroad Spike Driver
railroad spike driver		 PB77-SPIKE
$131.70 		  PB88-SPIKE
$131.70 		PB98-SPIKE
$131.70 		PB108-SPIKE
$131.70
  Asphalt Wedge
asphalt wedge		     PB88-AW
$98.10 		PB98-AW
$99.70 		PB108-AW
$108.90
  Frost Wedge
frost wedge		     PB88-FW
$121.70 		PB98-FW
$121.70 		PB108-FW
$121.70
  Concrete Breaker
concrete breaker		     PB88-CB
$128.10 		PB98-CB
$130.20 		PB108-CB
$139.60
  Tarmac Cutter (10-1⁄2" under collar)
tarmac cutter		       PB98-TC
$97.30 		PB108-TC
$98.70

Clay Spade


clay spade
Length Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  4-1⁄2" PB77-CS-45
$126.60 		  PB88-CS-45
$126.60 		PB98-CS-45
$134.30 		PB108-CS-45
$141.20
  5-1⁄2" PB77-CS-55
$126.60 		PB78-CS-55
$126.50 		PB88-CS-55
$126.60 		PB98-CS-55
$135.20 		PB108-CS-55
$141.20
  8"       PB98-CS-80
$375.20 		PB108-CS-80
$375.20

Pin Driver


pin driver
Pin Size Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  5⁄8"     PB88-PD625
$110.70 		PB98-PD625
$116.50 		PB108-PD625
$120.80
  3⁄4"     PB88-PD750
$110.70 		PB98-PD750
$116.50 		PB108-PD750
$120.80
  7⁄8"     PB88-PD875
$110.70 		PB98-PD875
$116.50 		PB108-PD875
$120.80
  1"     PB88-PD100
$110.70 		PB98-PD100
$116.50 		PB108-PD100
$120.80
  1-1⁄4"     PB88-PD125
$185.90 		PB98-PD125
$185.90 		PB108-PD125
$185.90
  1-1⁄2"     PB88-PD150
$185.90 		PB98-PD150
$185.90 		PB108-PD150
$185.90
  1-3⁄4"     PB88-PD175
$185.90 		PB98-PD175
$185.90 		PB108-PD175
$185.90
  2"     PB88-PD200
$185.90 		PB98-PD200
$185.90 		PB108-PD200
$185.90
  2-1⁄2"     PB88-PD250
$278.20 		PB98-PD250
$278.20 		PB108-PD250
$278.20

Ground Rod Driver


ground rod driver
Rod Size Socket Size Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
5⁄8" 11⁄16" PB77-GR-625
$97.30 		  PB88-GR-625
$97.30 		PB98-GR-625
$100.20 		PB108-GR-625
$110.60
3⁄4" 13⁄16" PB77-GR-750
$97.30 		  PB88-GR-750
$97.30 		PB98-GR-750
$100.20 		PB108-GR-750
$110.60
7⁄8" 15⁄16"     PB88-GR-875
$110.10 		PB98-GR-875
$115.50 		PB108-GR-875
$123.70
1" 1-1⁄16"     PB88-GR-100
$119.70 		PB98-GR-100
$126.30 		PB108-GR-100
$136.80

Plug and Feathers


plug and feathers
Hole Size Part Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
1-1⁄2" Shank       PB98-SHK-150
$126.30 		PB108-SHK-150
$128.10
1-1⁄2" Feathers       PB-FTH-150
$33.50 		PB-FTH-150
$33.50
2" Shank       PB98-SHK-200
$126.30 		PB108-SHK-200
$128.10
2" Feathers       PB-FTH-200
$36.30 		PB-FTH-200
$36.30

U-Channel and Pipe Drivers


u-channel and pipe drivers
Part Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
  Shank only   PD78-PIPE
$113.00 		PD88-PIPE
$113.00 		PD98-PIPE
$113.00 		PD108-PIPE
$113.00

  Cup only
2-5⁄8" ID		           PD-PIPE-CUP
$141.00

Detachable Shank


detachable shank
  Shank Size
    7⁄8" x 3-1⁄4" 7⁄8" x 4-1⁄4" 1" x 4-1⁄4" 1-1⁄8" x 6" 1-1⁄4" x 6"
    PB77-DS
$76.50 		PB78-DS
$79.10 		PB88-DS
$76.50 		PB98-DS
$76.50 		PB108-DS
$76.50

ROUND PIPE DRIVERS

(for large taper shank)
round post drivers
Pad Size Type Part No
1-1⁄4" Cup PD-LT-32CUP
$121.00
1-1⁄2" Cup PD-LT-38CUP
$121.00
2" Pin PD-LT-51PIN
$127.00
2" Cup PD-LT-51CUP
$121.00
2-1⁄2" Pin PD-LT-64PIN
$127.00
2-1⁄2" Cup PD-LT-64CUP
$127.00
3" Pin PD-LT-76PIN
$128.00
3" Cup PD-LT-76CUP
$141.00
4" Cup PD-LT-102CUP
$281.00

SQUARE POST DRIVERS

Use with Detachable Shank
square post drivers
Size Type Part No
1 1⁄2" Small Taper PD-ST-38SQ
CALL
1 1⁄2" Large Taper PD-LT-38SQ
$134.00
1 3⁄4" Small Taper PD-ST-45SQ
CALL
1 3⁄4" Large Taper PD-LT-45SQ
$134.00
2" Small Taper

PD-ST-51SQ
CALL
2" Large Taper PD-LT-51SQ
$134.00
2 1⁄4" Large Taper PD-LT-57SQ
$194.00
2 1⁄2" Large Taper PD-LT-64SQ
$194.00

TAMPING PADS


tamping pad
Pad Size Type Part No
6" Round PB-TAMP-LT-6RD
$127.00
6" Square PB-TAMP-LT-6SQ
$131.80
7 " Round PB-TAMP-LT-7RD
$131.80
8" Square PB-TAMP-LT-8SQ
$156.50

2"   PB-SHOE-2
$301.70
3"   PB-SHOE-3
$314.80

Forgot password?
