Scabblers by Chicago Pneumatic
The CP 0006 scabblers are ideal tools for cleaning and roughening concrete and construction joints. They can also be used to produce ornamental or contrasting finishes on road and building structures. With their different handle designs, CP 0006 is more suitable when working on large surface areas.

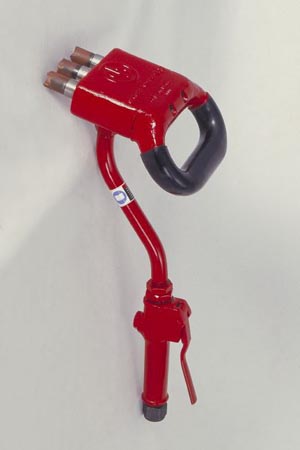

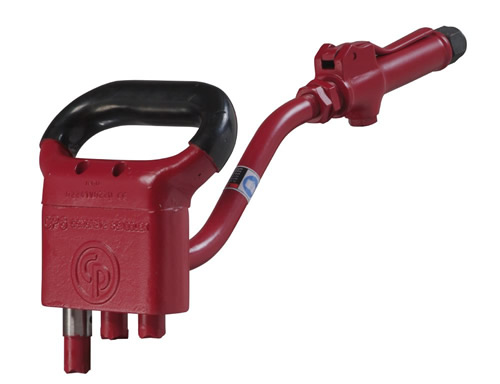

CP 0006
CP 0006 SVR

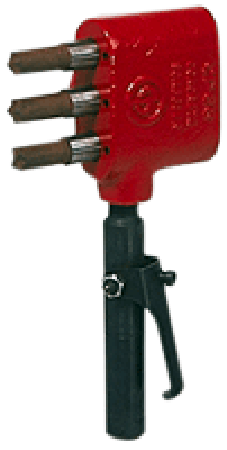

CP 0066
| Scabblers | |||||
|---|---|---|---|---|---|
| Description | 0006 | 0006 NS | 0006 SVR | 0066 | |
| Part No | 8900004004 | 9753288000 | 8900004001 | 8900004005 | |
| Price | $886.00
|
$1,147.00
|
$1,167.00
|
$909.00
|
|
| Weight | lbs | 11 | 11 | 14.3 | 10 |
| Length | in | 18.5 | 18.5 | 20 | 11 |
| Width | in | 4.3 | 4.3 | 4.3 | |
| Air Consumption | cfm | 28 | 28 | 28 | 27.5 |
| Air Inlet | in | ½ NPTF | ½ NPTF | ½ NPTF | ½ BSP |
| No & Type of Piston | 3 - 4 Point Carbide Tipped | Non-Spark | 3 - 4 Point Carbide Tipped | 3 - 4 Point Carbide Tipped | |
| Impact Rate | bpm | 3000 | 3000 | 3000 | 3000 |
| Handle Type | Back Head | Back Head | Vibration Reduced | Back Head | |
| Vibration Level 3 Axes (ISO 20643_ | m/sec2 | 23.1 | 23.1 | 7.1 | 41.9 |
| Sound Pressure Level (ISO 1123) | dB(A) | 92 | 92 | 92 | 97 |
- Light weight, compact tool with contoured grip handle - reduces operator fatigue; increases output
- Tungsten carbide-tipped pistons - last longer; are easily replaced
- Back head grip - gives in-line thrust
- Chamfered cylinder block - increases visibility of the work piece permitting close-up operation in corner
| Accessories & Common Replacement Parts | ||||||
|---|---|---|---|---|---|---|

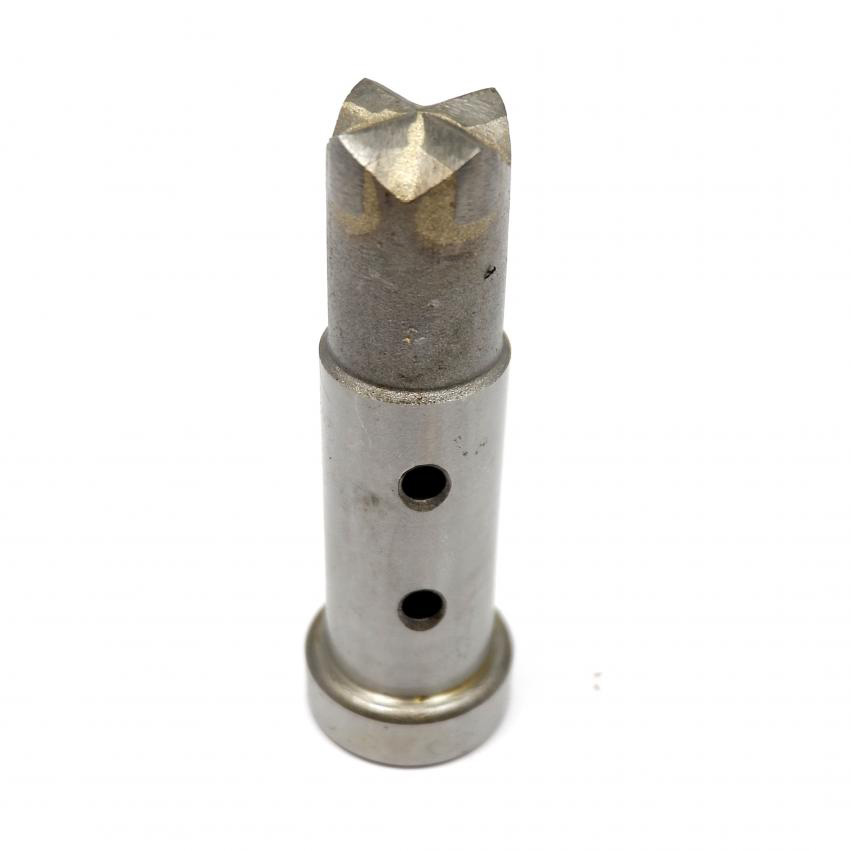

| CP 0006 Piston | F064604 | $220.08
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| CP 0006 Piston Cap | F826706 | $18.45
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| CP 0066 Piston | R145921 | $234.98
|
Line Oiler | LO-10PF | $81.00
|
|
| CP 0066 Piston Cap | R147614 | $5.34
|
Whip Check | WCSML | $11.00
|
|

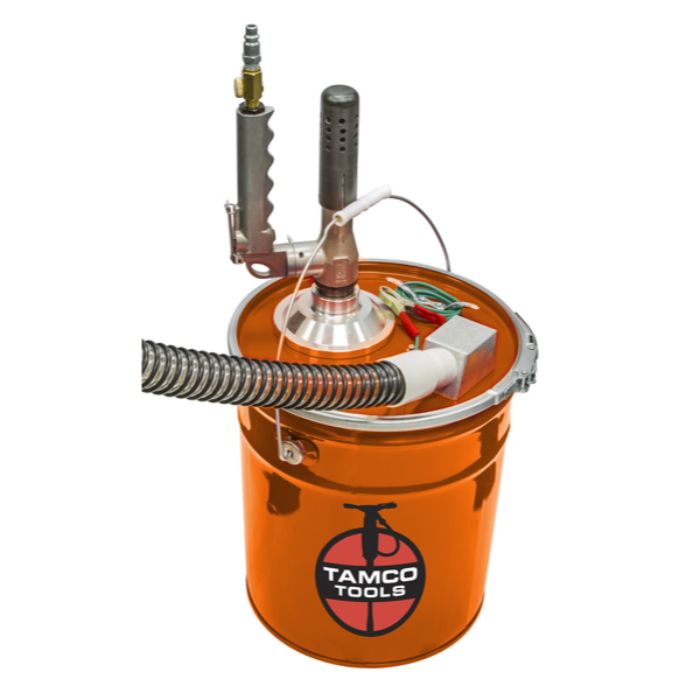

| TAM3P VDEX Dust Collection Pail | TAM3P | $1,190.51
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Dust Control Spray Kit | 9753300015 | $157.15
|
||||
CP 0006 and 0006 SVR Scabbler Spare Parts List
Chicago Pneumatic will not accept returns of line items of $90.00 or less
