CP CPS 185 Air Compressor

Visit Chicago Pneumatic store

CP CPS 185 Air Compressor

$28,164.00 – QUOTE

Add to Cart
CP CPS 185 Air Compressor
CP CPS 185 Air Compressor
$28,164.00 – QUOTE
$1200 Freight Shipping to lower 48

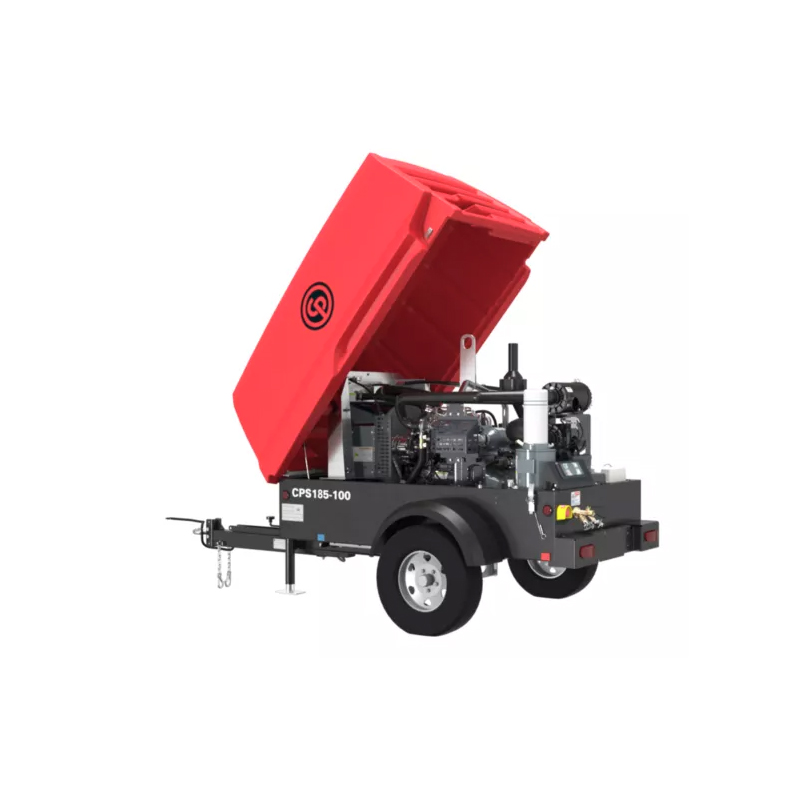

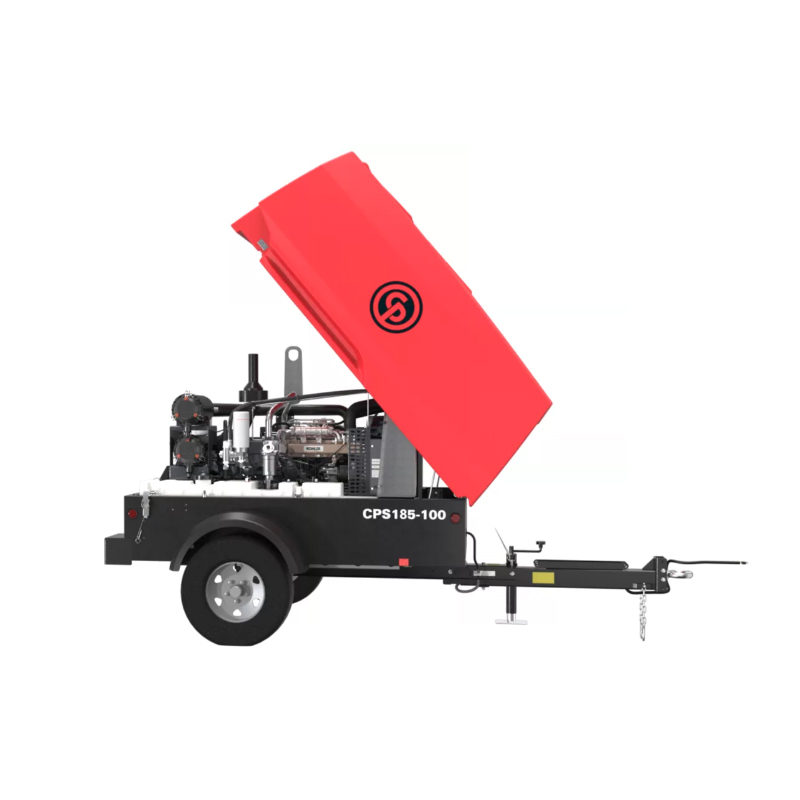

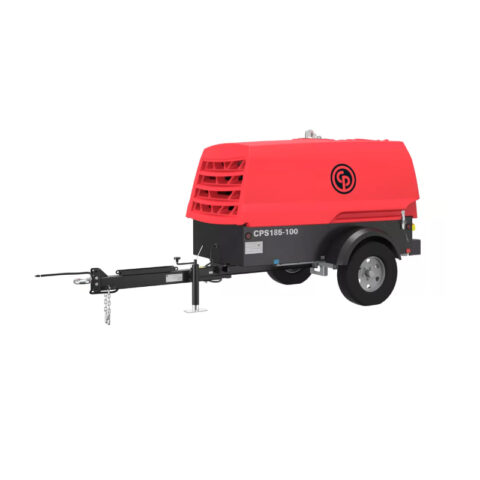

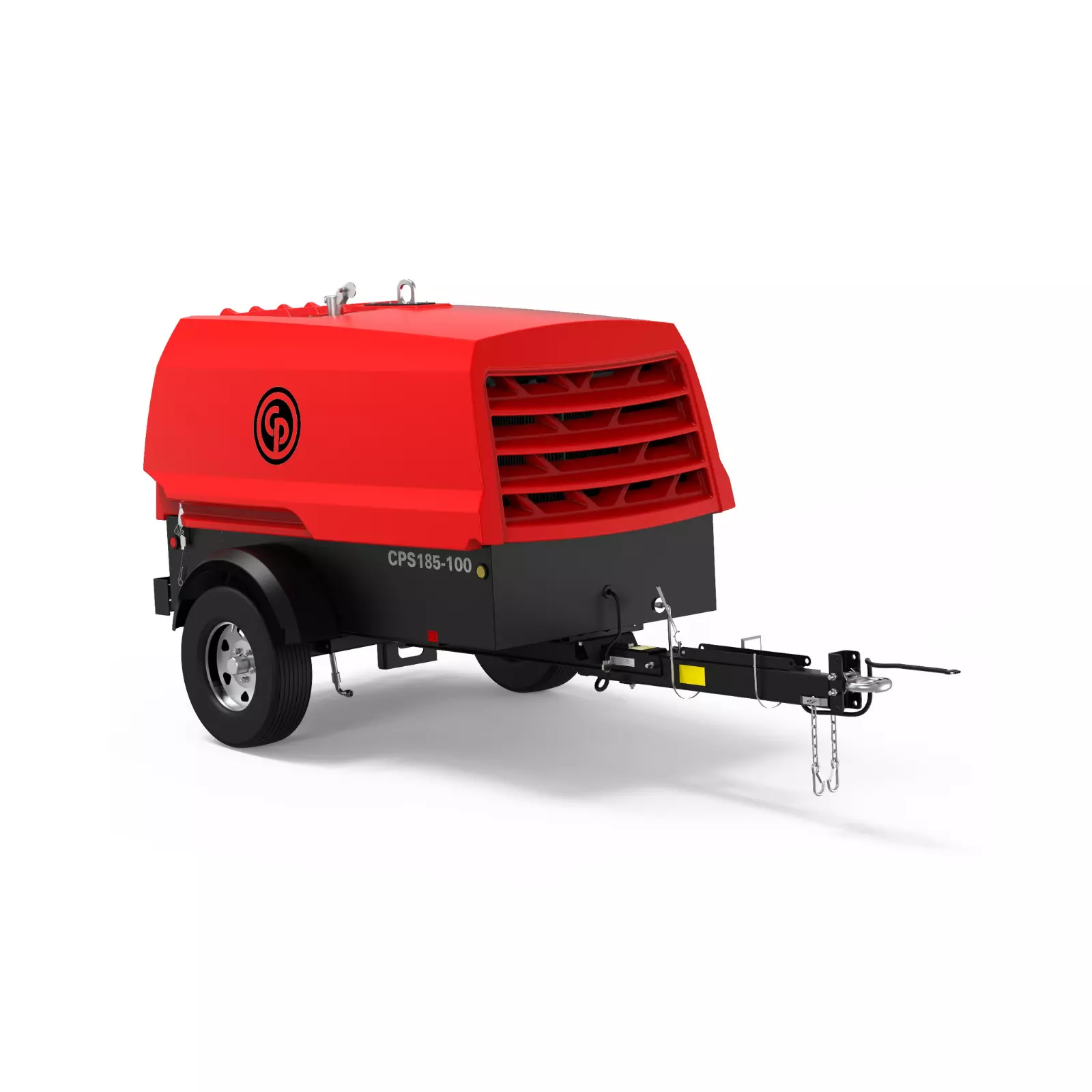

The Chicago PneumaticCPS 185100 is a single-stage oil-injected rotary screw type air compressor, powered by a liquid-cooled, three-cylinder turbocharged Kohler diesel engine. The unit consists of an air end, diesel engine, cooling circuit, air/oil separation and control systems – all enclosed within a Redrock™ polyethylene shell. Unique features 110% fluid containment, internal toolbox, external lifting eye, new easy to use controller XC1004.

Features:

  • Enclosed within a RedrockTM polyethylene shell.
  • Protects the environment from spill/leaks and avoids costly clean-up.
  • 1,500 hours running or 2 years

Safety Features:

The compressor has many safety features: Pressure safety valve, emergency shut down button, low fuel shut down, high temperature engine coolant, high temperature compressor oil and engine oil pressure.

Find the matching size or fitment across our diesel air compressors and pair it with the matching hoses hub. The air compressor buyer’s guide walks through choosing the right one. It ships out of Denver, same day on in-stock orders placed before 4 PM ET.

Specifications

CP-8972422001
CP-8972426004
CP-8972422001-2IN
CP-8972426004-2IN
CP-8972422001-2516
CP-8972426004-2516
CP-8972422001-OSHA
CP-8972426004-OSHA
CP-8972422001-2IN-OSHA
CP-8972426004-2IN-OSHA
CP-8972422001-2516-OSHA
CP-8972426004-2516-OSHA
SKU
CP-8972422001
CP-8972426004
CP-8972422001-2IN
CP-8972426004-2IN
CP-8972422001-2516
CP-8972426004-2516
CP-8972422001-OSHA
CP-8972426004-OSHA
CP-8972422001-2IN-OSHA
CP-8972426004-2IN-OSHA
CP-8972422001-2516-OSHA
CP-8972426004-2516-OSHA
Product Name
CP185-100 KoD
CPS 185-100 KoD with cold weather package, pintle hitch
CPS 185-100 KoD with 2 in ball hitch
CPS 185-100 KoD with cold weather package, 2 in ball hitch
CPS 185-100 KoD with 2-5/16 in ball hitch
CPS 185-100 KoD with cold weather package, 2-5/16 in ball hitch
CPS 185-100 KoD with OSHA valve, pintle hitch
CPS 185-100 KoD with cold weather package and OSHA valve, pintle hitch
CPS 185-100 KoD with OSHA valve, 2 in ball hitch
CPS 185-100 KoD with cold weather package and OSHA valve, 2 in ball hitch
CPS 185-100 KoD with OSHA valve, 2-5/16 in ball hitch
CPS 185-100 KoD with cold weather package and OSHA valve, 2-5/16 in ball hitch
Vendor SKU
8972422001
-
-
-
-
-
-
-
-
-
-
-
Cold Weather Package
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
Hitch
Pintle
Pintle
2in Ball
2in Ball
2-5/16in Ball
2-5/16in Ball
Pintle
Pintle
2in Ball
2in Ball
2-5/16in Ball
2-5/16in Ball
OHSA Valve
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Free Air Delivery (cfm)
180
180
180
180
180
180
180
180
180
180
180
180
Normal effective working pressure (psi)
100
100
100
100
100
100
100
100
100
100
100
100
Fuel Capacity (Gal)
22.3
22.3
22.3
22.3
22.3
22.3
22.3
22.3
22.3
22.3
22.3
22.3
Fuel consumption at 100% load (gal/hr)
2.21
2.21
2.21
2.21
2.21
2.21
2.21
2.21
2.21
2.21
2.21
2.21
Fuel consumption at 75% load (gal/hr)
2.18
2.18
2.18
2.18
2.18
2.18
2.18
2.18
2.18
2.18
2.18
2.18
Fuel consumption at 50% load (gal/hr)
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
Fuel consumption at 25% load (gal/hr)
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
1.69
Emissions stage
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
