CP CPS 400-200 Air Compressor

Visit Chicago Pneumatic store

CP CPS 400-200 Air Compressor

$77,480.00 – $85,991.00

Towable diesel air compressor – 400/375/350 CFM at 100/150/200 PSI, Kohler KDI 3404TCR Tier 4 Final engine, multi-pressure system, optional PFF aftercooler and OSHA valve.

Add to Cart
CP CPS 400-200 Air Compressor
CP CPS 400-200 Air Compressor
$77,480.00 – $85,991.00
$1200 Freight Shipping to lower 48

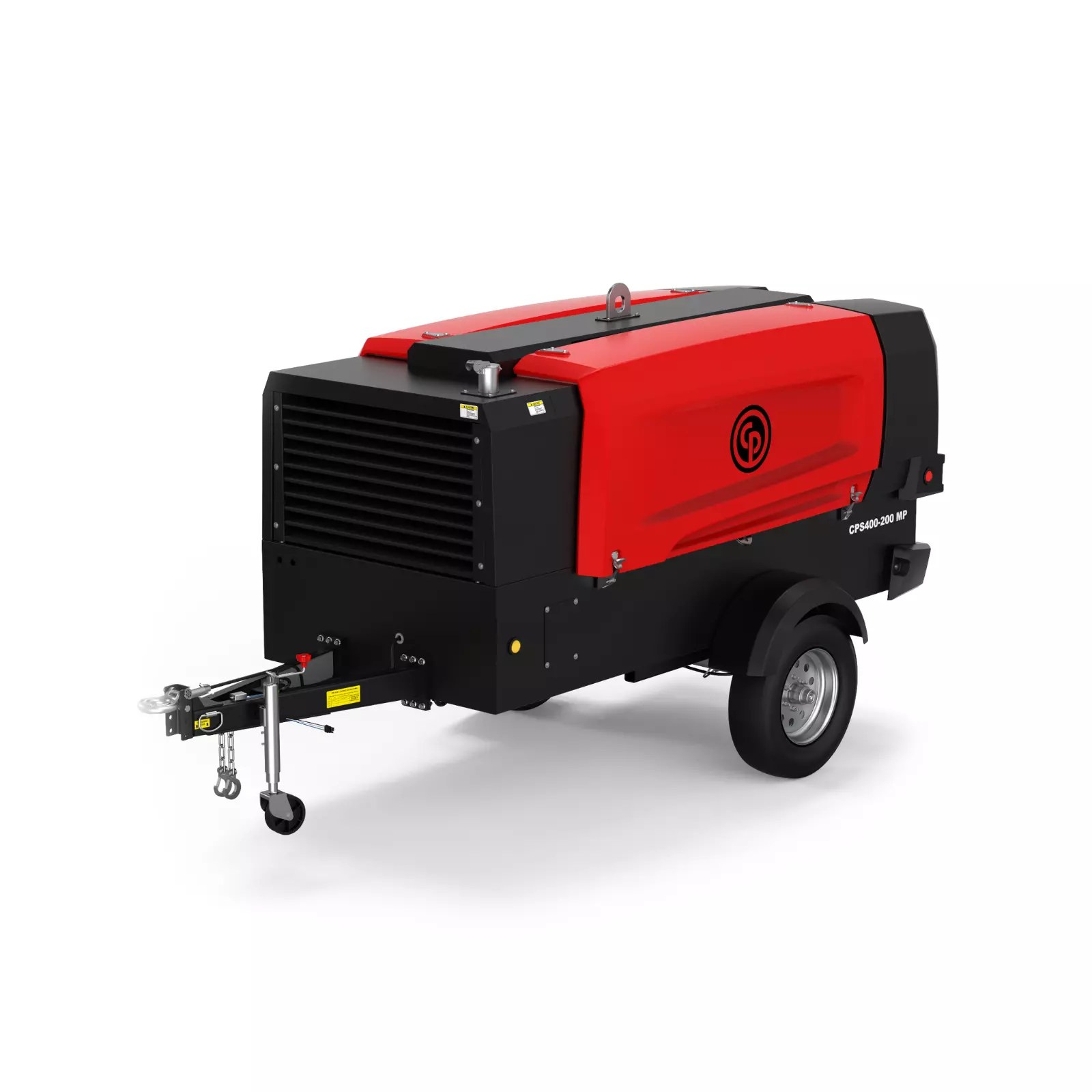

The Chicago Pneumatic CPS 400-200 MP is a single-stage, oil-injected rotary-screw portable air compressor powered by a liquid-cooled, four-cylinder turbocharged Kohler KDI 3404TCR diesel that meets Tier 4 Final emissions. The Xc2003 controller with CP’s Multiple Pressure regulated system adjusts working pressure in 2 PSI increments, delivering 400 CFM at 100 PSI, 375 at 150, or 350 at 200 from CP’s C106 compression element with efficient oil extraction, large-capacity oil cooling, and high-efficiency two-stage filters. Large gull-wing doors open the whole service side of the machine, including an oil separator change in under 10 minutes.

It sits at the high-output end of our diesel-driven air compressor lineup, and the air compressor buyer’s guide explains matching airflow and pressure to your tools. For the 150 PSI version of this platform, see the CPS 400-150. Crowder Supply supports the full Chicago Pneumatic compressor family from Denver.

  • 400/375/350 CFM at 100/150/200 PSI
  • Kohler KDI 3404TCR Tier 4 Final diesel
  • Xc2003 controller with Multiple Pressure regulated system
  • C106 compression element with two-stage filtration
  • Gull-wing doors – oil separator change in under 10 minutes
  • Options: PFF aftercooler/water separator, OSHA valve, pintle / 2 in / 2-5/16 in ball hitch

Specifications

CP-8972422853
CP-8972422853-2IN
CP-8972422853-2516
CP-8972422853-OSHA
CP-8972422853-2IN-OSHA
CP-8972422853-2516-OSHA
CP-8972422854
CP-8972422854-2IN
CP-8972422854-2516
CP-8972422854-OSHA
CP-8972422854-2IN-OSHA
CP-8972422854-2516-OSHA
SKU
CP-8972422853
CP-8972422853-2IN
CP-8972422853-2516
CP-8972422853-OSHA
CP-8972422853-2IN-OSHA
CP-8972422853-2516-OSHA
CP-8972422854
CP-8972422854-2IN
CP-8972422854-2516
CP-8972422854-OSHA
CP-8972422854-2IN-OSHA
CP-8972422854-2516-OSHA
Product Name
CPS 400-200 MP with pintle hitch
CPS 400-200 MP with 2 in ball hitch
CPS 400-200 MP with 2-5/16 in ball hitch
CPS 400-200 MP with OSHA valve, pintle hitch
CPS 400-200 MP with OSHA valve, 2 in ball hitch
CPS 400-200 MP with OSHA valve, 2-5/16 in ball hitch
CPS 400-200 MP PFF with aftercooler and water separator, pintle hitch
CPS 400-200 MP PFF with aftercooler and water separator, 2 in ball hitch
CPS 400-200 MP PFF with aftercooler and water separator, 2-5/16 in ball hitch
CPS 400-200 MP PFF with aftercooler, water separator and OSHA valve, pintle hitch
CPS 400-200 MP PFF with aftercooler, water separator and OSHA valve, 2 in ball hitch
CPS 400-200 MP PFF with aftercooler, water separator and OSHA valve, 2-5/16 in ball hitch
Free Air Delivery (cfm)
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
400/375/350
Hitch
Pintle
2in Ball
2-5/16in Ball
Pintle
2in Ball
2-5/16in Ball
Pintle
2in Ball
2-5/16in Ball
Pintle
2in Ball
2-5/16in Ball
OHSA Valve
No
No
No
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Aftercooler and Water Separator
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Normal effective working pressure (psi)
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
100/150/200
Battery Capacity (CCA)
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
Compressor Oil Capacity (gal)
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
6.3
DEF Tank Capacity (gal)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
Emissions stage
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Engine
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Engine Coolant Capacity (gal)
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
Engine Oil Capacity (gal)
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
Engine Speed (rpm)
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
Fuel Capacity (Gal)
52
52
52
52
52
52
52
52
52
52
52
52
Max Ambient Temperature (F)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
Min Starting Temperature (F)
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
Minimum Working Pressure (psi)
72
72
72
72
72
72
72
72
72
72
72
72
