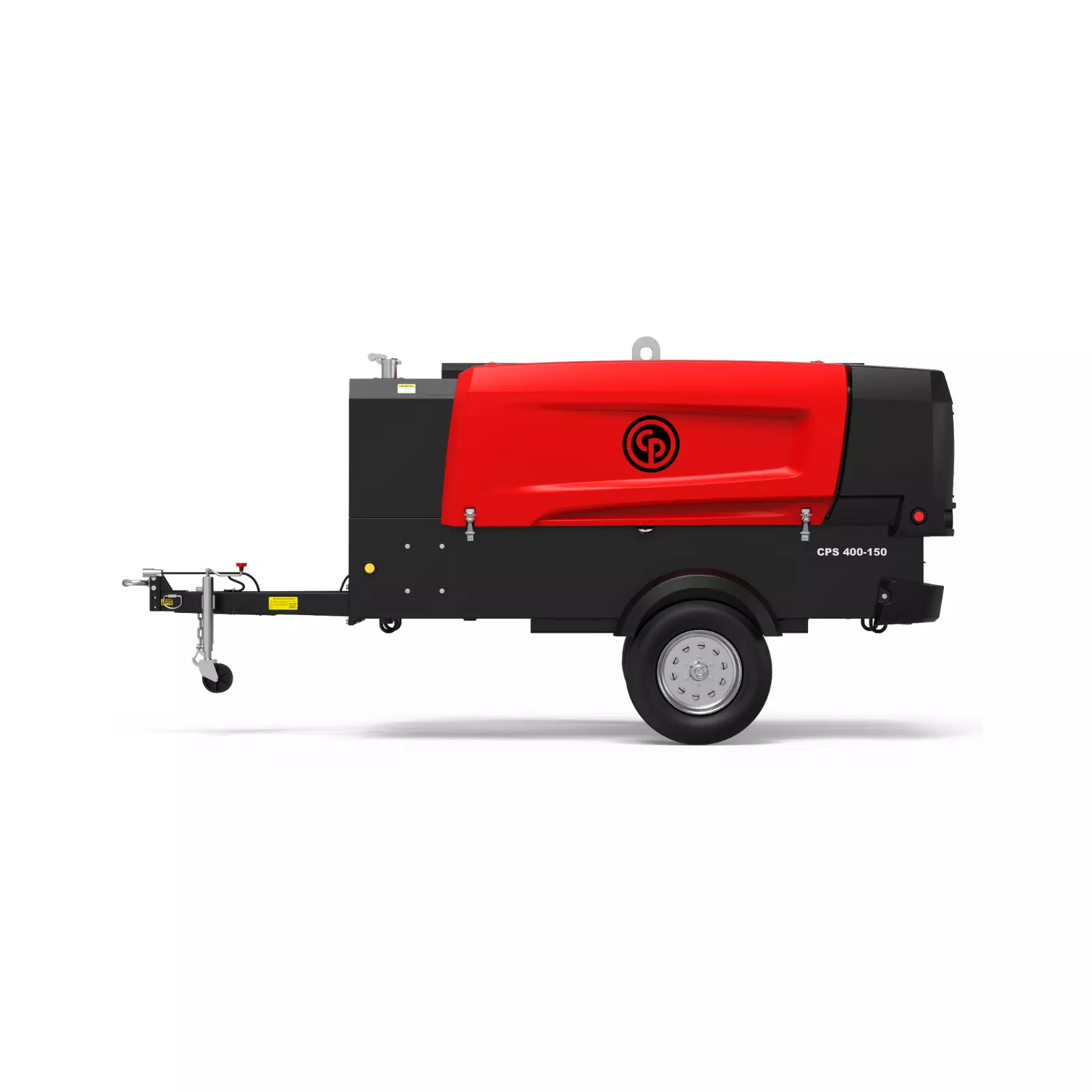

CP CPS 400-150 Air Compressor

Visit Chicago Pneumatic store

CP CPS 400-150 Air Compressor

$73,917.00 – $82,245.00

Towable diesel air compressor – 400/375 CFM at 100/150 PSI, Kohler KDI 3404TCR Tier 4 Final engine, optional PFF aftercooler and OSHA valve.

Add to Cart
CP CPS 400-150 Air Compressor
CP CPS 400-150 Air Compressor
$73,917.00 – $82,245.00

The Chicago Pneumatic CPS 400-150 is a single-stage, oil-injected rotary-screw portable air compressor powered by a liquid-cooled, four-cylinder turbocharged Kohler KDI 3404TCR diesel that meets Tier 4 Final emissions. The Xc2003 controller gives easy access to user controls and diagnostics – unloaded starting, glow plugs, and exhaust after-treatment – and the machine delivers 400 CFM at 100 PSI or 375 CFM at 150 PSI from CP’s C106 compression element with efficient oil extraction, large-capacity oil cooling, and high-efficiency two-stage filters. Large gull-wing doors open the whole service side of the machine, including an oil separator change in under 10 minutes.

It sits at the high-output end of our diesel-driven air compressor lineup – smaller units in the range like the CPS 185 KDu handle lighter tool loads – and the air compressor buyer’s guide explains matching airflow and pressure to your tools. For the 200 PSI version of this platform, see the CPS 400-200. Crowder Supply supports the full Chicago Pneumatic compressor family from Denver.

  • 400/375 CFM at 100/150 PSI
  • Kohler KDI 3404TCR Tier 4 Final diesel
  • Xc2003 controller with diagnostics and unloaded starting
  • C106 compression element with two-stage filtration
  • Gull-wing doors – oil separator change in under 10 minutes
  • Options: PFF aftercooler/water separator, OSHA valve, pintle / 2 in / 2-5/16 in ball hitch

Specifications

CP-8972422851
CP-8972422851-2IN
CP-8972422851-2516
CP-8972422851-OSHA
CP-8972422851-2IN-OSHA
CP-8972422851-2516-OSHA
CP-8972422852
CP-8972422852-2IN
CP-8972422852-2516
CP-8972422852-OSHA
CP-8972422852-2IN-OSHA
CP-8972422852-2516-OSHA
SKU
CP-8972422851
CP-8972422851-2IN
CP-8972422851-2516
CP-8972422851-OSHA
CP-8972422851-2IN-OSHA
CP-8972422851-2516-OSHA
CP-8972422852
CP-8972422852-2IN
CP-8972422852-2516
CP-8972422852-OSHA
CP-8972422852-2IN-OSHA
CP-8972422852-2516-OSHA
Product Name
CPS 400-150 with pintle hitch
CPS 400-150 with 2 in ball hitch
CPS 400-150 with 2-5/16 in ball hitch
CPS 400-150 with OSHA valve, pintle hitch
CPS 400-150 with OSHA valve, 2 in ball hitch
CPS 400-150 with OSHA valve, 2-5/16 in ball hitch
CPS 400-150 PFF with aftercooler and water separator, pintle hitch
CPS 400-150 PFF with aftercooler and water separator, 2 in ball hitch
CPS 400-150 PFF with aftercooler and water separator, 2-5/16 in ball hitch
CPS 400-150 PFF with aftercooler, water separator and OSHA valve, pintle hitch
CPS 400-150 PFF with aftercooler, water separator and OSHA valve, 2 in ball hitch
CPS 400-150 PFF with aftercooler, water separator and OSHA valve, 2-5/16 in ball hitch
Free Air Delivery (cfm)
400/375
400/375
400/375
400/375
400/375
400/375
400/375
400/375
400/375
400/375
400/375
400/375
Hitch
Pintle
2in Ball
2-5/16in Ball
Pintle
2in Ball
2-5/16in Ball
Pintle
2in Ball
2-5/16in Ball
Pintle
2in Ball
2-5/16in Ball
OHSA Valve
No
No
No
Yes
Yes
Yes
No
No
No
Yes
Yes
Yes
Aftercooler and Water Separator
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Normal effective working pressure (psi)
100/150
100/150
100/150
100/150
100/150
100/150
100/150
100/150
100/150
100/150
100/150
100/150
Cold Weather Package
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Optional/Not Included
Battery Capacity (CCA)
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
1,100
Compressor Oil Capacity (gal)
6.7
6.7
6.7
6.7
6.7
6.7
6.7
6.7
6.7
6.7
6.7
6.7
DEF Tank Capacity (gal)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
Emissions stage
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Tier 4 Final
Engine
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Kohler KDI 3404TCR, Tier 4 Final
Engine Coolant Capacity (gal)
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
5.6
Engine Oil Capacity (gal)
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
5.4
Engine Speed (rpm)
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
1,500 unloaded / 2,200 max loaded
Fuel Capacity (Gal)
52
52
52
52
52
52
52
52
52
52
52
52
Max Ambient Temperature (F)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
122 (at sea level)
Min Starting Temperature (F)
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
14 standard / -13 with optional cold weather
Minimum Working Pressure (psi)
72
72
72
72
72
72
72
72
72
72
72
72
