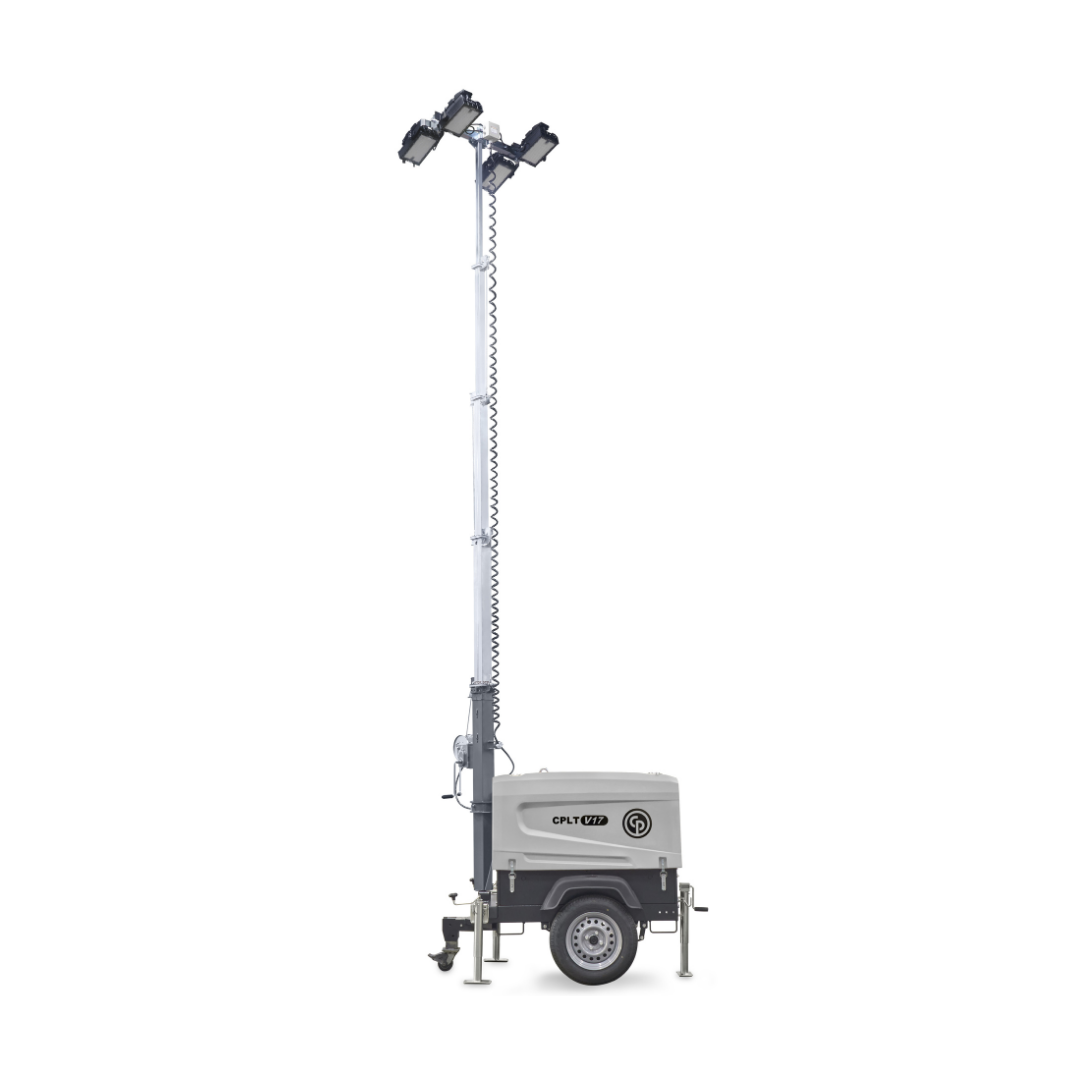

The Chicago Pneumatic CPLT V17 is a diesel LED light tower built around four 350W surface-mount-device (SMD) LED floodlights totaling 225,600 lumens – 45,800 sq ft of coverage at 0.5 ft-c minimum (79,222 sq ft at 2 ft-c average), roughly 20% more coverage than COB LED fixtures. A low-consumption two-cylinder Kohler KDW702 diesel sips 0.24 gal/hr with every floodlight on, stretching the 26-gallon tank to 105 hours of continuous light. The 24-ft mast raises manually and rotates 340 degrees, and the tower stays stable in winds to 68 mph.
- 4 x 350W SMD LED – 225,600 lumens, 45,800 sq ft coverage
- 105 hr runtime per 26 gal tank (0.24 gal/hr, all lights on)
- 24 ft mast, manual raise, 340-degree rotation
- Kohler KDW702 diesel, Tier 4 Final
- 68 dB(A) at 23 ft
- Wind-stable to 68 mph
