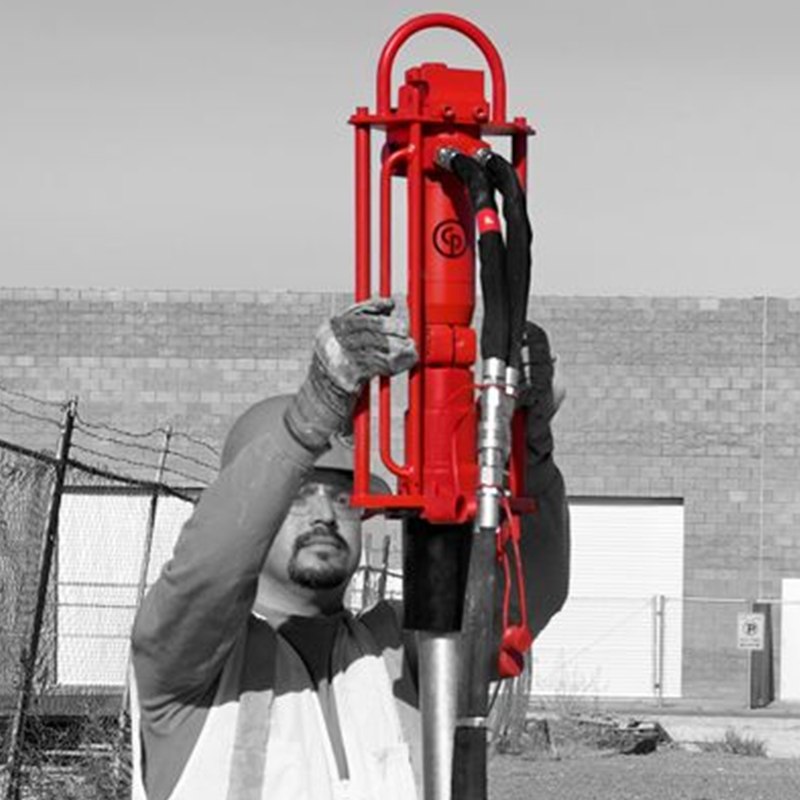

The Chicago Pneumatic PDR 95R is a handheld hydraulic post driver built for road barrier tubes, sign posts, fence posts, anchors and pipes or piles up to 5-1/2 in. Rated at 1,320 blows per minute on 7 to 11 GPM at 1,5221,812 PSI, it comes as the PDR 95T with an on-tool trigger lever (86 lb) or the PDR 95RV with a hose-mounted remote valve (88 lb) for taller posts.
The trigger-lever version runs open-centre hydraulic systems; the remote-valve version runs open- or closed-centre. Feed it from one of our hydraulic power packs, or from a skid steer or excavator auxiliary circuit with an OFD30 oil flow divider holding flow at spec. The guide adapter kit it must be ordered with comes from the same post driver accessories shelf as the rest of the Chicago Pneumatic hydraulic post driver line.
- 1,320 BPM impact rate; 711 GPM oil flow at 1,5221,812 PSI working pressure
- Drives pipes and piles up to 5-1/2 in., road barrier tubes, sign posts, fence posts and anchors

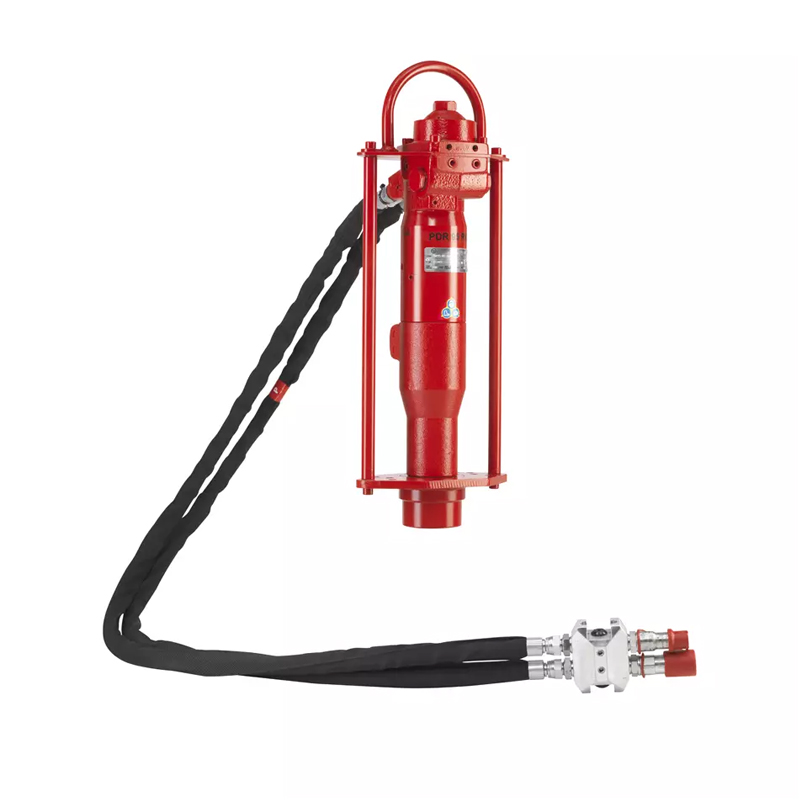

- PDR 95T trigger-lever version, 86 lb, open-centre; PDR 95RV remote-valve version, 88 lb, open- or closed-centre
- Built-in on/off valve makes short pole driving quick to control
- Guide adapter kit required, sold separately; OFD30 oil flow divider required on machine power sources
- Stocked by Crowder Supply in Denver; free UPS Ground shipping to the lower 48
