CP Red Hawk Road Gas Paving Breaker

CP Red Hawk Road Gas Paving Breaker

$4,541.00

Add to Cart
CP Red Hawk Road Gas Paving Breaker
CP Red Hawk Road Gas Paving Breaker
$4,541.00
$150 Freight Shipping to lower 48

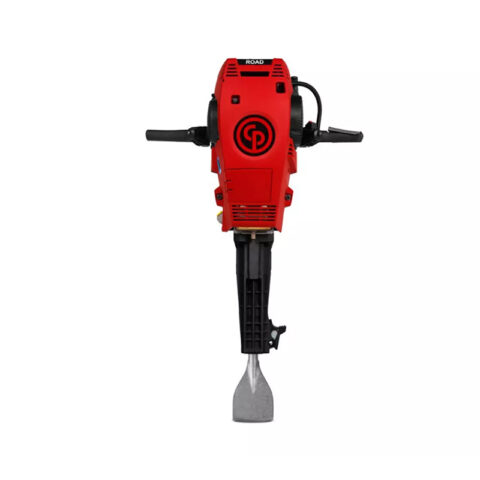

The Chicago Pneumatic Red Hawk Road is a self-contained 40 lb-class gas paving breaker for crews working where compressed air and hydraulic power are impractical. Its on-board 90cc two-stroke engine delivers 44 ft-lb of impact energy at 1,440 blows per minute, so a single operator can carry one tool to remote pavement repairs, rural utility trenches and storm-response sites no compressor staging, unlike conventional paving breakers.

Running on standard unleaded two-stroke fuel mix from a 0.26 gal tank, the Red Hawk Road weighs 4850 lb and measures 2931 in. overall depending on shank. Hex options of 1 x 4-1/4 in., 1-1/8 x 6 in. and 1-1/4 x 6 in. accept the moil points and chisels already in your inventory. It headlines the Chicago Pneumatic gas breaker range, and the paving breaker buyers guide weighs gas against air and hydraulic power.

  • Self-contained 40 lb-class gas paving breaker no compressor or hydraulic power pack required
  • 90cc two-stroke engine delivers 44 ft-lb of impact energy at 1,440 blows per minute
  • Runs on standard unleaded two-stroke fuel mix; 0.26 gal tank capacity
  • Tool weight 4850 lb and overall length 2931 in., varying by shank option
  • Hex shank options: 1 x 4-1/4 in., 1-1/8 x 6 in. and 1-1/4 x 6 in.
  • Applications: remote pavement repair, rural utility trenching, railroad-tie tamping, emergency storm response and frozen-ground breaking
  • Stocked by Crowder Supply in Denver

Red Hawk Road FAQ

Does the Red Hawk Road need an air compressor?
No. The on-board 90cc two-stroke engine powers it, so there is no compressor, hose or hydraulic pack to stage that is the whole point of a gas paving breaker.

What fuel does it run on?
Standard unleaded two-stroke fuel mix, carried in the 0.26 gal on-board tank.

Which shank option should I order?
Match the steel you already own: 1 x 4-1/4 in., 1-1/8 x 6 in. or 1-1/4 x 6 in. hex shank versions are stocked.

Gas or air breaker which is right for my crew?
Gas wins on remote and emergency work where staging a compressor costs more time than the job itself; if your sites already run compressed air, the Chicago Pneumatic pneumatic breaker line runs on the compressor you already stage.

Accessories

Paving Breaker 3 in Heavy Duty Chisel

Paving Breaker 3 in Heavy Duty Chisel

$57.10

Paving Breaker Narrow Chisel

Paving Breaker Narrow Chisel

$30.00$420.00

Paving Breaker Moil Point

Paving Breaker Moil Point

$30.00$420.00

Paving Breaker 3 in Chisel

Paving Breaker 3 in Chisel

$42.00$543.00

Sheathing Driver Shoe - To be used with Large Taper Shank

Sheathing Driver Shoe - To be used with Large Taper Shank

$320.00$321.00

Paving Breaker Tamping Pads (Drive Shank Required)

Paving Breaker Tamping Pads (Drive Shank Required)

$94.00$175.00

Paving Breaker Tie Tamping Tool

Paving Breaker Tie Tamping Tool

$190.00

Paving Breaker Railroad Spike Driver

Paving Breaker Railroad Spike Driver

$130.00$140.00

Paving Breaker Pipe Driver

Paving Breaker Pipe Driver

$320.00

Paving Breaker Pin Driver

Paving Breaker Pin Driver

$118.00$295.00

Paving Breaker Ground Rod Driver

Paving Breaker Ground Rod Driver

$97.20$145.00

Paving Breaker Tarmac Cutter

Paving Breaker Tarmac Cutter

$103.00$105.00

Paving Breakers Plug & Feathers Shank

Paving Breakers Plug & Feathers Shank

$134.00$136.00

Paving Breaker Keen Kut

Paving Breaker Keen Kut

$65.00$72.00

Paving Breaker Frost Wedge

Paving Breaker Frost Wedge

$121.70QUOTE

Paving Breaker Feather

Paving Breaker Feather

$36.00$39.00

Paving Breaker Digging Chisel

Paving Breaker Digging Chisel

$118.00QUOTE

Paving Breaker Concrete Buster

Paving Breaker Concrete Buster

$136.00QUOTE

Paving Breaker 5-1/2 in Clay Spade

Paving Breaker 5-1/2 in Clay Spade

$131.00$150.00

Paving Breaker 4-1/2 in Clay Spade

Paving Breaker 4-1/2 in Clay Spade

$134.00$150.00

Paving Breaker Brick Removing Tool

Paving Breaker Brick Removing Tool

$128.00$136.00

Paving Breaker Bushing Tool

Paving Breaker Bushing Tool

$121.00QUOTE

Paving Breaker Asphalt Wedge

Paving Breaker Asphalt Wedge

$104.00$116.00

Paving Breaker Asphalt Cutter

Paving Breaker Asphalt Cutter

$106.00$126.00

Eco Friendly Pneumatic Tool and Rock Drill Oil

Eco Friendly Pneumatic Tool and Rock Drill Oil

$67.00$270.00

Specifications

SKU
Product Name
Vendor SKU
Chuck Size (in)
Power Source
Air Inlet (in)
Pound Class (lb)
Min Air consumption at 90 psi (cfm)
Impact Rate (bpm)
Fuel Capacity (gal)
Impact energy (ft/lb)
Tool Weight (lb)
Length (in)
Horsepower (HP)
CP-8318090029
CP Red Hawk Road 1 X 4-1/4"
8318090029
1 x 4-1/4
Gas
1440
0.26
44
48
29
2
CP-8318090023
CP Red Hawk Road 1-1/4 X 6"
8318090023
1-1/4 x 6
Gas
1440
0.26
44
50
31
2
CP-8318090027
CP Red Hawk Road 1-1/8 X 6"
8318090027
1-1/8 x 6
Gas
1440
0.26
44
50
31
2
