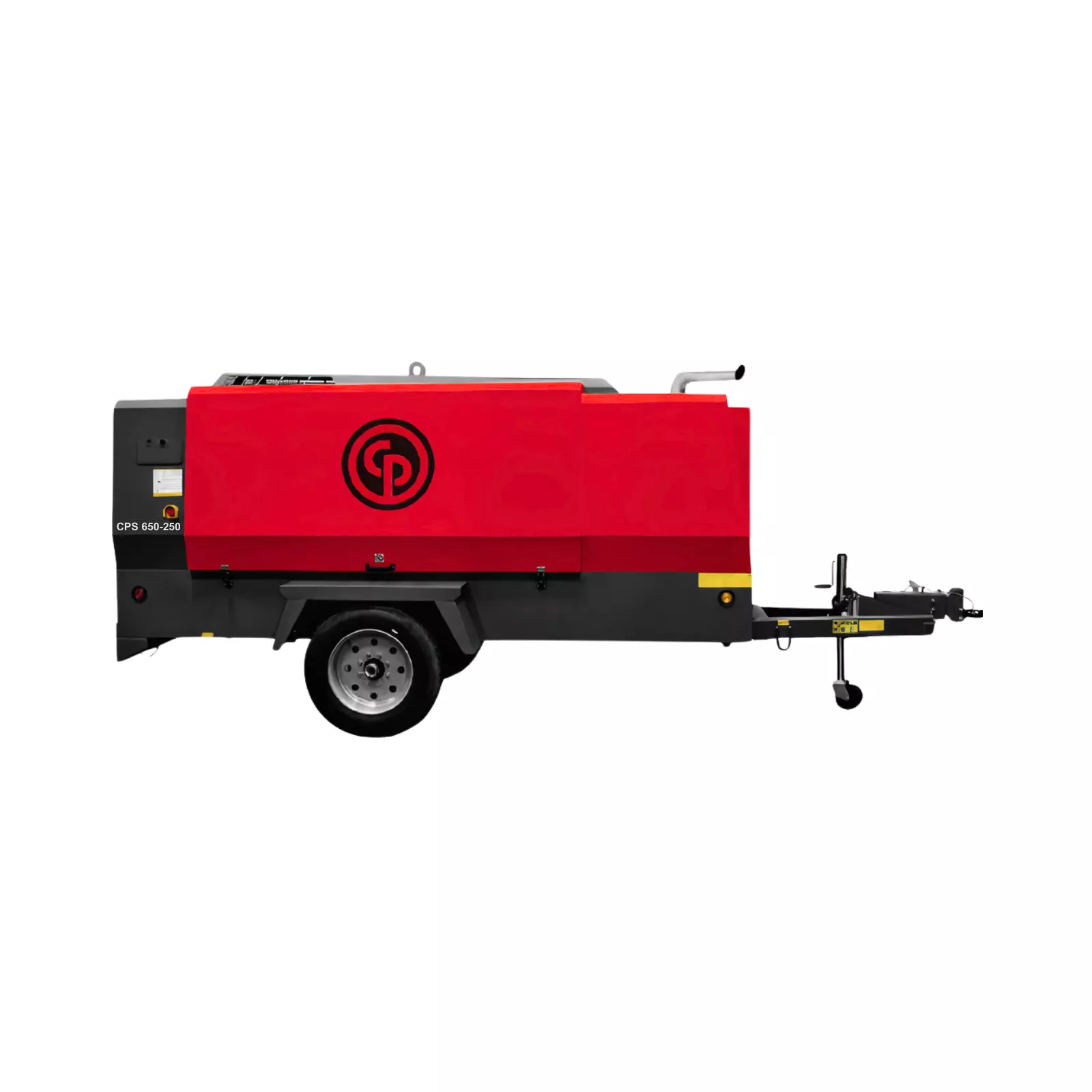

The Chicago Pneumatic CPS 650 JD8 T4F is a single-stage, oil-injected rotary-screw portable air compressor powered by a liquid-cooled, six-cylinder turbocharged John Deere 6068HFC08 diesel that meets Tier 4 Final emissions. The Xc2003 controller’s variable operating pressure and flow settings tune the machine across a 58-250 PSI range – 650 CFM at 200 PSI or 575 at 250 – matching air flow to the desired pressure to keep the engine as fuel-efficient as possible, with seamless power trimming that cuts fuel consumption up to 15% under varying loads. The whole unit sits in a compact, sound-attenuated, corrosion-resistant steel enclosure with very large doors for service access, on a 110% fluid-containment frame.
- 650/575 CFM at 200/250 PSI – variable pressure and flow from 58 PSI up
- John Deere 6068HFC08 Tier 4 Final diesel, 250 HP
- Industry-leading fuel economy – up to 15% fuel savings under varying load
- 110% fluid containment, Tier 4 Final – jobsite-ready in all US areas
- Optional PFF (Portable Full Feature) filtered-air system with aftercooler and water separator
- CP C146 compression element, ASME/CRN-approved separator tank
