CP CPS 900E Electric Air Compressor

CP CPS 900E Electric Air Compressor

$109,523.00

Portable electric air compressor – 871 CFM at 150 PSI, 220 HP motor, 460V 3-phase, zero emissions and 67 dB(A).

Add to Cart
CP CPS 900E Electric Air Compressor
$109,523.00

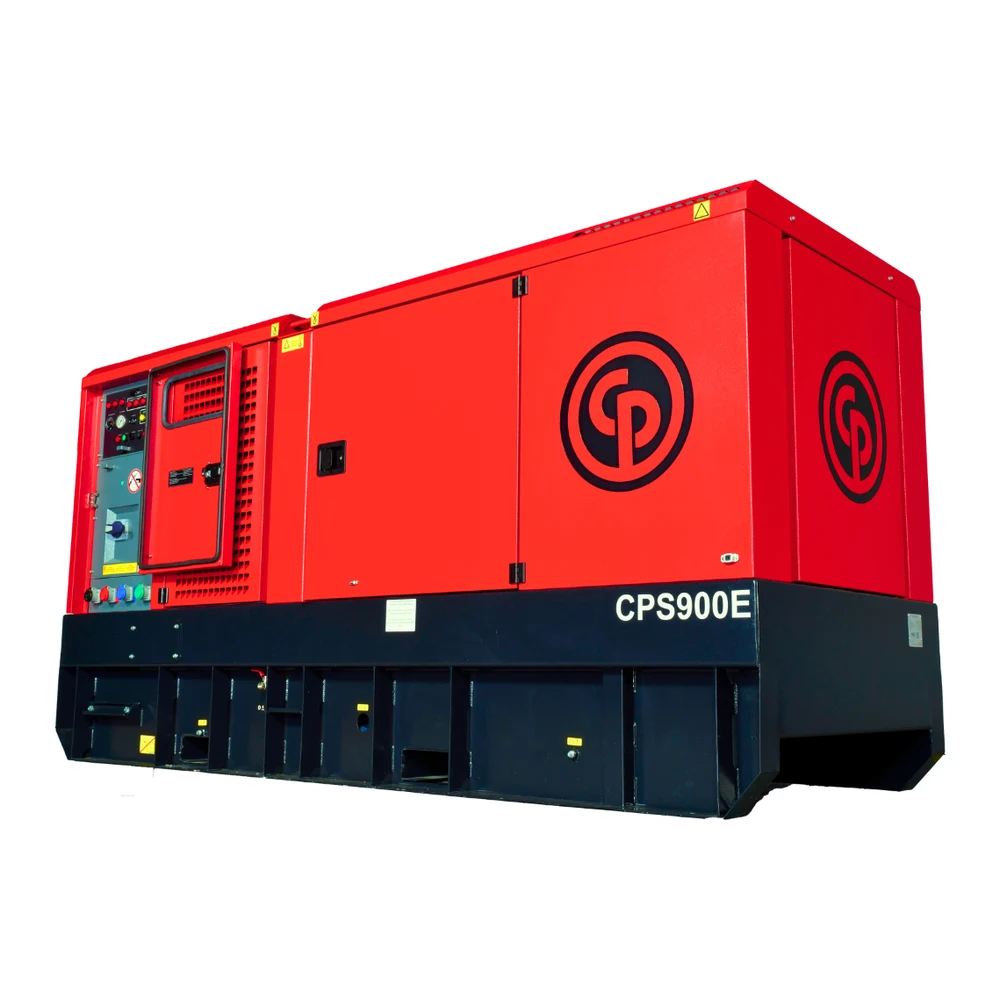

The Chicago Pneumatic CPS 900E is a portable electric air compressor delivering 871 CFM at 150 PSI from a 220 HP motor on 460V three-phase power – no engine, no fuel, no DEF, no Tier 4 hardware, and no exhaust, so it works indoors and in emissions-restricted areas where diesel machines can’t. The single-stage screw element runs a 58-150 PSI working range, and the package ships with a soft starter, after-cooler, water separator, integrated electrical breaker, and a 110% spill-containment frame, all at a quiet 67 dB(A).

  • 871 CFM at 150 PSI, 58-150 PSI working range
  • 220 HP motor, 460V 3-phase 60 Hz, 353 A full load
  • Zero emissions – indoor and restricted-site capable
  • Soft starter, after-cooler, water separator, and electrical breaker standard
  • 67 dB(A) sound level
  • 110% spill containment

Specifications

SKU
Product Name
Free Air Delivery (cfm)
Normal effective working pressure (psi)
Air Outlets
Compressor Oil Capacity (gal)
Full Load Amperage (A)
Min Ambient Temperature (F)
Minimum Working Pressure (psi)
Motor
Motor Speed (rpm)
Sound Pressure Level at 23 ft (dBA)
CP-8967003430
CPS 900E - 150 PFF electric compressor
871
150
1 x 2-1/2 in NPT
14
353
-13
58
220 HP electric, 460V 3-phase 60 Hz
1,790
67
