Pneumatic & Electric Sump Pumps, Sludge Pumps
Submersible water pumps
| CP 1110/CP 0020 Sump Pumps | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Description |
Weight
(lb)
|
Water outlet
(in)
|
Min. water depth
(in)
|
Air consumption
(cfm)
|
Overall diameter
(in)
|
Performance
(gal/min)
|
Price |
| T022224 | CP 0010 Sump pump | 33.0 | 2 | 7⁄8 | 100 | 8 1⁄4x9 | 250-125 gal/min at 90 ft | $1,935.00
|
| T022185 | CP 0020 Sump pump | 58.0 | 2 1⁄2 | 7⁄8 | 110 | 9x11 3⁄4 | 340-155 gal/min at 90 ft | $2,675.00
|
|
The CP 0010 and CP 0020 submersible pumps are designed with the performance and durability which makes them ideal for removing water from trenches, ditches, manholes, industrial sumps and excavations. Both models will pump down to within 7⁄8" (22 mm) from base.
NOT INTENDED FOR PUMPING FLAMMABLE FLUIDS AND MUST NOT BE USED FOR DOING SO Free ground shipping to the continental US. |
 |
|||||||
| CP 0010 Performance Air Consumption at 90 psi: 100 cfm |
|||||
|---|---|---|---|---|---|
|
Total Head
(ft)
|
Discharge Rate
|
||||
|
40 psi
(gal/min)
|
60 psi
(gal/min)
|
80 psi
(gal/min)
|
90 psi
(gal/min)
|
100 psi
(gal/min)
|
|
| 10 | 160 | 220 | 240 | 245 | 255 |
| 20 | 140 | 205 | 230 | 240 | 250 |
| 30 | 120 | 185 | 215 | 230 | 245 |
| 40 | 90 | 160 | 200 | 215 | 230 |
| 50 | 60 | 135 | 175 | 195 | 210 |
| 60 | 10 | 105 | 155 | 175 | 195 |
| 70 | - | 80 | 130 | 150 | 170 |
| 24.3 | - | 60 | 95 | 125 | 155 |
| 90 | - | - | 75 | 105 | 125 |
| 100 | - | - | 55 | 75 | 95 |
| CP 0020 Performance Air Consumption at 90 psi: 110 cfm |
||||
|---|---|---|---|---|
|
Total Head
(ft)
|
Discharge Rate
|
|||
|
40 psi
(gal/min)
|
60 psi
(gal/min)
|
80 psi
(gal/min)
|
100 psi
(gal/min)
|
|
| 10 | 230 | 285 | 325 | 340 |
| 20 | 195 | 265 | 315 | 330 |
| 30 | 150 | 245 | 300 | 320 |
| 40 | 130 | 220 | 280 | 305 |
| 50 | 100 | 190 | 260 | 280 |
| 60 | 65 | 165 | 230 | 260 |
| 70 | - | 125 | 200 | 225 |
| 80 | - | 80 | 160 | 190 |
| 90 | - | - | - | 155 |
| Accessories | ||||||||
|---|---|---|---|---|---|---|---|---|

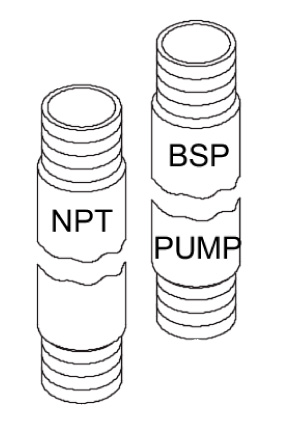

| S038723 | Air Exhaust Pipe for CP 0010 | $57.88
|
||||||
| C086080 | Air Exhaust Pipe for CP 0020 | $55.92
|
||||||
| AIRH-19-50R | Contractors Air Hose | $124.00
|
||||||
| WCSML | Whip Check | $12.50
|
||||||
Sludge Pumps
| CP 0077 Sludge Pump | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Description |
Weight
(lb)
|
Water outlet
(in)
|
Max. suction lift
(ft)
|
Air consumption
(cfm)
|
Performance
(gal/min)
|
Water inlet
(in)
|
Price |
| T024005 | CP 0077 Sludge pump | 152.0 | 2-1⁄2 | 20 | 85 | 90-36 gal/min at 90 psi | 2-1⁄2 | $2,620.00
|
The CP 0077 sludge pump easily handles water containing 15% solids and particles up to 1" (25 mm) in size. It is suitable for pumping seawater and certain corrosive chemicals.
- Operates on venturi/ejector principle - no motor or diaphragm to wear out.
- Exhaust muffler - reduces sound level
NOT INTENDED FOR PUMPING FLAMMABLE FLUIDS
| CP 0077 Performance at 90 psi, zero suction head | |
|---|---|
|
Total Head
(ft)
|
Discharge Rate
(gal/min)
|
| 25 | 90 |
| 50 | 78 |
| 75 | 68 |
| 100 | 60 |
| 150 | 48 |
| 175 | 36 |
| Parts & Accessories | ||||||||
|---|---|---|---|---|---|---|---|---|
| F027762 | Inlet Hose Nipple | 3" unthreaded x 2-1⁄2" BSP | $41.49
|
|||||
| R146385 | Outlet Nipple | 2-1⁄2" NPT (both ends) | $32.21
|
|||||
| R146383 | Outlet Nipple | 2-1⁄2" NPT street elbow | $81.15
|
|||||
| AIRH-19-50R | Contractors Air Hose | $124.00
|
||||||
| WCSML | Whip Check | $12.50
|
||||||
