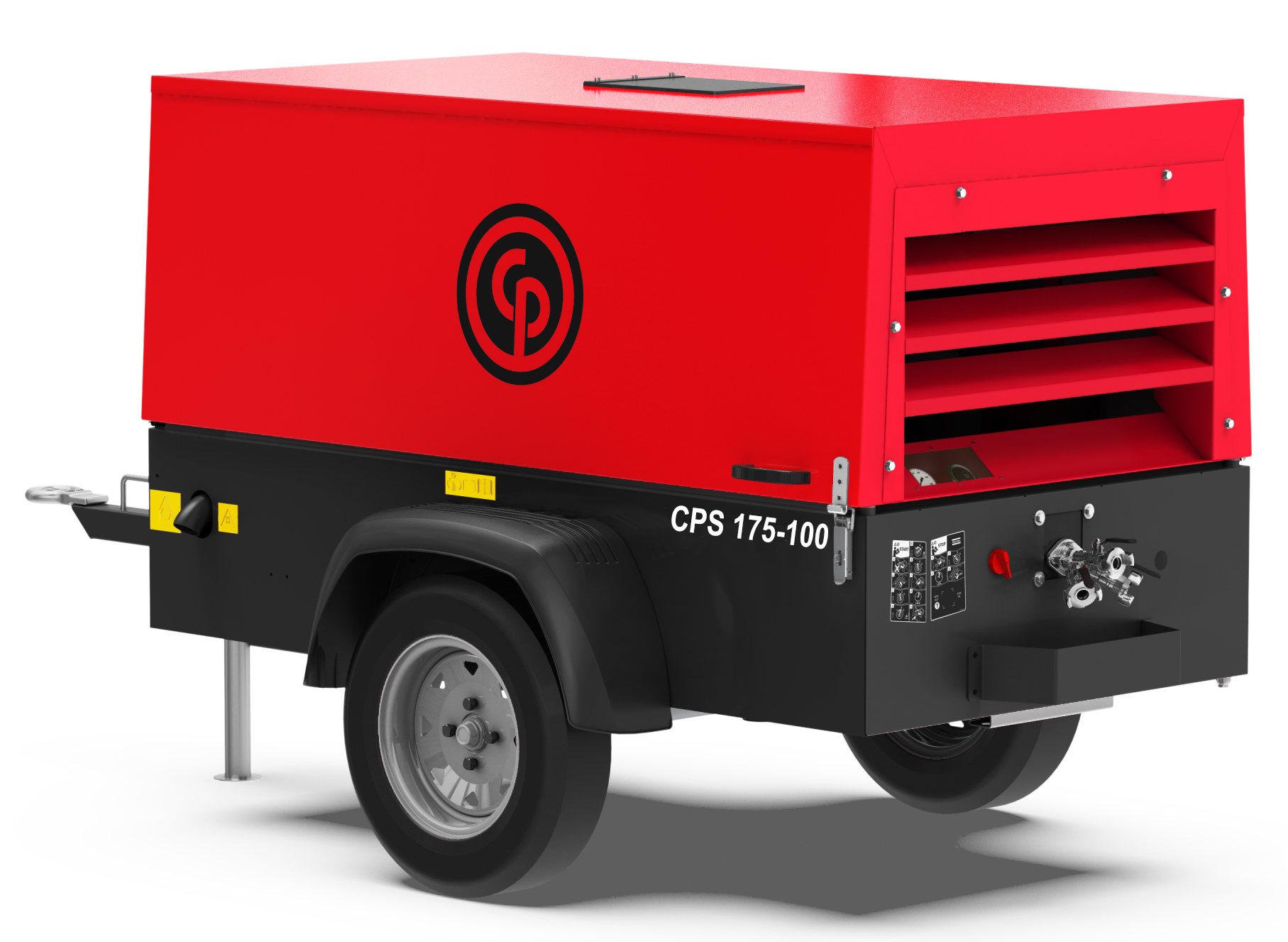

The Chicago Pneumatic CPS 175-100 T4F is a single-stage, oil-injected, rotary screw type air compressor powered by a liquid-cooled, four-cylinder turbo charged Kubota diesel engine.

The unit hosts the new generationa C67 Screw element in its air end combined with a Kubota made diesel engine model V1505-CR-T-E5B, complying with T4F emission standard.

Special attention has been given to the overall product quality, user freindliness, ease of serviceability, and economical operation to ensure best in class cost of ownership

• Compact, fuel-efficient engine
• Designed with environmental protection in mind
• Compact, sound attenuated, orrosion resistant enclosure

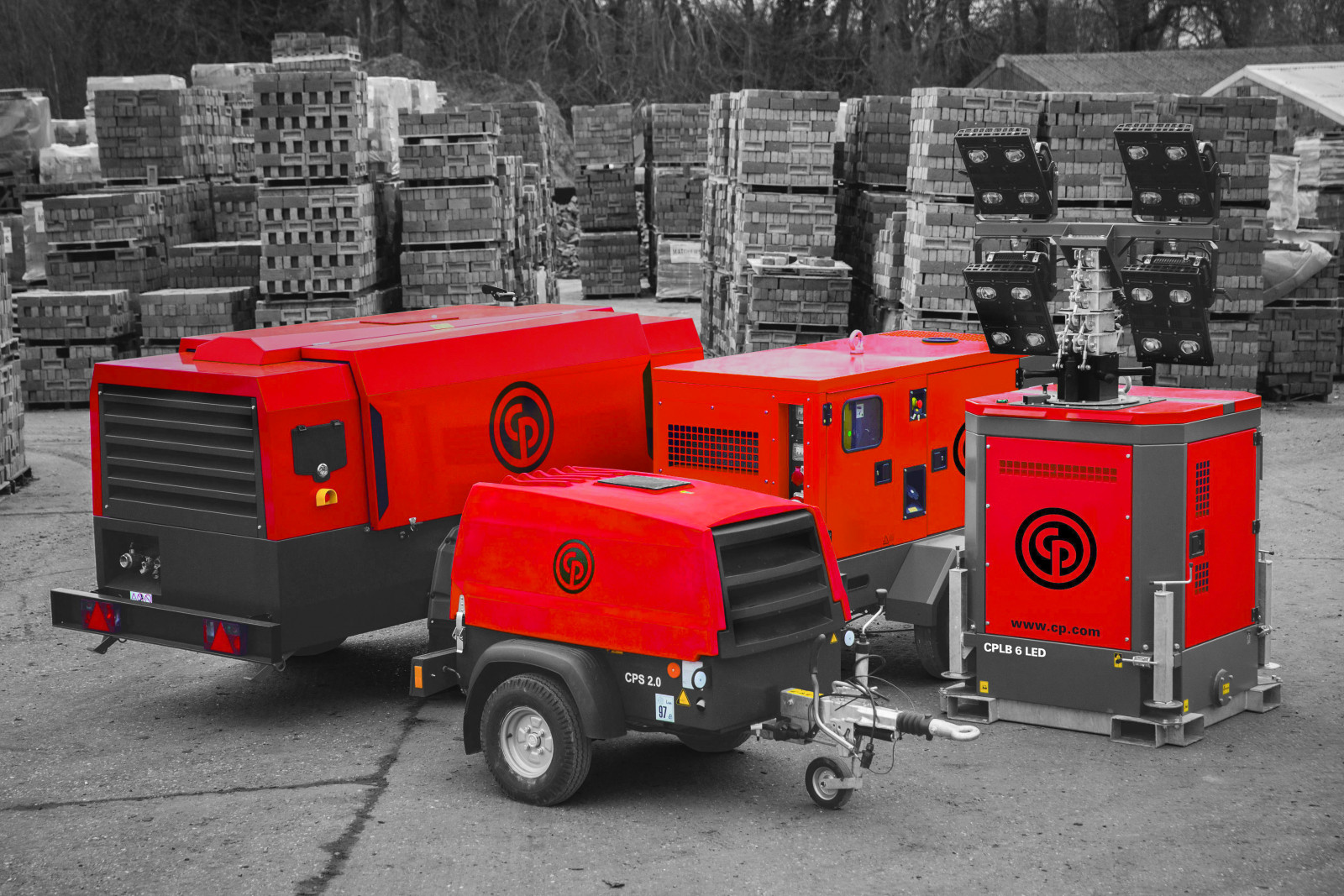

• RedRock hood and 3-lay painting of metal parts.
• Kubota D902 Tier 4 Final 25 Hp mechanical diesel engine (muffler only) with starter protection
• Thermostatic by-pass valve, anti-airlock system in fuel lines to guarantee starting
• Electrical shutoff switch
• 110V block heater
• Polyethylene canopy built for heavy-duty applications.  Base fram with 3 layer anti-corrosion paint
• Designed to reduce maintenance time with easy access filters and fluids.  Pressure vessel comes with spin-on filter
• Two (2) ¾" ball valves
• DOT towing package:  Road lights (4 way flat plug), 3" pintle towing hitch, torsion axle, VIN, adjustable jack stands, NO brakes.

Benefits

• Saves up to 25% of fuel on typical applications in this range compared to its Stage IIIA predecessor (at 50% load)
• The unit comes with a Spillage Free frame as standard with 110% fluid containment and T4F emission compliant engine
• For EPA compliance, the unit is enclosed in a sound attenuated clam shell type canopy
• Compact and maneuverable, saving valuable space on your job site, and during transportation
• High residual vale and low repair costs

• Specifications
• Accessories
• Manuals and Documents

Part Number		8162010131
Price		$23,750.00
Compressor
Actual Free Air Delivery (FAD)	cfm	170
Normal Effective Working Pressure	psi	100
Max. Sound Pressure Level @ 23' - normal working speed & pressure	dB(a)	70
Air Receiver Capacity	gal
Compressor Oil Capacity	gal	2.1
Air Compressor Outlets		2 x ¾
Engine
Engine Model		Kubota V1505-CR-T-E5B
Emissions Regulation	US EPA	T4F Final
Number of Cylinders		3
Engine Speed - unloaded	rpm	1800
Engine Speed - maximum loaded	rpm
Engine Oil Capacity	gal	1.45
Fuel Tank Capacity	gal	15.8
Fuel Consumption at 100% load	gal/hr
Dimensions & Weight, including undercarriage
Weight	lbs	1638
Dimensions (L x W x H)	in	117 x 53 x 56



Parts & Accessories
Service Pack - 250 Hours	3002608410	$87.72		1626226000	Genoil M - 1.32 Gal	$78.31
Service Pack - 500 Hours	3002608420	$98.53		1626226100	Genoil M - 5.3 Gal	$244.54
Service Pack - 1000 Hours	3002608430	$544.72		1630017500	Genoil S - 1.32 Gal	$501.49
Service Kit - Unloader Valve	2911005100	$361.11		1630024900	Genoil S Ultra - 5.3 Gal	$702.35
				1638074000	Genoil Engine Green - 1.32 Gal	QUOTE
				1638075000	Genoil Engine Green - 5.3 Gal	QUOTE
				1626225701	Gencool EG Concentrate - 1.32 Gal	$40.66
				1626225501	Gencool EG - 1.32 Gal	$29.64

Spare Parts List - Please call us for a copy of the breakdown

Specification Sheet







• 110% Spillage Free Containment Frame
• New Intuitive Controller
• Thermostatic Bypass valve on compressor oil system
• Mineral based compressor oil (1000 hrs/1 yr service interval)
• Heavy Duty battery
• Spillage free frame
• Heavy Duty Single Axle Trailer with 15" Tires
• Large Internal Tool Box
• Spin-on Type Compressor Oil Separator
• Red Rock Enclosure
• DOT towing package:  road lights (4 way flat plug), adjustable height 3" pintle towing eye, 13" weels and torsion axle, VIN, adjustable jack stand, NO brakes.

Options

• Cold Weather Package - increases service interal to 1500 hours or 2 years
• Hose Reel with Extended Drawbar
• Support Mount
• OSHA Valve

• Specifications
• Accessories
• Manuals and Documents

CPS 185 KD8 T4F  & CPS 185 KDI T4F CW Mobile Air Compressor
Part Number		8972422001		8972426004
Price		QUOTE		QUOTE
Cold Weather Package		Optional		Included
Compressor
Actual Free Air Delivery (FAD)@ Effective Working Pressure	cfm	189		189
Normal Effective Working Pressure	psig	100		100
Maximum Unloaded Pressure	psig	125		125
Minimum Working Pressure	psig	58		58
Air Compressor Outlets	in	2 x ¾		2 x ¾
Max Sound Pressure Level @ 23'	dB(a)	76		76
Max Ambient Temperature @ sea level	°F	122		122
Min Startring Temperature without cold start aid	°F	14		14
Min Starting Temperature with cold start aid	°F	-13		-13
Compressor Oil Capacity	gal	2.5		2.5
Fuel Tank Capacity	gal	27		27
Fuel Consumption @ 100% load	gal/hr	2.37		2.37
Fuel Autonomy @ full load standard	hr	11.4		11.4
Engine
Engine Model		Kubota D1803T		Kubota D1803T
Number of Cylinders		3		3
Displacement	L	1.82		1.82
Power Output @ normal shaft speed	hp	49		49
Emissions Level		Tier 4 Final		Tier 4 Final
Full Load rpm	rpm	2700		2700
Unload rpm	rpm	1800		1800
Dimensions & Weight, including undercarriage
Weight - wet	lbs	2100		2100
Dimensions (L x W x H)	in	130 x 62 x 69		130 x 62 x 69

Parts & Accessories
External Hose Reel - 50' Single live hose reel with extended drawbar - no hose	0010001042	QUOTE		Service Pack - 500 Hours	1310923669	$400.85
External Hose Reel - 100' Single live hose reel with extended draw bar - no hose	0010001041	QUOTE		Service Pack - 1000 Hours	1310923670	$882.52
External Hose Reel - 50' Double live hose reel with extended draw bar - no hose	0010001040	QUOTE		Service Kit - Oil Separator	1625001057	$383.06
External Hose Reel - 100' Double live hose reel with extended drawbar - no hose	0010001039	QUOTE		Service Kit - Unloading Valve	2911005100	$361.11
Extended Drawbar	0010001043	QUOTE		Genoil M - 1.32 Gal	1626226000	$78.31
				Genoil M - 5.3 Gal	1626226100	$244.54
				Genoil S - 1.32 Gal	1630017500	$501.49
				Genoil 5W40 - 1.32 Gal	1626225801	$72.79
				Genoil 5W40 - 5.3 Gal	1626225901	$217.47
				Gencool EG Concentrate - 1.32 Gal	1626225701	$40.66
				Gencool EG - 1/32 Gal	1626225501	$29.64
				Gencool EG - 5.3 Gal	1626225601	QUOTE

 Spare Parts/Breakdown
