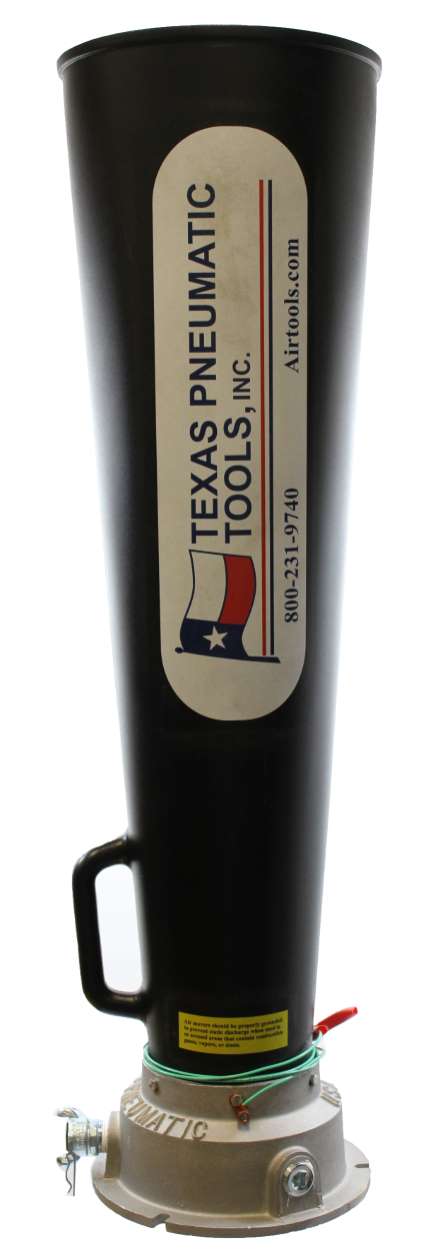

TX10AMP - 10" Air Mover with Polymer Horn

am6p
AIR FILTRATION FOR BETTER BREATHING
When workers are breathing the air that has passed through the air movers, Texas Pneumatic has made available products to improve the environmental conditions. Dust collection bags are able to catch the larger suspended particles and contain them from floating beyond the top of the air horn. An Arrow Pneumatic's filter can be used to filter can be used to filter the air coming from the compressed air source. The compressed air may be contaminated with an oil content exceeing 5ppm. By using one of the high efficiency systems from Arrow, it ensures an air quality index of .015ppm.

As a cautionary note, strict precautions may be required involving the use of any air mover in gas freeing, prevention of tank collapse, tank entry and tank cleaning where any volatile or poisonous fumes are present.

Compressed air or saturated steam is the power source for this air mover. It operates on the venturi principle whereby you take small volumes of high velocity air (from the compressed air source) through the casting and out the nozzle jets, creating a venturi action or pulling action that induces large volumes of low velocity air through the venturi and out the air diffuser.

A 1-12" hose is recommended from your air supply source to the side inlet connection. The compressor size required can be determined by checking the chart on air consumed at various inlet pressures. Operate this air mover on air or steam lines limited to 140psi.





SPECIFICATIONS
TX10AMP $1,060.00
Overall Length (in) 48
Diameter of Base (in) 17
Diameter Top of Horn (in) 15.75
NPT Size (in) 1
Bolt Circle Diameter (in) 15.5
Base Slot Diameter (in) 1
Net Weight (lb) 42.06
PERFORMANCE

60 PSIG

6182 189 32.71

80 PSIG

7304 252 28.98

100 PSIG

8220 380 21.63
DOCUMENTATION
Brochure
COMMON REPLACEABLE PARTS AND ACCESSORIES

Grounding Wire and 6' Wire

AM29

$16.70

Metal Cone for TX10AM Air Movers

AM21

$285.95

Polymer Cone for TX10AM Air Movers

AM21P

$285.90

Air Mover Stand

AMIS30

$890.00

Air Ducting - 16" x 30' with attached bag for carrying and storage

TXSAC-N-GO-16

$490.00
