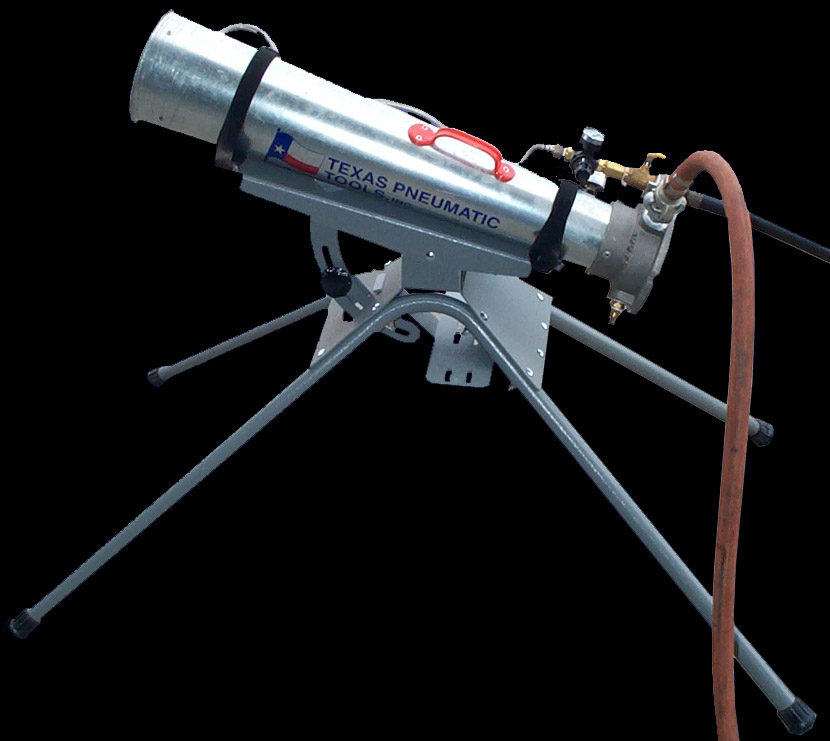

Air Misters
If you have a sufficient compressed air source and a potable water hose connection you can achieve a 10F to 30F drop in the ambient temperature throughout the path of air exiting the air mover (depending on the humidity of the ambient air). The optimum cooling begins after the first 10 feet of air exiting the end of the air horn diffuser.
Features:
- Atomized Mist - Water/air mixed "Atomized Mist" combined with compressed air powered air movement
- Evaporative Cooling - in arid climates. Provides evaporative cooling effect.
- Misting and Air - Misting amplified greatly by the air movement of the Venturi Air Mover.
- Outdoor Event - Hotspots in outdoor construction, turnarounds, shutdowns, outages.
- Reduces heat exhaustion
- Reduces heat stress
| Description |
Total Air Flow
(80 psi)
|
Air Consumed
(80psi)
|
Height
(lb)
|
Length
(in)
|
Part No | Price | Part No with Stand | Price with Stand |
|---|---|---|---|---|---|---|---|---|
| VAM3S 3" Air Mister (short) | 1182 cfm | 62 cfm | 32 | 17 | VAM3S | $1,050.00
|
VAM3S-WS | $1,695.00
|
| VAM3 3" Air Mister | 1462 cfm | 62 cfm | 35 | 31 | VAM3 | $1,050.00
|
VAM3-WS | $1,695.00
|
| VAM6 6" Air Mister | 3347 cfm | 124 cfm | 49 | 45 | VAM6 | $1,180.00
|
VAM6-WS | $1,825.00
|
| VAM6P 6" Air Mister with Polymer Horn | 3347 cfm | 124 cfm | 49 | 45 | VAM6P | $1,180.00
|
VAM6P-WS | $1,825.00
|
| VAM8 8" Air Mister | 4929 cfm | 193 cfm | 62 | 47 | VAM8 | $1,425.00
|
VAM8-WS | $2,070.00
|
| VAM10 10" Air Mister | 7304 cfm | 274 cfm | 69 | 50 | VAM10 | $1,935.00
|
VAM10-WS | $2,580.00
|
| Air Mister Stand | AMIS30 | $890.00
|
||||||
| Documentation |
|---|
| Spare Parts List |
