Texas Pneumatic Air Manifolds
Compressed air manifolds from 2.5 to 60 gallons that split one compressor across a whole crew and hold the pressure steady while they work. ASME certified, built in Reagan, Texas, stocked in Denver.
The short version
An air manifold is a small ASME-coded air receiver with multiple outlets. It takes one supply hose from the compressor and splits it into several tool connections, and the tank volume keeps pressure from collapsing every time a breaker or blow gun opens. Texas Pneumatic builds five: the 2.5-gallon TX3AMF (22 lb, carry it anywhere), the 10-gallon TX6AMF (California permit exempt), the 15-gallon TX2AMF (the one most crews buy), and the 30 and 60 gallon TX4AMF and TX5AMF with mixed 3/4, 1 and 2 in outlets. Comparing every brand we carry? See the all-brands air manifolds category, or pair one with an air receiver tank and a moisture separator for clean, dry, steady air. Questions on sizing: 1-888-883-5144.
Five sizes, one job: clean air where the crew needs it

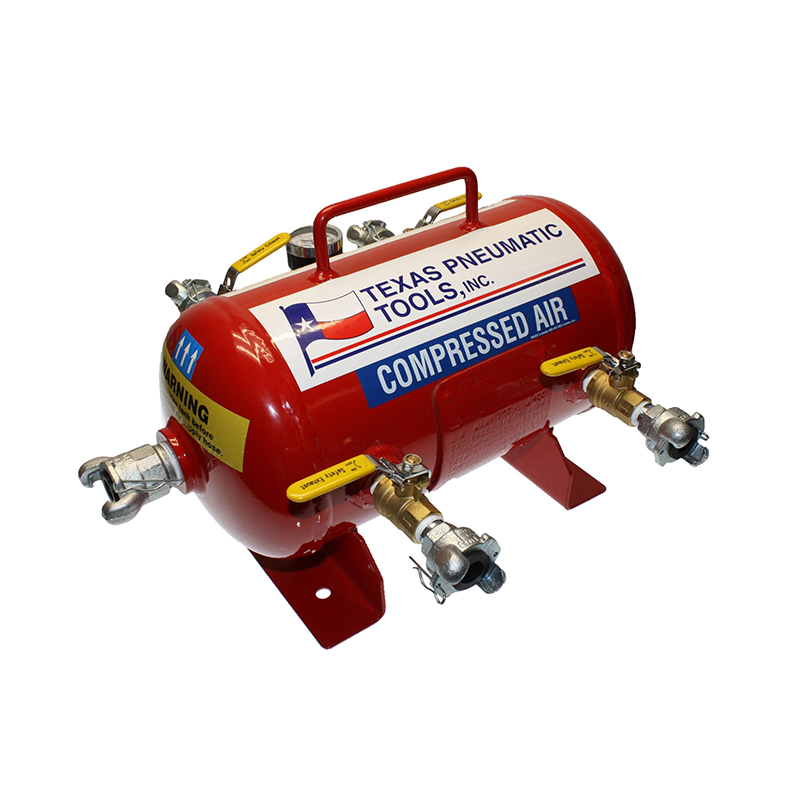

Texas Pneumatic TX3AMF 2.5 Gal. Air Manifold
The portable one. Small enough to carry with one hand onto a roof or into a vault, big enough to steady two or three small tools. Choose plain 1/2 in NPT outlets or 1/4, 3/8 and 1/2 in quick connects. The optional TX-10099 safety cage fits this model.
2.5 gal · 22 lb · ASME coded · four outlet configurations

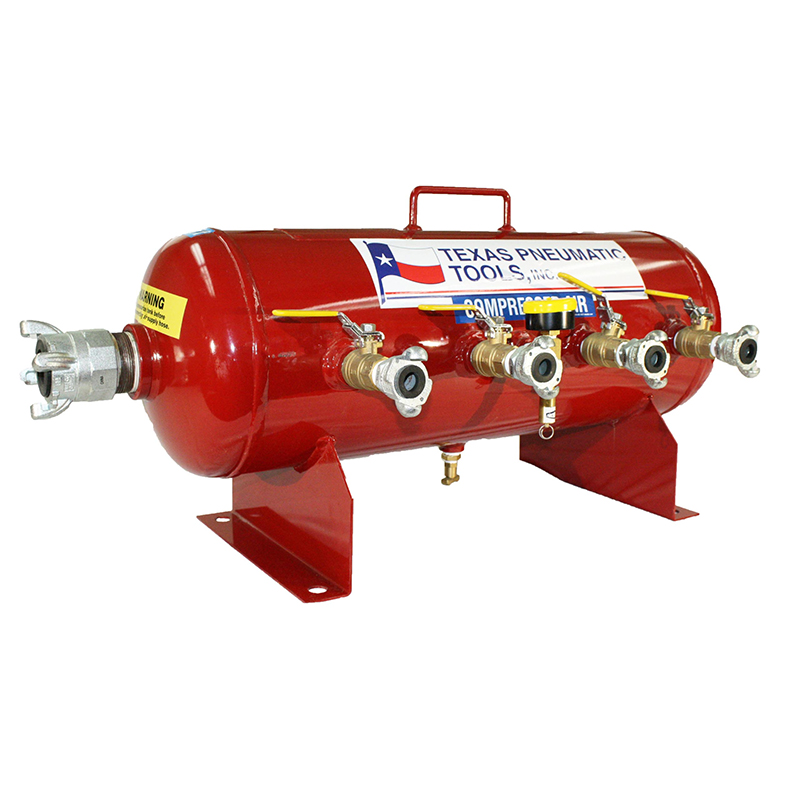

Texas Pneumatic TX6AMF 10 Gal. Air Manifold
Sized under the California air-receiver permit threshold, so a fleet running in CA does not add a permitted vessel to the yard. 3/4 in NPT outlets and the same ASME construction as the rest of the range. The TX-10099 safety cage fits this one too.
10 gal · 51 lb · California permit exempt · 3/4 in NPT
Texas Pneumatic TX2AMF 15 Gal. Air Manifold
The size most contractors land on. Enough stored volume to keep four tools from fighting each other, still a one-person lift. 3/4 in NPT outlets, ASME coded, and the model Crowder sells more of than any other Texas Pneumatic manifold.
15 gal · 63 lb · ASME coded · 3/4 in NPT outlets
Texas Pneumatic TX4AMF 30 Gal. Air Manifold
Mixed outlet sizes start here: two 3/4 in, four 1 in and two 2 in connections off a 30-gallon ASME vessel. That combination feeds small hand tools and large breakers from the same header without robbing either.
30 gal · 115 lb · (2) 3/4 in, (4) 1 in, (2) 2 in outlets
Texas Pneumatic TX5AMF 60 Gal. Air Manifold
The largest manifold TPT builds and the one to specify when a big tow-behind compressor is feeding a full spread. Same mixed 3/4, 1 and 2 in outlet set as the 30-gallon, with more than twice the stored volume behind it.
60 gal · 193 lb · (2) 3/4 in, (4) 1 in, (2) 2 in outlets
Air manifold comparison
Every model is ASME certified and made in the USA. Weights are bare tool.
| Model | Capacity | Outlets | Weight | Safety cage | Price |
|---|---|---|---|---|---|
| TX3AMF | 2.5 gal | 1/2 in NPT or 1/4, 3/8, 1/2 in quick connect | 22 lb | TX-10099 fits | $1,130–$1,175 |
| TX6AMF | 10 gal | 3/4 in NPT | 51 lb | TX-10099 fits | $1,575 |
| TX2AMF | 15 gal | 3/4 in NPT | 63 lb | TX-10099 fits | $1,575 |
| TX4AMF | 30 gal | (2) 3/4 in, (4) 1 in, (2) 2 in | 115 lb | — | $2,695 |
| TX5AMF | 60 gal | (2) 3/4 in, (4) 1 in, (2) 2 in | 193 lb | — | $3,125 |
Swipe the table sideways to see every column.
Build the whole air package
Air manifold questions, answered
What is an air manifold?
An air manifold is a small ASME-coded pressure vessel with one inlet and several outlets. It does two things at once: it splits a single compressor supply into multiple tool connections, and its stored volume absorbs the pressure drop when a tool opens. Without one, four operators sharing a compressor pull each other’s pressure down every time someone squeezes a trigger. Texas Pneumatic manifolds also give the water in the line somewhere to fall out before it reaches the tools.
How many tools can I run off one air manifold?
The manifold does not set the limit — the compressor does. Add up the CFM draw of every tool you plan to run at the same time and compare it to the compressor’s output at 90 psi. Then pick a manifold with enough outlets and enough volume: 2.5 gallons steadies two or three small tools, 15 gallons suits a typical four-tool crew, and the 30 and 60 gallon models carry eight mixed outlets for larger spreads. Call 1-888-883-5144 with your compressor model and tool list and we will size it.
Are Texas Pneumatic manifolds ASME certified?
Yes. Every TX-AMF manifold is ASME certified and built to meet OSHA and ASME code guidelines. That matters on jobs where the safety officer inspects pressure vessels, and it is the reason a coded manifold costs more than a piece of pipe with ball valves welded to it.
What is the California permit exempt manifold?
California permits air receivers above a certain size. The 10-gallon TX6AMF is built to sit under that threshold, so a fleet operating in California can run a proper coded manifold without adding a permitted vessel to the inventory. It carries the same 3/4 in NPT outlets as the 15-gallon model.
What is the TX-10099 safety cage for?
It is an optional guard that fits the TX3AMF (2.5 gal) and TX6AMF (10 gal) manifolds. Some sites require a cage around a portable pressure vessel that gets dragged, dropped and struck. Call for pricing and availability — we quote it with the manifold.
Air manifold or air receiver tank — which do I need?
A manifold is about distribution: several outlets, portable, sized in single-digit to tens of gallons. A receiver tank is about storage: 80 to 400 gallons, usually fixed, sized to stop a compressor short-cycling and to buffer big intermittent demands. Plenty of shops run both — the receiver behind the compressor, the manifold out at the work.
Do I still need a moisture separator?
If you are blasting, painting, running instrument air, or working in freezing weather, yes. The manifold drops out some bulk water but it is not a dryer. The TX-MSS systems take four passes at the moisture and add deliquescent desiccant for final drying — see moisture separation systems.
Do you carry manifolds from other brands?
Our all-brands air manifolds category shows everything we stock side by side. Texas Pneumatic is the line we carry deepest in coded manifolds, which is why this page exists.
How do these ship?
The 2.5, 10 and 15 gallon manifolds ship UPS Ground and go out the same day on orders placed by 4 PM Eastern. The 30 and 60 gallon models ship freight; we quote the freight with the order. Call 1-888-883-5144 if you need a delivery date before you buy.
Not sure which manifold matches your compressor?
Tell us the compressor, the tools and how many people are on air at once. We will tell you the size — and tell you if you do not need one.
