Needle / Chisel Scalers
Texas Pneumatic scalers have been proven throughout the industrial job sites, as well as construction and marine repair industry.
- Made in the USA
- World class value pricing
- Quality equal to or better than competitively made scalers
- Tools have been proven in thousands of applications
- Tens of thousands of these tools are in the field
- Completely convertible from needle to chisel scaler and visa versa
Tool Applications
- De-rusting and cleaning metals
- Peening of welded joints
- Cleaning castings
- Cleaning welding slag
- Removing barnacles
- Removing paint, rust and dirt
- Chipping stone, concrete and brick
- Needle scalers adjust to any surface contour automatically

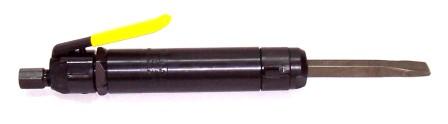

TX1B Needle/Chisel Scalers
| Part No | Description | Weight (lb) | Length (in) | Bore (in) | Stroke (in) | Impact Rate | Air Inlet (NPT) | Air Cons. (cfm) | Min Hose Size (in) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX1BLTCS | TX1B Chisel Scaler - Lever Throttle | 5 | 15" with chisel | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $175.00
|
| TX1BPTCS | TX1B Chisel Scaler - Push Throttle | 5 | 15" with chisel | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $200.00
|
| TX1BLTCSLR | TX1B Long Reach Chisel Scaler - Lever Throttle | 5 | 15" with chisel | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $650.00
|
| TX1BCOCS-NR | Coke Oven Chisel Scaler - Non Revolving | 5 | 15" with chisel | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $260.00
|
| TX1BLTNS | TX1B Needle Scaler - Lever Throttle | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $245.00
|
| TX1BPTNS | TX1B Needle Scaler - Push Throttle | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $270.00
|
| TX1BLTNSW7 | TX1B Needle Scaler - Lever Throttle with 7" Needles | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $245.00
|
| TX1BLTNS-2MM | TX1B Needle Scaler - Lever Throttle with 2mm Needles | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $275.00
|
| TX1BLTNS-4MM | TX1B Needle Scaler - Lever Throttle with 4mm Needles | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $275.00
|

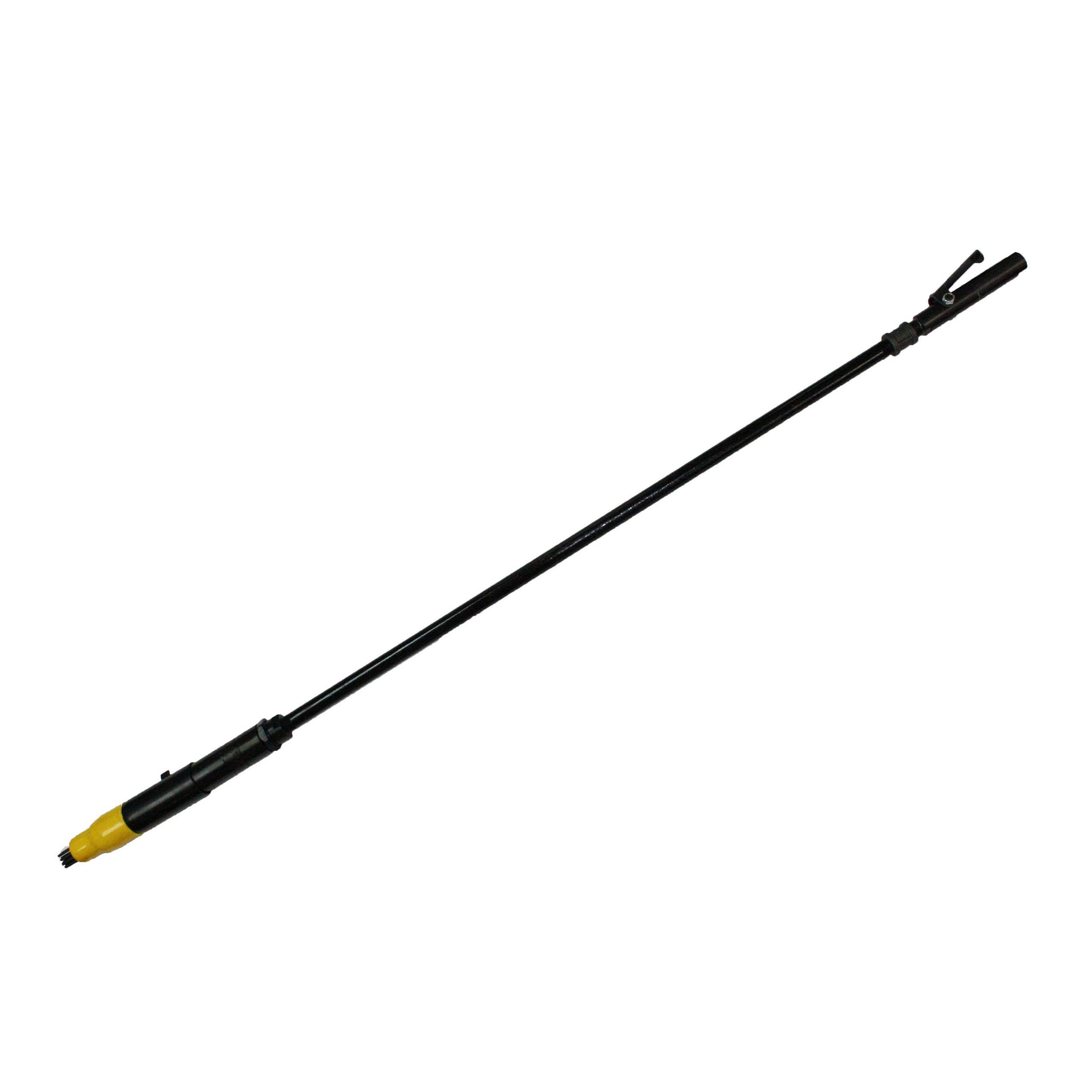

| TX1BLTNSLR | TX1B Long Reach Needle Scaler - Push Throttle | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $710.00
|

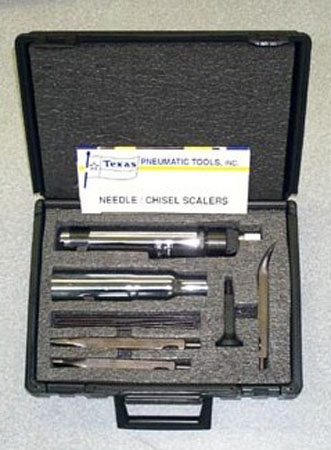

| TX1BLTNS-MK | TX1B Millennium Needle Scaler Kit | 7 | 17" with 5" needles | 1 | 1-1⁄8 | 4600 | 1⁄4 | 12 | 3⁄8 | $440.00
|
Common Replaceable Parts And Accessories

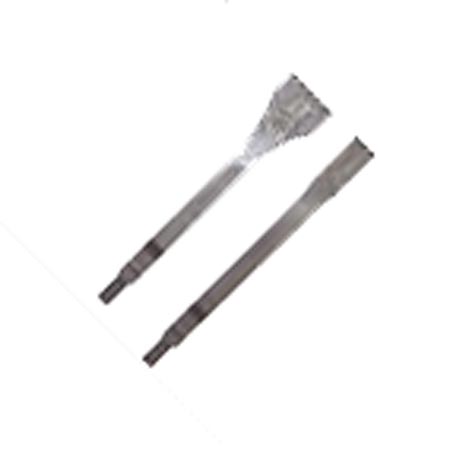

| Chisels | ||
|---|---|---|

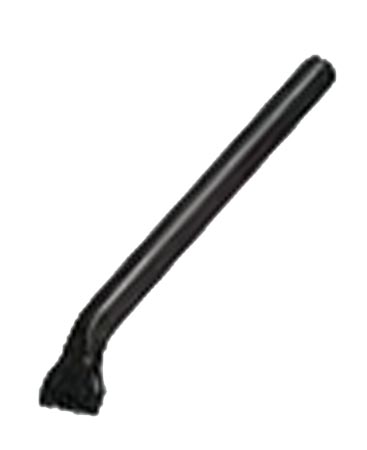

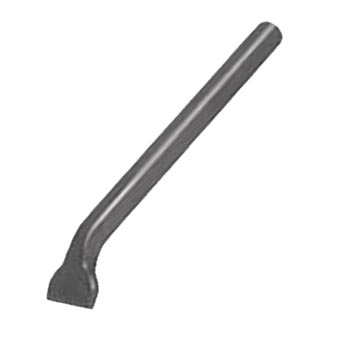

| 6-1⁄2 X 1-3⁄8" Spoon Chisel | TX00048 | $13.00
|
| 6-1⁄2 x 1-3⁄8" Spoon Chisel | TX00049 | $13.00
|
| 7" x 3⁄4" Flat Chisel | TX00047 | $12.05
|
| 7" Hardened Blank Chisel | TX00050 | $10.55
|
| 12" x 3⁄4" Flat Chisel | TX00051N | $15.30
|
| 12" x 1-3⁄8" Flat Chisel | TX00052 | $16.60
|
| 18" x 3⁄4" Flat Chisel | TX00054N | $19.60
|
| 18" x 1-3⁄8" Flat Chisel | TX00054W | $20.30
|
| 18" x 1-3⁄8" Spoon Chisel | TX00055 | $20.30
|
| TX1B Chisel Scaler Repair Kit | TX1BCSRK | $70.00
|

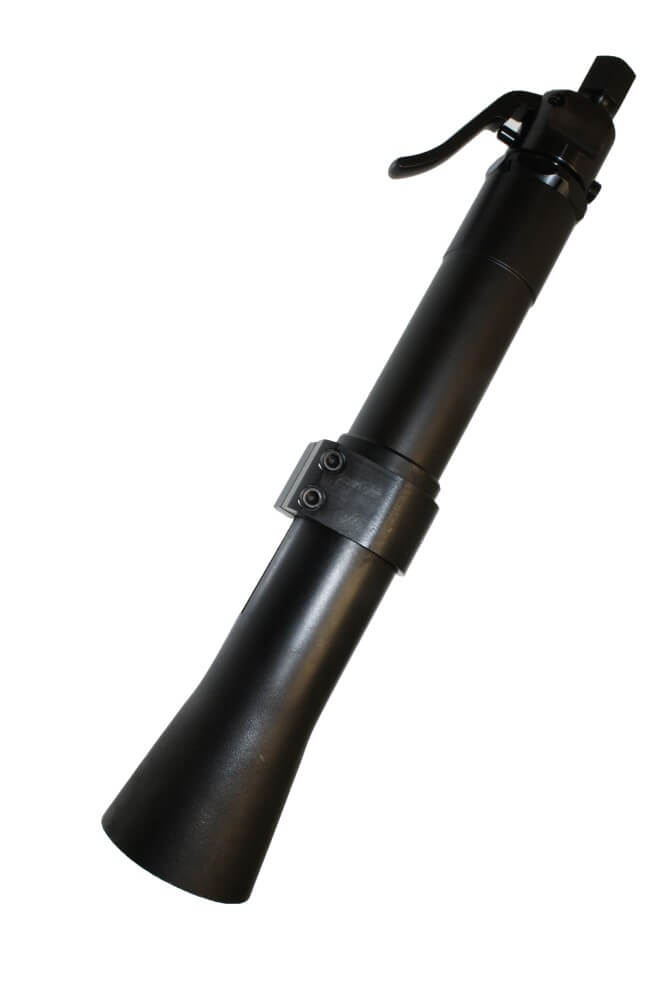

| Tomato State Tool with Flared Tube | TX456-TSFT | $515.00
|
| Needles | Single Needle | Set of 19 Needles | ||
|---|---|---|---|---|
| 5" Steel Needle | TX00043 | $1.00
|
TX00519 | $11.40
|
| 5" Stainless Steel Needle | TX00018 | $1.90
|
TX00018-19 | $36.10
|
| 5" Beryllium Copper Needle | TX00119 | $6.30
|
TX00119-19 | $119.70
|
| 7" Steel Needle | TX00024 | $1.00
|
TX00719 | $11.40
|
| 7" Stainless Steel Needle | TX00019 | $2.15
|
TX00019-19 | $40.85
|
| 7" Beryllium Copper Needle | TX00120 | $7.65
|
TX00120-19 | $145.35
|
| TX1B Needle Scaler Repair Kit | TX1BNSRK | $175.00
|
||

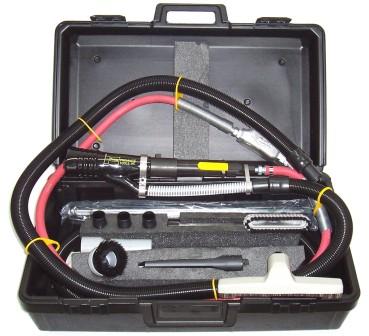

| Complete Vacuum Attachment | TX1BLTNS-VK | $1,375.00
|
||

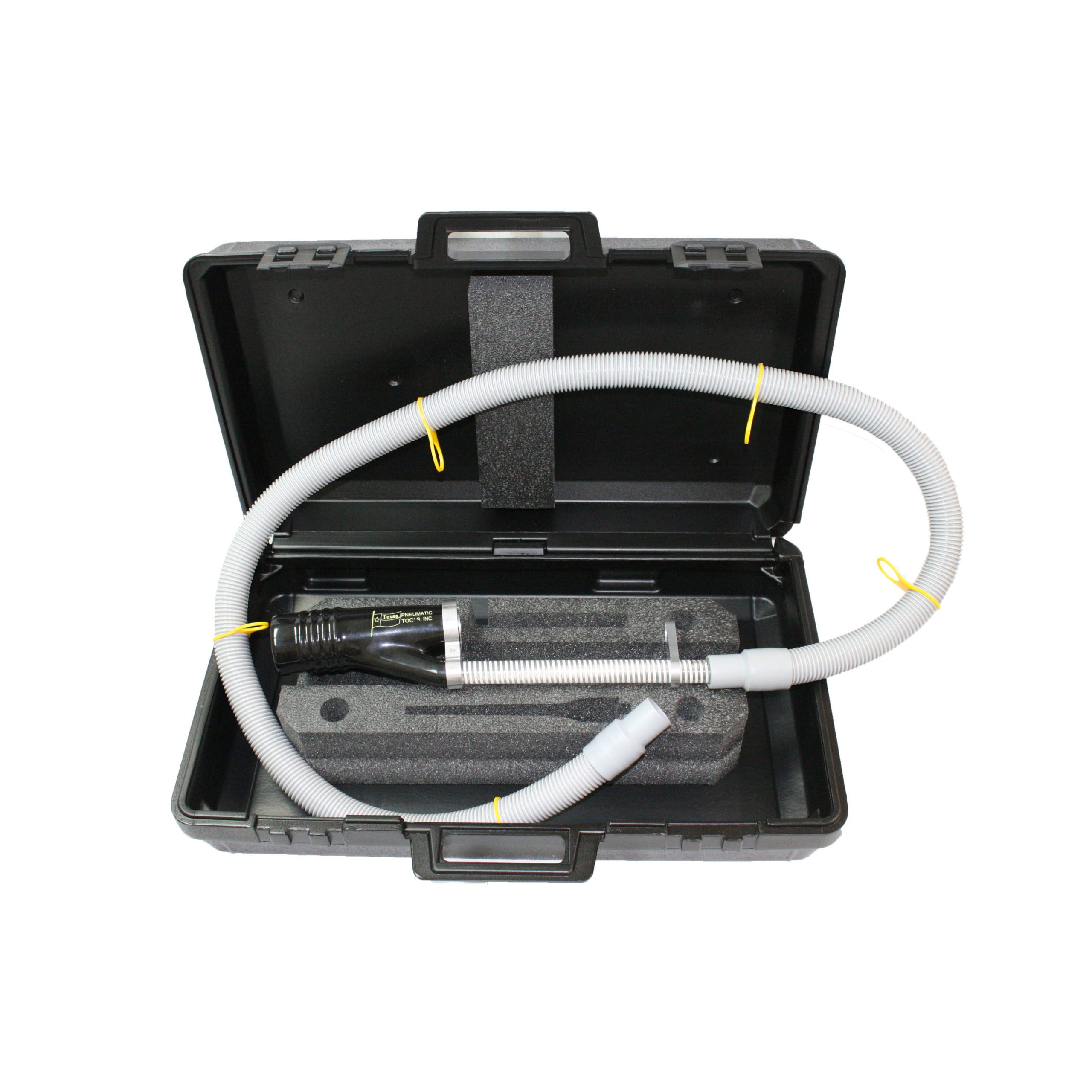

| Primary Vacuum Attachment with Case | TX1BLTNS-V | $800.00
|
||
| Primary Vacuum Attachment Only | TX1BLTNS-VT | $350.00
|
||
| Documentation |
|---|
| Spare Parts List |
TX 182 Needle/Chisel Scalers
| Part No | Description | Weight (lb) | Length (in) | Bore (in) | Stroke (in) | Impact Rate | Air Inlet (NPT) | Air Cons. (cfm) | Min Hose Size (in) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX182CS | TX 182 Chisel Scaler | 4.55 | 15.5" with chisel | 15⁄16 | 1-1⁄16 | 4000 | 1⁄4 | 13 | 3⁄8 | $395.00
|
| TX182CS-LR | TX182 Long Reach Chisel Scaler | 4.55 | 15.5" with chisel | 15⁄16 | 1-1⁄16 | 4000 | 1⁄4 | 13 | 3⁄8 | $775.00
|
| TX182NS | TX182 Needle Scaler | 6.31 | 17" with 5" needles | 1 | 1-1⁄16 | 4000 | 1⁄4 | 13 | 3⁄8 | $475.00
|
| TX182NS-W7 | TX182 Needle Scaler with 7" Needles | 6.31 | 17" with 5" needles | 1 | 1-1⁄16 | 4000 | 1⁄4 | 13 | 3⁄8 | $475.00
|
| TX182NS-MK | TX182 Needle/Chisel Scaler Kit | 6.31 | 17" with chisel | 15⁄16 | 1-1⁄16 | 4000 | 1⁄4 | 13 | 3⁄8 | $595.00
|
Common Replaceable Parts And Accessories
| Chisels | 7" | 12" | 18" | |||
|---|---|---|---|---|---|---|
| Blank Chisel | 611 | $10.55
|
611-12 | $13.00
|
611-18 | $16.85
|
| 3⁄4" Flat Chisel | 612 | $12.05
|
612-12 | $15.30
|
612-18 | $19.60
|
| 1-3⁄8" Flat Chisel | 613 | $13.00
|
613-12 | $16.60
|
613-18 | $20.30
|
| 1-3⁄8" Angle Chisel | 614 | $13.00
|
614-12 | $16.60
|
614-18 | $20.30
|
| TX182 Scaler Repair Kit | TX182RK | $8.95
|
||||
| Needles | Single Needle | Set of 19 Needles | ||
|---|---|---|---|---|
| 5" Steel Needle | TX00043 | $1.00
|
TX00519 | $11.40
|
| 5" Stainless Steel Needle | TX00018 | $1.90
|
TX00018-19 | $36.10
|
| 5" Beryllium Copper Needle | TX00119 | $6.30
|
TX00119-19 | $119.70
|
| 7" Steel Needle | TX00024 | $1.00
|
TX00719 | $11.40
|
| 7" Stainless Steel Needle | TX00019 | $2.15
|
TX00019-19 | $40.85
|
| 7" Beryllium Copper Needle | TX00120 | $7.65
|
TX00120-19 | $145.35
|
| Documentation |
|---|
| Spare Parts List |
| Service & Operation |

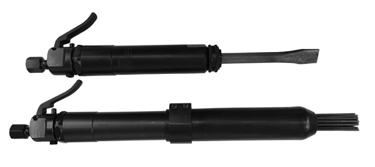

TX 456 Needle/Chisel Scalers
| Part No | Description | Weight (lb) | Length (in) | Bore (in) | Stroke (in) | Impact Rate | Air Inlet (NPT) | Air Cons. (cfm) | Min Hose Size (in) | Price |
|---|---|---|---|---|---|---|---|---|---|---|
| TX456CS | TX 456 Chisel Scaler | 4.2 | 10.25 without chisel | 15⁄16 | 1 | 4300 | 1⁄4 | 13 | 3⁄8 | $395.00
|
| TX456CS-PT | TX 456 Chisel Scaler - Push Throttle | 4.2 | 10.25 without chisel | 15⁄16 | 1 | 4300 | 1⁄4 | 13 | 3⁄8 | $420.00
|
| TX456NS | TX456 Needle Scaler | 6.3 | 18.25" with 7" needles | 15⁄16 | 1 | 4300 | 1⁄4 | 13 | 3⁄8 | $495.00
|
| TX456NS-MK | TX456 Needle/Chisel Scaler Kit | 6.3 | 18.25" with 7" needles | 15⁄16 | 1 | 4300 | 1⁄4 | 13 | 3⁄8 | $630.00
|
| TX456-VK | TX456 Needle Scaler with Complete Vaccum Attachment Kit | 6.3 | 18.25" with 7" needles | 15⁄16 | 1 | 4300 | 1⁄4 | 13 | 3⁄8 | $1,465.00
|
Common Replaceable Parts And Accessories
| Chisels | 7" | 12" | 18" | |||
|---|---|---|---|---|---|---|
| Blank Chisel | 601 | $10.55
|
601-12 | $13.00
|
601-18 | $16.85
|
| 3⁄4" Flat Chisel | 602 | $12.05
|
602-12 | $15.30
|
602-18 | $19.60
|
| 1-3⁄8" Flat Chisel | 603 | $13.00
|
603-12 | $16.60
|
603-18 | $20.30
|
| 1-3⁄8" Angle Chisel | 604 | $13.00
|
604-12 | $16.60
|
604-18 | $20.30
|
| 1-3⁄8" Angle Chisel | 605 | $31.10
|
605-12 | $33.90
|
605-18 | $36.65
|
| TX456 Scaler Repair Kit | TX456RK | $165.00
|
||||

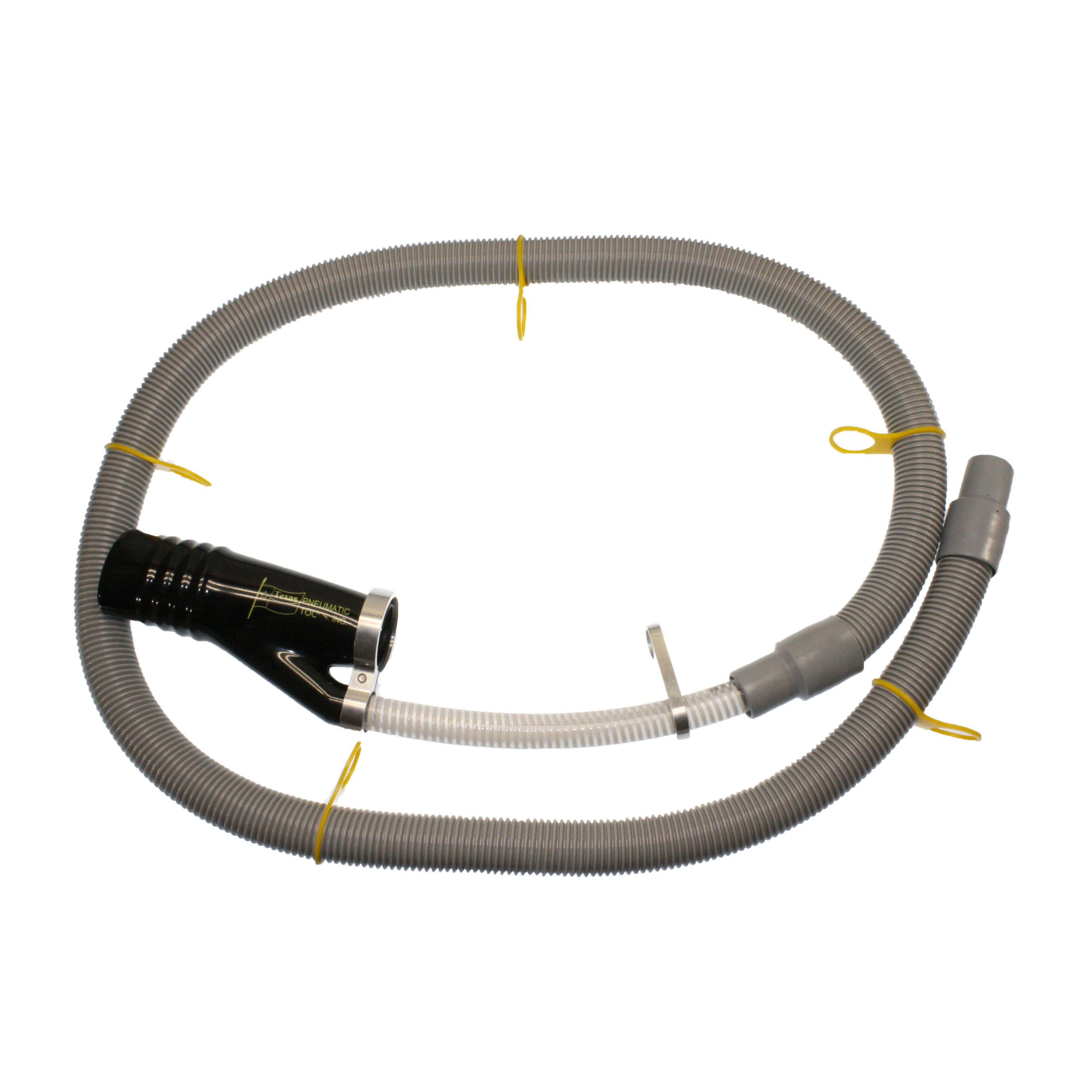

| Primary Vacuum Attachment Only | TX456-VT | $350.00
|
||||
| Vacuum Attachment with Case | TX456V | $800.00
|
||||

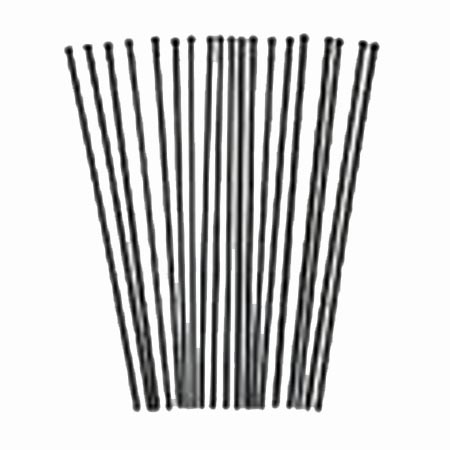

| Needles | Single Needle | Set of 19 Needles | ||
|---|---|---|---|---|
| 5" Steel Needle | TX00043 | $1.00
|
TX00519 | $11.40
|
| 5" Stainless Steel Needle | TX00018 | $1.90
|
TX00018-19 | $36.10
|
| 5" Beryllium Copper Needle | TX00119 | $6.30
|
TX00119-19 | $119.70
|
| 7" Steel Needle | TX00024 | $1.00
|
TX00719 | $11.40
|
| 7" Stainless Steel Needle | TX00019 | $2.15
|
TX00019-19 | $40.85
|
| 7" Beryllium Copper Needle | TX00120 | $7.65
|
TX00120-19 | $145.35
|
| Documentation |
|---|
| Spare Parts List |
| Service & Operation |
