Pipe Line Blowers
Air powered, venturi type pipe line blowers specifically adapted to API (American Petroleum Institute) flange plates. These pipe line blowers are used to blow down pipe lines prior to maintenance and can be adapated to any API flange from 4" to 24".
| Part No. | Description | Dia. of Base (in) | Inlet NPT (in) | Bolt Circle Dia. (in) | Base Slot Dia. (in) | Price |
|---|---|---|---|---|---|---|
| TXPLB3 | 3" Pipe Line Blower | 7.31 | 1/2 | 6.56 | .40 | $510.00
|
| 3" Pipe Line Blower with a 3" male pipe thread (MPT) x 2" female pipe thread (FPT) bushing & TX-3AM-P air mover. The 3" API flange (AM52) is attached to the base of the TX-3AM-P air mover with three - 5/16"-18 thread stainless socket head cap screws. The flange has 3" female pipe threads on it's inside diameter. A 3" MPT x 2" FPT Bushing (TX-10046) comes with the unit and allows it to be used with 2" pipe. This unit is designed to pull air from a tank or pipe line via a 2" or 3" pipe connection. | ||||||
| Part No. | Description | Length (in) | Weight (lb) | Dia. of Base (in) | Inlet NPT (in) | Bolt Circle Dia. (in) | Base Slot Dia. (in) | Price |
|---|---|---|---|---|---|---|---|---|

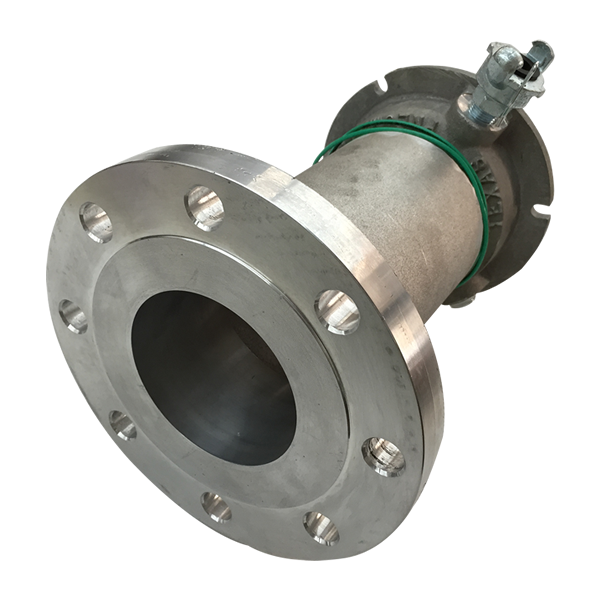

| TXPLB4 | 4" Pipe Line Blower | 11.25 | 11.35 | 7.25 | 1/2 | 6.56 | .40 | $550.00
|
| 4" Pipe Line Blower that connects directly to a 4" API flange plate. It is designed to blow air into the pipeline, and is capable of ventilating very long pipeline sections. | ||||||||
| Part No. | Description | Length (in) | Weight (lb) | Dia. of Base (in) | Inlet NPT (in) | Bolt Circle Dia. (in) | Base Slot Dia. (in) | Price |
|---|---|---|---|---|---|---|---|---|

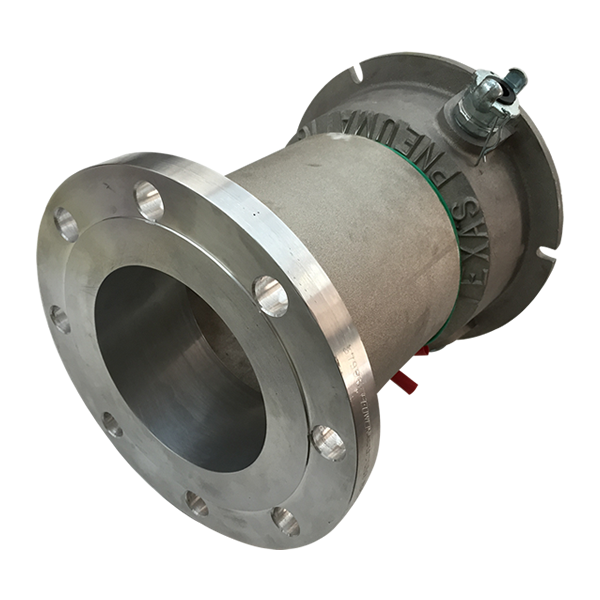

| TXPLB6 | 6" Pipe Line Blower | 13 | 26.3 | 11.25 | 1 | 10.5 | .40 | $745.00
|
| 6" Pipe Line Blower that connects directly to a 6" API flange plate. It is designed to blow air into the pipeline, and is capable of ventilating very long pipeline sections. | ||||||||
| Part No. | Description | Length (in) | Width (in) | Height (in) | Weight (lb) | Dia. of Base (in) | Inlet NPT (in) | Bolt Circle Dia. (in) | Base Slot Dia. (in) | Price |
|---|---|---|---|---|---|---|---|---|---|---|

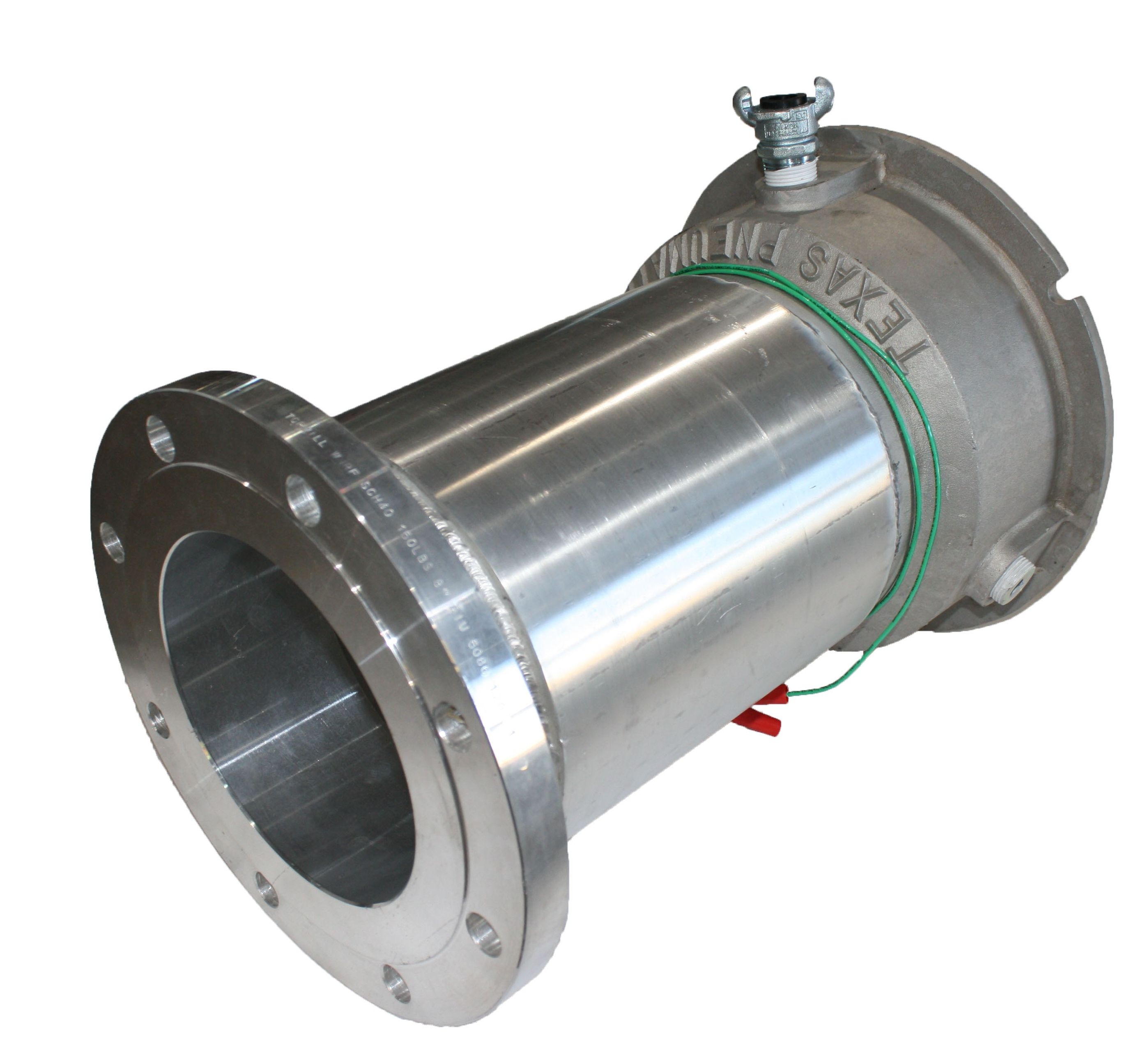

| TXPLB8 | 8" Pipe Line Blower | 15 | 15 | 21 | 52 | 14.25 | 1 | 13 | .5 | $1,440.00
|
| 8" Pipe Line Blower that connects directly to a 8" API flange plate. It is designed to blow air into the pipeline, and is capable of ventilating very long pipeline sections. | ||||||||||
