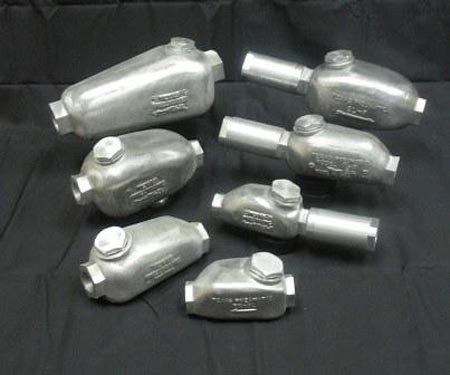

Lubricators
One of the most common repairs an air tool undergoes is disassembly to clean foreign material out of the valve assembly. In-Line Filter Lubricators help prevent this from happening. The 40 micron filter can easily be cleaned or replaced.
These are heavy-duty in-line lubricators to be installed 6-8 feet from tool. Designed for use with tools being used too far away from compressor to be lubricated by a permanently mounted unit.
These lubricators can be used on everything from an air scribe to a paving breaker.
Features:
- Lubricator filter unit is an integral unit
- Accepts a 40 micron bronze filter
- Reduces down time
- Prevents costly repairs
- Extends air tool life
- Casting design prevents breakage where a nipple has been used to connect filter to lubricator
- Adjustable metering valve
- Sight disk in housing to visually inspect oil level
| Part No. | Description | Capacity (Fl Oz) |
Hose Barb Pipe Size |
Max. Working Pressure |
Oil Wt. Req. | Air Flow Capacity at 70psi |
Price |
|---|---|---|---|---|---|---|---|
| TX0L-F | In-Line Filter Lubricator | 1.4 | 1⁄2" NPT | 500 | 10 WT | 30 | $82.65
|
| TX1L-F | In-Line Filter Lubricator | 3.7 | 3⁄4" NPT | 260 | 10 WT | 70 | $90.45
|
| TX2L-F | In-Line Filter Lubricator | 11.0 | 3⁄4" NPT | 300 | 10 WT | 70 | $103.85
|
| TX1/4L | In-Line Lubricator | 1⁄4" NPT | 10 WT | $44.50
|
|||
| TX0L | In-Line Lubricator | 1.4 | 1⁄2" NPT | 260 | 10 WT | 30 | $60.00
|
| TX1L | In-Line Lubricator | 3.7 | 3⁄4" NPT | 260 | 10 WT | 70 | $67.50
|
| TX2L | In-Line Lubricator | 11.0 | 3⁄4"NPT | 300 | 10 WT | 70 | $80.70
|
| TX3L | In-Line Lubricator | 16.0 | 1" NPT | 250 | 10 WT | 150 | $93.75
|
| TX0L-PR | TX-0L w/ Pressure Relief Cap | 1.4 | 1⁄2" NPT | 500 | 10 WT | 30 | $67.35
|
| TX0L-F-PR | TX-0L-F w/ Pressure Relief Cap | 1.4 | 1⁄2" NPT | 500 | 10 WT | 30 | QUOTE |
| TX1L-PR | TX-1L w/ Pressure Relief Cap | 3.7 | 3⁄4" NPT | 260 | 10 WT | 70 | $75.25
|
| TX2L-PR | TX-2L w/ Pressure Relief Cap | 11.0 | 3⁄4" NPT | 300 | 10 WT | 70 | $88.60
|
| TX3L-PR | TX-3L w/ Pressure Relief Cap | 16.0 | 1" NPT | 250 | 10 WT | 150 | $101.65
|
| TX2L-CF | Constant Feed TX-2L Lubricator | 11.0 | 3⁄4" NPT | 300 | 10 WT | 70 | $103.30
|
| TX3L-CF | Constant Feed TX-3L Lubricator | 16.0 | 1" NPT | 250 | 10 WT | 150 | $116.40
|
