Venturi Type Air Movers

6am

Air movers, or air horns, are used wherever there is a need to disperse fumes, move air into confined spaces, cool men working in elevated temperature conditions, or cool machinery or products with a blast of directed air.  Common applications are found in refineries, chemical plants, utilities and cogeneration units, metal fabrication plants, paper and pulp plants, shipyards, the marine industry and the steel industry.

Air movers have been tested at an independent laboratory.  The listed free flow ratings are based on tests to AMCA standard 210.  Under identical situations, the air movers exceeded all the air flow ratings of competitively manufactured air movers.

Our new polymer horns offer reduced weight, longer life and they are crush and dent resistent.  We are the only manufacturer to offer all sizes with a polymer horn.  The polymer is electrically conductive to safely discharge any statuic buildup.

Features:

  • No moving parts
  • Polymer or metal horns for all sizes
  • Used for venting hazardous areas
  • Maintenance is minimal
  • Can be used as a blower or exhauster
  • Operates on compressed air or steam
  • Connection for ground wire
  • Tested at an independent laboratory to AMCA Standard 210, equaling or exceeing the air flow of competitively manufactured air movers

Shipped complete with grounding wire and crowsfoot

Part No Description Inside Dia. of Base (in) Overall Length (in)  Outside Dia. of Base (in) Dia. at top of Horn (in) NPT Size (in) Bolt Circle Dia. (in) Base Slot Dia. (in) Weight (lb) Price

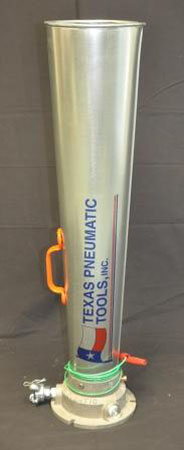

TX3AM 3" Air Mover 3 30.5 7.31 7.0 12 6.56 0.4 8.5 $360.00
TX3AMP 3" Air Mover with Polymer Horn 3 30.5 7.31 7.0 12 6.56 0.4 8.5 $360.00
TX3AMSH 3" Air Mover w/ Stainless Steel Horn 3 30.5 7.31 6.0 12 6.56 0.4 8.5 $495.00

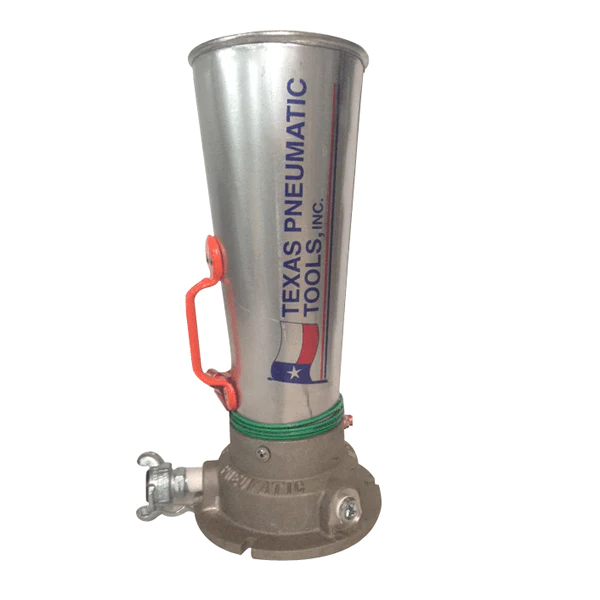

TX3AMS 3" Air Mover - Short 3 16.75 7.31 7.0 12 6.56 0.4 5.5 $330.00
TX3AMSP 3" Air Mover - Short with Polymer Horn 3 16.75 7.31 7.0 12 6.56 0.4 5.5 $330.00
TX3AMSSH 3" Air Mover - Short with Stainless Steel Horn 3 16.75 7.31 7.0 12 6.56 0.4 5.5 $495.00
Part No Description Inside Dia. of Base (in) Overall Length (in)  Outside Dia. of Base (in) Dia. at top of Horn (in) NPT Size (in) Bolt Circle Dia. (in) Base Slot Dia. (in) Weight (lb) Price
TX6AM 6" Air Mover 6 44.25 11.25 12.5 1 10.5 0.4 22.3 $445.00
TX6AMP 6" Air Mover w/ Polymer Horn 6 44.25 11.25 12.5 1 10.5 0.4 22.3 $445.00
TX6AMSH 6" Air Mover w/ Stainless Steel Horn 6 44.25 11.25 12.5 1 10.5 0.4 22.3 $690.00
TX6AMSS 6" Air Mover - All Stainless Steel 6 44.25 11.25 12.5 1 10.5 0.4 16.9 $1,160.00
TX6AMS 6" Air Mover with Short Horn 6 23.8 11.25 9.75 1 10.5 0.4 16.9 $445.00
TX6AMNP 6" Air Mover with Polymer Horn & Nickel Plated Base 6 44.25 11.25 12.5 1 10.5 0.4 22.3 $630.00
TX6AMSBP 6" Air Mover with Polymer Horn and Stainless Steel Base 6 44.25 11.25 12.5 1 10.5 0.4 22.3 $1,140.00
Part No Description Inside Dia. of Base (in) Overall Length (in)  Outside Dia. of Base (in) Dia. at top of Horn (in) NPT Size (in) Bolt Circle Dia. (in) Base Slot Dia. (in) Weight (lb) Price
TX8AM 8" Air Mover with Metal Horn 8 46.06 14.37 14.25 1 13.62 0.5 36.0 $720.00
TX8AMP 8" Air Mover with Polymer Horn 8 46.06 14.37 14.25 1 13.62 0.5 36.0 $720.00
TX8AMSH 8" Air Mover with Stainless Steel 8 46.44 14.25 14.25 1 13.5 0.5 38 $955.00
Part No Description Inside Dia. of Base (in) Overall Length (in)  Outside Dia. of Base (in) Dia. at top of Horn (in) NPT Size (in) Bolt Circle Dia. (in) Base Slot Dia. (in) Weight (lb) Price
TX10AM 10" Air Mover with Metal Horn 10 48.0 17.0 15.75 1 15.5 1.0 42.1 $1,060.00
TX10AMP 10" Air Mover with Polymer Horn 10 48.0 17.0 15.75 1 15.5 1.0 42.1 $1,060.00
TX10AMSH 10" Air Mover with Stainless Steel Horn and Aluminum Base 10 48.0 17.0 15.75 1 15.5 1.0 42.1 $1,315.00
Accessories For Air Movers
AM14 Metal Cone for TX3AM Short Air Mover $151.30
AM14P Polymer Cone for TX3AM Short Air Mover $151.30
AM15 Metal Cone for TX3AM Air Mover $166.40
AM15P Polymer Cone for TX3AM Air Mover $166.40
AM15SS Stainless Steel Cone for TX3AM Air Mover $198.40
AM16 Metal cone for TX6AM Air Mover $196.65

AM16P

Polymer Cone for TX6AM Air Mover $196.65
AM16SS Stainless Steel Horn for TX6AM Air Mover $274.95
AM17 Metal Cone for TX8AM Air Mover $230.00
AM17P Polymer Cone for TX8AM Air Mover $230.00
AM21 Metal Cone for TX10AM Air Mover $285.95
AM21P Polymer Cone for TX10AM Air Mover $285.90
AMIS30 Air Mover Stand $890.00
AM29

Grounding Clamp with 6 ft. wire

$16.70

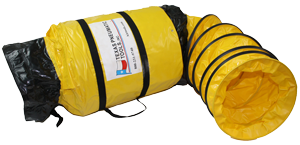

Air Ducting

ducting

Our air ducting (TX-SAC-N-GO) is available in three sizes, 8", 12" and 16" diameters and 30' in length. The ducting is made of single-ply PVC coated polyester fabric with a spring steel wire helix and external PVC wear strip.

The ducting has its own storage bag attached to the cuff end. Simply attach the cuff end to the air movement device and pull the opposite end from the bag and place into position. When finished, the hose can easily be put back into the bag for storage and carrying. Our design allows multiple bags to be combined for long duct runs. No additional connectors are needed. The end of one hose can be inserted into the cuff end of another. All ducting can be placed on either end of an air mover or fan. The hose can be used for supply or suction.

Electrically Conductive Ducting has carbon impregnated into the PVC coating and has a ground wire that runs the length of the duct. The ground wire will safely discharge any potential static buildup. The ducting was tested to UL 94 Standard and certified as fire retardant.

Part No Description Price
TXSAC-N-GO-8 8" x 30' Air Ducting $355.00
TXSAC-N-GO-12 12" x 30' Air Ducting $405.00
TXSAC-N-GO-16 16" x 30' Air Ducting $490.00
TXSAC-N-GO-8C 8" x 30' Air Ducting - Electrically Conductive $675.00
TXSAC-N-GO-12C 12" x 30' Air Ducting - Electrically Conductive $800.00
TXSAC-N-GO-16C 16' x 30' Air Ducting - Electrically Conductive $975.00
TOTAL AIR FLOW AND CONSUMED AIR AT VARIOUS INLET PRESSURES SAME FOR ALL AIR MOVERS
  INLET PRESSURE

60 PSIG
Total Air Flow
80 PSIG
Total Air Flow
100 PSIG
Total Air Flow
TX3AMS 863 CFM 1076 CFM 1205 CFM
TX3AM 1135 CFM 1308 CFM 1465 CFM
TX6AM 2560 CFM 3020 CFM 3698 CFM
TX8AM 4215 CFM 4810 CFM 5435 CFM
TX10AM 6182 CFM 7304 CFM 8220 CFM
  Air Consumed Air Consumed Air Consumed
TX3AMS 31 SCFM 41 SCFM 51 SCFM
TX3AM 31 SCFM 41 SCFM 51 SCFM
TX6AM 60 SCFM 81 SCFM 101 SCFM
TX8AM 108 SCFM 142 SCFM 178 SCFM
TX10AM 189 SCFM 252 SCFM 380 SCFM

Texas Pneumatic air movers have been tested at an independent laboratory. The free flow ratings listed above are based on tests to AMCA Standard 210. Under identical testing situations, Texas Pneumatic air movers equaled or exceeded the air flow of all competitively manufactured air movers

FREE AIR INDUCTION RATIOS AT VARIOUS INLET PRESSURES
Dividing total air flow discharged by amount of air consumed.
  60 PSIG 80 PSIG 100 PSIG
TX3AMS 27.84 26.24 23.64
TX3AM 36.61 31.90 28.73
TX6AM 42.67 37.28 36.61
TX8AM 39.03 33.87 30.53
TX10AM 32.71 28.98 21.63

The above free air induction ratio is a measure of efficiency. The ratio is determined by dividing the total air flow (CFM) by the amount of air consumed. The accuracy of the free air induction ratio figures is dependent on the accuracy of the testing method. All Texas Pneumatic air mover free flow ratings are based on AMCA Standard 210 tests.
