Rivet Buster Accessories
Model 160
The Model 160 Arrow Retainer is designed to fit a standard riveting hammer and is to bused with the rivet sets.
| Part No. | Description | Price |
|---|---|---|
| 160-2.255 | Rivet Set Retainer - Thor 43-53, Cleco (Dresser) 40-50 Rivet Busters | $109.50
|
| 160-2.385 | Rivet Set Retainer - Thor 63-83, 83x-93 Rivet Busters | $109.50
|
| 160-2.400 | Rivet Set Retainer - Jeb RB90 Rivet Buster | $109.50
|
| 161 | Rivet Buster Retainer Cuip #6018-C | $4.80
|
Model 190
The Model 190 Retainer - Extra heavy duty retainer designed to withstand shock and and give long dependable service when used iwth viet hammers. Lock spring #194 used to hold retainer on hammer barrel.
| Part No. | Description | Price |
|---|---|---|
| 160-2.255 | Rivet Set Retainer - Thor 43-53, Cleco (Dresser) 40-50 Rivet Busters | $109.50
|
| 160-2.385 | Rivet Set Retainer - Thor 63-83, 83x-93 Rivet Busters | $109.50
|
| 160-2.400 | Rivet Set Retainer - Jeb RB90 Rivet Buster | $109.50
|
| 161 | Rivet Buster Retainer Cuip #6018-C | $4.80
|
| 190-2.255 | Rivet Buster Retainer - Thor 43-53, Cleco (Dresser) 40-50 Rivet Busters | $106.75
|
| 190-2.270 | Retainer for Chicago Pneumatic 40-270 (P122232) Rivet Buster | $106.75
|
| 190-2.385 | Retainer for Thor 63-83, 83x-93 Rivet Buster | $106.75
|
| 190-2.400 | Retainer for Jet RB90 Rivet Buster | $106.75
|
| 190-2.406 | Retainer for Rivet Buster | $106.75
|
| 190-2.411 | Retainer for Cleco 60-80-90 Rivet Buster | $106.75
|
| 190-2.445 | Retainer for Chicago Pneumatic 50-60-80-90-90A, Ingersoll Rand 4A-5A-6A-8A-9A, Gardner Denver 50-60-80-90, Ramit A90 Rivet Buster | $106.75
|
| 190-2.448 | Retainer for Rivet Buster | $106.75
|
| 194 | Rivet Buster Retainer Lock Spring | $184.92
|
| 1194 | Rivet Buster Retainer Lock Spring | $2.35
|

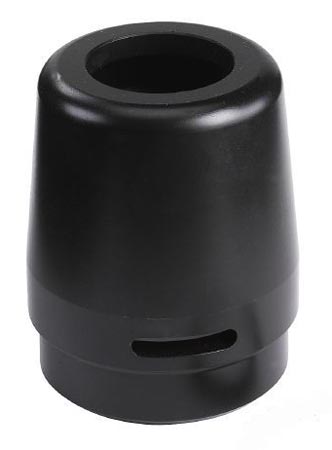

Model 2190
The Model 2190 Retainer - Characteristic of Arrow Tools quality construction, this retainer is built of high grade steel hardened throughout for reliable performance and long service when used with No. 81x or No. 11x rivet buster. Lock spring #2194 used to hild retainer on hammer barrel.
| Part No. | Description | Price |
|---|---|---|
| 2190 | Rivet Buser Jumbo Retainer 11x and 81x | $114.65
|
| 2190-2.400 | Jumbo Retainer for Jet RB90 Rivet Buster | $114.65
|
| 2190-2.445 | Jumbo Retainer for Chicago Pneumatic 50-60-80-90-90A, Ingersoll Rand 4A-5A-6A-8A-9A, Gardner Denver 50-60-80-90, Ramit A90 Rivet Buster | $114.65
|
| 2194 | Rivet Buster Retainer Lock Spring | $2.65
|
Model 1851
Model 1851 retainer is engineered to fit both threaded and grooved barrels. Hend ont he barrel with #2194 lock spring. Reinforced body construction assures long service life.
| Part No. | Description | Price |
|---|---|---|
| 1851 | Retainer for APT133 or IR8000/9000 Rivet Buster | $157.85
|
Rivet Buster Upper and Lower Sleeves for Jumbo (11x) and Standard (80x) steel tools
Rivet Buster Upper Sleeves
| Part No. | Description | Size | Price |
|---|---|---|---|
| 1501 | Standard Upper Sleeve - Oversized 1-11⁄32" Diameter Bore | 80x Tool | $18.05
|
| 1502 | Standard Upper Sleeve - Standard 1-7⁄32" Diameter Bore | 80x Tool | $18.05
|
| 1503 | Standard Upper Sleeve - Parker Taper Bore | 80x Tool | $24.60
|
| 2000 | Jumbo Upper Sleeve | 11x Tool | $10.92
|
| 2001 | Jumbo Upper Sleeve - Straight | 11x Tool | $19.30
|
| 2002 | Jumbo Upper Sleeve - Parker Taper Bore | 11x Tool | $24.60
|
| TP2101 | Upper Sleeve | 11x Tool | $18.05
|
| 2101-15 | Upper Sleeve | 80x Tool | $18.05
|
| 2101-LONG | Upper Sleeve - Longer than Standard | 80x Tool |
$18.05 |
| 2101-SHORT | Upper Sleeve - Shorter than Standard | 80x Tool |
$18.05 |
| 2101-W | Upper Sleeve with Wide Lip | 80x Tool |
$18.05 |
Rivet Buster Lower Sleeves
| Part No. | Description | Size | Price |
|---|---|---|---|
| 1504 | Standard Lower Sleeve | 80x Tool | $22.55
|
| 1504S | Standard Lower Sleeve - Split | 80x Tool | $23.85
|
| 2003 | Jumbo Lower Sleeve | 11x Tool | $22.55
|
| 2003S | Jumbo Lower Sleeve - Split | 11x Tool | $23.85
|
| TP2103 | Lower Sleeve | 11x Tool | $22.55
|
| 2103-15 | Lower Sleeve | 80x Tool | $22.55
|
| 2103-15S | Lower Sleeve - Split | 24" & Longer 80x Tools | $23.85
|
| 2103S | Lower Sleeve - Split | 24" & Longer 11x Tools | $23.85
|
Rivet Buster Conversion Kits
| Part No. | Description | Price |
|---|---|---|
| 1535 | Jumbo to Standard | $44.80
|
| 2035 | Standard to Jumbo | $46.20
|
| 2035S | Standard to Jumbo with Split Sleeve | $47.55
|
Rivet Buster Bumpers
| Part No. | Description | Price |
|---|---|---|
| 1199 | Rubber Bumper | $4.15
|
| 1199-1 | Poly Bumper - Red | $7.05
|
| 1199-2 | Rubber Bumper - CPT 3⁄4" | $3.70
|
| 1190-4 | Rubber Bumper | $4.00
|
| 1505 | Standard Rubber Bumper | $4.80
|
| 1505-1 | Standard Red Bumper - 91 Durometers | $10.25
|
| TP2104 | Rubber Bumper (Black) - use with Jumbo Upper Sleeves | $4.80
|
| 2104-2 | Rubber Bumper (Gray) - Medium Duty - use with Jumbo Upper Sleeves | $5.40
|
| 2104-3 | Urethane Bumper (Red) - Heavy Duty - use with Jumbo Upper Sleeves (91 Durometer) | $9.30
|
| 2104-4 | Urethane Bumper (Orange) - Heavy Duty - use with Jumbo Upper Sleeves (89 Durometer) | $7.40
|
| 1190-2 | O-Ring | $1.40
|

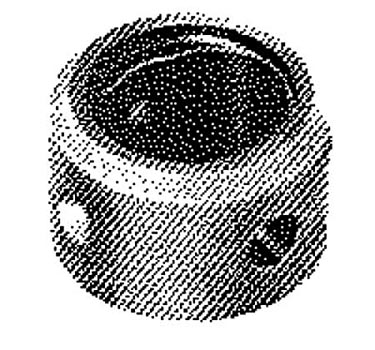

| 1190-3 | Insert Split Sleeve | $18.45
|
| 1190R-BGK | Bumper Guard Kit | $28.30
|
Retainer Springs
| Part No. | Description | Price |
|---|---|---|
| TP194 | Lock Spring | QUOTE |
| 2194 | Lock Spring | $2.65
|
