Screened Inlet Bushing and In-Line Air Filter

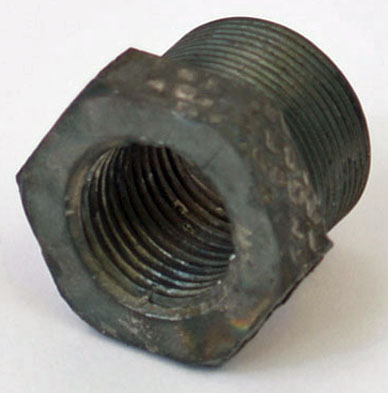

Screened Inlet Bushing
Features:
- Brass screens trap debris to prolong tool life
- Inlet bushing are heat-treated and black-oxided
- Protects against corrosive damage and improves performance
| Part No. | Description | Price |
|---|---|---|
| TX00989 | 1⁄4" MPT X 1⁄4" FPT | $5.25
|
| TX00990 | 1⁄4" MPT X 3⁄8" FPT | $5.25
|
| TX00991 | 3⁄8" MPT X 1⁄4" FPT | $5.25
|
| TX00992 | 3⁄8" MPT X 3⁄8" FPT | $5.25
|
| TX00993 | 3⁄8" MPT X 1⁄2" FPT | $6.20
|
| TX00994 | 1⁄2" MPT X 3⁄8" FPT | $6.20
|
| TX00995 | 1⁄2" MPT X 1⁄2" FPT | $6.20
|
| TX00987 | 7⁄8"-20 Thd Permanent Bushing x 3⁄8" MPT | $6.55
|
| TX01008 | 7⁄8"-24 Thd Permanent Bushing x 3⁄8" MPT | $6.55
|
In-Line Air Tool Filter
Features:
- Standard 40 micron which ensures minimum pressure drops
- Provides particle-free air to tools
- Available in 20-90 micron filtration on special order
- Lightweight aluminum housing
| Part No. | Description | NPTF Size (in) |
Length (in) |
Hex (in) |
Price |
|---|---|---|---|---|---|
| TX9071 | 1⁄8" FPT (In) x 1⁄8" MPT (Out) | 1⁄8 | 2-3⁄16 | 3⁄4 | $10.55
|
| TX9072 | 1⁄4" FPT (In) x 1⁄4" MPT (Out) | 1⁄4" | 2-5⁄16 | 3⁄4 | $14.20
|
| TX9074 | 1⁄2" Female Thread - Both Ends | 1⁄2 | 3-1⁄4 | 1-1⁄2 | $33.45
|
| TX9074M | 1⁄2" Female Thread (In) x 1⁄2" Male Thread (Out) | 1⁄2 | 3-1⁄4 | 1-1⁄2 | $35.65
|
| TX9076 | 3⁄4" Female Thread - Both Ends | 3⁄4 | 3-1⁄4 | 1-1⁄2 | $38.10
|
| TX9076M | 3⁄4" Female Thread (In) x 3⁄4" Male Thread (Out) | 3⁄4 | 3-1⁄4 | 1-1⁄2 | $40.35
|
