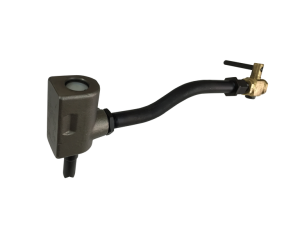

S1-BH-AC Single Piston Scaler with Bent Handle and Air Cock Valve

Piston Scalers are used for many different surface preparation projects. They can be used to remove heavy rust, scale, paint or industrial coatings from metal surfaces.  They can also be used to rough concrete prior to resurfacing.  The pistons used for these applications range from standard steel (TX-00146) to carbide tipped (TX-00150) or REXALLOY ®™ which is a solid cobalt alloy (TX-00151).

Please note, solid cobalt alloy pistons (TX-00151) should not be used for concrete surface preparations.  It has been found that silica in concrete causes heat buildup in the REXALLOY ®™ pistons which in turn causes the pistons to wear more rapidly.  REXALLOY®™ pistons should ONLY be used on metal surfaces and primarily for their spark resistance.

REXALLOY ®™ pistons are spark resistant as per parameters used  by O.S.H.A. in reference to U.S. Naval Report No. NGF-T-1-157, NAVORD 5205, agreeing that "ANY" spark produced from impact with this REXALLOY ®™ part will be a cold spark not conductive of ignition in hazardous enviornments.  They are non-magnetic, rust proof and carbide hard.

Features:

  • Rugged steel body
  • Lever operated snap handle
  • Optional brass air cock valve available
  • Variety of pistons available
  • Proudly made in USA

Applications:

  • Removing rust and paint
  • Removing cement from steel
  • Roughing cement
  • Piston scalers can be used in areas that standard model scalers will not fit
SPECIFICATIONS
S1-BH-AC $640.00
Stroke (in) 1316
Length (in) 9
Weight (lb) 5
Bore (in) 1
Air Inlet (NPT) (in) 38
Impact Rate (bpm) 4000
Minimum Hose Size (in) 38
Air Consumption (cfm) 9
DOCUMENTATION
Spare Parts List
COMMON REPLACEABLE PARTS AND ACCESSORIES
Standard Steel Piston TX00146 $66.60
Steel Piston (2" longer than standard) TX00147 $74.15
Carbide Tipped Pistion - Chisel Point TX00149 CALL
Carbide Tipped Pistion - Star Point TX00150 $238.10
Rexalloy® ™: Solid Colbalt Alloy Piston - Star Point TX00151 $238.10
Rexalloy® ™:  Solid Colbalt Alloy Piston - Chisel Point TX00155 $249.40
S1 Single Piston Scaler Repair Kit S1RK $106.05
