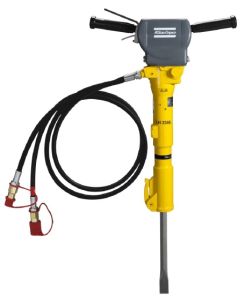

This medium weight, multipurpose breaker is among the best general purpose breakers available in the 48-62 lb range. It is commonly used with 5" asphalt chisels for road building maintenance applications, but also work well in brickwork, frozen soil and concrete.
Features:
- Operator Friendly - Low vibration values, low noise levels and slim design makes this breaker a tool to use for many years to come
- You've Got Power - High power to weight ratio means you get more done with a smaller breaker
- Ergonomic - The vibro reduction abilities of this breaker lets you work for more than eight (8) hours without risking injuries.
Applications
- Medium and hard materials as asphalt and concrete
*To ensure that the tool is receiving the correct flow of 8 gpm, you will need OFD 30 Oil flow divider. (Max flow in: 32 gpm; max. pressure: 3,600 psi). No warrantee for tools damaged by over pressure when run without an oil flow divider.
**For John Deere and Bobcat skidsteer that deliver between 16 and 30GPM. Pressure Reduction Hoses must be used in conjunction with the OFD.
SPECIFICATIONS
| Description | LH 220 | LH 220 | LH 220 | LH 230E | LH 230E | LH 230E | LH 230E HBP | |
| Weight | lbs | 53 | 53 | 53 | 62 | 62 | 62 | 62 |
| Breaker Version | BSP | High Back Pressure | High Back Pressure | Vibro-reduced | Vibro-reduced | Vibro-Reduced | High Back Pressure | |
| Shank Size | in | 1-1/8 x 6 | 1 x 4-1⁄4 | 1-1/8 x 6 | 1 x 4-1⁄4 | 1-1/8 x 6 | 1-1/4 x 6 | 1-1/8 x 6 |
| Length | in | 29 | 29 | 29 | 29 | 28 | 28 | 28 |
| Oil Flow | gpm | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Working Pressure | psi | 1668-1885 | 1668-1885 | 1668-1885 | 1668-1885 | 1668-1885 | 1668-1885 | 1668-1885 |
| Maximum Back Pressure | psi | 508 | 508 | 508 | 508 | 508 | 508 | 450 |
| Impact Rate | bm | 1500-2100 | 1500-2100 | 1500-2100 | 1500-2100 | 1500-2100 | 1500-2100 | 1500-2100 |
| Vibration Level 3 Axes (ISO 28927-10)*, 1 lpm | m/s2 | 4.6 | 4.6 | 4.6 | 4.6 | 4.9 | 4.9 | 4.9 |
| Sound Power Level Guaranteed, Lw (2000⁄14/EC)* | dB(A) | 107 | 107 | 107 | 107 | 107 | 107 | 107 |
| Sound Pressure Level (ISO 11203)* Lp, r=1m | dB(A) | 95 | 95 | 95 | 95 | 94 | 94 | 94 |
| EHTMA Class | C/D | C/D | C/D | C/D | C/D | C/D | C/D | |
| Part No | AC-1801354347 | AC-1801354687 | AC-1801354688 | AC-1801354351 | AC-1801354352 | AC-1801354354 | AC-1801354693 | |
|
$1,507.00 $750.00 |
$1,783.00 $750.00 |
$1,508.00 $750.00 |
$2,635.00 $750.00 |
$2,635.00
|
$2,635.00
|
$2,007.00 $750.00 |
CONSUMABLES
| Paving Breaker Tools |
| Post Driver Tools |
DOCUMENTATION
| Spare Parts List | ||
| Safety and Operating Instructions | ||
| Hydraulic Power Pac Information | ||
| Can I run this hydraulic tool on my power source? | ||
ACCESSORIES & COMMON REPLACEABLE PARTS
| OFD 5 Oil Flow Divider | 1801163319 | $1,202.66
|
||||
| Trigger Valve Kit | 3371820053 | $544.20
|
OFD 30 Oil Flow Divider | AC-1801164232 | $1,519.61
|
|
| Accumulator Kit | 3371814051 | $453.52
|
Twin Extension Hose - 23' | AC-3371801087 | $1,033.09
|
|
| Complete Connection Hose | 3371801083 | $238.59
|
Twin Extension Hose - 39' | AC-3371801089 | $1,307.98
|
|
| Label Kit | 3371821096 | $47.71
|
Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
|
| Filling Device Kit | 3371801155 | $4,167.33
|
Dust Control Spray Kit | 9753300015 | $146.87
|
|
| Accumulator Repair Kit | 3310101845 | $133.62
|
Seal Kit | 3371820089 | $167.37
|
