Handheld Light Weight Rock Drills

Choosing a Rock Drill

Combining power and maneuverability, the lightweight BBD 12 hand-held rock drill is the perfect partner in a wide variety of applications where maneuverability and easy handling are important.  Available in two models, one for horizontal drilling and one for vertical-down drilling, the BBD guarantees powerful, reliable and flexible operation.

Equipped with a D-type handle, the BBD 12D is ideal for horizontal drilling, plug hole drilling, and drilling concrete to a maximum depth of 3 feet.

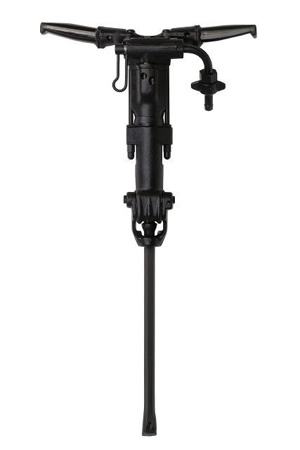

For vertical-down drilling to 10 feet in depth, Atlas Copco offers the BBD 12T, fitted with a T-type handle, slightly angled to provide the best grip.  The BBD 12T is perfect for concrete driling, drilling for smooth blasting, and seam driling.  All BBD models are equipped with kick-latch type drill-steel retainers for quick and easy steel changing.

Ergonomic Rock Drills

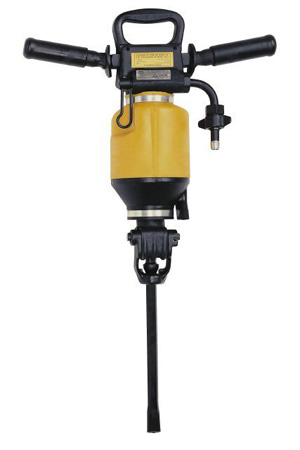

The ergonomically designed BBD 15E, medium-weight rock drills with very high power-to weight ratios, provide optimum operational safety and productivity.  These low-maintenance drills have high impact energy in relation to weight, and ergonomic features that improve operator comfort.

The BBD 15E is equipped with spring-dampened handles and highly effective silencers.  The result is reduction in vibration levels transmitted to the operator's hands by more than 75%, and reduction of low-frequency noise levels by 7dB(A), or more than 50%.  Operator fatigue is minimized, raising productivity.

The BBD 15E has ratchet-wheel rotation, with faster rotation and higher impact frequency for drilling in soft to medium-hard rock.  The BBD 15E is designed for concrete drilling, drilling for smooth blasting and seam drilling - all of which require a high-performance, lightweight, and easy to handle drill.

** FREE shipping within Continental United States *

Standard Hand-Held Rock Drills

Part No. Description Shank size (in) Weight (lb) Air Consumption (cfm) Impact Frequency (bpm) Penetration Rate (in/min) Hose Connection (in) Price
AC-8311010247 BBD 12D 34 x 4 14 22 51.1 2580 10 58 $2,550.00

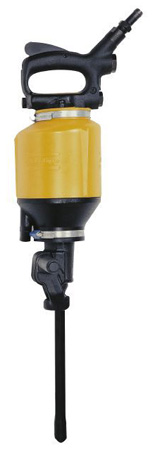

AC-8311010280 BBD 12DS Silenced 34 x 4 14 24 46.9 2520 8 58 $2,680.00

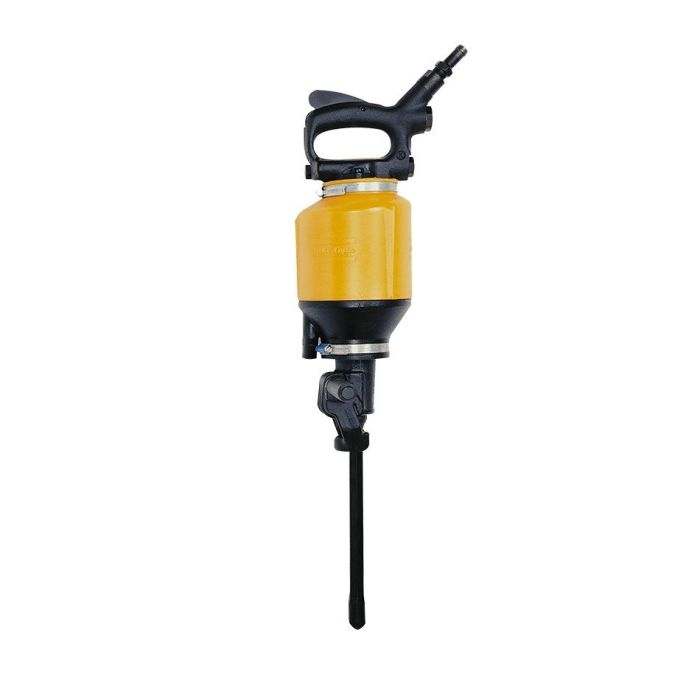

AC-8311010163 BBD 12DCS 7/8 x 3-1/4 23 47  2580 5/8 $2,680.00
AC-8311010295 BBD 12T-01 78 x 4 14 24 51.1 2580 6 58 $2,550.00
AC-8311010298 BBD 12TS-01 Silenced 78 x 4 14 27 46.9 2520 6 58 $2,760.00

Ergonomic Hand-Held Rock Drills

Part No Description Shank Size Weight (lbs) Air Consumption (cfm) Impact Frequency (bpm) Penetration Rate (in/min) Hose Connection (in) Price
AC-8311010402 BBD 15E 3/4 x 4-1/4 34 47 2520 8 3/4 5/8 $3,270.00

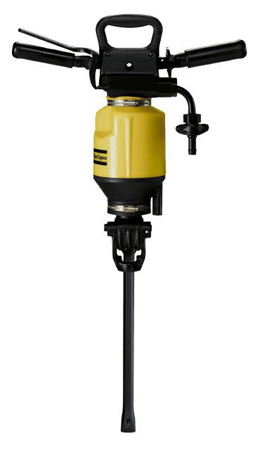

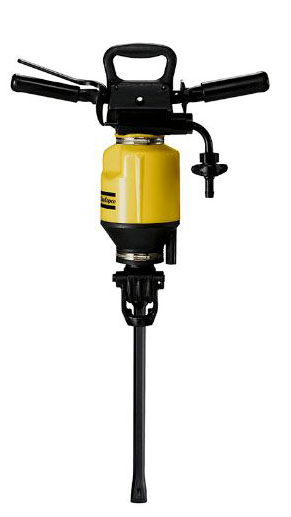

AC-8311010410 BBD 15ET 7/8 x 4-1/4 34 47 2520 3/4 3/4 $3,270.00
AC-8311010412 BBD 15ET 3/4 x 4-1/4 34 47 2520 3/4 5/8 $3,270.00
AC-8311010413 BBD 15ET 7/8 x 4-1/4 34 47 2520 3/4 5/8 $3,270.00
Atlas Copco Light Weight Rock Drill
