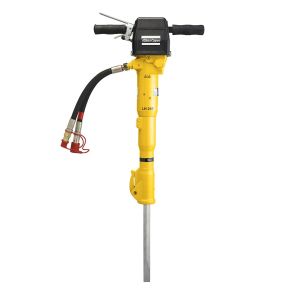

LH 280E Paving Breaker Vibration Reduced

Here's the compact, quiet tool...and it hits harder than any other type of breaker.  That's beccause hydraulics are more efficient than electric, pneumatic or petro-driven tools.  For example, 70 lb hydraulic breaker gives you the same hitting power as a 90 lb pneumatic breaker.  Thanks to their amazing impact energy, hydraulic breakers can be used on concrete, asphalt, and frozen ground.  You can, of course, also use them for trenching, tie-tamping, spike driving, and general demolition.

FEATURES

  • Operator Friendly - Low vibration values, low noise levels and slim design makes this breaker a tool to use for many years to come
  • You've Got Power - High power to weight ratio means you get more done with a smaller breaker
  • Ergonomic - The vibro reduction abilities of this breaker lets you work for more than eight (8) hours without risking injuries

Now you can use your skid steer, backhoe, excavator or tractor to power your Breaker or Post Driver. These tools are designed to work with high back pressure and represent a breakthrough in versatility. These units are able to work on a maximum return/back pressure of 400 PSI (200 PSI for non-high back pressure units). Flow requirement of 8 gpm (Same as non-high back pressure units). Working pressure at approximately 1500 to 1800 PSI with maximum relief valve setting at 2200 PSI. (Same as non-high back pressure units).

*To ensure that the tool is receiving the correct flow of 8 gpm, you will need OFD 30 Oil flow divider part #1801 1642 32 Oil flow Divider (Max flow in: 32 gpm; max. pressure: 3,600 psi). No warrantee for tools damaged by over pressure when run without an oil flow divider.

**For John Deere and Bobcat skidsteer that deliver between 16 and 30GPM. Pressure Reduction Hoses must be used in conjunction with the OFD.

SPECIFICATIONS

Description   LH270  LH 270 BSP  LH 270 HBP LH 280E LH 280E LH 280E BSP LH 280E Spike Driver
Breaker Version   Standard Standard High Back Pressure Vibro-reduced Vibro-reduced Vibro-reduced Hoses not included
Shank Size in   1-1/4 x 6 1-1/4 x 6 1-18 x 6 1-1/4 x 6 1-1/4 x 6-1/4
Weight lbs 58 58 58 72 72 72 72
Length in 30 30 30 30 30 30 30
Oil Flow gpm 7.9 7.9 7.9 7.9 7.9 7.9 7.9
Working Pressure psi 1668-1885 1668-1885 1668-1885 1668-1885 1668-1885 1668-1885 1668-1885
Maximum Back Pressure  psi 508 508 450 508 508 508 508
Impace Rate bpm 1350-1750 1350-1750 1350-1750 1350-1750 1350-1750 1350-1750 1350-1750
Vibration Level 3 Axes (ISO 28927-10)*, 1 lpm m/s2 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Sound Power Level Guarangeed, Lw (200014/EC)* dB(A) 110 110 110 110 110 110 110
Sound Pressure Level (ISO 11203)* Lp, r=1m dB(A) 95 95 95 95 95 95 95
EHTMA Class   C/D C/D C/D C/D C/D C/D C/D
Part No   AC-1801364356 AC-1801364358 AC-1801364699 AC-1801364360 AC-1801364362 AC-1801364363 AC-1801364373


$1,688.00 $750.00

$1,688.00 $750.00

$1,688.00 $750.00

$2,720.00 $2,720.00

$1,782.00 $850.00

$1,779.00 $500.00

CONSUMABLES

Paving Breaker Tools
Post Driver Tools

DOCUMENTATION

Spare Parts List
Safety and Operating Instructions
Hydraulic Power Pac Information
Can I run this hydraulic tool on my power source?

ACCESSORIES & COMMON REPLACEABLE PARTS

Complete Connection Hose 3371801083 $238.59   OFD 5 Oil Flow Divider 1801163319 $1,202.66
Label Kit 3371821097 CALL   OFD 30 Oil Flow Divider AC-1801164232 $1,519.61
Seal Kit 3371820089 $167.37   Twin Extension Hose - 23' AC-3371801087 $1,033.09
Trigger Valve Kit 3371820053 $544.20   Twin Extension Hose - 39' AC-3371801089 $1,307.98
Accumulator Kit 3371814051 $453.52   Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills PB-RD-VDEX-KIT $1,545.00
Filling Device Kit 3371801155 $4,167.33   Dust Control Spray Kit 9753300015 $146.87
Accumulator Repair Kit 3310101845 $133.62
