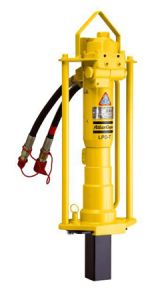

LPD-T & LPD-RV Post Driver
Used for driving road barrier tubes, profiles, signposts, fences and a wide range of anchors. The post drivers provide stable, powerful, high speed driving for a variety of post sizes. When operated with an optional hose-mounted remote-controlled valve, the drivers can be run with both open- or closed-center systems.
Features:
- Built in on/off valve for short pole driving
- Drives up to 96 mm diameter poles
- For driving:
- Road barriers
- Tubes / profiles
- Signposts
- Fences
- Anchors
*To ensure that the tool is receiving the correct flow of 8 gpm, you will need OFD 30 Oil flow divider part #1801 1642 32 Oil flow Divider (Max flow in: 32 gpm; max. pressure: 3,600 psi). No warrantee for tools damaged by over pressure when run without an oil flow divider.
**For John Deere and Bobcat skidsteer that deliver between 16 and 30GPM. Pressure Reduction Hoses must be used in conjunction with the OFD.
SPECIFICATIONS
| Description | LPD-T | LPD-RV | |
| Activation Type | Trigger Lever | Remote Valve | |
| Weight, incl. hoses | lbs | 71 | 73 |
| Service Weight, with square adapter | lbs | 75 | 76 |
| Oil Flow | gpm | 5-8 | 5-8 |
| Working Pressure | psi | 1523-2031 | 1523-2031 |
| Impact Rate at 30 l/min | bpm | 1680 | 1680 |
| Hydraulic Ports | 1⁄2" BSP | 1⁄2" BSP | |
| Vibration Level 3 Axes (ISO 28927-10)*, 20 lpm | m/s² | 12.8 | 12.8 |
| Sound Power Level Guarangeed, Lw (2000/14/EC)* | dB(A) | 115 | 115 |
| Sound Pressure Level (ISO 11203)* Lp, r=1m | dB(A) | 102 | 102 |
| EHTMA Class | C/D | C/D | |
| Part No | AC-1801404002 | AC-1801405002 | |
$2,990.00
|
$2,990.00
|
DOCUMENTATION
| Spare Parts List |
| Safety and Operating Instructions |
| Hydraulic Power Pac Information |
ACCESSORIES & COMMON REPLACEABLE PARTS
| AC-3371806033 | Universal Adapter | $103.34
|
| AC-3371806034 | Round Adapter - 3.8" | $92.70
|
| AC-3371806032 | Square Adapter - 2-1⁄8" | $84.34
|
| 1801163319 | OFD 5 Oil Flow Divider | $1,202.66
|
| AC-1801164232 | OFD 30 Oil Flow Divider | $1,519.61
|
| AC-3371801087 | Twin Extension Hose - 23' | $1,033.09
|
| AC-3371801089 | Twin Extension Hose - 39' | $1,307.98
|
| 3371820090 | Seal Kit | $131.90
|
