We offer a wide range of tools covering a variety of drilling, breaking, cutting and driving applications - everything from light chipping to breaking up frozen ground and demolishing concrete.

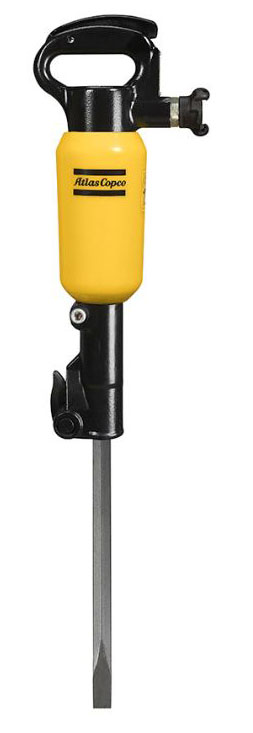

TEX 10 PS KL Pick Hammer
.jpeg)
TEX 10PS KL Pneumatic Hammer - 7/8 x 3-1/4" Hex
The TEX 10 pick hammer is a light, compact all-rounder that you'll really appreciate having around when you need a heavy hitter. With its long piston stroke and relatively low frequency, you can work quickly and effectively in concrete, hard brick and other hard materials.
High Performance/Weight Ratio
Operators like the TEX 10 because it's easy to handle. It weights just 27-1/2 lbs. and at 21-1/2" is comparatively short. Add to this, the high impact energy, and you have a tool that in relation to its size and weight, hits surprisingly hard.
This is especially true if you compare it with an electric tool of the the same weight class: pneumatic hammers are known to deliver significantly more hitting power - sometimes as much as 100% more.
Features
- SOFSTART - Thanks to Sofstart, you keep the chisel point where you want it. The two-step trigger help out with first critical cuts
- HAPS makes it happen - Vibro-reduction means that talented workers can work longer, without reaching harmful vibration levels
- Hand-friendly - The air cushion system has basically removed metal-to-metal contacts. The piston only turns on air cushions at both ends of the cylinder.
- Save your ears - The effective silencer makes work easier. All our products meet the European noise emission directive.
Applications
- Light-duty chipping and scaling work
- Renovation and conversion work
- Demolition
SPECIFICATIONS
| TEX 10PSKL Pneumatic Pick Hammer | AC-8461021132 | $1,145.00
|
| Hammer Type | Standard | |
| Hammer Version | Silenced | |
| Shank Size | in | 7/8 x 3 1/4 |
| Weight | lbs | 27.6 |
| Length | in | 21.5 |
| Air Consumption | cfm | 0.75 |
| Impact Rate | bpm | 1600 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s2 | 15.4 |
| Sound Power Level Guaranteed (2000/14/EC) | dB(A) | 105 |
| Sound Pressure Level (ISO 11203) | dB(A) | 92 |
| Tool Retainer | Kick Latch |
CONSUMABLE TOOLS
| Paving Breaker Tools |
DOCUMENTATION
| Spare Parts List |
| Safety & Operating Instructions |
ACCESSORIES & COMMON REPLACEMENT PARTS
| Service Kit - TEX10 PSKL | 3310102446 | $53.48
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Kick Latch Tool Retainer | 3360994524 | $66.93
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| VAM 01 US Water Separator | 8092011059 | $241.77
|
Whip Check | WCSML | $12.50
|
|
| VAM 05 US Water Separator | 8092011083 | $1,369.32
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| CLG 30 US Lubricator | 8202510240 | $286.26
|
Air King Universal Coupling | AM8 | $10.20
|
|
| Complete Claw Coupling US 3/4" | 9001000506 | $15.27
|
Whip Hose Assy w/ 3.7oz Lubricator | TX7HW | $99.10
|
|
| Whip Hose Assy w/ 11.0oz Lubricator | TX12HW | $134.25
|
||||
| Vacuum Dust Extraction Kit for Paving Breakers & Rock Drills | PB-RD-VDEX-KIT | $1,545.00
|
Dust Control Spray Kit | 9753300015 | $132.58
|
