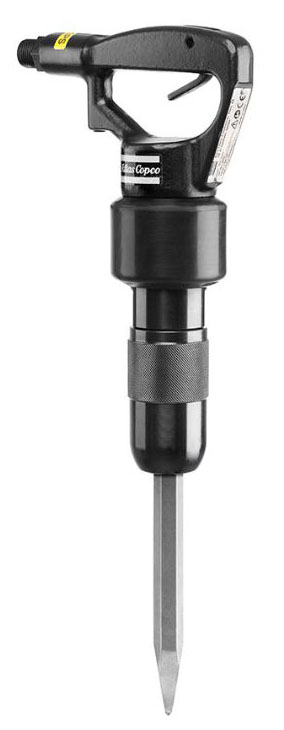

TEX 03 & 05 Chipping Hammers
Screw-on Retainer & Handle with Inside Trigger
The smallest models, such as TEX 03PS and TEX 05P, are light enough for even overhead work and help you get in close behind pillars and under stairs when doing renovation work.
FEATURES
- Sofstart - Thanks to Sofstart, you keep the chisel point where you want it. The two-step trigger helps you with first critical cuts
- HAPS makes it happen - Vibro-reduction means that talented workers can work longer, without reaching harmful vibration levels
- Get a grip - A screw cap retainer provide a comfortable grip
SPECIFICATIONS
| Description | TEX 03PS | TEX 05P | TEX 05P | TEX 05PH | TEX 05PE | |
| Hammer Type | Standard | Standard | Standard | Standard | Vibro-Reduced | |
| Hammer Version | Silenced | Standard | Standard | Standard | Silenced | |
| Weight | lbs | 8.8 | 12 | 12 | 12 | 14.3 |
| Length | in | 11.8 | 15 | 15 | 15 | 17.7 |
| Air Consumption | cfm | 15 | 20 | 20 | 20 | 20 |
| Impact Rate | bpm | 69 | 2760 | 2760 | 2760 | 2640 |
| Vibration Level 3 Axes (ISO 28927-10) | m/s2 | 16.5 | 13 | 13 | 13 | 2.4 |
| Sound Power Level Guaranteed (2000/14/EC) | dB(A) | 104 | 104 | 104 | 104 | 105 |
| Sound Presure Level (ISO 11203) | dB(A) | 89 | 92 | 92 | 92 | 87 |
| Tool Retainer | Cap | Cap | Cap | Cap | Cap | |
| Chuck Size | in | 3/4 x 2 | 3/4 x 2 | 11/16 x 2-3/8 | .580 Hex | 3/4 x 2 |
| Part No | AC-8461020801 | AC-8461021900 | AC-8461021903 | AC-8461021901 | AC-8461021910 | |
$605.00
|
$625.00
|
$500.00 $447.00 |
$625.00
|
$755.00
|
** 1/2" BSP Male thread out of handle
CONSUMABLE TOOLS
| Chipping Hammer Tools |
DOCUMENTATION
| Spare Parts List - TEX 03PS |
| Spare Parts List - TEX 05P |
| Spare Parts List - TEX 05PE |
| Safety & Operating Instructions |
ACCESSORIES & COMMON REPLACEABLE PARTS
| TEX 03PS Service Kit | 3310102438 | $66.39
|
Rock Drill Oil - 1 Gal | RDO1G | $42.00
|
|
| Cap Retainer | 3310118200 | $50.83
|
Rock Drill Oil - 5 Gal | RDO5G | $122.00
|
|
| Retainer Lock Ring | 0663213300 | CALL | Line Oiler | LO-10PF | $81.00
|
|
| Repair Kit | 3310000090 | CALL | Whip Check | WCSML | $12.50
|
|
| VAM 01 US Water Separator | 8092011059 | $267.83
|
Contractors Air Hose - 50' | AIRH-19-50R | $124.00
|
|
| Complete Claw Coupling - US | 9000030500 | $38.07
|
Hose Whip Assy w/ 1.4oz Lubricator | TX2HW | $86.65
|
|
| Hose Whip Assy w/ 3.7oz Lubricator | TX5HW | $99.10
|
||||
| Vacuum Dust Extract Kit | CH-VDEX-KIT | $1,371.43
|
Hose Whip - 10' x 1/2" red hose, 3/8" NPT BENT swivel | 9246020363 | $122.89
|
|
| Dust Control Spray Kit | 9753300015 | $146.87
|
Hose Whip - 6' x 1/2" heavy duty black hose, 3/8" male universal STRAIGHT conection | 18839 | $77.92
|
