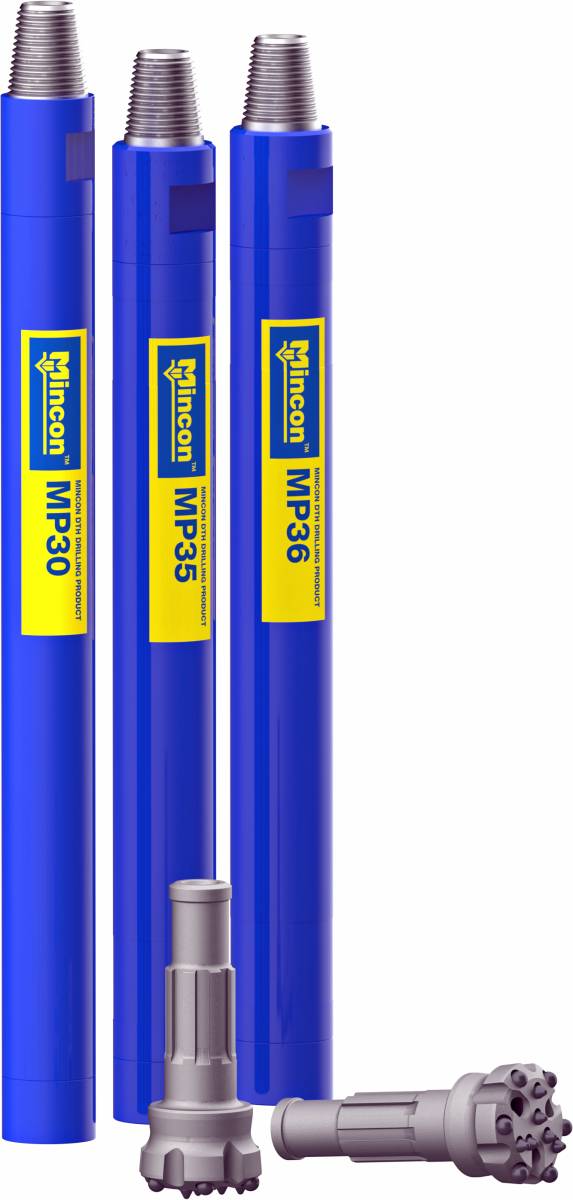

3" Series Hammers


The MP-series is our comprehensive range of next generation of DH hammers, supporting dril bit sizes between 3.4" (85mm) and 60" (1524mm).

The MP-series offers unparalleled versatility and compatibility, with supports for industry-standard shanks.  Additionaly, MP-series hammers are available in variants that support drill bits without a foot valve (also known as tubeless drill bits).   All models in the next-generation MP-series of DTH hammers are manufactured at state-of-the art facilities in Ireland and Finland, ensuring consistenly high-quality parts and material properties, for supreme reliability, longevity and efficiency.

Applications include geothermal, shallow oil and gas, blast hole, water well, environmental, exploation and construction.

** FREE ground shipping to non-dealers within the Continental United States

Design Highlights:

  • Patented innovation to ensure maximum energy transfer
  • Simplified design  for easier servicing and higher reliability
  • Valveless, high-frequency design for smoother operation
  • Hardened wear sleeve for wear resistance even in abrasive conditions
  • Multi-start threads on back head and chuck for easy coupling and uncoupling
  • Unique internal mount system eliminates the need for wear shims and special assembly tools
  • Specialized heat-treatment hardening for critical components for maximum longevity

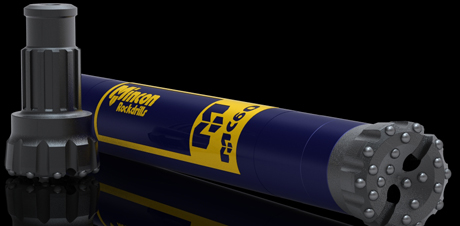

Mincon Hammers

Description Length (in) Weight (lbs) Back Head Thread Part No. Price
Mincon MP35-MD 37.1 54.1 2-3/8" API Reg Pin MB301AS03 $4,090.00
Mincon MP30-DH 33.8 49.2 2-3/8" API Reg Pin MS301AS02 $3,605.00
Mincon MP35-DH 54.1 31.7 2-3/8" API Reg Pin MB301AS02 $4,090.00
Model Part No. Price
Mincon MP30-DH Hammer MS301AS02 $3,605.00

*** FREE shipping within continental United States for non-dealers

Consumables
Bit Shank Type Atlas Copco DHD 3.5
Specifications
Outside Diameter (in) 3.1
Minimum Bit Size (in) 3.4
Spanner Flat Size (in) 2.5
Hammer Length (in) 33.8
Hammer Weight (lbs) 49.2
Drill Bit Weight (lbs) 11
Piston Weight (lbs) 9.1
Back Head Stand Off (in) 0.03
Make up Torque ft lbf 2250-3000
Wear Sleeve Reverse Limit   Non-Reversible
Wear Sleeve Discard Limit (in) 2.835
Back Head Thread   2-3/8" API Reg Pin
Accessories
O Ring Kit MB325OK01 $16.00

Model Part No. Price
Mincon MP35-MD Hammer MB301AS03 $4,090.00

*** FREE shipping within continental United States for non-dealers

Consumables

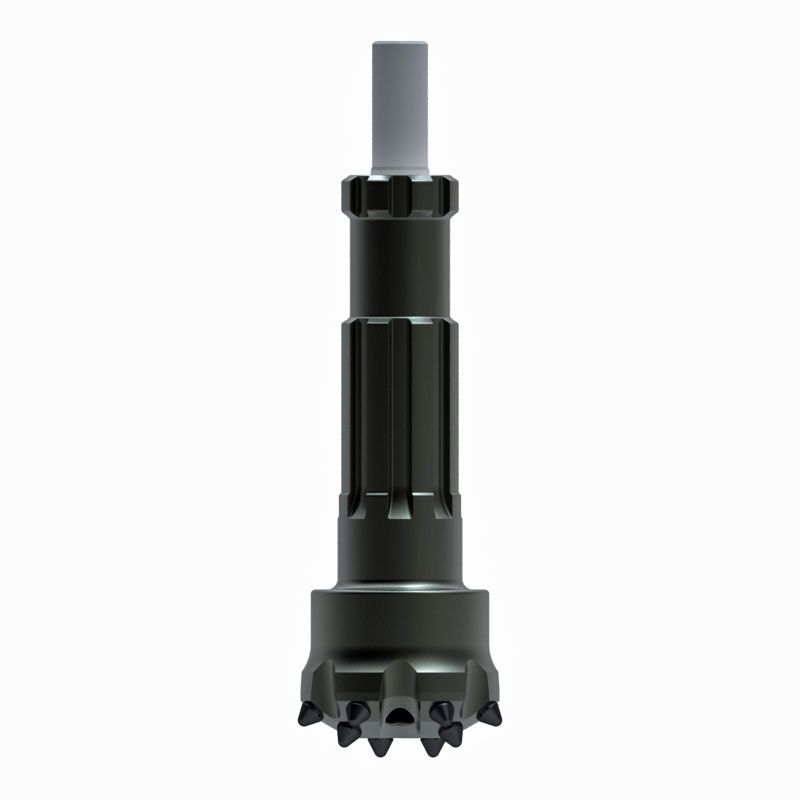

Bit Shank Type Mincon MD3.5
Specifications
Shank Support   MD3.5
Foot Valve   Yes
Standard Back Head Thread/Type in 2 3/8 API
Hammer OD in 3.4
Hammer Length (shoulder to shoulder) in 31.7
Minimum Bit Size in 3.8
Maximum Bit Size in 4.2
Hammer Weight lbs 54.1
Piston Weight lbs 8.6
Accessories
O Ring Kit MB325OK01 $16.00


Model Part No. Price
Mincon MP35-DH Hammer MB301AS02 $4,090.00

*** FREE shipping within continental United States for non-dealers

Consumables
Bit Shank Type Atlas Copco DHD3.5
Specifications
Shank Support   DHD 3.5
Foot Valve   Yes
Standard Back Head Thread/Type in 2 3/8 API
Hammer OD in 3.4
Hammer Length (shoulder to shoulder) in 31.7
Minimum Bit Size in 3.8
Maximum Bit Size in 4.2
Hammer Weight lbs 54.1
Piston Weight lbs 8.6
Accessories
O Ring Kit MB325OK01 $16.00
