Rock Drills

Need help choosing a Rock Drill? Select the "Choosing a Rock Drill" tab.

Chicago Pneumatic Red Hawk Gas Paving Breaker Chicago Pneumatic logo

Red Hawk Gas Breaker:

  • With a light weight of 55 pounds, the breaker has a full speed impact rate of 1,440 blows per minute (bpm)
  • Same power-to-weight ratio as pneumatic or hydraulic breakers without any power source or hoses - the Red Hawk delivers a powerful breaking force
  • Ideal for general construction, demolition and road building applications
  • Wide range of tools - you can use the Red Hawk for everything from cutting and breaking to driving and compacting.

See Red Hawk Gas Jackhammer

Choosing a Rock Drill

First – it is important to understand that a percussion rock drill does not cut through rock. Each blow shatters the rock in front of the bit - the steel and bit then rotates slightly and it shatters new rock while air is blown down the center of the drill steel clearing the bit face and blowing the chips up and out of the hole. This happens several thousand times per minute in some cases and is much more effective than electric drills or core drills in rock and concrete.

There are many things to consider when choosing a pneumatic rock drill, as drills come in several weight classes and sizes. The smallest pneumatic hand drill weighs in around 8 pounds while the largest sinker drills can weigh in near 70 pounds.

The first thing you want to determine is the hole diameter and depth you want to reach. Make sure your air compressor is capable of providing the amount of air (CFM) you require. The baby drills can effectively drill ½” to 1-18” diameter holes 18” deep, and only consumes 20 CFM.

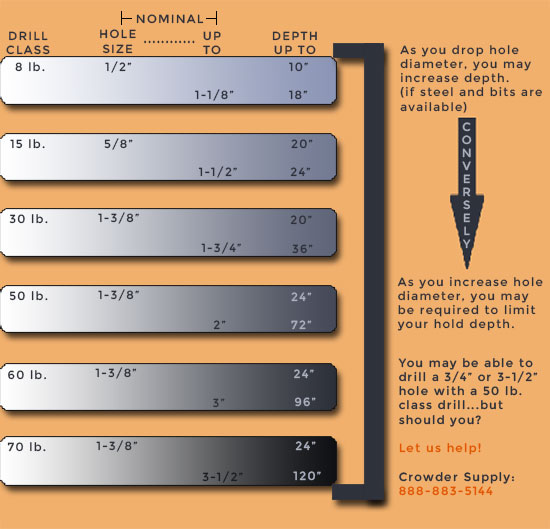

As you step up in drill class you can step up in hole size and depth. In some cases you can drill holes even smaller or larger than the drills recommended limitations (see chart) but we would prefer to talk with you before making these recommendations. Crowder Supply 888-883-5144.

Hardness of rock or concrete and the drilling conditions can vary widely and you may require a smaller or larger drill for your conditions. Few would disagree that it is always better to have more power than what you need – than to not have enough. There is always a tradeoff. Buying a light drill will be easier to handle but you will have to handle it for a longer period of time.

Need help choosing Drill Steel and Rock Drill Bits? Choosing Drill Steel and Rock Drill Bits
